PLBH08M300A1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> PLBH08M300A1

Preview

PLBH08M300A1: DescriptionRectangular Power Connector, 8 Contact(s), Male, Solder Terminal; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerPositronic Industries

Download Datasheet Parametric Compare View All

PLBH08M300A1 Overview

Rectangular Power Connector, 8 Contact(s), Male, Solder Terminal

PLBH08M300A1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Positronic Industries
Reach Compliance Code	unknow
Other features	POLARIZED
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL
Contact completed and terminated	GOLD FLASH OVER NICKEL
Contact point gender	MALE
Contact material	BERYLLIUM COPPER/BRASS
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	PLB
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYESTER
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

Positronic Industries

connectpositronic.com

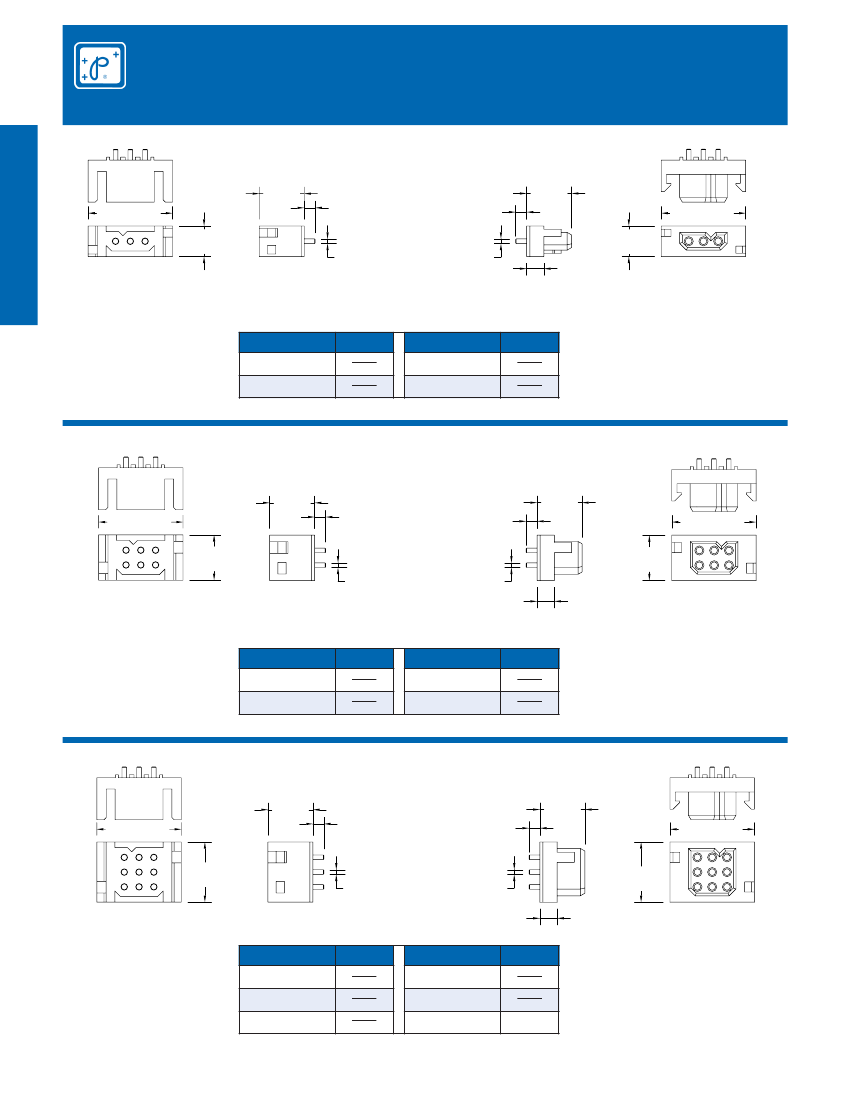

STRAIGHT SOLDER PRINTED

BOARD CONNECTORS

PLA STRAIGHT PRINTED BOARD MOUNT CONNECTORS

CODE 3, 0.146 [3.71] CONTACT EXTENSION

P

ower

C

onnection

S

ystems

PCS SERIES

11

MALE

A±0.020 [0.51]

0.408

[10.36]

0.600

[15.24]

0.146 [3.71]

0.600

[15.24]

FEMALE

A±0.020 [0.51]

0.408

[10.36]

ø0.062 [1.57]

0.230 [5.84]

Typical part number:

PLA03M300A1

PLAH03M300A1

*Asterisk determines

gender of connector,

M for male,

F for female.

Typical part number:

PLA03F300A1

PLAH03F300A1

PART NUMBER

PLA03*300A1

PLAH03*300A1

PLA04*300A1

PLAH04*300A1

A

1.126

[28.60]

1.324

[33.63]

PART NUMBER

PLA06*300A1

PLAH06*300A1

PLA08*300A1

PLAH08*300A1

A

1.718

[43.64]

2.112

[53.64]

Plating- See ordering information

for contact plating options.

For connection systems 1, 4 and 6.

PLB STRAIGHT PRINTED BOARD MOUNT CONNECTORS

CODE 3, 0.146 [3.71] CONTACT EXTENSION

MALE

A±0.020 [0.51]

0.606

[15.39]

ø0.062 [1.57]

0.230 [5.84]

0.600

[15.24]

0.146 [3.71]

0.600

[15.24]

FEMALE

A±0.020 [0.51]

0.606

[15.39]

Typical part number:

PLB06M300A1

PLBH06M300A1

*Asterisk determines

gender of connector,

M for male,

F for female.

Typical part number:

PLB06F300A1

PLAH06F300AI

PART NUMBER

PLB06*300A1

PLBH06*300A1

PLB08*300A1

PLBH08*300A1

A

1.126

[28.60]

1.324

[33.63]

PART NUMBER

PLB12*300A1

PLBH12*300A1

PLB16*300A1

PLBH16*300A1

A

1.718

[43.64]

2.112

[53.64]

Plating- See ordering information

for contact plating options.

For connection systems 1, 4 and 6.

PLC STRAIGHT PRINTED BOARD MOUNT CONNECTORS

CODE 3, 0.146 [3.71] CONTACT EXTENSION

MALE

A±0.020 [0.51]

0.600

[15.24]

0.146 [3.71]

0.600

[15.24]

FEMALE

A±0.020 [0.51]

0.802

[20.37]

ø0.062 [1.57]

0.230 [5.84]

0.802

[20.37]

Typical part number:

PLC09M300A1

PLCH09M300A1

PART NUMBER

*Asterisk determines

gender of connector,

M for male,

F for female.

PLC09*300A1

PLCH09*300A1

PLC12*300A1

PLCH12*300A1

PLC18*300A1

PLCH18*300A1

Typical part number:

PLC09F300A1

PLCH09F300A1

A

1.126

[28.60]

1.324

[33.63]

1.718

[43.64]

PART NUMBER

PLC24*300A1

PLCH24*300A1

PLC30*300A1

PLCH30*300A1

A

2.112

[53.64]

2.506

[63.65]

Plating- See ordering information

for contact plating options.

For connection systems 1, 4 and 6.

DIMENSIONS ARE IN INCHES [MILLIMETERS].

ALL DIMENSIONS ARE SUBJECT TO CHANGE.

PLBH08M300A1 Related Products

	PLBH08M300A1	PLA03F300A1	PLB08F300A1	PLB12F300A1	PLAH03M300A1	PLCH09M300A1
Description	Rectangular Power Connector, 8 Contact(s), Male, Solder Terminal	Rectangular Power Connector, 3 Contact(s), Female, Solder Terminal, Plug	Rectangular Power Connector, 8 Contact(s), Female, Solder Terminal, Plug	Rectangular Power Connector, 12 Contact(s), Female, Solder Terminal, Plug	Rectangular Power Connector, 3 Contact(s), Male, Solder Terminal	Rectangular Power Connector, 9 Contact(s), Male, Solder Terminal
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Positronic Industries	Positronic Industries	Positronic Industries	Positronic Industries	Positronic Industries	Positronic Industries
Reach Compliance Code	unknow	unknown	unknown	unknown	unknow	unknow
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL
Contact completed and terminated	GOLD FLASH OVER NICKEL	Gold Flash (Au) - with Nickel (Ni) barrier	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL	GOLD FLASH OVER NICKEL
Contact point gender	MALE	FEMALE	FEMALE	FEMALE	MALE	MALE
Contact material	BERYLLIUM COPPER/BRASS	BERYLLIUM COPPER/BRASS	BERYLLIUM COPPER/BRASS	BERYLLIUM COPPER/BRASS	BERYLLIUM COPPER/BRASS	BERYLLIUM COPPER/BRASS
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	3	8	12	3	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
JESD-609 code	e4	-	e4	e4	e4	e4
Manufacturer's serial number	PLB	-	-	PLB	PLA	PLC
