Part Number

Search

3179-171205

Description
D Type Connector, 15 Contact(s), Female, Solder Terminal, Plug
CategoryThe connector    The connector
File Size75KB,1 Pages
ManufacturerWieson Technologies Co., Ltd.

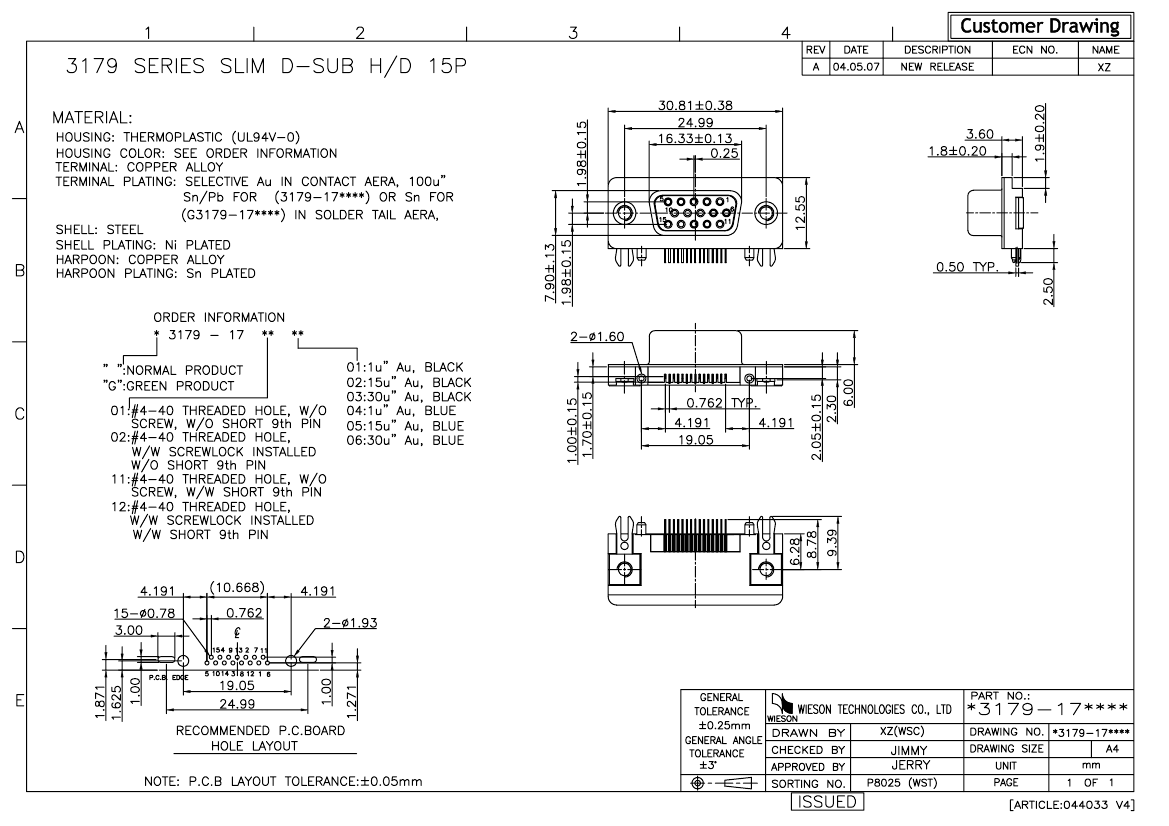

Download Datasheet Parametric Compare View All

3179-171205 Overview

D Type Connector, 15 Contact(s), Female, Solder Terminal, Plug

3179-171205 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerWieson Technologies Co., Ltd.
Reach Compliance Codeunknow
body width0.494 inch
subject depth0.142 inch
body length1.213 inch
Body/casing typePLUG
Contact to complete cooperationAU
Contact completed and terminatedTin/Lead (Sn/Pb)
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeSTAGGERED
Contact styleRND PIN-SKT
Insulator colorBLUE
insulator materialTHERMOPLASTIC
JESD-609 codee0
Manufacturer's serial number3179
Match contact row spacing0.078 inch
Installation option 2THREADED
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded3
PCB contact patternSTAGGERED
PCB contact row spacing.9906 mm
Plating thickness15u inch
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceNICKEL
Shell materialSTEEL
Terminal length0.098 inch
Terminal pitch1.524 mm
Termination typeSOLDER
Total number of contacts15

3179-171205 Related Products

3179-171205 G3179-170206 G3179-171206 3179-171206 3179-170203 G3179-171205 G3179-170203 3179-170102 G3179-170102 3179-170106
Description D Type Connector, 15 Contact(s), Female, Solder Terminal, Plug D Type Connector, 15 Contact(s), Female, Solder Terminal, Plug D Type Connector, 15 Contact(s), Female, Solder Terminal, Plug D Type Connector, 15 Contact(s), Female, Solder Terminal, Plug D Type Connector, 15 Contact(s), Female, Solder Terminal, Plug D Type Connector, 15 Contact(s), Female, Solder Terminal, Plug D Type Connector, 15 Contact(s), Female, Solder Terminal, Plug D Type Connector, 15 Contact(s), Female, Solder Terminal, Plug D Type Connector, 15 Contact(s), Female, Solder Terminal, Plug D Type Connector, 15 Contact(s), Female, Solder Terminal, Plug
Is it Rohs certified? incompatible conform to conform to incompatible incompatible conform to conform to incompatible conform to incompatible
Reach Compliance Code unknow unknow unknow unknow unknow unknow unknow unknow unknow unknow
body width 0.494 inch 0.494 inch 0.494 inch 0.494 inch 0.494 inch 0.494 inch 0.494 inch 0.494 inch 0.494 inch 0.494 inch
subject depth 0.142 inch 0.142 inch 0.142 inch 0.142 inch 0.142 inch 0.142 inch 0.142 inch 0.142 inch 0.142 inch 0.142 inch
body length 1.213 inch 1.213 inch 1.213 inch 1.213 inch 1.213 inch 1.213 inch 1.213 inch 1.213 inch 1.213 inch 1.213 inch
Body/casing type PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG
Contact to complete cooperation AU AU AU AU AU AU AU AU AU AU
Contact completed and terminated Tin/Lead (Sn/Pb) Tin (Sn) Tin (Sn) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin (Sn) Tin (Sn) Tin/Lead (Sn/Pb) Tin (Sn) Tin/Lead (Sn/Pb)
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY
contact mode STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED
Contact style RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT RND PIN-SKT
Insulator color BLUE BLUE BLUE BLUE BLACK BLUE BLACK BLACK BLACK BLUE
insulator material THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC THERMOPLASTIC
JESD-609 code e0 e3 e3 e0 e0 e3 e3 e0 e3 e0
Manufacturer's serial number 3179 3179 3179 3179 3179 3179 3179 3179 3179 3179
Match contact row spacing 0.078 inch 0.078 inch 0.078 inch 0.078 inch 0.078 inch 0.078 inch 0.078 inch 0.078 inch 0.078 inch 0.078 inch
Installation option 2 THREADED THREADED THREADED THREADED THREADED THREADED THREADED THREADED THREADED THREADED
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
PCB row number 2 2 2 2 2 2 2 2 2 2
Number of rows loaded 3 3 3 3 3 3 3 3 3 3
PCB contact pattern STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED STAGGERED
PCB contact row spacing .9906 mm .9906 mm .9906 mm .9906 mm .9906 mm .9906 mm .9906 mm .9906 mm .9906 mm .9906 mm
Plating thickness 15u inch 30u inch 30u inch 30u inch 30u inch 15u inch 30u inch 15u inch 15u inch 30u inch
Guideline UL UL UL UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Shell surface NICKEL NICKEL NICKEL NICKEL NICKEL NICKEL NICKEL NICKEL NICKEL NICKEL
Shell material STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL STEEL
Terminal length 0.098 inch 0.098 inch 0.098 inch 0.098 inch 0.098 inch 0.098 inch 0.098 inch 0.098 inch 0.098 inch 0.098 inch
Terminal pitch 1.524 mm 1.524 mm 1.524 mm 1.524 mm 1.524 mm 1.524 mm 1.524 mm 1.524 mm 1.524 mm 1.524 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 15 15 15 15 15 15 15 15 15 15
Maker Wieson Technologies Co., Ltd. - - - Wieson Technologies Co., Ltd. Wieson Technologies Co., Ltd. Wieson Technologies Co., Ltd. Wieson Technologies Co., Ltd. Wieson Technologies Co., Ltd. Wieson Technologies Co., Ltd.
