BA6195FP-Y

Description
1-channel BTL driver for CD players
CategoryOther integrated circuit (IC)    Consumption circuit
File Size151KB,12 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

BA6195FP-Y Overview

1-channel BTL driver for CD players

BA6195FP-Y Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Parts packaging codeSOIC
package instructionHSSOP,
Contacts25
Reach Compliance Codecompli
Is SamacsysN
Commercial integrated circuit typesCONSUMER CIRCUIT
JESD-30 codeR-PDSO-G27
JESD-609 codee3/e2
length13.6 mm
Number of terminals27
Maximum operating temperature85 °C
Minimum operating temperature-35 °C
Package body materialPLASTIC/EPOXY
encapsulated codeHSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Maximum seat height2.11 mm
Maximum slew rate9 mA
Maximum supply voltage (Vsup)13.5 V
Minimum supply voltage (Vsup)4.5 V
surface mountYES
Temperature levelOTHER
Terminal surfaceTIN/TIN COPPER
Terminal formGULL WING
Terminal pitch0.8 mm
Terminal locationDUAL
Maximum time at peak reflow temperature10
width5.4 mm
Base Number Matches1
Optical disc ICs
1-channel BTL driver for CD players
BA6195FP-Y / BA6195
The BA6195FP-Y and BA6195 are ICs for CD players and have one internal BTL power driver circuit and one operational
amplifier circuit with a wide output dynamic range. The wide dynamic range and internal operational amplifier make these
ICs ideal for low voltage drive. The driver’s internal level shift circuit reduces the number of attached components need-
ed.
FApplications
CD players, CD-ROM drives and other optical disc devices
FFeatures
1) HSOP 25-pin power package allows for miniaturiza-
tion of applications (BA6195FP-Y).
2) Wide dynamic range. (typically 5.4V when V
CC
= 8V,
R
L
= 8Ω)
3) Internal thermal shutdown circuit with hysteresis.
4) Internal level shift circuit, for a minimal number of at-
tached components.
5) Internal operational amplifier with wide dynamic
range.
FAbsolute
maximum ratings (Ta = 25_C)
FRecommended

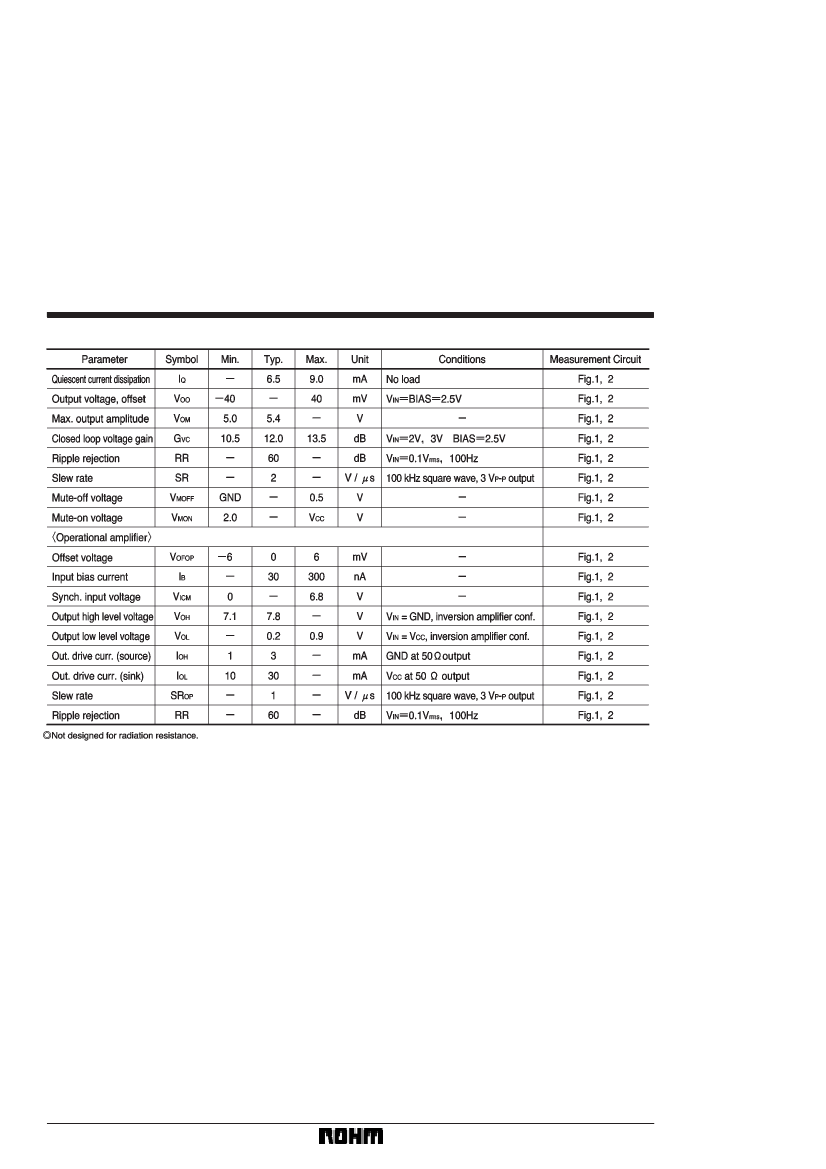

operating conditions (Ta = 25_C)

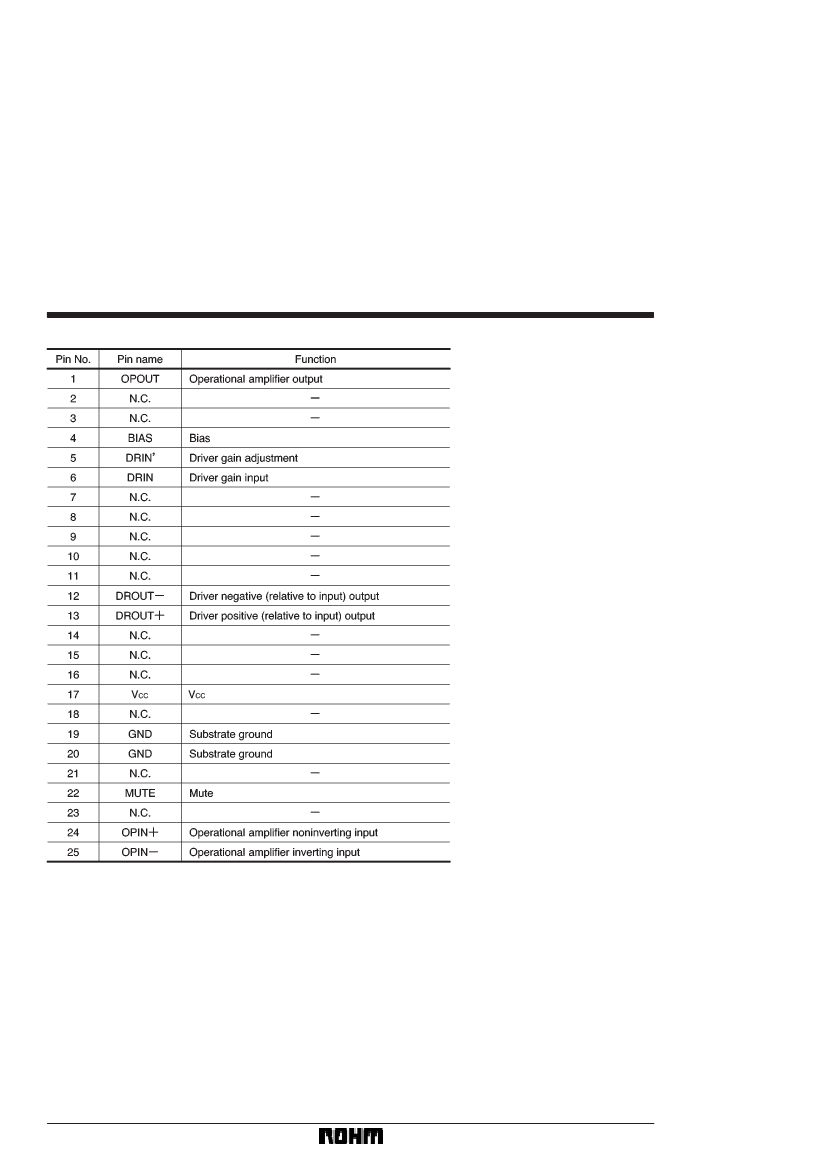

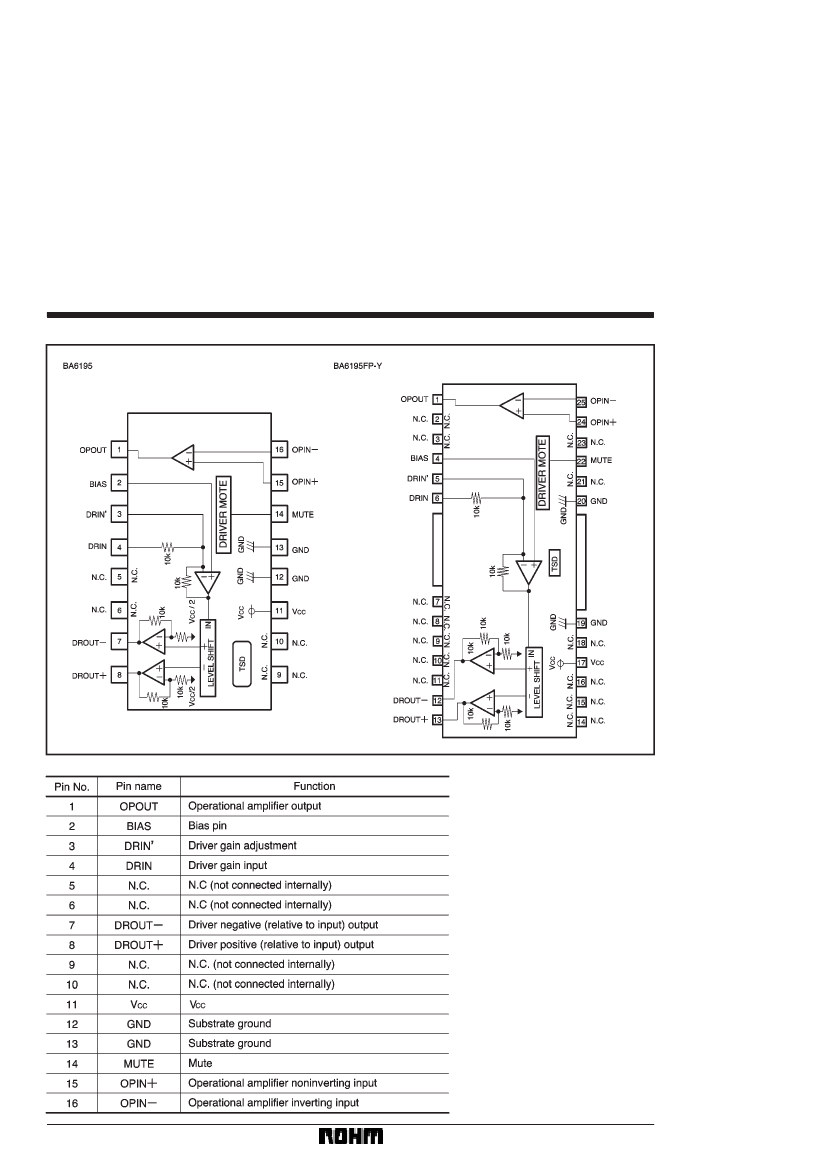

185

BA6195FP-Y Related Products

BA6195FP-Y BA6195
Description 1-channel BTL driver for CD players 1-channel BTL driver for CD players
Is it lead-free? Lead free Lead free
Is it Rohs certified? conform to conform to
Parts packaging code SOIC DIP
package instruction HSSOP, DIP-16
Contacts 25 16
Reach Compliance Code compli compli
Commercial integrated circuit types CONSUMER CIRCUIT CONSUMER CIRCUIT
JESD-30 code R-PDSO-G27 R-PDIP-T16
JESD-609 code e3/e2 e3/e2
length 13.6 mm 19.4 mm
Number of terminals 27 16
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -35 °C -35 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code HSSOP DIP
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH IN-LINE
Peak Reflow Temperature (Celsius) 260 260
Certification status Not Qualified Not Qualified
Maximum seat height 2.11 mm 4.55 mm
Maximum slew rate 9 mA 9 mA
Maximum supply voltage (Vsup) 13.5 V 13.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V
surface mount YES NO
Temperature level OTHER OTHER
Terminal surface TIN/TIN COPPER TIN/TIN COPPER
Terminal form GULL WING THROUGH-HOLE
Terminal pitch 0.8 mm 2.54 mm
Terminal location DUAL DUAL
Maximum time at peak reflow temperature 10 10
width 5.4 mm 7.62 mm
