BA6208 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> The signal circuit> BA6208

BA6208: DescriptionReversible motor driver; CategoryOther integrated circuit (IC) The signal circuit; File Size38KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA6208 Overview

Reversible motor driver

BA6208 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SIP
package instruction	SIP-9
Contacts	9
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PSIP-T9
JESD-609 code	e3/e2
length	21.8 mm
Number of functions	1
Number of terminals	9
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
Maximum output current	0.5 A
Package body material	PLASTIC/EPOXY
encapsulated code	SIP
Encapsulate equivalent code	SIP10,.06
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
power supply	9 V
Certification status	Not Qualified
Maximum seat height	7.2 mm
Maximum supply voltage (Vsup)	15 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	9 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	TIN/TIN COPPER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
width	2.8 mm

Preview

Download Datasheet

View All

Motor driver ICs

Reversible motor driver

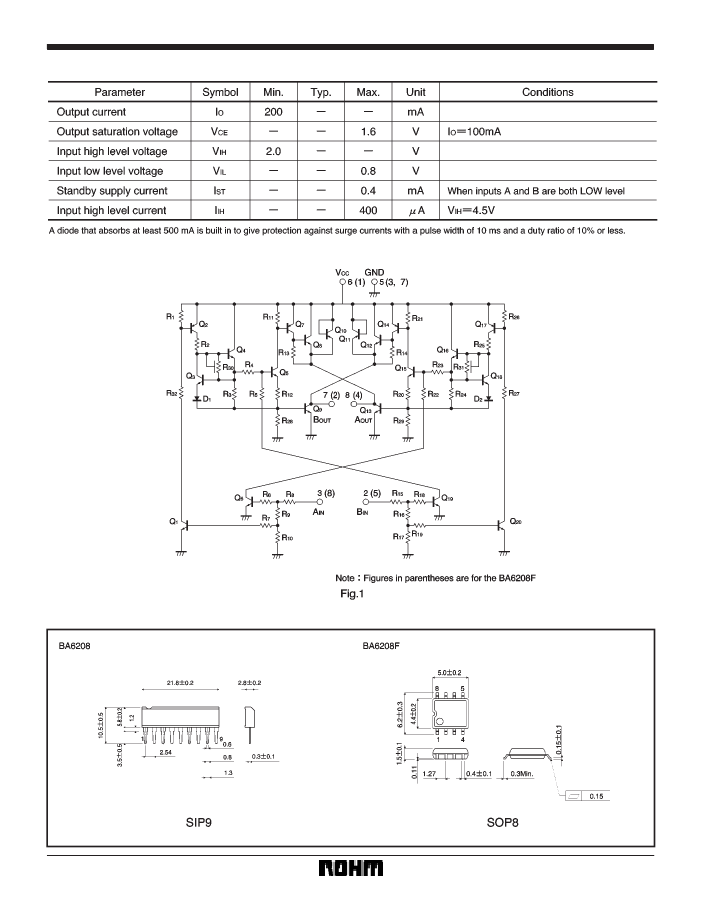

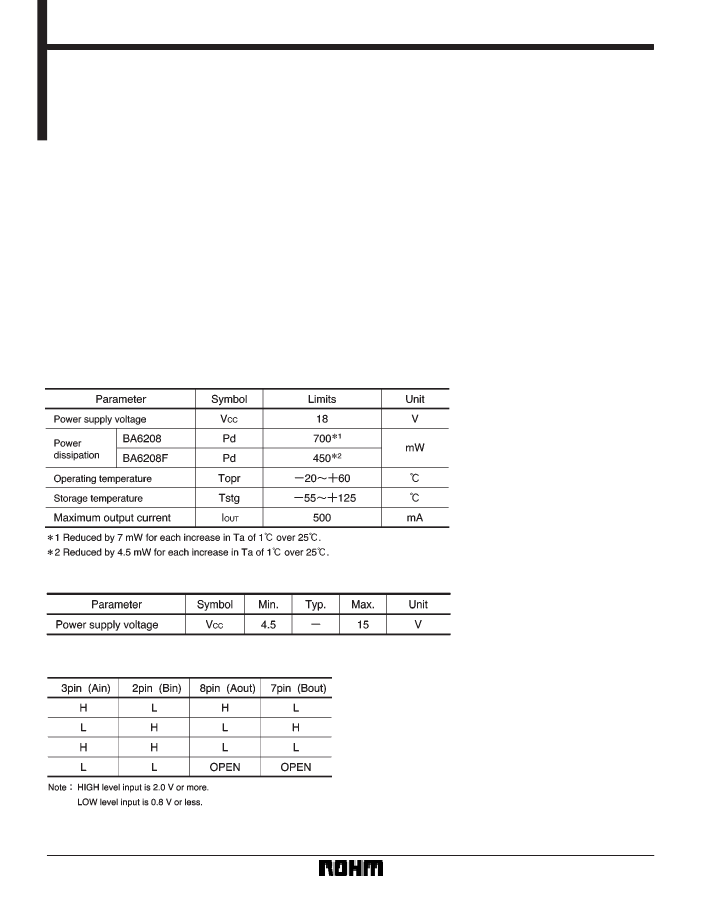

BA6208 / BA6208F

The BA6208 and BA6208F are monolithic ICs used for driving reversible motors. They allow control of reversible motors

in cassette players and other electrical equipment by using TTL-level logic signals.

The ICs contain a logic section, which controls forward and reverse rotations as well as forced stop, and an output power

section, which can supply an output current of up to 100mA (typical) according to the logic control.

FFeatures

1) Motor driving power transistors are built in (100mA

typically).

2) Brake is applied when stopping the motor (when in-

puts A and B are both HIGH level).

3) Built-in diode to absorb surge currents.

FAbsolute

maximum ratings (Ta = 25_C)

4) Very low standby circuit current when inputs A and B

are both LOW level.

5) Wide range of operating supply voltage (4.5

15.0V).

6) Direct control with the TTL logic.

FRecommended

operating conditions (Ta = 25_C)

FInput

truth table

384

BA6208 Related Products

	BA6208	BA6208F
Description	Reversible motor driver	Reversible motor driver
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SIP	SOIC
package instruction	SIP-9	LSOP, SSOP8,.25
Contacts	9	8
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PSIP-T9	R-PDSO-G8
JESD-609 code	e3/e2	e3/e2
length	21.8 mm	5 mm
Number of functions	1	1
Number of terminals	9	8
Maximum operating temperature	60 °C	60 °C
Minimum operating temperature	-20 °C	-20 °C
Maximum output current	0.5 A	0.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SIP	LSOP
Encapsulate equivalent code	SIP10,.06	SSOP8,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	260	260
power supply	9 V	9 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	7.2 mm	1.6 mm
Maximum supply voltage (Vsup)	15 V	15 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	9 V	9 V
surface mount	NO	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	TIN/TIN COPPER	TIN/TIN COPPER
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	SINGLE	DUAL
Maximum time at peak reflow temperature	10	10
width	2.8 mm	4.4 mm
