KOA SPEER ELECTRONICS, INC.
SS-192 R4
AHA 12/19/03
Capacitor/Resistor Chip Networks
Type CR2A10Y
1. Scope
This specification shall be applied to CR chip networks CR2A10Y
produced by KOA Corporation.
CERTIFIED
2. Related Standard
JIS C 5102 (1994)
JIS C 5202 (1994)
JIS C 6429 (1991)
JIS C 0806 (1990)
Test method of fixed capacitors for use in electronic equipment.
Test method of fixed resistors for use in electronic equipment.
Fixed Multilayer Ceramic Chip capacitors for use in electronic equipment.
Packaging of electronic components on continuous tapes
(surface mounting devices).
3. Dimensions
3-1 Dimensions
C
C
411
B
P
D
L
A
D
W
T
D
D
A
unit: inches (mm)
L
W
C
D
T
.157 ± .008 .083 ± .008 .012 ± .008 .016 ± .006 .028 ± .004
(4.0 ± 0.2) (2.1 ± 0.2) (0.3 ± 0.2) (0.4 ± 0.15) (0.7 ± 0.1)
A
.02
(0.5 Ref.)
B
.006
(0.15 Ref.)
P
.031
(0.8 Ref.)
PAGE 1 OF 8
Bolivar Drive
I
P.O. Box 547
I
Bradford, PA 16701
I
USA
I
814-362-5536
I
Fax 814-362-8883
I
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-192 R4

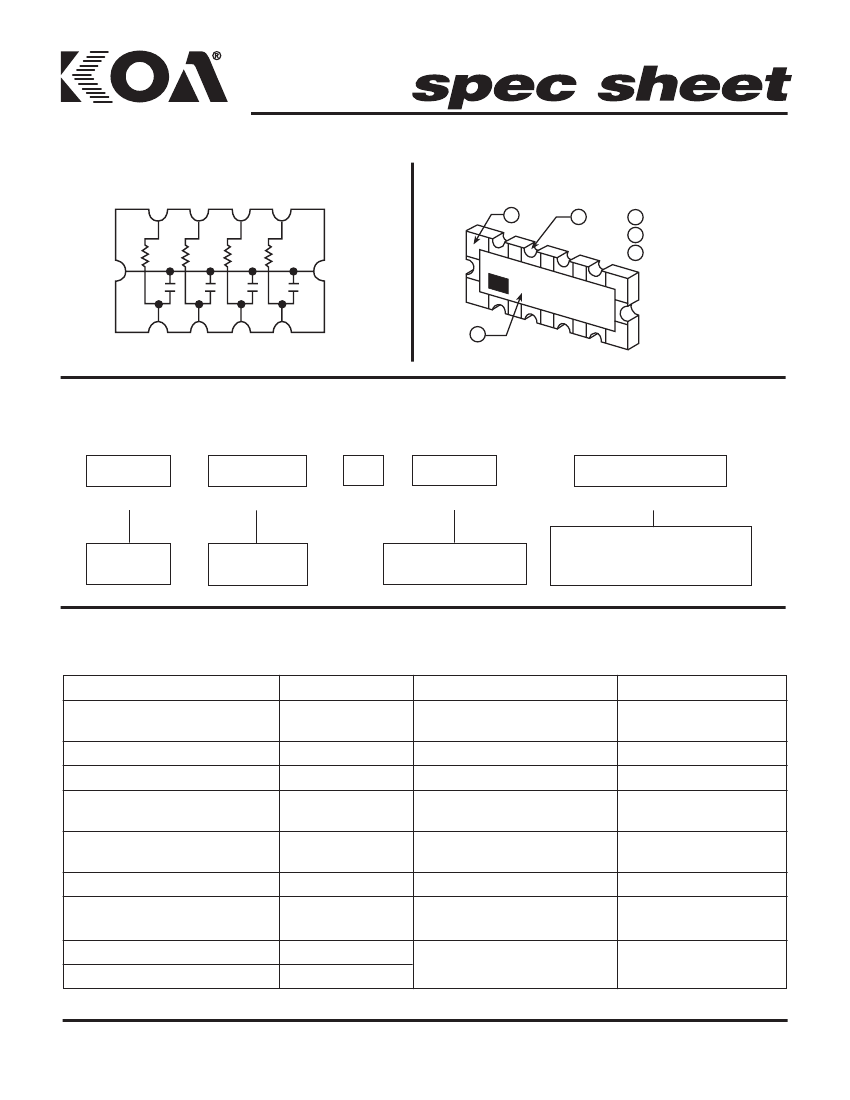

3-2. Circuit Schematic
10
9
8
7
3-3. Structure
1
3
1 Alumina Ceramic
2 Passivation
3 Ni & Solder Plating
1
6
411
2
3
4
5
2
4. Type Designation
The type designation shall be the following form:
CR
Style
2A10
Chip Size
Y
Circuit
TE
Packaging
xxxM/ xxxJ
Capacitance Tolerance/Resistance Tolerance
3 Digit Numbers +1 for
Resistance Tolerance for each
Ex: 270M/510J
CR Chip
Networks
.157" x .083"
4.0 x 2.1 mm
TE: Embossed Taping
No Designation: Bulk
5. Rating
Operating environment -25°C ~ +85°C
Capacitor Item
Capacitance Measuring
Condition
Voltage Rating
Capacitance Tolerance
Temperature Coefficient
Dissipation Factor
Insulation Resistance
Dielectric Withstanding Voltage
Operating Temperature Range
Capacitance Range
Capacitor Rating
1 KHz ± 10%
(1 Vrms ± 0.2V)
25V (DC)
± 20%/± 30%
+20%/-55%
3% maximum
Resistor Item
Power Rating
Maximum Working Voltage
Maximum Overload Voltage
Temperature Coefficient
(-25°C ~ +85°C)
Resistor Tolerance
(at 1 KHz 1.0 Vrms)
Operating Temperature Range
Resistor Rating
0.063 W
7.9 V
15.8 V
± 200 ppm/°C
± 5%
+ 70°C
-25°C to +85°C
22Ω, 47Ω,100Ω,
220Ω, 470Ω, 1KΩ, 47KΩ
PAGE 2 OF 8
Bolivar Drive
I
1,000 MΩ minimum Rating Ambient Temperature
62.5V DC 5 sec.
50 mA charge
-25°C to +85°C
22pF, 47pF, 100pF
Resistor Range
P.O. Box 547
I
Bradford, PA 16701
I
USA
I
814-362-5536
I
Fax 814-362-8883
I
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-192 R4
5-2 Rated Voltage
The maximum value DC voltage capable
of being applied continuously to a resistor
at the rated ambient temperature. Rated
voltage shall be calculated from the following
formula:
Where:
E = Rated voltage (V)
P = Rated power (W)
R = Nominal resistance (Ω)
The rated voltage is limited to the maximum
working voltage.
Power Derating Curve
Percent Rated Wattage (%)
120
100
80
60
40
20
0
-30 -20 -10
0
10 20 30 40 50 60 70 80 90
Ambient Temperature (°C)
E=
√
PxR
6. Marking
6-1 Apply a mark of 1st terminal for a position of 1st terminal.
6-2 Marking Code
Type
CR2A10YTE220/220J
CR2A10YTE220/470J
CR2A10YTE220/101J
CR2A10YTE220/221J
CR2A10YTE220/471J
CR2A10YTE220/102J
CR2A10YTE470/220J
CR2A10YTE470/470J
CR2A10YTE470/101J
CR2A10YTE470/221J
CR2A10YTE470/471J
CR2A10YTE470/102J
CR2A10YTE101/220J
CR2A10YTE101/470J
CR2A10YTE101/101J
CR2A10YTE101/221J
CR2A10YTE101/471J
CR2A10YTE101/102J
CR2A10YLTE101M/473J
Capacitance (pF)
22
22
22
22
22
22
47
47
47
47
47
47
100
100
100
100
100
100
100
Resistance (Ω)
22
47
100
220
470
1K
22
47
100
220
470
1K
22
47
100
220
470
1K
47K
Marking Code
120
140
111
121
141
112
220
240
211
221
241
212
420
440
411
421
441
412
443
PAGE 3 OF 8
Bolivar Drive
I
P.O. Box 547
I
Bradford, PA 16701
I
USA
I
814-362-5536
I
Fax 814-362-8883
I
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-192 R4
7. Test Condition
Unless otherwise specified, the test shall be
performed in accordance with JIS-C-5020
specifying at the temperature of 20 °C ± 15°C
and at the humidity of 65% ± 20%.
In case doubts arise about the test results,
the test shall be performed at the temperature
of 20°C ± 2°C and at the humidity of 65% ± 5%.
8. Reliability Test
8-1 Electrical Characteristics
No.
1
Item
Insulation
Resistance
Requirement
More than 10
4
MΩ
Test Methods
Within 2 minutes at DC 25V between terminal
and another
v
2
Dielectric
Withstanding
Voltage
No evidence of fuming
flaming or breakdown
2.5 times maximum rated voltage for 5 seconds
with 50 mA maximum charging current
v
PAGE 4 OF 8
Bolivar Drive
I
P.O. Box 547
I
Bradford, PA 16701
I
USA
I
814-362-5536
I
Fax 814-362-8883
I
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-192 R4
8-2 Mechanical Characteristics
No.
1
Item
Resistance to
Soldering Heat
Requirement
No evidence of damage
∆C
within ± 20%
∆R
within ± 5%
D. F. within 5%
I. R. more than 100 MΩ
Approximately 95% of the
terminal should be covered
with new solder
No mechanical damage
Test Methods
Immerse in the solder (H63A) of 260°C ± 5°C for
10 ± 1 seconds. Measurement shall be done 24 ± 4
hours at room condition after test.
2
Solderability
Immerse in the solder (H63A) of 235°C ± 5°C
for 3 ± 0.5 seconds.
3
Terminal Strength
(Bend test)
Specimen shall be soldered on PCB and support
by applying strength so that the bending width
becomes 3mm.
Immerse in the IPA of 20 ~ 25°C
for 60 ± 10 seconds.
2 hours in each direction of X,Y,Z on PCB at a
frequency range of 10-55-10Hz with 1.5mm amplitude.
Measurement shall be done 24 ± 4 hours at room
condition after test.
4
Resistance to
Solvents
Vibration
No mechanical damage
5
No evidence of damage
8-3 Environmental Characteristics
No.
1
Item
Temperature
cycling
Requirement
No evidence of damage
∆C
within ± 20%
∆R
within ± 5%
D.F. within 5% I.R. more than 100 MΩ
No evidence of damage
∆C
within ± 20%
∆R
within ± 5%
D.F. within 5% I.R. more than 100 MΩ
No evidence of damage
∆C
within ± 20%
∆R
within ± 5%
D.F. within 5% I.R. more than 100 MΩ
Test Methods
100 cycles between - 40°C/30 minutes and
+125°C/30 minutes. Measurement shall be
done 24 ± 4 hours at room condition after test.
MIL-STD-202F Method 106 10 cycles
Measurement shall be done 24 ± 4 hours
at room condition after test.
Temperature 40°C ± 2°C Humidity 90% ~ 95%
1000 hours
DC 50V 1.5 hours ON 0.5 hours OFF
Measurement shall be done 24 ± 4 hours
at room condition after test.
Temperature 70°C ± 2°C 1000 hours
DC 50V 1.5 hours ON 0.5 hours OFF
Measurement shall be done 24 ± 4 hours
at room condition after test.
PAGE 5 OF 8
Bolivar Drive
I
2
Humidity
(No Load)
3
Moisture
Resistance
4
Load Life
No evidence of damage
∆C
within ± 20%
∆R
within ± 5%
D.F. within 5% I.R. more than 100 MΩ
P.O. Box 547
I
Bradford, PA 16701
I
USA
I
814-362-5536
I
Fax 814-362-8883
I
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
