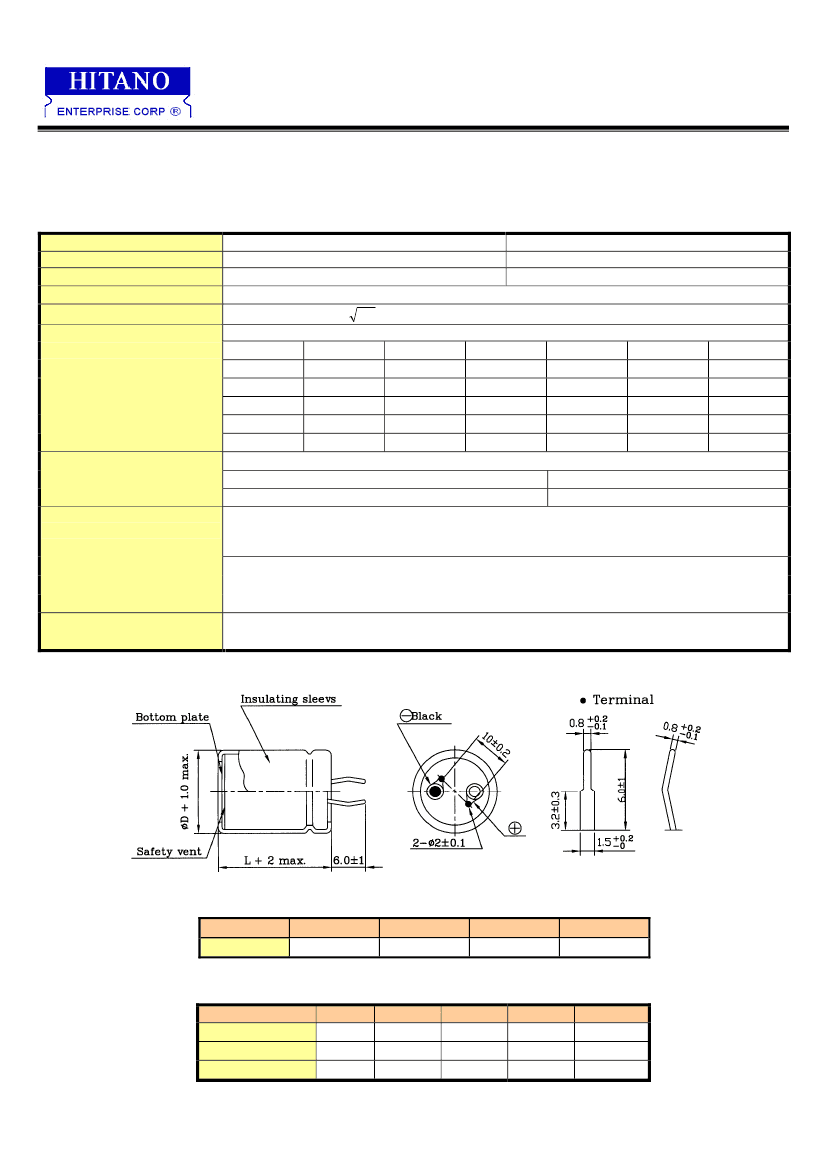

ELP
SERIES
Directly mountable on printed circuit board without holders.
Smaller low profile sizes than ordinary capacitors.
Terminal spacing fixed at 10mm for PC board plug in.
Aluminum case designed explosion-proof vent.
Characteristics
Voltage Range
Capacitance Range
Temperature Range
Capacitance Tolerance
Leakage Current
Dissipation Factor(tanδ)
16 ~ 100V
470 ~ 47000uF
-40 ~ +85
℃
160 ~ 450V
47 ~ 2200uF
-25 ~ +85
℃
+20% -20% (at 20
℃
, 120Hz)
I=3
CV
uA max
C: Capacitance, V:W.V. (After 5 minutes)
Less than the value under table (%)
10
½
16
25
½
35
50
½
63
80
½
100
160
½
250 350
½
450
uF \\ W.V.
( at 20
℃
, 120Hz)
47
½
390
-
-
-
-
15
20
470
½
3900
25
20
20
20
15
20
4700
½
8200
35
30
30
25
10000
½
22000
40
35
30
27000
½
47000
45
40
35
Stability at Low Temperature
Impedance ratio at 120Hz between the -25℃ or -40℃ value and 20℃ value shall not exceed :
3
Z-25
℃
/Z 20
℃
12
Z-40
℃
/Z 20
℃
The following specifications shall satisfied when the capacitors are restored to 20
℃
after rated
Load Life
working voltage applied for 2,000 hours at max. operating temperature with the rated ripple current
applied.
Capacitance change
≦±20%
of the initial value.
Dissipation factor
≦±200%
of the initial specified value
Leakage current
≦The
initial specified value.
After storage for 1000 hours at 85
℃
with no voltage applied, the capacitor shall meet the specified
Shelf Life
limit in load life.
Diagram of dimensions
Multiplier for R.C. vs Temparature
Temp.(
℃
)
Multiplier
45
1.55
60
1.3
70
1.2
85
1.00
Multiplier for Ripple Current VS Frequency
Cap.(uF)\\ (Hz)
10＜Cap.≦100
100＜Cap.≦1000
1000＜Cap.
60
0.8
0.8
0.8
120
1
1
1
1K
1.36
1.25
1.17
10K
1.48
1.35
1.25
50K - 100K
1.53
1.38
1.28
37
