G13-02K: DescriptionSnap Acting/Limit Switch, SPST, On-(off), Momentary, 11.0998mm, Quick Connect Terminal, Roller Lever Actuator, Panel Mount,; CategoryMechanical and electronic products switch; File Size191KB，4 Pages; ManufacturerThe Cherry Corporation; Environmental Compliance

Download Datasheet Parametric Compare View All

G13-02K Overview

Snap Acting/Limit Switch, SPST, On-(off), Momentary, 11.0998mm, Quick Connect Terminal, Roller Lever Actuator, Panel Mount,

G13-02K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	The Cherry Corporation
Reach Compliance Code	compli
Actuator angle
Actuator length	1.391 inch
Actuator material	STAINLESS STEEL
Actuator stroke	11.0998 mm
Actuator type	ROLLER LEVER
body width	16.256 mm
body height	16.256 mm
Body length or diameter	46.3042 mm
center contact material	BRASS
Center contact plating	GOLD
Contact (AC) maximum rated R load	0.1A@125VAC
Maximum contact current (AC)	0.1 A
Contact function	ON-(OFF)
contact time	SNAP ACTION
Maximum contact voltage (AC)	125 V
Electrical life	1000000 Cycle(s)
End contact material	BRASS
End contact plating	GOLD
insulator material	PHENOLIC
Manufacturer's serial number	G
Installation features	PANEL MOUNT
Maximum operating force	0.9813 N
work location	0.718 inch
Maximum operating temperature	85 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal length	0.49 inch
Terminal material	BRASS
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

GO TO TABLE OF CONTENTS

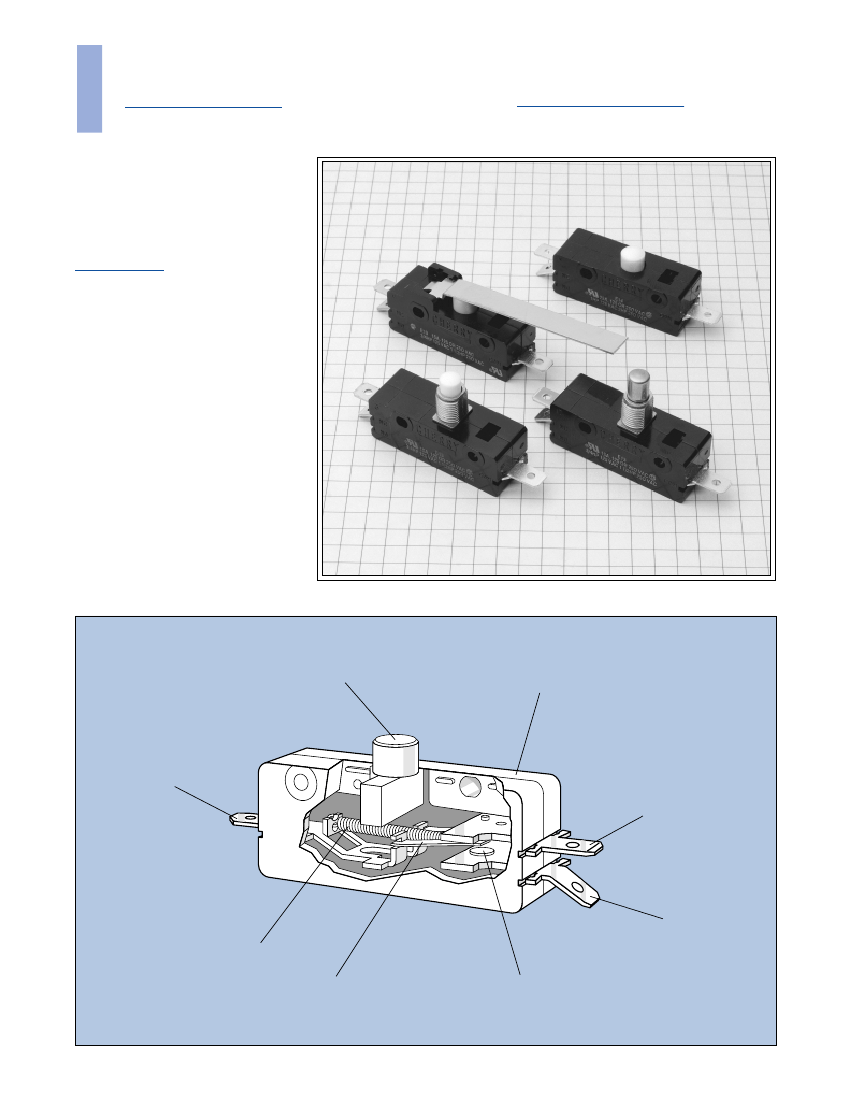

E Series

G13

E13

E14

E30

E29

0.1 amp

15 amp

25 amp

30.1 amp

General Purpose

Single Pole

Features

5 current ratings

Choice of actuator styles

3 terminal types

(optional screw terminals

available – consult factory)

3 contact arrangements

Long life coil spring mechanism

Custom designs

High temperature 200°C

UL-version available on select

models (consult factory)

Thermoplastic

Actuating Button

Phenolic Case

Common

Terminal

NC Terminal

NO Terminal

Stainless

Steel Spring

Moving Blade

Silver Alloy Contacts

or Gold Crosspoint

Contacts

4-2

G13-02K Related Products

	G13-02K	G13-01E	G13-01J	G13-01K	G13-01M	G13-02E	G13-02J	G13-02M
Description	Snap Acting/Limit Switch, SPST, On-(off), Momentary, 11.0998mm, Quick Connect Terminal, Roller Lever Actuator, Panel Mount,	Snap Acting/Limit Switch, SPST, Off-(on), Momentary, 3.81mm, Quick Connect Terminal, Pushbutton Actuator, Panel Mount,	Snap Acting/Limit Switch, SPST, Off-(on), Momentary, 3.9624mm, Quick Connect Terminal, Pushbutton Actuator, Panel Mount,	Snap Acting/Limit Switch, SPST, Off-(on), Momentary, 11.0998mm, Quick Connect Terminal, Roller Lever Actuator, Panel Mount,	Snap Acting/Limit Switch, SPST, Off-(on), Momentary, 6.7056mm, Quick Connect Terminal, Pushbutton Actuator, Panel Mount,	Snap Acting/Limit Switch, SPST, On-(off), Momentary, 3.81mm, Quick Connect Terminal, Pushbutton Actuator, Panel Mount,	Snap Acting/Limit Switch, SPST, On-(off), Momentary, 3.9624mm, Quick Connect Terminal, Pushbutton Actuator, Panel Mount,	Snap Acting/Limit Switch, SPST, On-(off), Momentary, 6.7056mm, Quick Connect Terminal, Pushbutton Actuator, Panel Mount,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	The Cherry Corporation	The Cherry Corporation	The Cherry Corporation	The Cherry Corporation	The Cherry Corporation	The Cherry Corporation	The Cherry Corporation	The Cherry Corporation
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compli	compli	compli
Actuator material	STAINLESS STEEL	THERMOPLASTIC	THERMOPLASTIC	STAINLESS STEEL	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Actuator stroke	11.0998 mm	3.81 mm	3.9624 mm	11.0998 mm	6.7056 mm	3.81 mm	3.9624 mm	6.7056 mm
Actuator type	ROLLER LEVER	PUSHBUTTON	PUSHBUTTON	ROLLER LEVER	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON	PUSHBUTTON
body width	16.256 mm	16.256 mm	16.256 mm	16.256 mm	16.256 mm	16.256 mm	16.256 mm	16.256 mm
body height	16.256 mm	16.256 mm	16.256 mm	16.256 mm	16.256 mm	16.256 mm	16.256 mm	16.256 mm
Body length or diameter	46.3042 mm	46.3042 mm	46.3042 mm	46.3042 mm	46.3042 mm	46.3042 mm	46.3042 mm	46.3042 mm
center contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
Center contact plating	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact (AC) maximum rated R load	0.1A@125VAC	0.1A@125VAC	0.1A@125VAC	0.1A@125VAC	0.1A@125VAC	0.1A@125VAC	0.1A@125VAC	0.1A@125VAC
Maximum contact current (AC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Contact function	ON-(OFF)	OFF-(ON)	OFF-(ON)	OFF-(ON)	OFF-(ON)	ON-(OFF)	ON-(OFF)	ON-(OFF)
contact time	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	125 V	125 V	125 V	125 V
Electrical life	1000000 Cycle(s)	1000000 Cycle(s)	1000000 Cycle(s)	1000000 Cycle(s)	1000000 Cycle(s)	1000000 Cycle(s)	1000000 Cycle(s)	1000000 Cycle(s)
End contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
End contact plating	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
insulator material	PHENOLIC	PHENOLIC	PHENOLIC	PHENOLIC	PHENOLIC	PHENOLIC	PHENOLIC	PHENOLIC
Manufacturer's serial number	G	G	G	G	G	G	G	G
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating force	0.9813 N	4.1672 N	4.1672 N	0.9813 N	4.1672 N	4.1672 N	4.1672 N	4.1672 N
work location	0.718 inch	0.283 inch	0.67 inch	0.718 inch	0.812 inch	0.283 inch	0.67 inch	0.812 inch
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST
Switch type	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH
Terminal length	0.49 inch	0.49 inch	0.49 inch	0.49 inch	0.49 inch	0.49 inch	0.49 inch	0.49 inch
Terminal material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
Termination type	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT
