BA6285FP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> The signal circuit> BA6285FP

BA6285FP: DescriptionBRUSH DC MOTOR CONTROLLER, 1 A, PDSO26; CategoryOther integrated circuit (IC) The signal circuit; File Size145KB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BA6285FP Overview

BRUSH DC MOTOR CONTROLLER, 1 A, PDSO26

BA6285FP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	HSOP-24
Contacts	24
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G26
JESD-609 code	e3/e2
length	13.6 mm
Number of functions	1
Number of terminals	26
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Encapsulate equivalent code	SOP24/28,.3,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2.11 mm
Maximum supply current (Isup)	67 mA
Maximum supply voltage (Vsup)	15 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	9 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	5.4 mm

Preview

Download Datasheet

View All

Motor driver ICs

Reversible motor driver

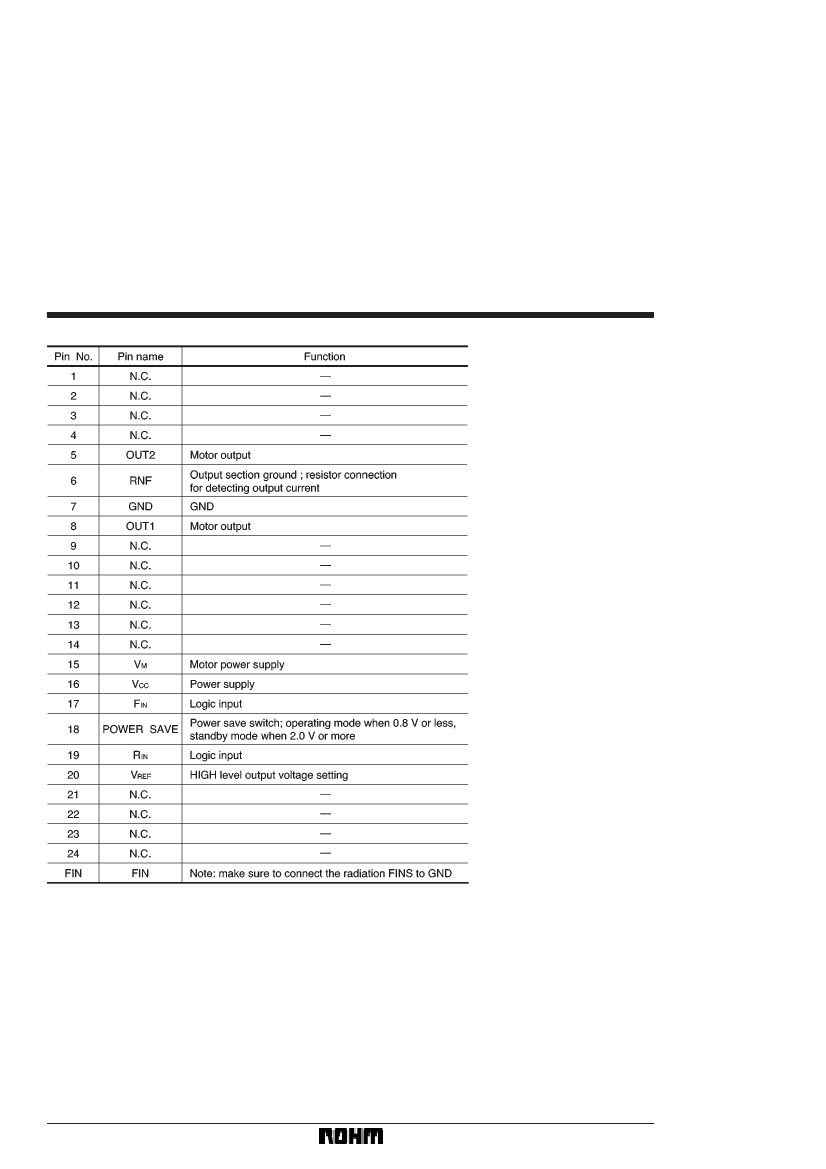

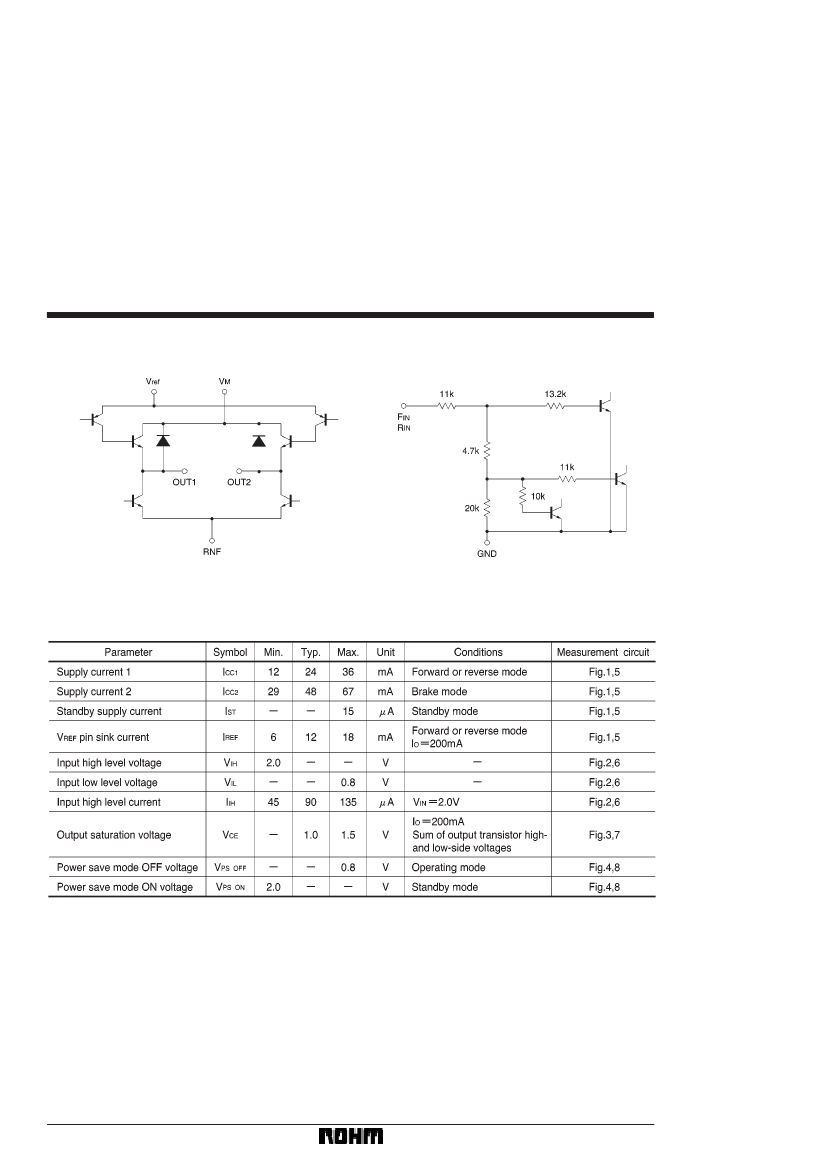

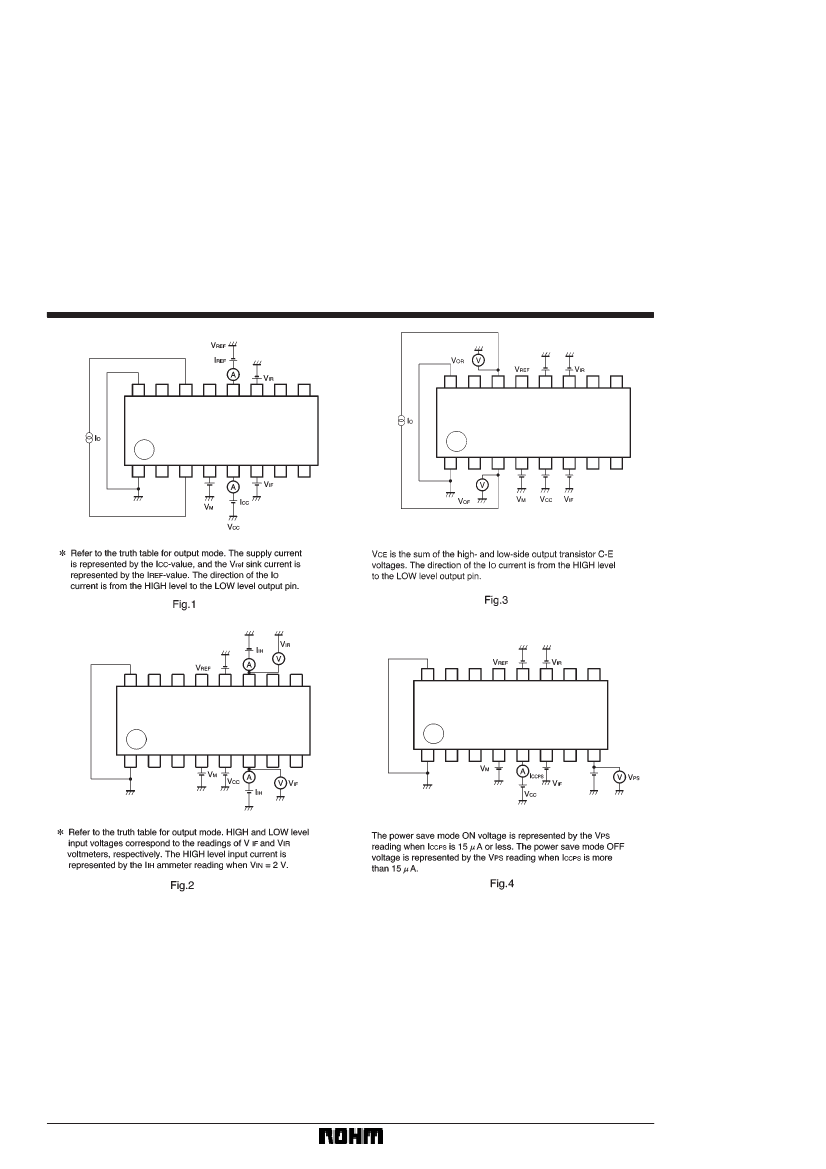

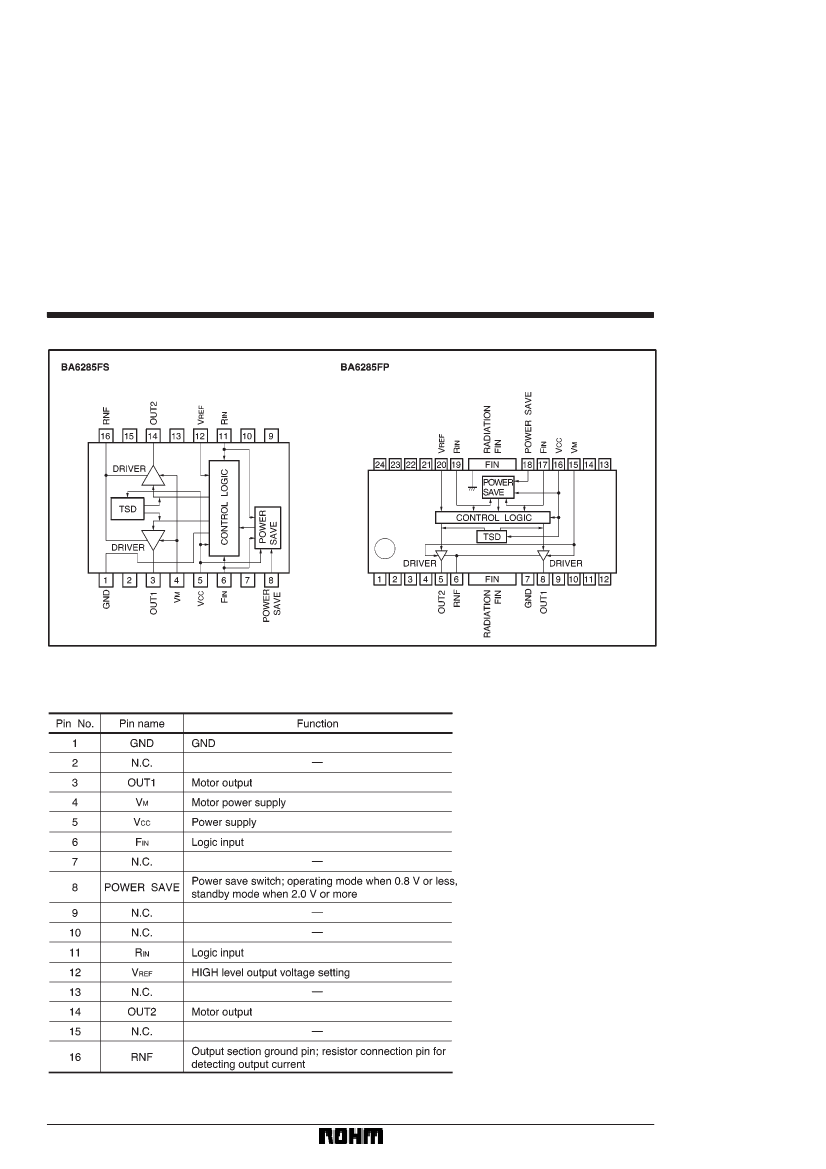

BA6285FS / BA6285FP

The BA6285FS and BA6285FP are reversible-motor drivers with a maximum output current of 1.0A. Two logic inputs

allow four output modes: forward, reverse, stop (idling), and brake. A built-in power saving circuit suppresses current

consumption when the motor is in stop mode.

FApplications

VCRs and audio equipment in general

FFeatures

1) Logic and power sections have separate ground

pins; this allows the IC to drive speed-variable, re-

versible motors by connecting an electronic governor

circuit.

2) Built-in power saving circuit suppresses the stop

mode current dissipation.

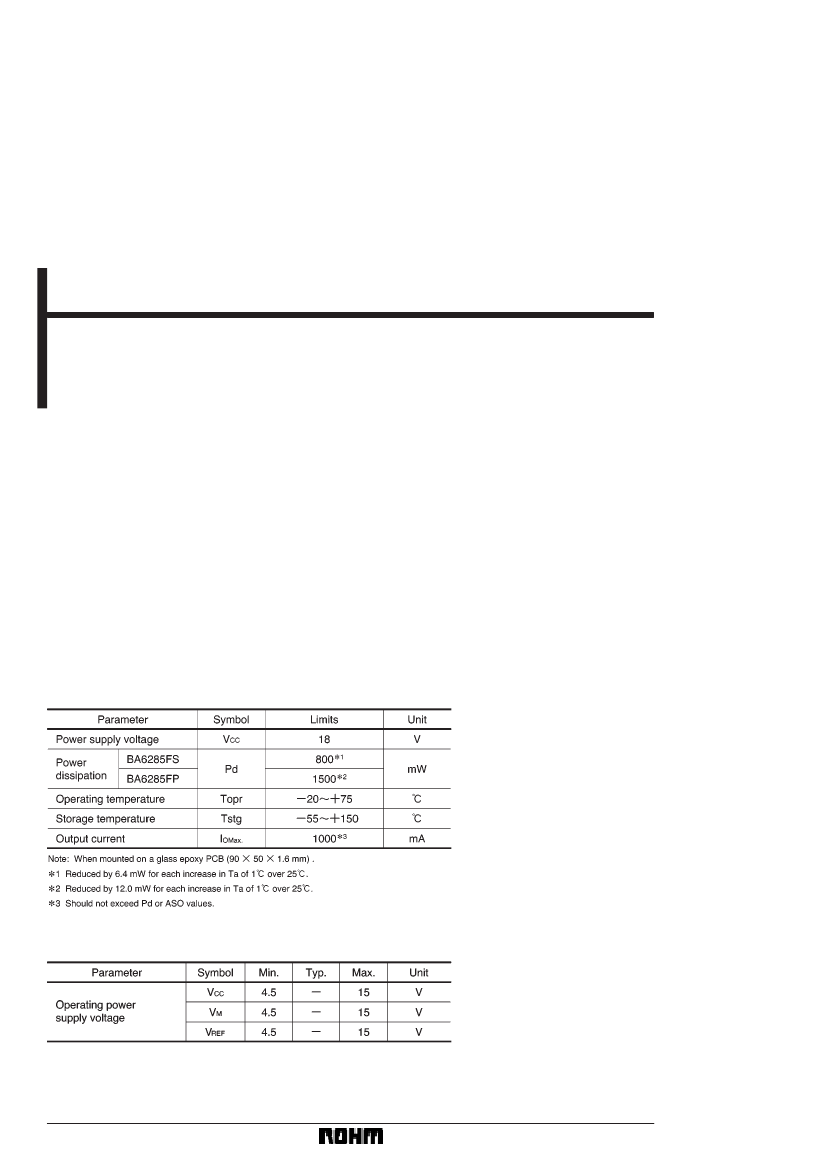

FAbsolute

maximum ratings (Ta = 25_C)

3) Output voltage can be set arbitrarily with the V

ref

pin.

4) Interfaces with TTL devices.

5) Built-in thermal shutdown circuit.

FRecommended

operating conditions (Ta = 25_C)

423
