BA6303 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> BA6303

BA6303: DescriptionFG system speed servo controller; CategoryAnalog mixed-signal IC converter; File Size54KB，4 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA6303 Overview

FG system speed servo controller

BA6303 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	BUILT-IN INVERTER
Converter type	VOLTAGE TO FREQUENCY CONVERTER
JESD-30 code	R-PDIP-T16
length	19.4 mm
Number of functions	1
Number of terminals	16
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.55 mm
Maximum supply voltage	13 V
Minimum supply voltage	4.5 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

Preview

Download Datasheet

View All

Motor driver ICs

FG system speed servo controller

BA6302A / BA6302AF / BA6303 / BA6303F

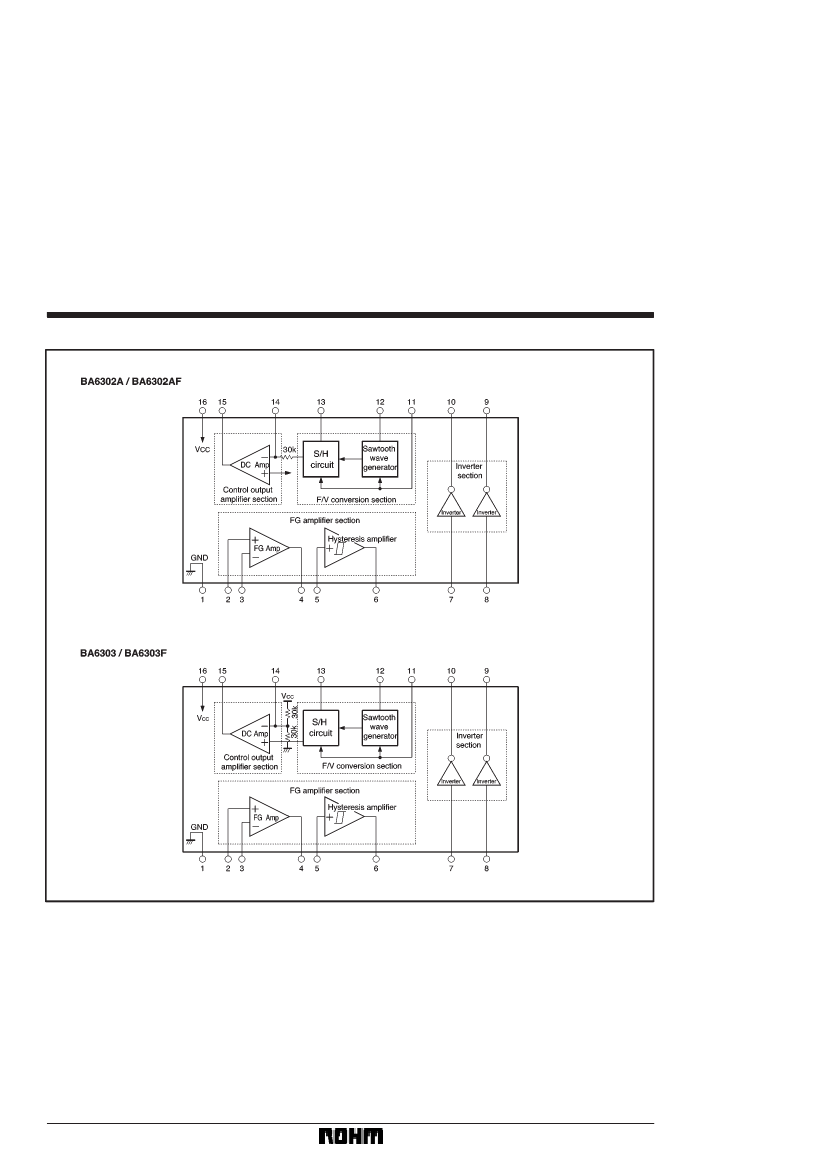

The BA6302A /A F and BA6303 / F are FG-system servo control ICs suitable for controlling the speed of VCR motors.

They contain a hysteresis FG amplifier section, an S / H system F / V conversion section, an error amplifier section, and

an inverter section.

Motor speed can be set with a high degree of freedom by an external CR. The start-up circuit allows quick and precise

motor starting.

Motor speed can be controlled precisely at different levels by installing an FG program counter between the FG amplifier

output and the F / V conversion input.

FApplications

Speed control of various motors including capstan motors, drum head motors, and reel motors

FFeatures

1) S / H system F / V converter allows speed setting

with a stable external CR.

2) High hysteresis FG amplifier with high noise resis-

tance.

3) Start-up circuit allows quick and precise motor start-

ing.

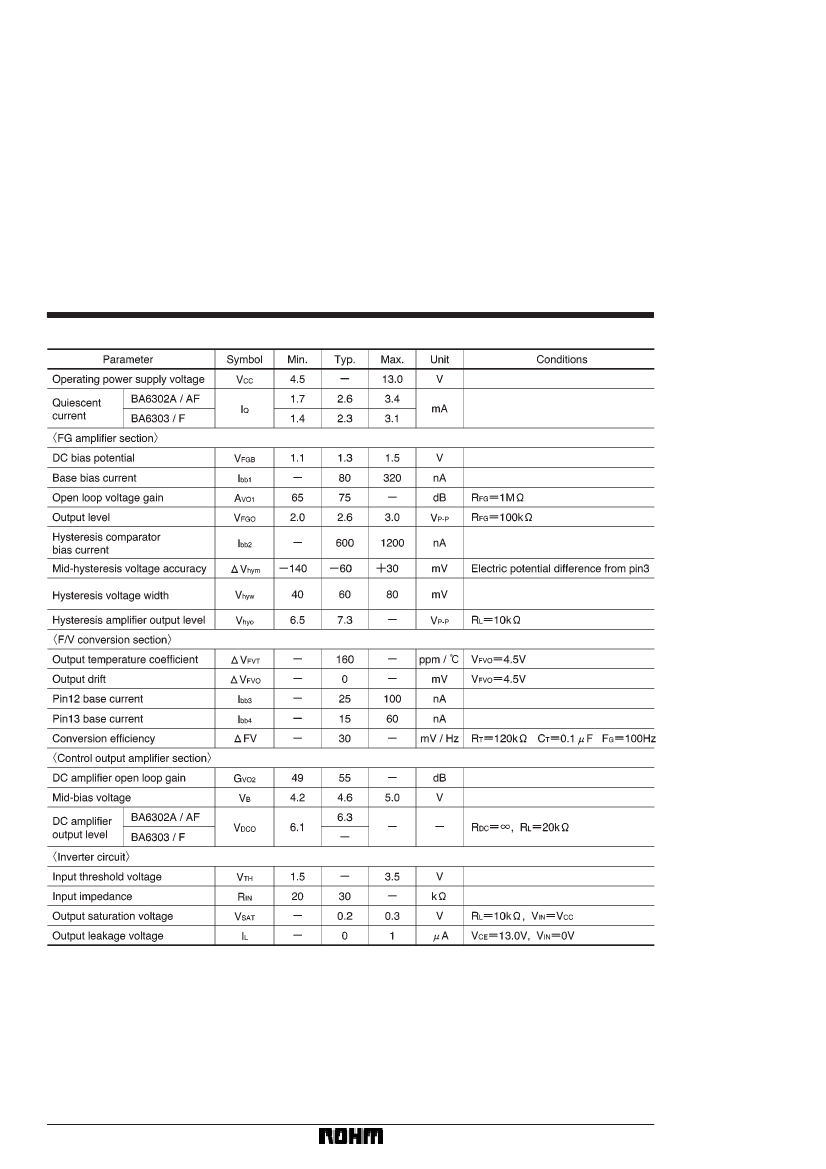

FAbsolute

maximum ratings (Ta = 25_C)

4) Motor speed can be controlled at different levels by

installing an FG program counter.

5) Low current dissipation. (V

=9V, I

=2.3mA Typ.)

6) Stable operation with either 5, 9, or 12V supply volt-

age.

7) Two versatile inverters are built in.

750

BA6303 Related Products

	BA6303	BA6302A	BA6302AF	BA6303F
Description	FG system speed servo controller	FG system speed servo controller	FG system speed servo controller	FG system speed servo controller
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	DIP	DIP	SOIC	SOIC
package instruction	DIP,	DIP,	LSOP,	LSOP,
Contacts	16	16	16	16
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	BUILT-IN INVERTER	BUILT-IN INVERTER	BUILT-IN INVERTER	BUILT-IN INVERTER
Converter type	VOLTAGE TO FREQUENCY CONVERTER	VOLTAGE TO FREQUENCY CONVERTER	VOLTAGE TO FREQUENCY CONVERTER	VOLTAGE TO FREQUENCY CONVERTER
JESD-30 code	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
length	19.4 mm	19.4 mm	10 mm	10 mm
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	LSOP	LSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.55 mm	4.55 mm	1.6 mm	1.6 mm
Maximum supply voltage	13 V	13 V	13 V	13 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
surface mount	NO	NO	YES	YES
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	4.4 mm	4.4 mm
