BA6444FP datasheet, PDF - EEWORLD Datasheet

BA6444FP: Description3-phase motor driver; CategoryOther integrated circuit (IC) The signal circuit; File Size167KB，11 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BA6444FP Overview

3-phase motor driver

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	HSOP-28
Contacts	28
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G30
JESD-609 code	e3/e2
length	18.5 mm
Number of functions	1
Number of terminals	30
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Encapsulate equivalent code	SOP28/42,.4,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	5,12 V
Certification status	Not Qualified
Maximum seat height	2.41 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	4 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	7.5 mm

Motor driver ICs

3-phase motor driver

BA6444FP

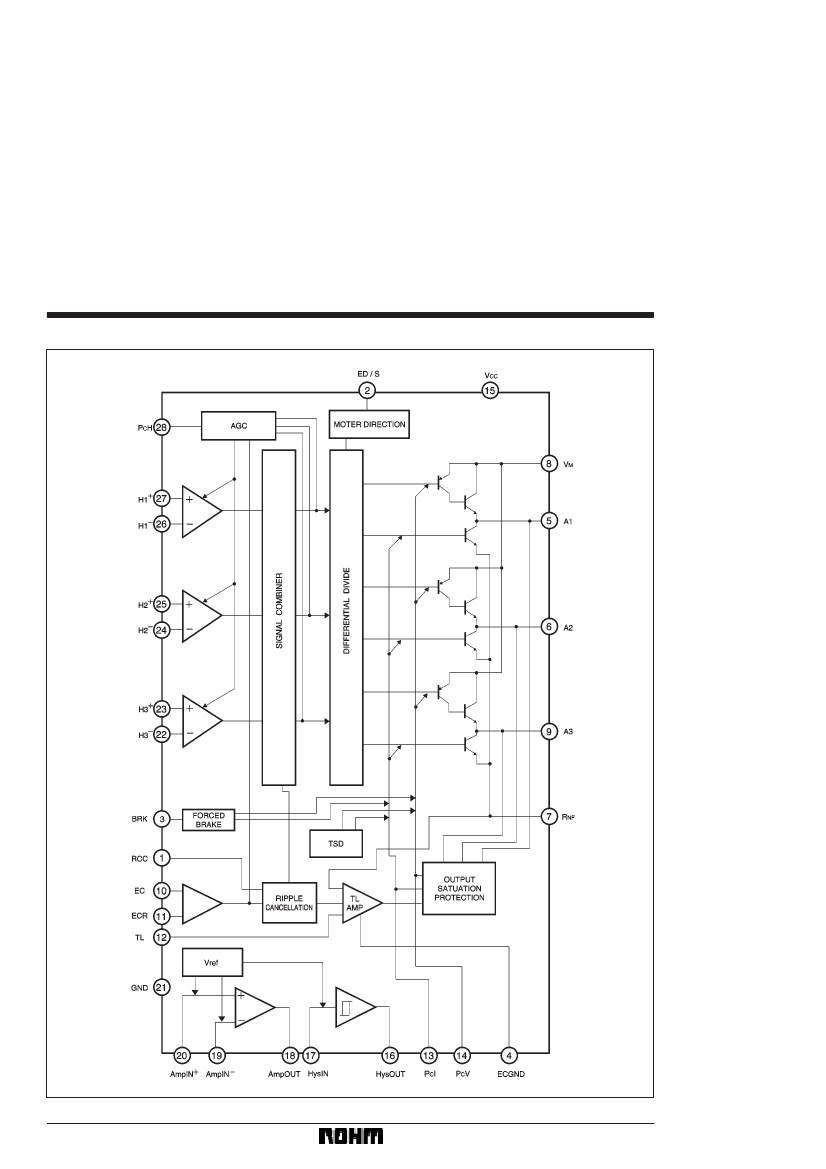

The BA6444FP is a 3-phase, full-wave, pseudo-linear motor driver suited for VCR capstan motors. The IC has a torque

ripple cancellation circuit to reduce wow and flutter, and a forced brake circuit that allows abrupt change of operational

mode. The output transistor saturation prevention circuit provides superb torque control over a wide range of current.

FG and hysteresis amplifiers are also built in.

FApplications

VCR capstan motors, DAT capstan motors

FFeatures

1) 3-phase, full-wave, pseudo-linear drive system.

2) Torque ripple cancellation circuit.

3) Forced brake circuit.

4) Output transistor (high- and low-sides) saturation

prevention circuit.

5) FG and hysteresis amplifiers.

6) Thermal shutdown circuit.

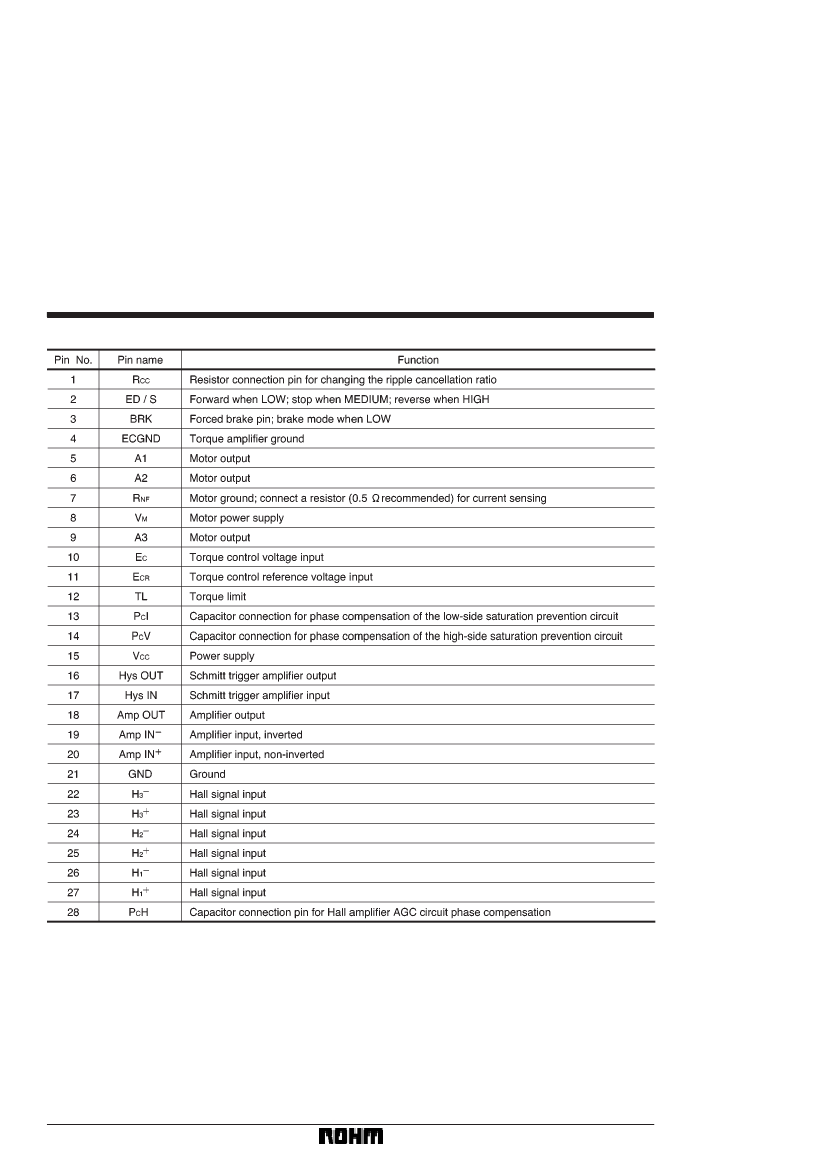

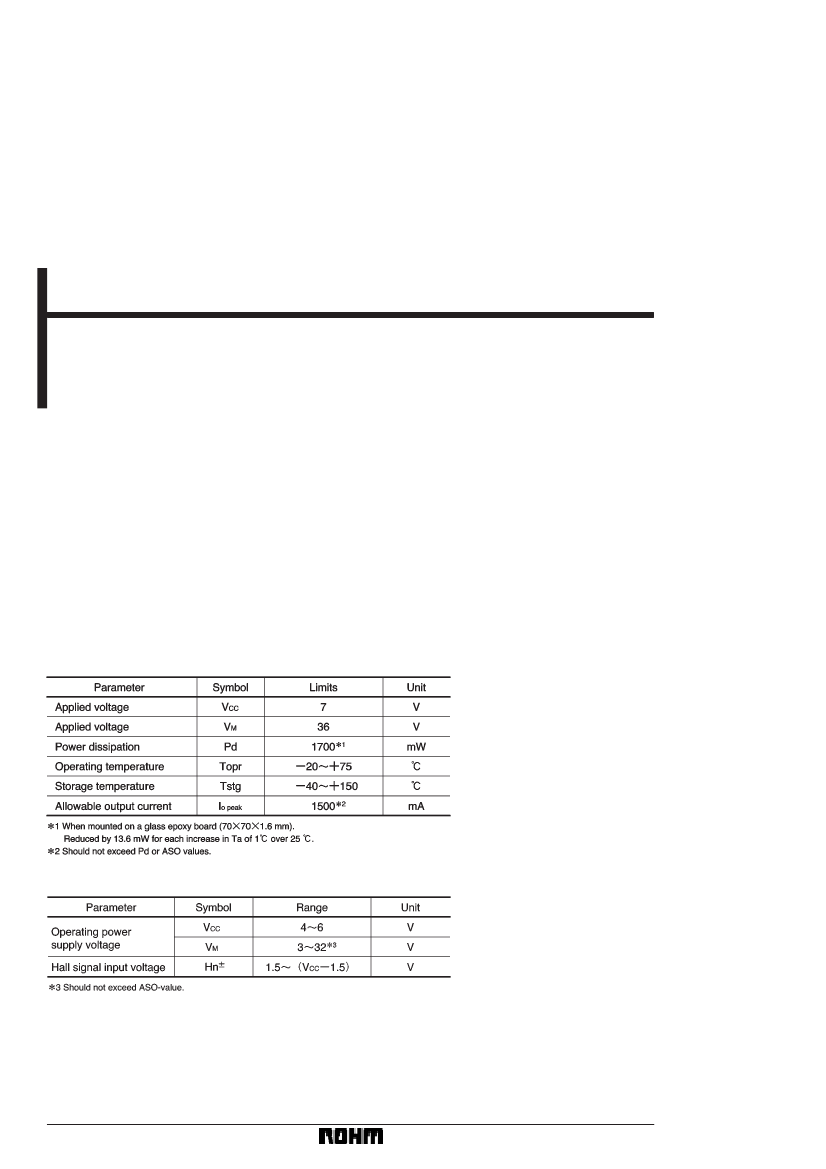

FAbsolute

maximum ratings (Ta = 25_C)

FRecommended

operating conditions

634
