ICM7170IDG datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ICM7170IDG

Preview

ICM7170IDG: DescriptionTimer or RTC, Volatile, CMOS, CDIP24,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size308KB，6 Pages; ManufacturerGeneral Electric Solid State

Download Datasheet Parametric Compare View All

ICM7170IDG Overview

Timer or RTC, Volatile, CMOS, CDIP24,

ICM7170IDG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	General Electric Solid State
package instruction	DIP, DIP24,.6
Reach Compliance Code	unknow
Information access methods	PARALLEL
interrupt capability	Y
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
shortest time	1/100 SECOND
Volatile	YES

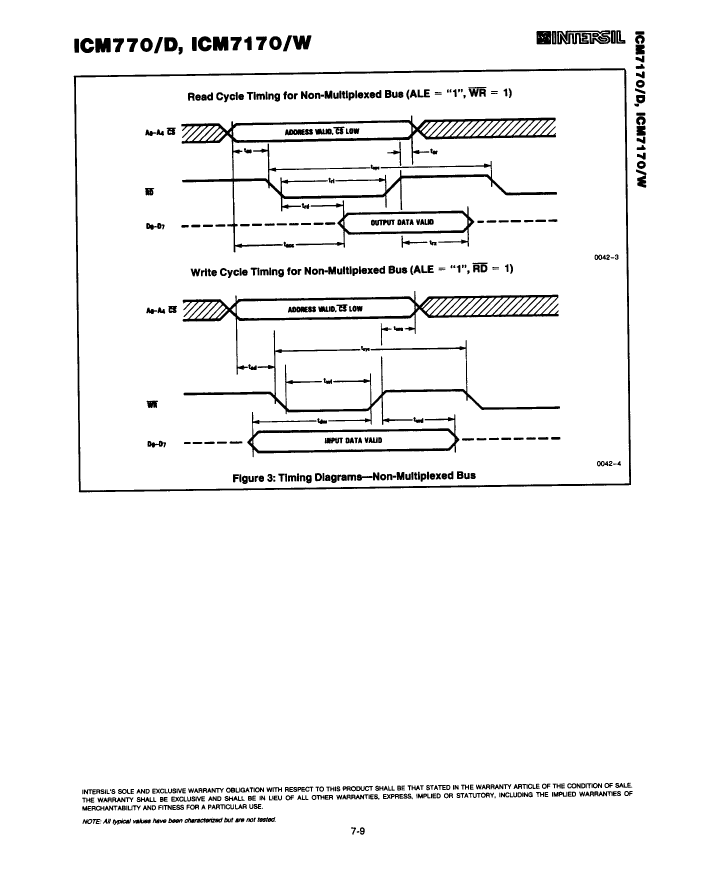

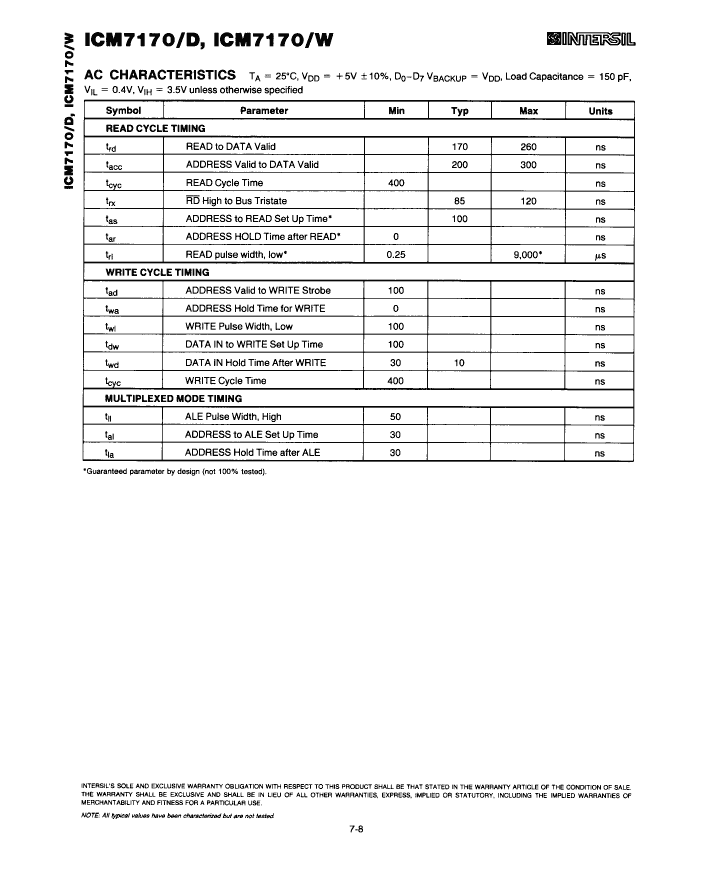

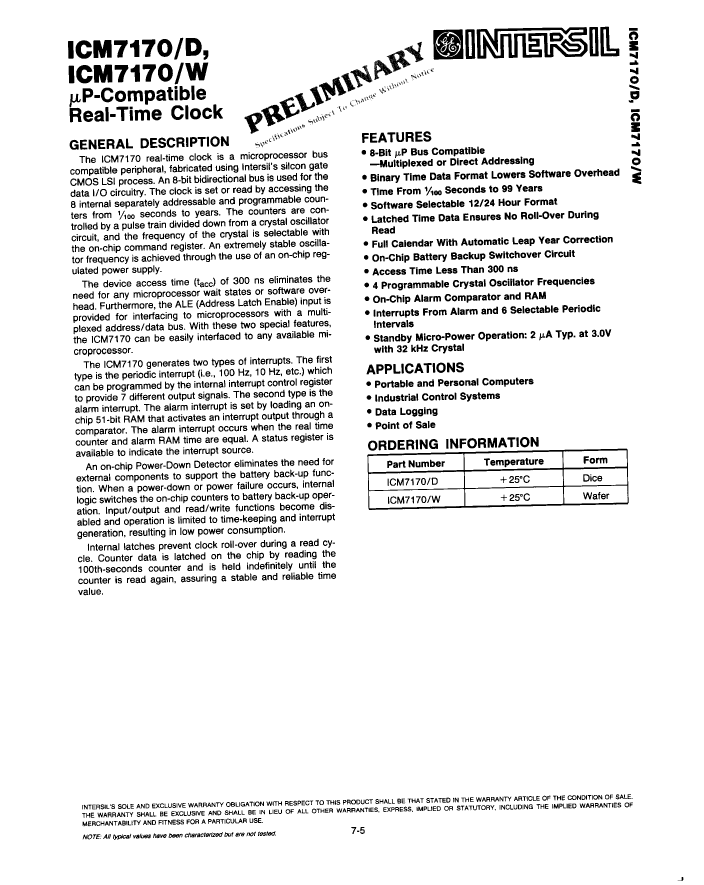

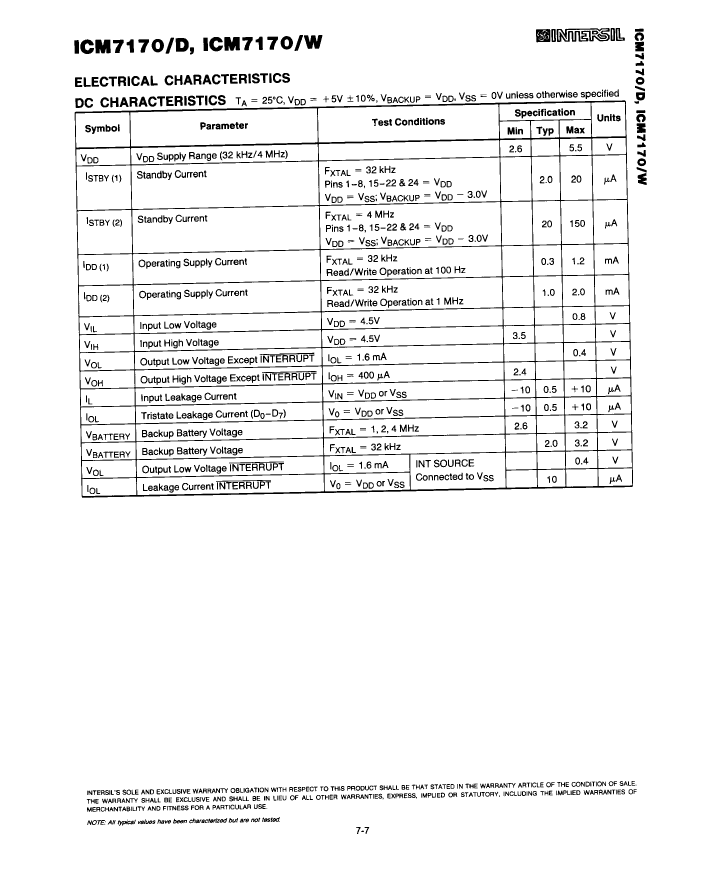

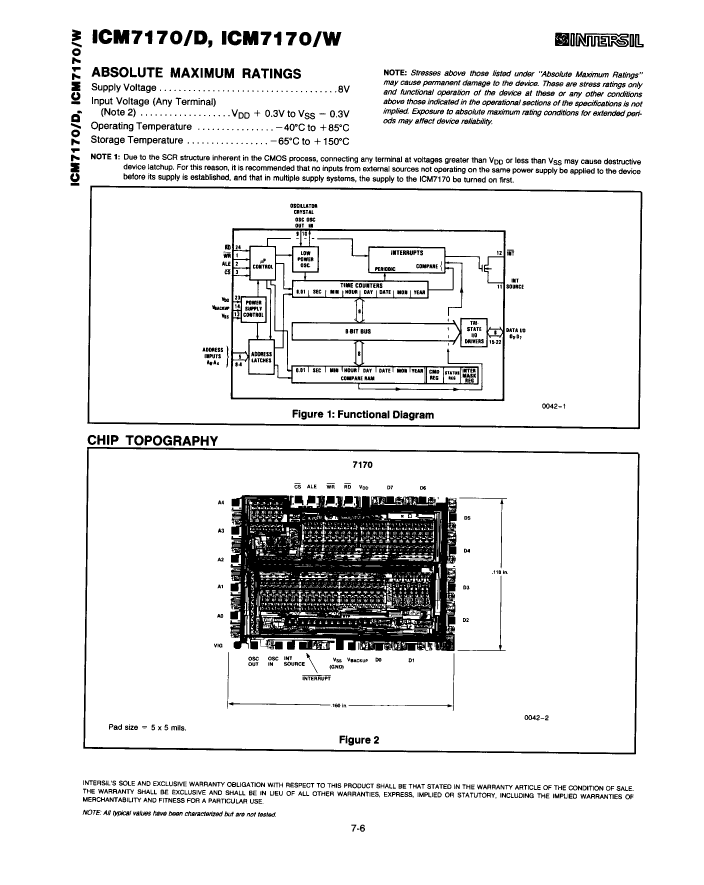

ICM7170IDG Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
