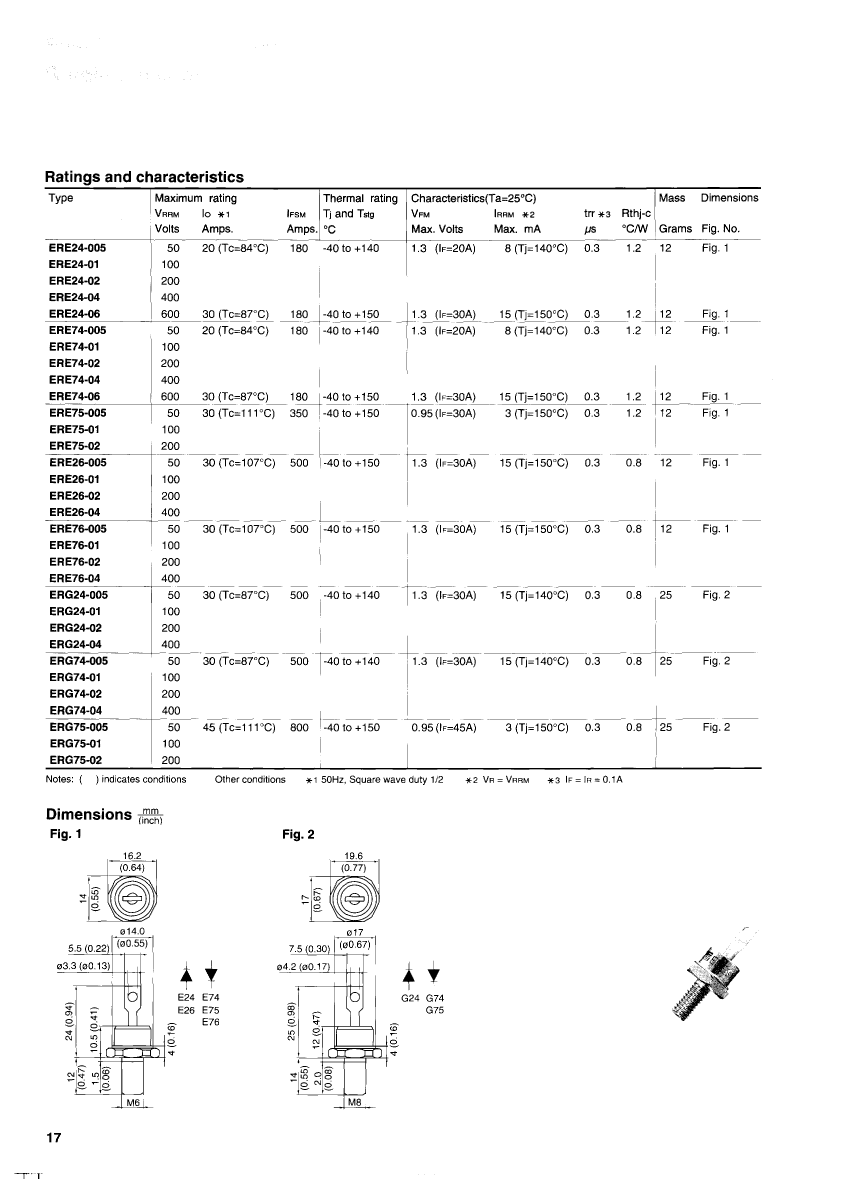

Rectifier Diode, 1 Phase, 1 Element, 30A, 400V V(RRM), Silicon,
| Parameter Name | Attribute value |
| Maker | Fuji Electric Co., Ltd. |
| package instruction | O-MUPM-D1 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Other features | LEAKAGE CURRENT IS NOT AT 25 DEG C |
| application | FAST RECOVERY |
| Shell connection | ANODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.3 V |
| JESD-30 code | O-MUPM-D1 |
| Maximum non-repetitive peak forward current | 500 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 1 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -40 °C |
| Maximum output current | 30 A |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | POST/STUD MOUNT |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 400 V |
| Maximum reverse current | 15000 µA |
| Maximum reverse recovery time | 0.3 µs |
| surface mount | NO |
| Terminal form | SOLDER LUG |
| Terminal location | UPPER |
| ERE26-04 | ERE76-02 | ERE26-02 | ERE76-04 | ERE76-01 | |
|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 30A, 400V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 30A, 200V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 30A, 200V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 30A, 400V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 30A, 100V V(RRM), Silicon, |
| package instruction | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 |
| Reach Compliance Code | unknow | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | LEAKAGE CURRENT IS NOT AT 25 DEG C | LEAKAGE CURRENT IS NOT AT 25 DEG C | LEAKAGE CURRENT IS NOT AT 25 DEG C | LEAKAGE CURRENT IS NOT AT 25 DEG C | LEAKAGE CURRENT IS NOT AT 25 DEG C |
| application | FAST RECOVERY | FAST RECOVERY | FAST RECOVERY | FAST RECOVERY | FAST RECOVERY |
| Shell connection | ANODE | CATHODE | ANODE | CATHODE | CATHODE |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V |
| JESD-30 code | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 |
| Maximum non-repetitive peak forward current | 500 A | 500 A | 500 A | 500 A | 500 A |
| Number of components | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Maximum output current | 30 A | 30 A | 30 A | 30 A | 30 A |
| Package body material | METAL | METAL | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 400 V | 200 V | 200 V | 400 V | 100 V |
| Maximum reverse current | 15000 µA | 15000 µA | 15000 µA | 15000 µA | 15000 µA |
| Maximum reverse recovery time | 0.3 µs | 0.3 µs | 0.3 µs | 0.3 µs | 0.3 µs |
| surface mount | NO | NO | NO | NO | NO |
| Terminal form | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG |
| Terminal location | UPPER | UPPER | UPPER | UPPER | UPPER |
| Maker | Fuji Electric Co., Ltd. | - | Fuji Electric Co., Ltd. | Fuji Electric Co., Ltd. | Fuji Electric Co., Ltd. |
