1Y-10-241-07-1: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerNICOMATIC

Download Datasheet Parametric View All

1Y-10-241-07-1 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal

1Y-10-241-07-1 Parametric

Parameter Name	Attribute value
Maker	NICOMATIC
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	1Y
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	7

Preview

Download Datasheet

View All

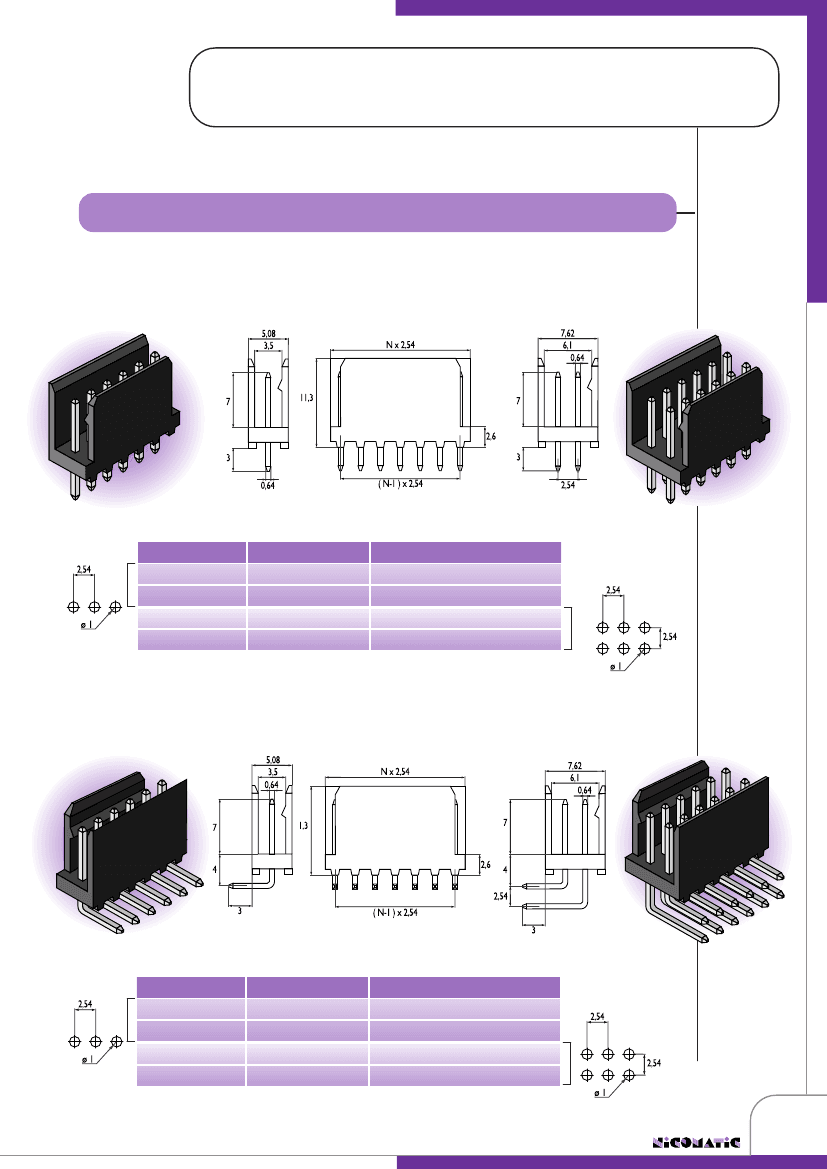

Headers and Sockets

WALLED HEADERS

STRAIGHT SINGLE AND DOUBLE ROW

Dimensions in mm

REF.

PLATING

NUMBER OF CONTACTS XX

1Y-10-111-XX-1

1Y-10-141-XX-1

1Y-20-111-XX-1

1Y-20-141-XX-1

Gold plated

Tin plated

02 ≤ XX ≤ 20

04 ≤ XX ≤ 40

02 ≤ XX ≤ 20

04 ≤ XX ≤ 40

RIGHT ANGLE SINGLE AND DOUBLE ROW

Dimensions in mm

1Y-10-211-XX-1

1Y-10-241-XX-1

1Y-20-211-XX-1

1Y-20-241-XX-1

REF.

Gold plated

Tin plated

PLATING

NUMBER OF CONTACTS XX

02 ≤ XX ≤ 20

04 ≤ XX ≤ 40

02 ≤ XX ≤ 20

04 ≤ XX ≤ 40

35
