204.42.2118.196 datasheet, PDF

204.42.2118.196: DescriptionRF SMA Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack; CategoryThe connector The connector; File Size101KB，1 Pages; ManufacturerIMS Connector Systems Gmbh

Download Datasheet Parametric Compare View All

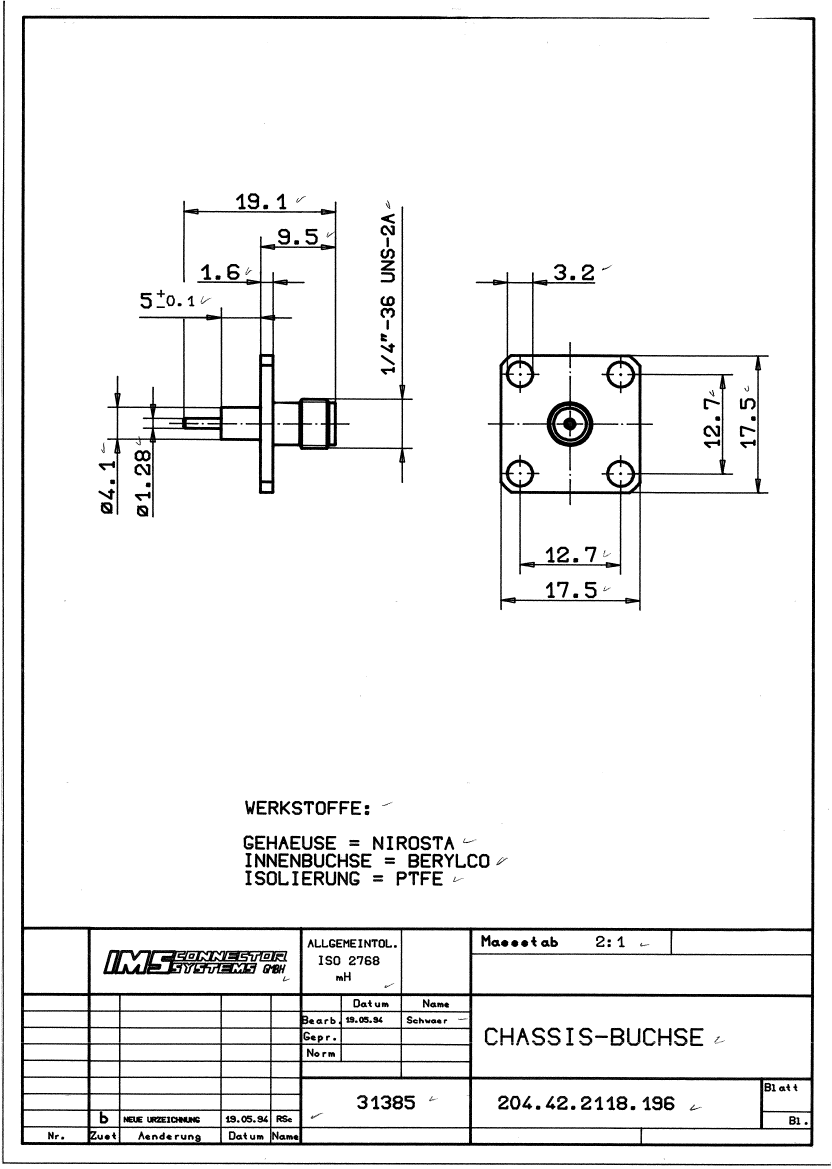

204.42.2118.196 Overview

RF SMA Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack

Parameter Name	Attribute value
Maker	IMS Connector Systems Gmbh
Reach Compliance Code	compli
Other features	ROHS COMPLIANT
subject depth	0.374 inch
Body diameter	0.25 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact point gender	FEMALE
Contact resistance	3 mΩ
Contact style	COAX
Durability	500 Cycles
Insulation resistance	10000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
Manufacturer's serial number	204.42
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of ports	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Panel mounting	YES
Rated current (signal)	2 A
Terminal length	0.181 inch
Termination type	CRIMP
Total number of contacts	1

	204.42.2118.196	204.42.2118.193
Description	RF SMA Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack	RF SMA Connector, 1 Contact(s), Female, Panel Mount, Cable Mount, Crimp Terminal, Locking, Jack
Maker	IMS Connector Systems Gmbh	IMS Connector Systems Gmbh
Reach Compliance Code	compli	compli
Other features	ROHS COMPLIANT	ROHS COMPLIANT
subject depth	0.374 inch	0.374 inch
Body diameter	0.25 inch	0.25 inch
Body/casing type	JACK	JACK
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact point gender	FEMALE	FEMALE
Contact resistance	3 mΩ	3 mΩ
Contact style	COAX	COAX
Durability	500 Cycles	500 Cycles
Insulation resistance	10000000000 Ω	10000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE	POLYTETRAFLUOROETHYLENE
Manufacturer's serial number	204.42	204.42
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE
Number of ports	1	1
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Panel mounting	YES	YES
Rated current (signal)	2 A	2 A
Terminal length	0.181 inch	0.181 inch
Termination type	CRIMP	CRIMP
Total number of contacts	1	1
