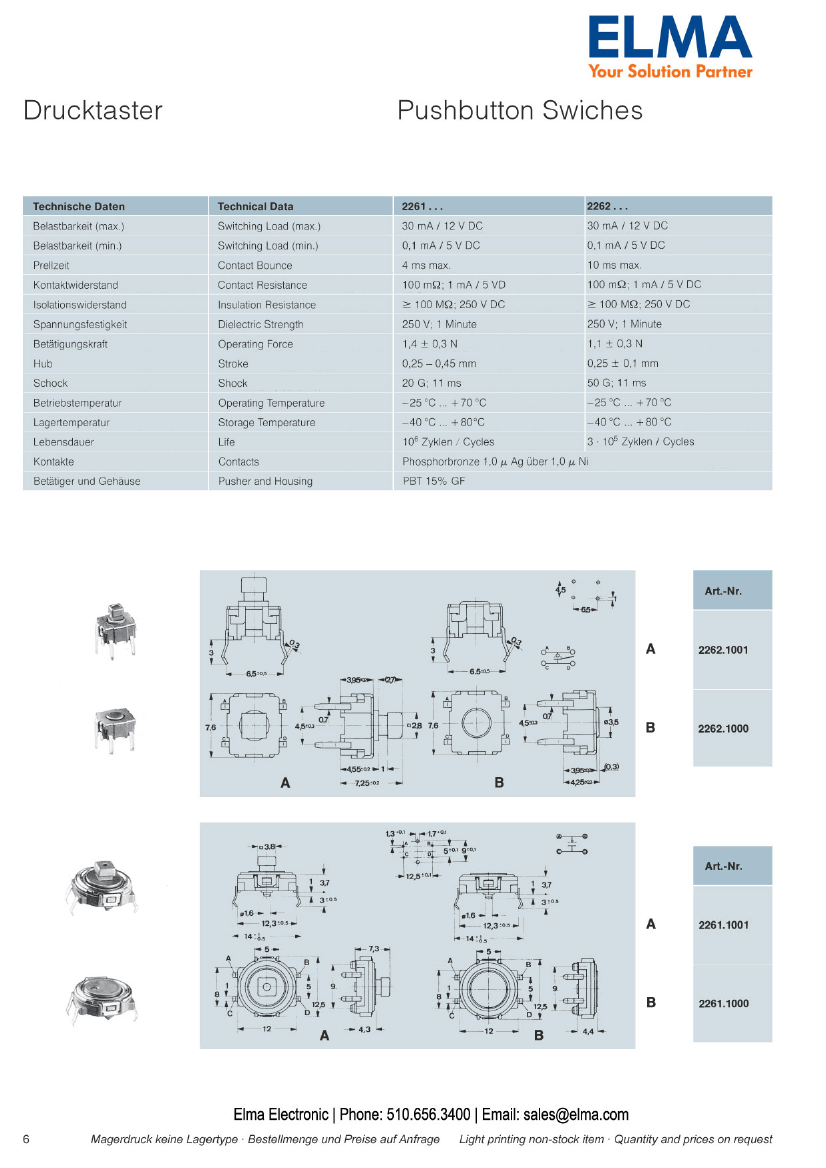

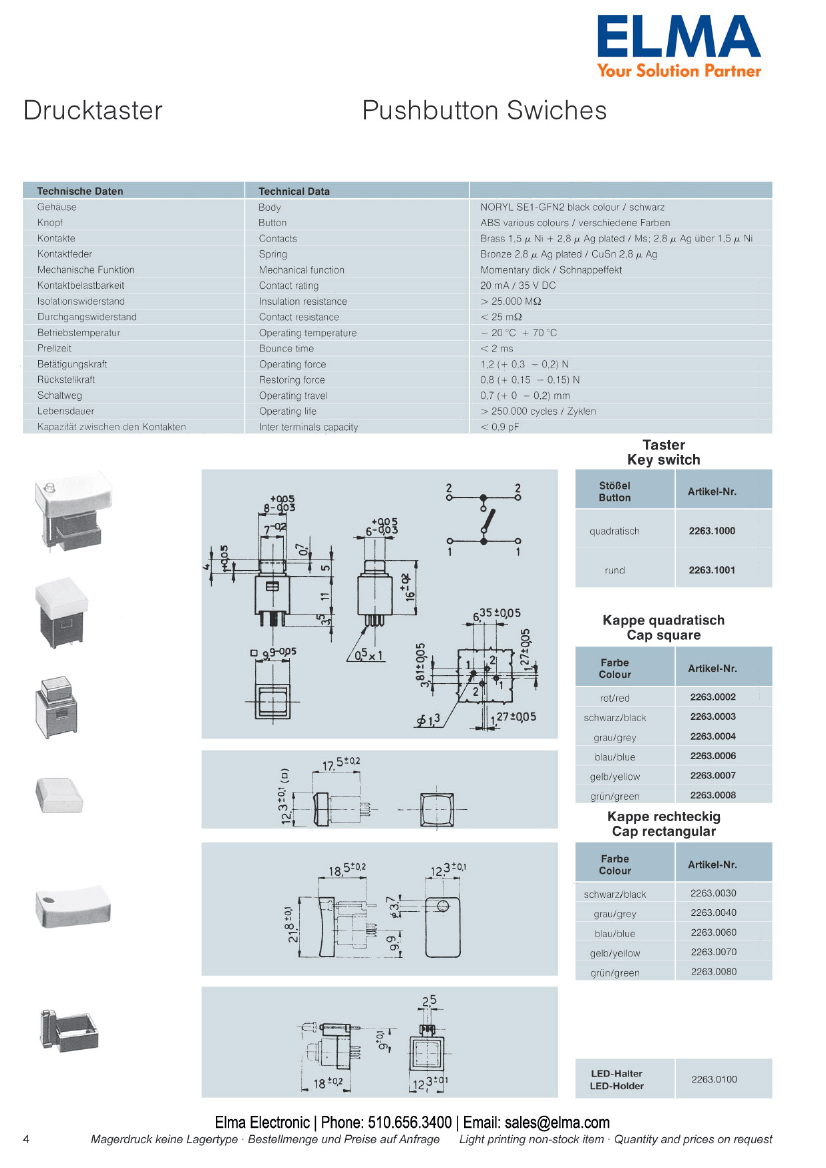

2262.1000: DescriptionPushbutton Switch, SPST, Momentary, 0.03A, 12VDC, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size814KB，3 Pages; ManufacturerElma Electronic Inc

Download Datasheet Parametric Compare View All

2262.1000 Overview

Pushbutton Switch, SPST, Momentary, 0.03A, 12VDC, Solder Terminal, Through Hole-straight

2262.1000 Parametric

Parameter Name	Attribute value
Maker	Elma Electronic Inc
Reach Compliance Code	compli
ECCN code	EAR99
body width	6.5 mm
body height	3.95 mm
Body length or diameter	7.6 mm
Contact (AC) maximum rated R load	.03A@12VAC
Maximum contact current (AC)	0.03 A
Maximum contact current (DC)	0.03 A
Contact (DC) maximum rated R load	.03A@12VDC
Maximum contact voltage (AC)	12 V
Maximum contact voltage (DC)	12 V
Electrical life	300000 Cycle(s)
Manufacturer's serial number	2262
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	1.4 N
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

2262.1000 Related Products

	2262.1000	2210.2031	2263.1001	2210.8031	2263.1000	2210.3031	2262.1001	2210.7031	2261.1000	2261.1001
Description	Pushbutton Switch, SPST, Momentary, 0.03A, 12VDC, Solder Terminal, Through Hole-straight	Pushbutton Switch, SPST, Momentary, 0.023A, 30VDC, Solder Terminal, Panel Mount	Pushbutton Switch, SPST, Momentary, 0.02A, 35VDC, Solder Terminal, Through Hole-straight	Pushbutton Switch, SPST, Momentary, 0.023A, 30VDC, Solder Terminal, Panel Mount	Pushbutton Switch, SPST, Momentary, 0.02A, 35VDC, Solder Terminal, Through Hole-straight	Pushbutton Switch, SPST, Momentary, 0.023A, 30VDC, Solder Terminal, Panel Mount	Pushbutton Switch, SPST, Momentary, 0.03A, 12VDC, Solder Terminal, Through Hole-straight	Pushbutton Switch, SPST, Momentary, 0.023A, 30VDC, Solder Terminal, Panel Mount	Pushbutton Switch, SPST, Momentary, 0.03A, 12VDC, Solder Terminal, Through Hole-straight	Pushbutton Switch, SPST, Momentary, 0.03A, 12VDC, Solder Terminal, Through Hole-straight
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compliant	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body height	3.95 mm	13.5 mm	11 mm	13.5 mm	11 mm	13.5 mm	3.95 mm	13.5 mm	3.7 mm	3.7 mm
Body length or diameter	7.6 mm	10 mm	9 mm	10 mm	9 mm	10 mm	7.6 mm	10 mm	12 mm	12 mm
Contact (AC) maximum rated R load	.03A@12VAC	.023A@30VAC	.02A@35VAC	.023A@30VAC	.02A@35VAC	.023A@30VAC	.03A@12VAC	.023A@30VAC	.03A@12VAC	.03A@12VAC
Maximum contact current (AC)	0.03 A	0.023 A	0.02 A	0.023 A	0.02 A	0.023 A	0.03 A	0.023 A	0.03 A	0.03 A
Maximum contact current (DC)	0.03 A	0.023 A	0.02 A	0.023 A	0.02 A	0.023 A	0.03 A	0.023 A	0.03 A	0.03 A
Contact (DC) maximum rated R load	.03A@12VDC	.023A@30VDC	.02A@35VDC	.023A@30VDC	.02A@35VDC	.023A@30VDC	.03A@12VDC	.023A@30VDC	.03A@12VDC	.03A@12VDC
Maximum contact voltage (AC)	12 V	30 V	35 V	30 V	35 V	30 V	12 V	30 V	12 V	12 V
Maximum contact voltage (DC)	12 V	30 V	35 V	30 V	35 V	30 V	12 V	30 V	12 V	12 V
Electrical life	300000 Cycle(s)	25000 Cycle(s)	250000 Cycle(s)	25000 Cycle(s)	250000 Cycle(s)	25000 Cycle(s)	300000 Cycle(s)	25000 Cycle(s)	1000000 Cycle(s)	1000000 Cycle(s)
Manufacturer's serial number	2262	2210	2263	2210	2263	2210	2262	2210	2261	2261
Installation features	THROUGH HOLE-STRAIGHT	PANEL MOUNT	THROUGH HOLE-STRAIGHT	PANEL MOUNT	THROUGH HOLE-STRAIGHT	PANEL MOUNT	THROUGH HOLE-STRAIGHT	PANEL MOUNT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating force	1.4 N	2.5 N	1.5 N	2.5 N	1.5 N	2.5 N	1.4 N	2.5 N	1.7 N	1.7 N
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
body width	6.5 mm	9.9 mm	9 mm	9.9 mm	9 mm	9.9 mm	6.5 mm	9.9 mm	-	-
Maximum operating temperature	70 °C	-	70 °C	-	70 °C	-	70 °C	-	70 °C	70 °C
Minimum operating temperature	-25 °C	-	-20 °C	-	-20 °C	-	-25 °C	-	-25 °C	-25 °C
