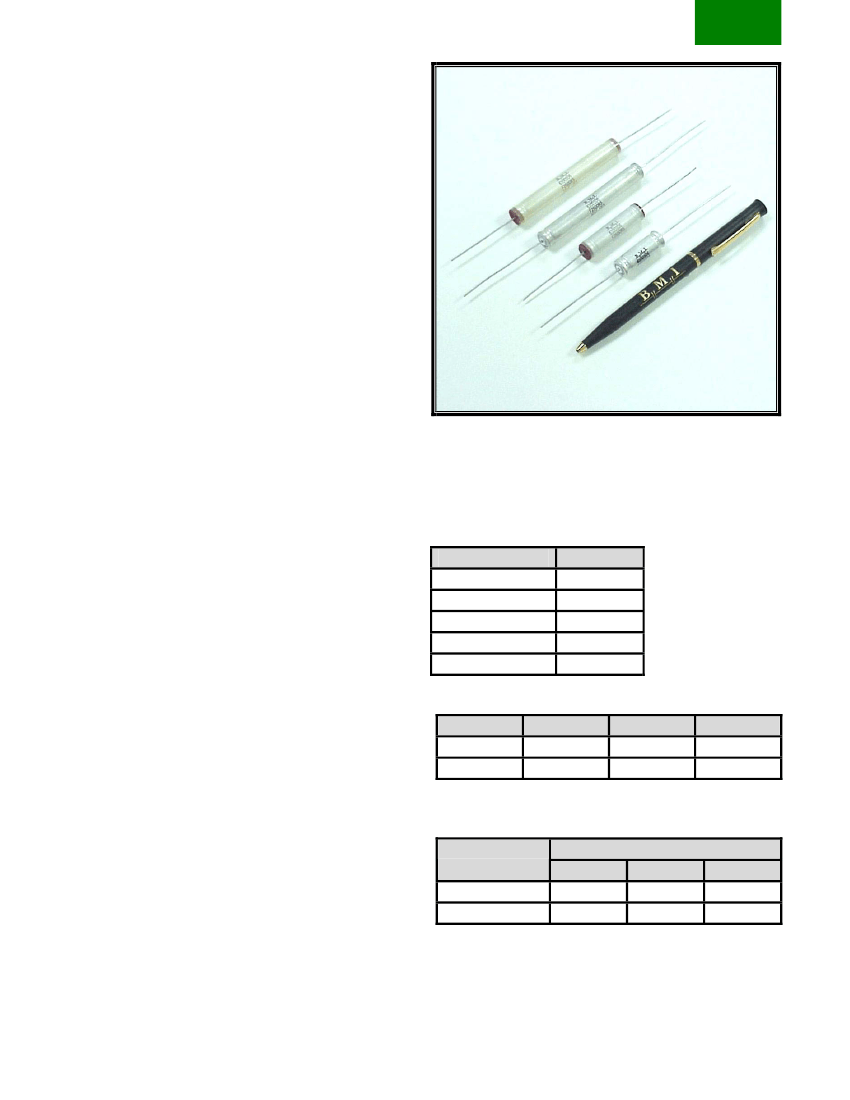

610D
+125°C
Non-Polar, Miniature
Aluminum Capacitors
Features-
•
•
•
•
•
Extended Temperature Range
Exceptional Capacitance Stability
Low DC Leakage Current
Tantalum Replacement
Military Version – Mil-PRF-39018/02
General Specifications-
Operating Temperature:
-55 to +125°C
Voltage Range:
7.0 – 250 VDC
Capacitance Range:
0.68µF to 680µF
Capacitance Tolerance:
-10%/+50% (Std.)
Case Size Range:
0.296” X 1.000” – 0.390” X 2.812”
Termination:
Axial Leads.
Life Validation Test: 2,000hrs @ +125°C
Δ
CAP ± 15% From initial measurement.
Δ
ESR
≤
1.30X Initial specified limit.
Δ
DCL
≤
Initial specified limit.
Shelf Test: 500hrs @ +125°C
Δ
CAP
≤
10% From initial measurement.
Δ
ESR
≤
1.20X Initial specified limit.
Δ
DCL
≤
2.0X Initial specified limit.
DC Leakage Current: (After 5 min. charge)
See Standard Ratings Table.
Ripple Current Multipliers:
Temperature:
Ambient Temp.
+125°C
+105°C
+95°C
+85°C
+65°C
Multiplier
1.00
2.24
2.65
3.00
3.61
Frequency (Hz)
VDC
50 – 60
7 – 60
0.85
61 – 250
0.83
300 – 400
1.10
1.15
>100k
1.15
1.20
Low Temperature Performance:
Capacitance Ratio C
-55°C
/C
+25°C
min. @ 120Hz.
Rated 125°C
% Capacitance Change at
VDC
-55°C
+85°C
+125°C
5 thru 15
-30
+15
+20
20 & Up
-25
+15
+20
Impedance:
When measured at a temperature of -55°C and a
frequency of 120Hz, the impedance shall not exceed
the values listed in the Standard Ratings Table.
610D
PART NUMBER BREAK-DOWN:
610D 476 G 007 KD 2
CASE STYLE:
2 = POLYESTER SLEEVE (STD.)
5 = POLYESTER SLEEVE WITH EPOXY END SEAL
(Req’d for exposure to halogenated cleaning solvents.)
CASE CODE:
(SEE TABLE 1.)
DC VOLTAGE RATING:
EXPRESSED IN VOLTS. WHERE NECESSARY, ZEROS ARE USED TO
PRECEDE THE VOLTAGE RATING (ie. 007 = 7 VOLTS.)
CAPACITANCE TOLERANCE:
F = -10%/+50% (STD.)
G = -10%/+75%
CAPACITANCE:
EXPRESSED IN PICOFARADS. THE FIRST TWO DIGITS ARE
SIGNIFICANT FIGURES, THE THIRD IS THE NUMBER OF ZEROS.
BMI TYPE #:
IDENTIFIES THE BASIC CAPACITOR DESIGN.
Axial-Leaded Capacitor Dimensions
STYLE 2
STYLE 5
Table 1. Case Dimensions mm(in.)
CASE
CODE
KD
DE
DU
DL
DR
NOMINAL
‘D’
7.14 (0.281)
9.53 (0.375)
9.53 (0.375)
9.53 (0.375)
9.53 (0.375)
‘L’
23.83 (0.938)
28.57 (1.125)
36.53 (1.438)
53.98 (2.125)
69.85 (2.750)
STYLE 2
‘D’ MAX.
7.72 (0.304)
10.11 (0.398)
10.11 (0.398)
10.11 (0.398)
10.11 (0.398)
‘L’ MAX.
25.40 (1.000)
30.15 (1.187)
38.10 (1.500)
55.55 (2.187)
71.42 (2.812)
STYLE 5 (w/epoxy end-seal)
‘D’ MAX.
7.72 (0.304)
10.11 (0.398)
10.11 (0.398)
10.11 (0.398)
10.11 (0.398)
‘L’ MAX.
28.58 (1.125)
33.33 (1.312)
41.28 (1.625)
58.73 (2.312)
74.60 (2.937)
WIRE GAUGE ‘W’
No. 20 AWG (0.032”)
No. 20 AWG (0.032”)
No. 20 AWG (0.032”)
No. 20 AWG (0.032”)
No. 20 AWG (0.032”)
610D
STANDARD RATINGS FOR TYPE 610D
Max.
Max.
ESR
Rated
Nominal Max.
DCL
+25°C
Capacitance Catalog Number Case Size DCL
+85°C,
120Hz
(µF)
DxL
+25°C +125°C
(mm)
(µA)
(µA)
(Ω)
7 VOLTS DC WORKING @ 85°C; 5 VOLTS DC SURGE @ 125°C
47
90
220
470
680
39
70
180
330
470
33
55
120
150
270
22
40
100
200
300
15
27
56
68
120
150
180
9.0
17
40
85
130
6.8
12
27
56
82
610D476G007KD2
610D906G007DE2
610D227G007DU2
610D477G007DL2
610D687G007DR2
610D396G010KD2
610D706G010DE2
610D187G010DU2
610D337G010DL2
610D477G010DR2
610D336G015KD2
610D556G015DE2
610D127G015DU2
610D157G015DU2
610D277G015DL2
610D226G020KD2
610D406G020DE2
610D107G020DU2
610D207G020DL2
610D307G020DR2
610D156G030KD2
610D276G030DE2
610D566G030DU2
610D686G030DU2
610D127G030DL2
610D157G030DL2
610D187G030DR2
610D905G040KD2
610D176G040DE2
610D406G040DU2
610D856G040DL2
610D137G040DR2
610D685G050KD2
610D126G050DE2
610D276G050DU2
610D566G050DL2
610D826G050DR2
7.14 x 23.81
9.53 x 28.57
9.53 x 36.51
9.53 x 53.97
9.53 x 69.85
7.14 x 23.81
9.53 x 28.57
9.53 x 36.51
9.53 x 53.97
9.53 x 69.85
7.14 x 23.81
9.53 x 28.57
9.53 x 36.51
9.53 x 36.51
9.53 x 53.97
7.54 x 25.40
9.53 x 28.57
9.53 x 36.51
9.53 x 53.97
9.53 x 69.85
7.54 x 25.40
9.53 x 28.57
9.53 x 36.51
9.53 x 36.51
9.53 x 53.97
9.53 x 53.97
9.53 x 69.85
7.54 x 25.40
9.53 x 28.57
9.53 x 36.51
9.53 x 53.97
9.53 x 69.85
7.54 x 25.40
9.53 x 28.57
9.53 x 36.51
9.53 x 53.97
9.53 x 69.85
4
7
10
16
24
4
7
10
16
24
4
7
9
10
16
5
7
10
16
24
5
7
9
10
15
16
24
6
8
10
16
24
6
8
10
16
24
12
21
30
48
72
12
21
30
48
72
12
21
27
30
48
15
21
30
48
72
15
21
27
30
45
48
72
18
24
30
48
72
18
24
30
48
72
5.80
3.00
1.20
0.58
0.40
7.10
3.90
1.50
0.82
0.58
8.30
5.00
2.30
1.80
1.00
12.0
6.90
2.80
1.42
0.92
13.0
7.40
3.60
2.90
1.70
1.30
1.10
22.0
12.0
5.00
2.40
1.50
29.0
17.0
7.40
3.60
2.40
Max.
Z
-55°C
120Hz
(Ω)
64
33
14
6.4
4.4
77
43
17
9.1
6.4
91
55
25
20
11
136
75
30
15
10
130
75
36
30
17
13
11
220
150
50
24
15
300
170
74
36
23
Max. Ripple
Current
+125°C
120Hz
(mA
rms
)
100
180
300
500
700
90
160
270
440
600
80
140
220
250
400
65
120
260
340
480
65
120
180
190
310
340
440
50
90
150
260
370
40
80
120
210
290
10 VOLTS DC WORKING @ 85°C; 7 VOLTS DC SURGE @ 125°C
15 VOLTS DC WORKING @ 85°C; 10 VOLTS DC SURGE @ 125°C
20 VOLTS DC WORKING @ 85°C; 15 VOLTS DC SURGE @ 125°C
30 VOLTS DC WORKING @ 85°C; 20 VOLTS DC SURGE @ 125°C
40 VOLTS DC WORKING @ 85°C; 30 VOLTS DC SURGE @ 125°C
50 VOLTS DC WORKING @ 85°C; 40 VOLTS DC SURGE @ 125°C
610D
STANDARD RATINGS FOR TYPE 610D
Max.
Max.
ESR
Rated
Nominal Max.
DCL
+25°C
Capacitance Catalog Number Case Size DCL
+85°C,
120Hz
(µF)
DxL
+25°C +125°C
(mm)
(µA)
(µA)
(Ω)
60 VOLTS DC WORKING @ 85°C; 40 VOLTS DC SURGE @ 125°C
5.0
9.0
24
47
70
3.9
8.0
15
18
39
56
2.2
4.0
12
22
33
1.8
3.0
5.6
8.2
12
15
22
1.0
2.0
5.0
10
15
0.68
1.0
3.3
6.8
10
610D505G060KD2
610D905G060DE2
610D246G060DU2
610D476G060DL2
610D706G060DR2
610D395F075KD2
610D805F075DE2
610D156F075DU2
610D186F075DU2
610D396F075DL2
610D566F075DR2
610D225F100KD2
610D405F100DE2
610D126F100DU2
610D226F100DL2
610D336F100DR2
610D185F150KD2
610D305F150DE2
610D565F150DU2
610D825F150DU2
610D126F150DL2
610D156F150DL2
610D226F150DR2
610D105F200KD2
610D205F200DE2
610D505F200DU2
610D106F200DL2
610D156F200DR2
610D684F250KD2
610D105F250DE2
610D335F250DU2
610D685F250DL2
610D106F250DR2
7.54 x 25.40
9.53 x 28.57
9.53 x 36.51
9.53 x 53.97
9.53 x 69.85
7.54 x 25.40
9.53 x 28.57
9.53 x 36.51
9.53 x 36.51
9.53 x 53.97
9.53 x 69.85
7.54 x 25.40
9.53 x 28.57
9.53 x 36.51
9.53 x 53.97
9.53 x 69.85
7.54 x 25.40
9.53 x 28.57
9.53 x 36.51
9.53 x 36.51
9.53 x 53.97
9.53 x 53.97
9.53 x 69.85
7.54 x 25.40
9.53 x 28.57
9.53 x 36.51
9.53 x 53.97
9.53 x 69.85
7.54 x 25.40
9.53 x 28.57
9.53 x 36.51
9.53 x 53.97
9.53 x 69.85
7
9
11
16
24
7
9
10
11
16
24
8
12
16
18
28
10
12
14
16
18
20
28
12
16
20
24
32
14
18
22
26
36
21
27
33
48
72
21
27
30
33
48
72
12
36
48
54
84
30
36
42
48
54
60
84
36
48
60
72
96
42
54
66
78
108
40.0
22.0
8.30
4.30
2.90
51.0
25.0
13.3
11.0
5.10
3.60
91.0
50.0
17.0
9.10
6.00
110.0
67.0
36.0
24.0
17.0
13.0
9.10
200.0
100.0
40.0
20.0
13.0
290.0
200.0
60.0
29.0
20.0
Max.
Z
-55°C
120Hz
(Ω)
400
220
83
43
29
510
250
130
110
51
36
910
500
170
91
61
1,100
670
360
230
170
130
91
2,000
1,000
400
200
130
3,000
2,000
610
300
200
Max. Ripple
Current
+125°C
120Hz
(mA
rms
)
35
65
110
200
270
30
60
90
100
170
240
25
45
80
130
180
20
40
55
70
100
110
150
15
30
50
90
120
15
20
40
70
100
75 VOLTS DC WORKING @ 85°C; 60 VOLTS DC SURGE @ 125°C
100 VOLTS DC WORKING @ 85°C; 75 VOLTS DC SURGE @ 125°C
150 VOLTS DC WORKING @ 85°C; 100 VOLTS DC SURGE @ 125°C
200 VOLTS DC WORKING @ 85°C; 150 VOLTS DC SURGE @ 125°C
250 VOLTS DC WORKING @ 85°C; 200 VOLTS DC SURGE @ 125°C
610D

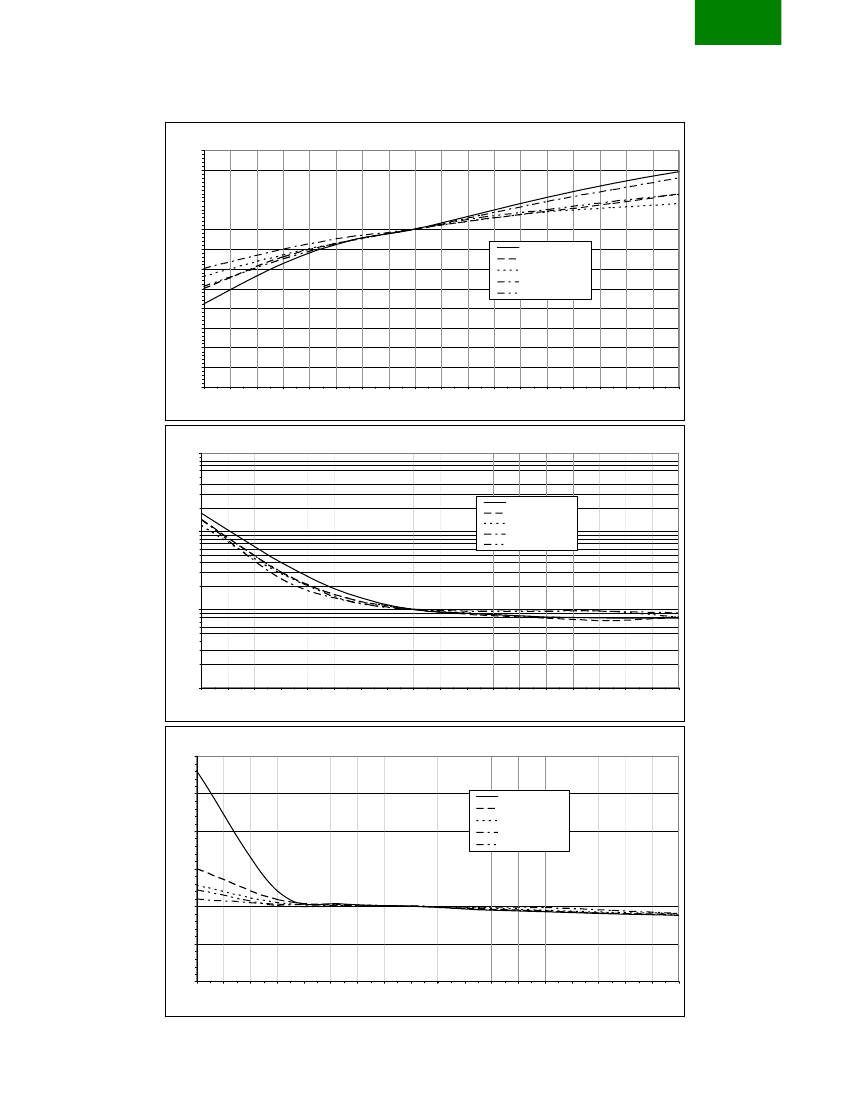

610D TYPICAL PERFORMANCE PROFILES
TEMPERATURE CHARACTERISTICS
610D Series: Capacitance Change (%) vs Temperature
120%
115%
110%
Capacitance Change (%) @ 120Hz
105%
100%
95%
90%
85%
80%
75%
70%
65%
60%
-55
-45
-35
-25
-15
-5
5
15
25
35
45
55
65
75
85
95
105
115
125
680µF @ 7VDC
180µF @ 30VDC
130µF @ 40VDC
22µF @ 150VDC
2µF @ 200VDC
Temperature (°C)
610D Series: ESR Ratio vs Temperature
100.0
ESR Ratio @ 120Hz
10.0
680µF @ 7VDC
180µF @ 30VDC
130µF @ 40VDC
22µF @ 150VDC
2µF @ 200VDC
1.0
0.1
-55
-45
-35
-25
-15
-5
5
15
25
35
45
55
65
75
85
95
105
115
125
Temperature (°C)
610D Series: Impedance Ratio vs Temperature
3.0
2.5
680µF @ 7VDC
180µF @ 30VDC
130µF @ 40VDC
22µF @ 150VDC
2µF @ 200VDC
Impedance Ratio @ 120Hz
2.0
1.5
1.0
0.5
0.0
-55
-45
-35
-25
-15
-5
5
15
25
35
45
55
65
75
85
95
105
115
125
Temperature (°C)
