Datasheet> All Categories > logic> logic> TC74LVX373FW

Preview

TC74LVX373FW: DescriptionOCTAL D-TYPE LATCH WITH 3-TATE OUTPUT; Categorylogic logic; File Size277KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

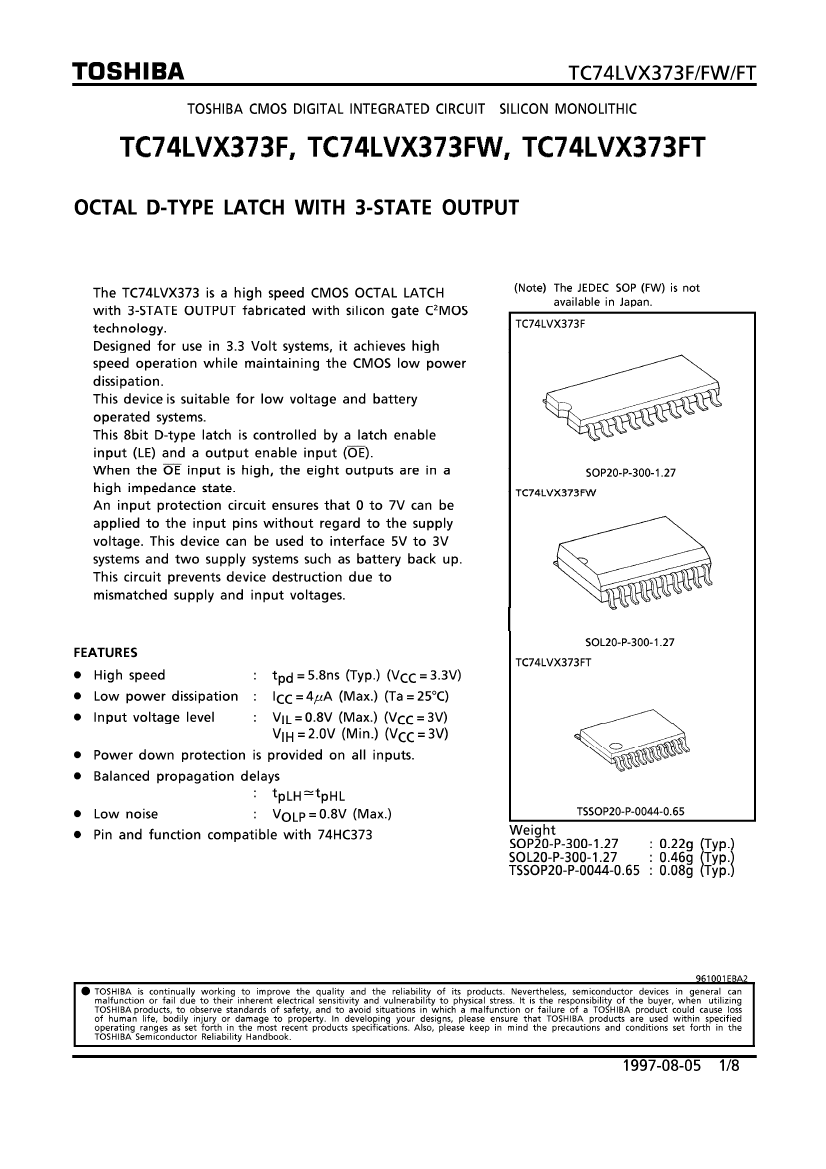

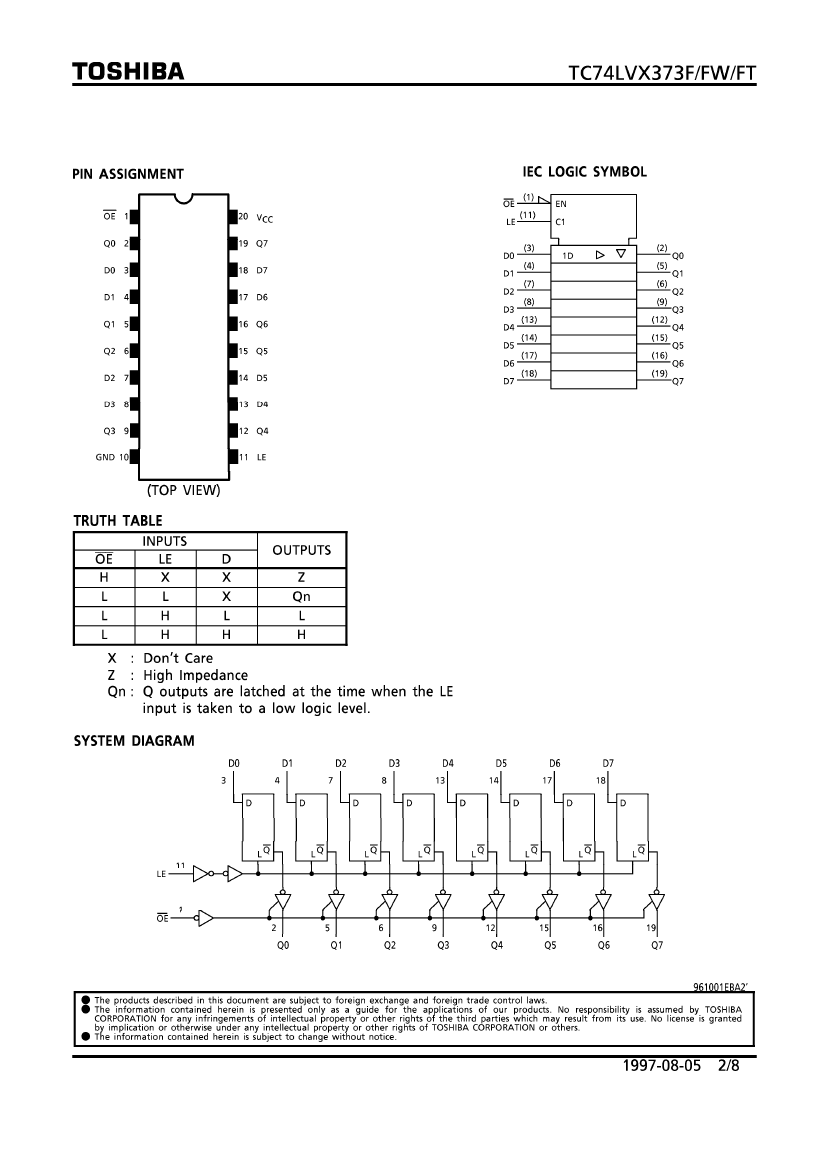

TC74LVX373FW Overview

OCTAL D-TYPE LATCH WITH 3-TATE OUTPUT

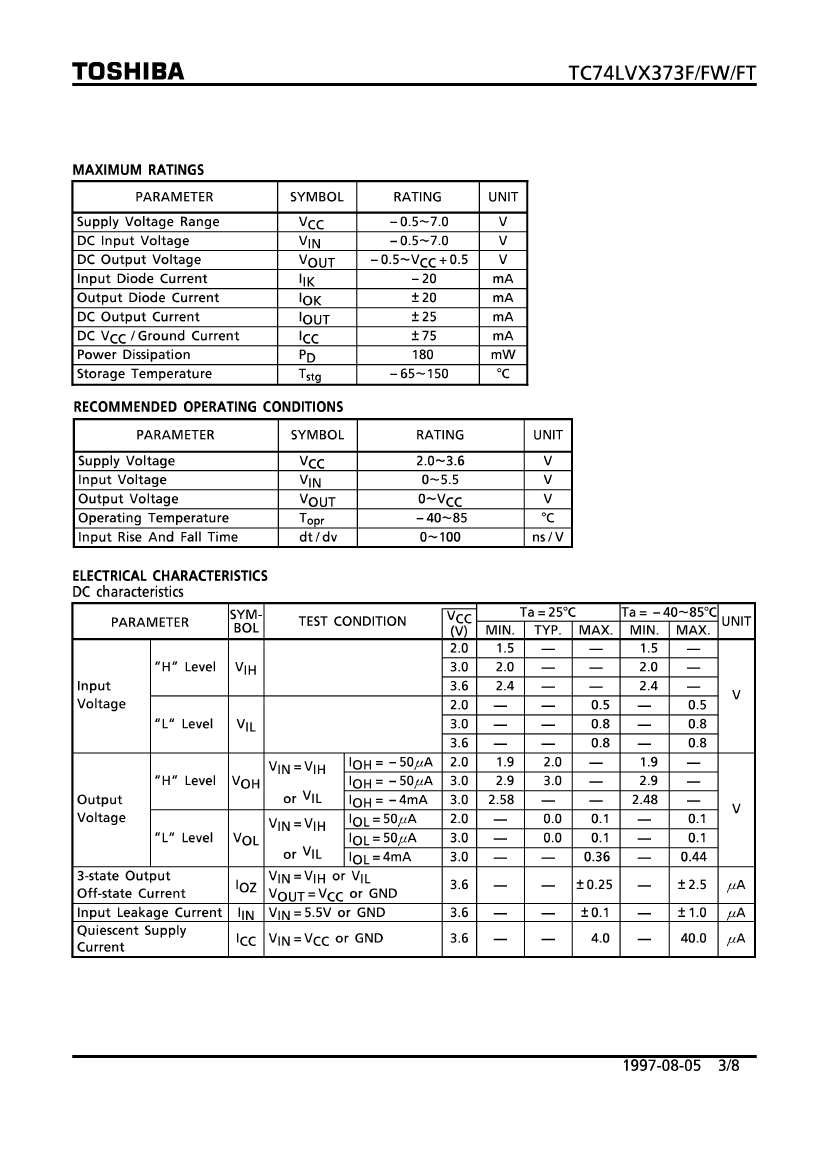

TC74LVX373FW Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP, SOP20,.4
Contacts	20
Reach Compliance Code	unknow
Other features	NOT AVAILABLE IN JAPAN
series	LV/LV-A/LVX/H
JESD-30 code	R-PDSO-G20
length	12.8 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.004 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V

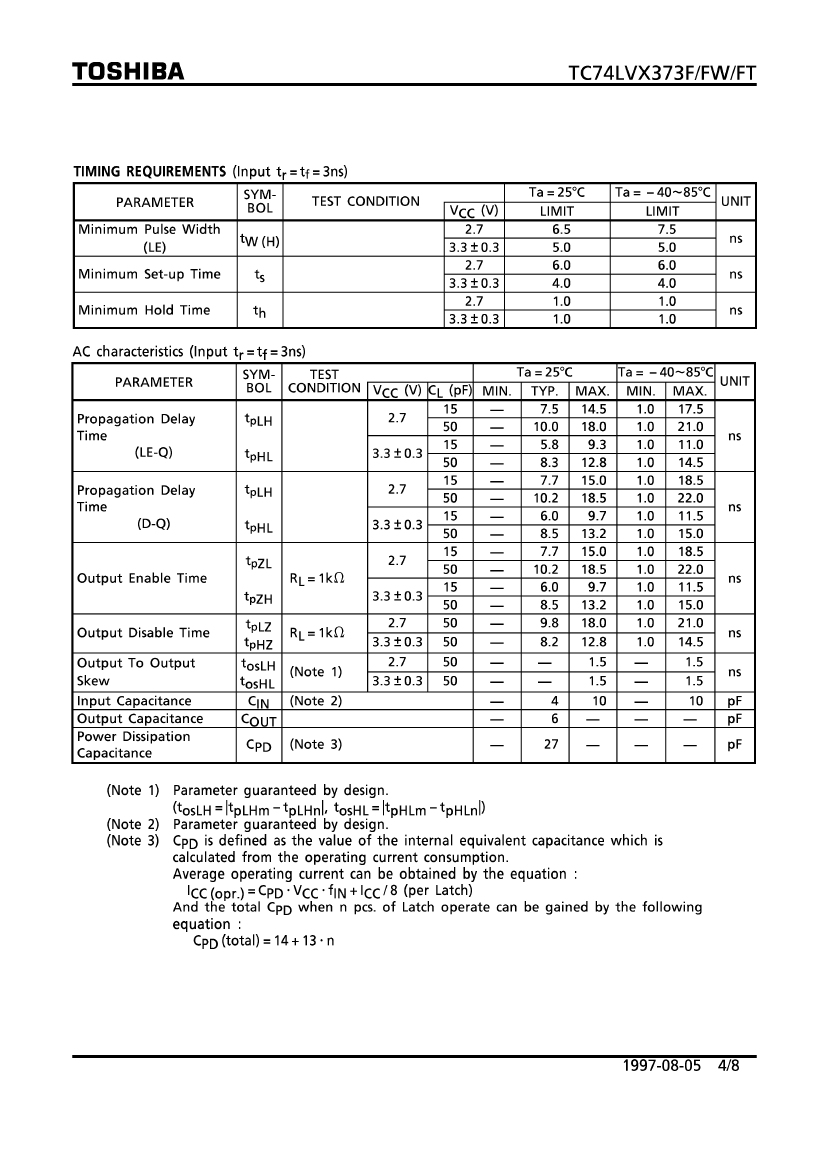

Prop。Delay @ Nom-Su	15 ns
propagation delay (tpd)	21 ns
Certification status	Not Qualified
Maximum seat height	2.7 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	2.7 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm

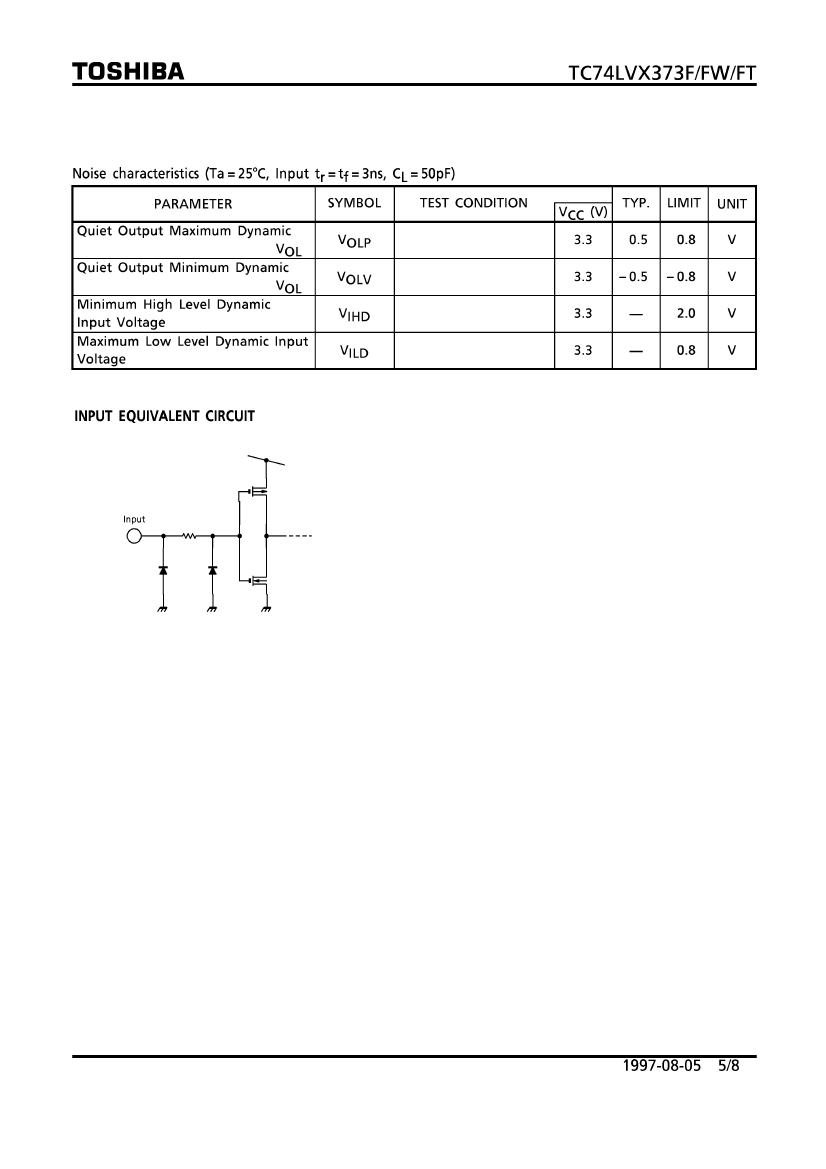

Preview

Download Datasheet

View All

TC74LVX373FW Related Products

	TC74LVX373FW	TC74LVX373	TC74LVX373FT
Description	OCTAL D-TYPE LATCH WITH 3-TATE OUTPUT	OCTAL D-TYPE LATCH WITH 3-TATE OUTPUT	OCTAL D-TYPE LATCH WITH 3-TATE OUTPUT
Is it lead-free?	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to
Parts packaging code	SOIC	-	TSSOP
package instruction	SOP, SOP20,.4	-	TSSOP, TSSOP20,.25
Contacts	20	-	20
Reach Compliance Code	unknow	-	unknow
series	LV/LV-A/LVX/H	-	LV/LV-A/LVX/H
JESD-30 code	R-PDSO-G20	-	R-PDSO-G20
length	12.8 mm	-	6.5 mm
Load capacitance (CL)	50 pF	-	50 pF
Logic integrated circuit type	BUS DRIVER	-	BUS DRIVER
MaximumI(ol)	0.004 A	-	0.004 A
Number of digits	8	-	8
Number of functions	1	-	1
Number of ports	2	-	2
Number of terminals	20	-	20
Maximum operating temperature	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-	-40 °C
Output characteristics	3-STATE	-	3-STATE
Output polarity	TRUE	-	TRUE
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	SOP	-	TSSOP
Encapsulate equivalent code	SOP20,.4	-	TSSOP20,.25
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	-	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
power supply	3.3 V	-	3.3 V
Prop。Delay @ Nom-Su	15 ns	-	15 ns
propagation delay (tpd)	21 ns	-	21 ns
Certification status	Not Qualified	-	Not Qualified
Maximum seat height	2.7 mm	-	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	-	3.6 V
Minimum supply voltage (Vsup)	2 V	-	2 V
Nominal supply voltage (Vsup)	2.7 V	-	2.7 V
surface mount	YES	-	YES
technology	CMOS	-	CMOS
Temperature level	INDUSTRIAL	-	INDUSTRIAL
Terminal form	GULL WING	-	GULL WING
Terminal pitch	1.27 mm	-	0.65 mm
Terminal location	DUAL	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
width	7.5 mm	-	4.4 mm
