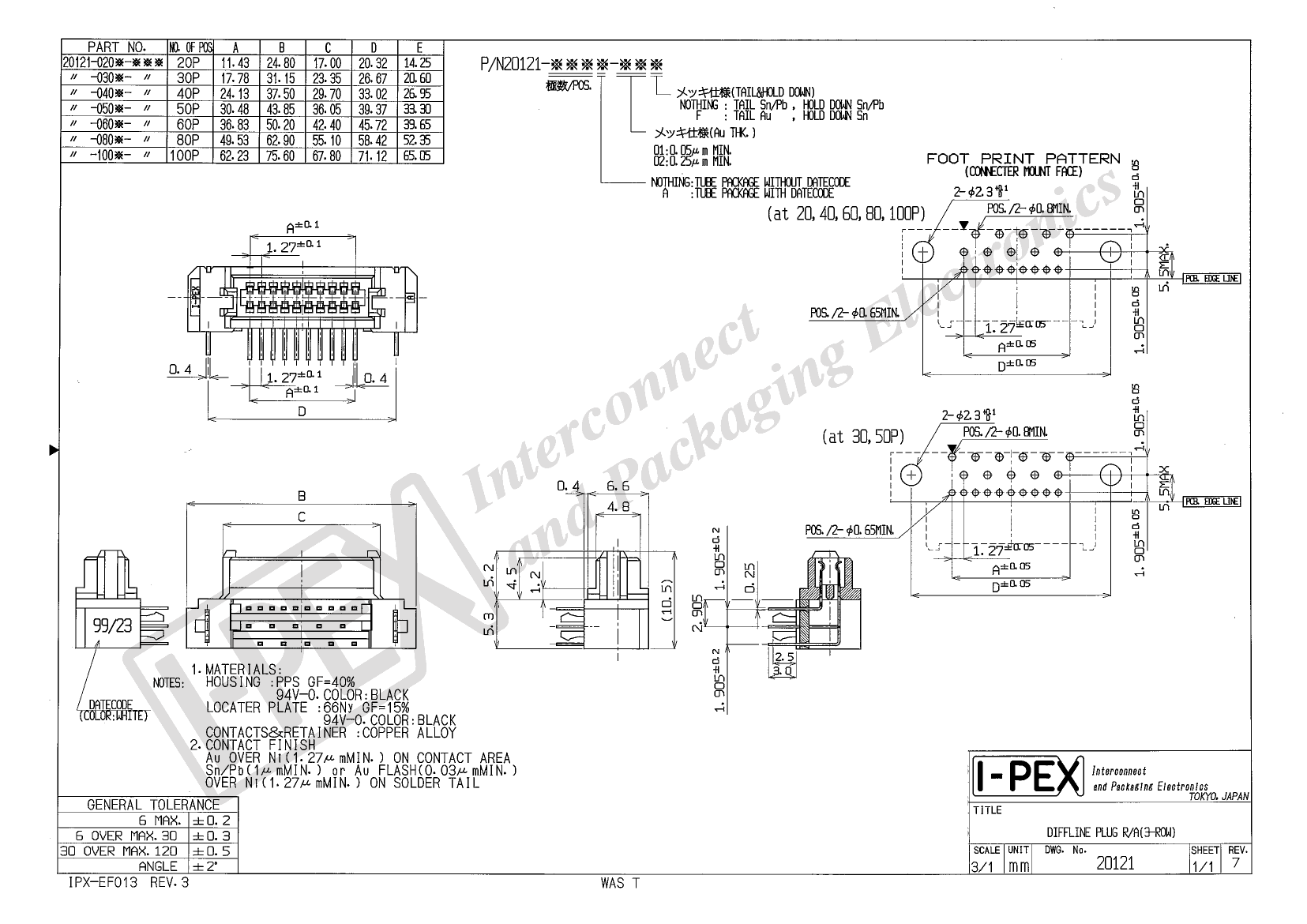

Preview

20121-020-01: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerI-PEX Co., Ltd.

Download Datasheet Parametric Compare View All

20121-020-01 Overview

Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug

20121-020-01 Parametric

Parameter Name	Attribute value
Maker	I-PEX Co., Ltd.
Reach Compliance Code	unknow
Other features	WITH TUBE PACKAGING
Board mount options	SPLIT BOARD LOCK
body width	0.26 inch
subject depth	0.413 inch
body length	0.976 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Durability	30 Cycles
maximum insertion force	.7784 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	20121
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	2
Minimum operating temperature	-15 °C
PCB contact pattern	MIXED
PCB contact row spacing	1.905 mm
Plating thickness	2u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Termination type	SOLDER
Total number of contacts	20
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

20121-020-01 Related Products

	20121-020-01	20121-060-01	RV0603Y2180DGTC	200-2-062-0-HTF-LS0	20121-050-01	20121-030-01
Description	Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, 60 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug	Fixed Resistor, Thin Film, 0.125W, 218ohm, 50V, 0.5% +/-Tol, 10ppm/Cel, Surface Mount, 0603, CHIP	Board Connector, 62 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Locking	Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator, Plug
Reach Compliance Code	unknow	unknow	unknown	compliant	unknow	unknown
Minimum operating temperature	-15 °C	-15 °C	-55 °C	-40 °C	-15 °C	-15 °C
Guideline	UL	UL	CECC40401-010	UL	UL	UL
Other features	WITH TUBE PACKAGING	WITH TUBE PACKAGING	HIGH PRECISION, LASER TRIMMABLE, NON INDUCTIVE	-	WITH TUBE PACKAGING	WITH TUBE PACKAGING
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	-	-	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.26 inch	0.26 inch	-	0.128 inch	0.26 inch	0.26 inch
subject depth	0.413 inch	0.413 inch	-	0.157 inch	0.413 inch	0.413 inch
body length	0.976 inch	1.976 inch	-	1.566 inch	1.726 inch	1.226 inch
Body/casing type	PLUG	PLUG	-	-	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	-	AU	AU ON NI	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL	-	TIN	TIN/LEAD OVER NICKEL	TIN/LEAD OVER NICKEL
Contact point gender	MALE	MALE	-	FEMALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	60 mΩ	60 mΩ	-	-	60 mΩ	60 mΩ
Durability	30 Cycles	30 Cycles	-	-	30 Cycles	30 Cycles
maximum insertion force	.7784 N	.7784 N	-	-	.7784 N	.7784 N
Insulation resistance	1000000000 Ω	1000000000 Ω	-	-	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	-	-	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	-	THERMOPLASTIC	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	20121	20121	-	200	20121	20121
Plug contact pitch	0.05 inch	0.05 inch	-	0.05 inch	0.05 inch	0.05 inch
Installation option 1	LOCKING	LOCKING	-	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	-	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	-	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	-	ONE	ONE	ONE
PCB row number	3	3	-	2	3	3
Number of rows loaded	2	2	-	2	2	2
PCB contact pattern	MIXED	MIXED	-	RECTANGULAR	MIXED	MIXED
PCB contact row spacing	1.905 mm	1.905 mm	-	1.27 mm	1.905 mm	1.905 mm
Plating thickness	2u inch	2u inch	-	-	2u inch	2u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	-	1 A	0.5 A	0.5 A
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	-	0.094 inch	0.118 inch	0.118 inch
Termination type	SOLDER	SOLDER	-	SOLDER	SOLDER	SOLDER
Total number of contacts	20	60	-	62	50	30
Evacuation force-minimum value	.139 N	.139 N	-	-	.139 N	.139 N
