Film Capacitors
Power Electronic Capacitors
B2562*
MKP DC
Construction
1.
General data
K: ±10%
2 • 10
-4
100 000 h at
hs
+75°C und V
R DC
up to 200 000 h (depending on real operating
conditions)
50 at V
R DC
and 70
°C
(refer to section 4)
–55 °C
+85 °C for diameter 85 and 90 mm
+75 °C for diameter 116 mm
–55 ... +85 °C
+85 °C for diameter 85 and 90 mm
+75 °C for diameter 116 mm
55/85/56 for 85 and 90 mm diameter
55/75/56 for 116 mm diameter
2000 m above sea level
(derating curves available upon request)
Characteristics
Standard capacitance tolerance
Dielectric dissipation factor (tan
δ
o
)
Service life expectancy
(refer to section 2)
Fit rate
Minimum temperature
min.
Maximum temperature
max.
Storage temperature
stg
Maximum hotspot temperature
hs
(refer to section 1)
Climatic category
Maximum altitude
Test data
Voltage between terminals U
TT
Voltage between terminals and case U
TC
Life test
Cooling
Degree of protection
Design data
Impregnation
Mounting and grounding
Max. torque (case) M12 stud
Max. torque terminal
1.5 V DC , 10 s
4000 V AC, 10 s
According to IEC 61071
Naturally air-cooled (or forced air cooling)
Indoor mounting
Resin filling: Non PCB, hard polyurethane (dry type)
M12 threaded bolt on bottom of the aluminum case
10 Nm
Female M6: 5 Nm
Female M8: 6 Nm
Male M8: 8 Nm
Reference standards
IEC 61071
RoHS compliance
Certification: UL 810-5th edition (refer to table 1.3)
CAP FILM P PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 23
January 2016
Film Capacitors
Power Electronic Capacitors
B2562*
MKP DC
1.1 Structure of ordering code
Version:
B = without plastic cap
C/D = with plastic cap
S = special
MKP DC Series
Rated voltage: 110
•
10 = 1100 V
B2562 0 B 1 427 K 10 1
Terminal type:
0 = Female M6
1 = Male M6
2 = Female M8
3 = Male M8
4 = Female M10
5 = Male M10
9 = special
Rated capacitance:
7
107 = 10 · 10 pF = 100 µF
427 = 42 · 10
7
pF = 420 µF
8
108 = 10 · 10 pF = 1 mF
Distance between terminals:
1 = 32 mm
2 = 35 mm
3 = 50 mm
4 = 45 mm
9 = special
Capacitance tolerance
J = ± 5%
K = ± 10%
A = special
1.2 Standard types
D (mm)
OC ending
Diameter (Ø)
Terminal type
85 mm
Female M6
(B25620)
Male M8
(B25623)
Female M6
(B25620)
Female M6
(B25620)
32 ± 0.5
-**1
45 ± 0.5
-**4
50 ± 0.5
-**3
standard
standard
available
standard
90 mm
116 mm
Other terminal configurations available upon request.
1.3 UL approved types
Diameter (Ø)
Series
B2562xC
85 mm
B2562xD
90 mm
all types
116 mm
all types
CAP FILM P PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 23
January 2016
Film Capacitors
Power Electronic Capacitors
B2562*
MKP DC
1.4 Drawings types

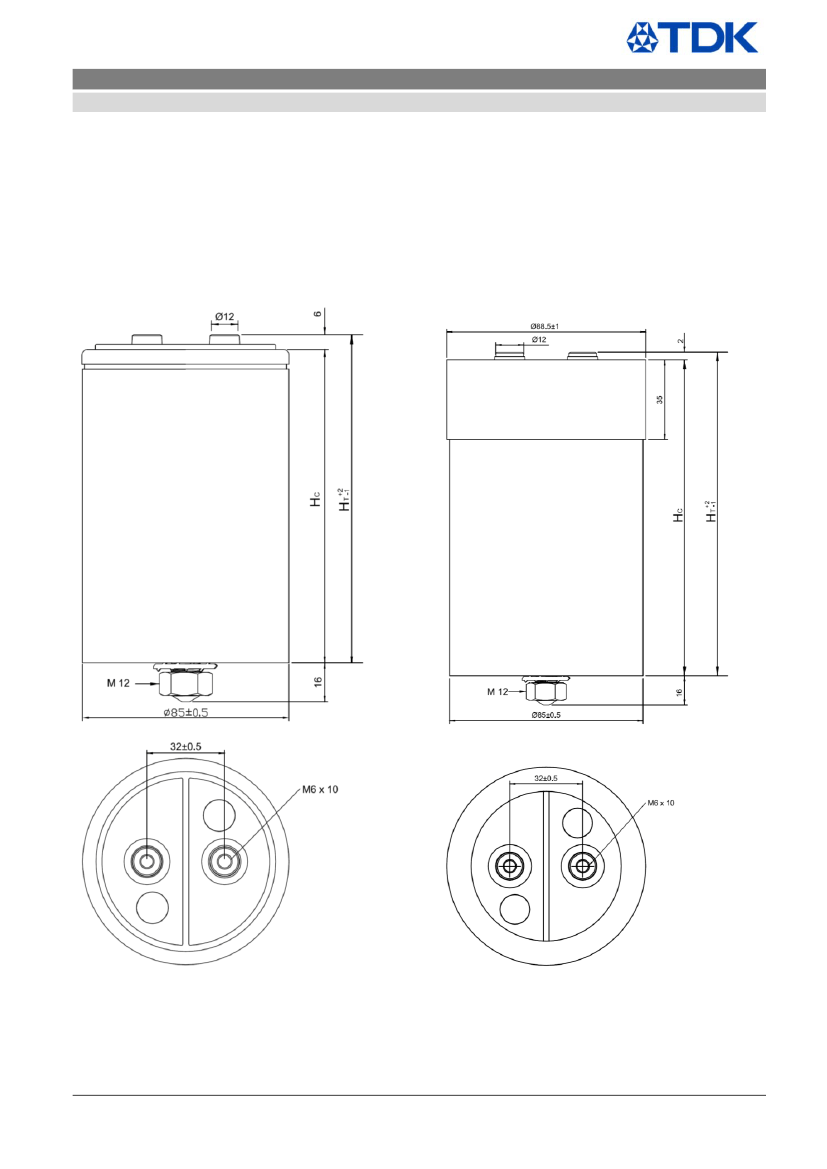

Figure 1: - B25620B - Ø 85 mm
- Female terminals (M6)
- Between terminals 32±0.5 mm
Figure 2: - B25620C / B25620D - Ø 85 mm
- Female terminals (M6)
- Between terminals 32±0.5 mm
CAP FILM P PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 23
January 2016
Film Capacitors
Power Electronic Capacitors
B2562*
MKP DC

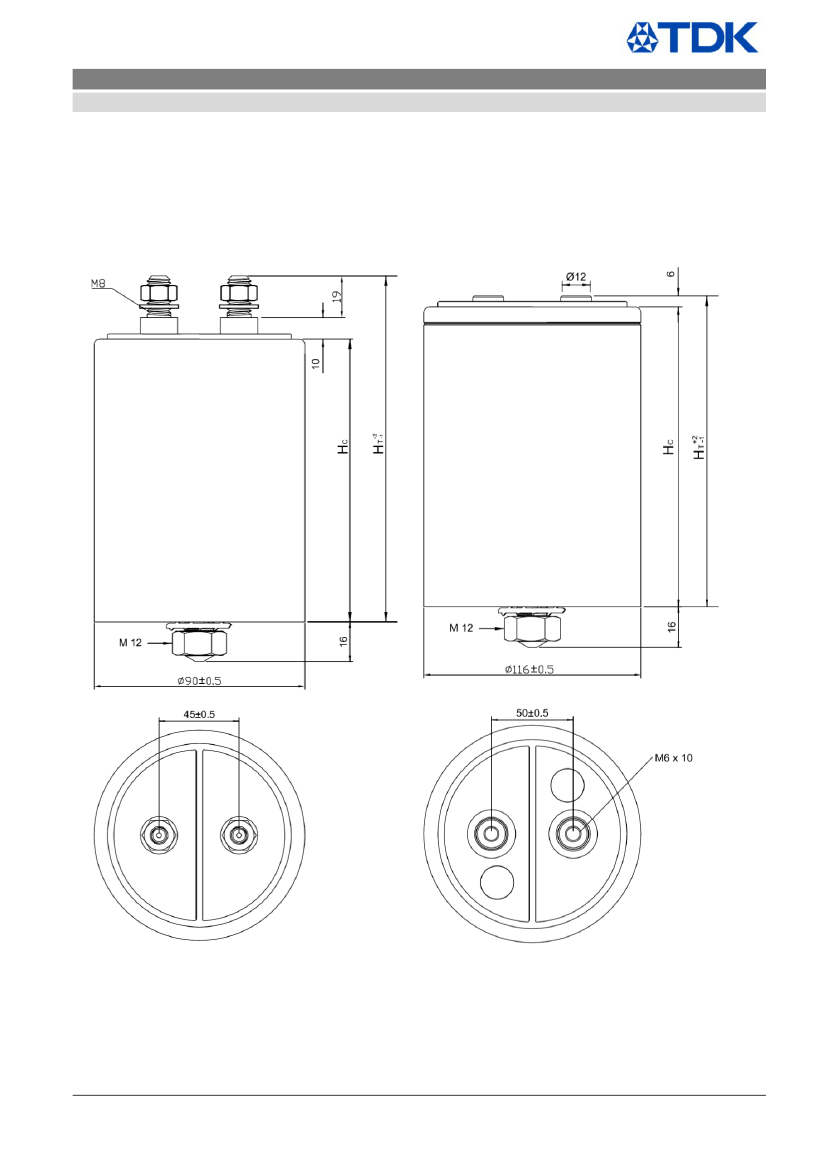

Figure 3: - B25623B - Ø 90 mm
- Male terminals (M8)
- Between terminals 45±0.5 mm
Figure 4: - B25620B - Ø 116 mm
- Female terminals (M6)
- Between terminals 50±0.5 mm
CAP FILM P PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 23
January 2016
