L-53YD-12V Overview

Single Color LED, Yellow, Diffused, T-1 3/4, 5mm,

L-53YD-12V Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	compli
ECCN code	EAR99
Other features	HIGH RELIABILITY
color	YELLOW
Configuration	SINGLE WITH BUILT-IN RESISTOR
Maximum forward current	0.0115 A
Lens type	DIFFUSED
Nominal luminous intensity	20.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	BULK
peak wavelength	590 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

Preview

Download Datasheet

View All

T-1 3/4 (5mm) RESISTOR LED LAMPS

L-53ID-12V

L-53GD-12V

L-53YD-12V

HIGH EFFICIENCY RED

GREEN

YELLOW

L-53SGD-12V SUPER BRIGHT GREEN

L-53SRD-12V SUPER BRIGHT RED

Features

Description

The High Efficiency Red source color devices are made with

Gallium Arsenide Phosphide on Gallium Phosphide Orange

Light Emitting Diode.

The Green and Super Bright Green source color devices are

made with Gallium Phosphide Green Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

The Super Bright Red source color devices are made with

Gallium Aluminum Arsenide Red Light Emitting Diode.

CURRENT LIMITING RESISTOR.

VOLT SERIES IN T-1 PACKAGES.

EXTERNAL CURRENT LIMITER REQUIRED WITH

EFFECTIVE - SAVE SPACE AND RESISTOR COST.

VIEWING ANGLE.

INTEGRAL

12 VOLT SUPPLY.

COST

WIDE

AVAILABLE IN ALL COLORS.

12V

INTERNAL RESISTOR.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: KDA0196

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: OCT/04/2001

DRAWN: J.X.FU

PAGE: 1 OF 5

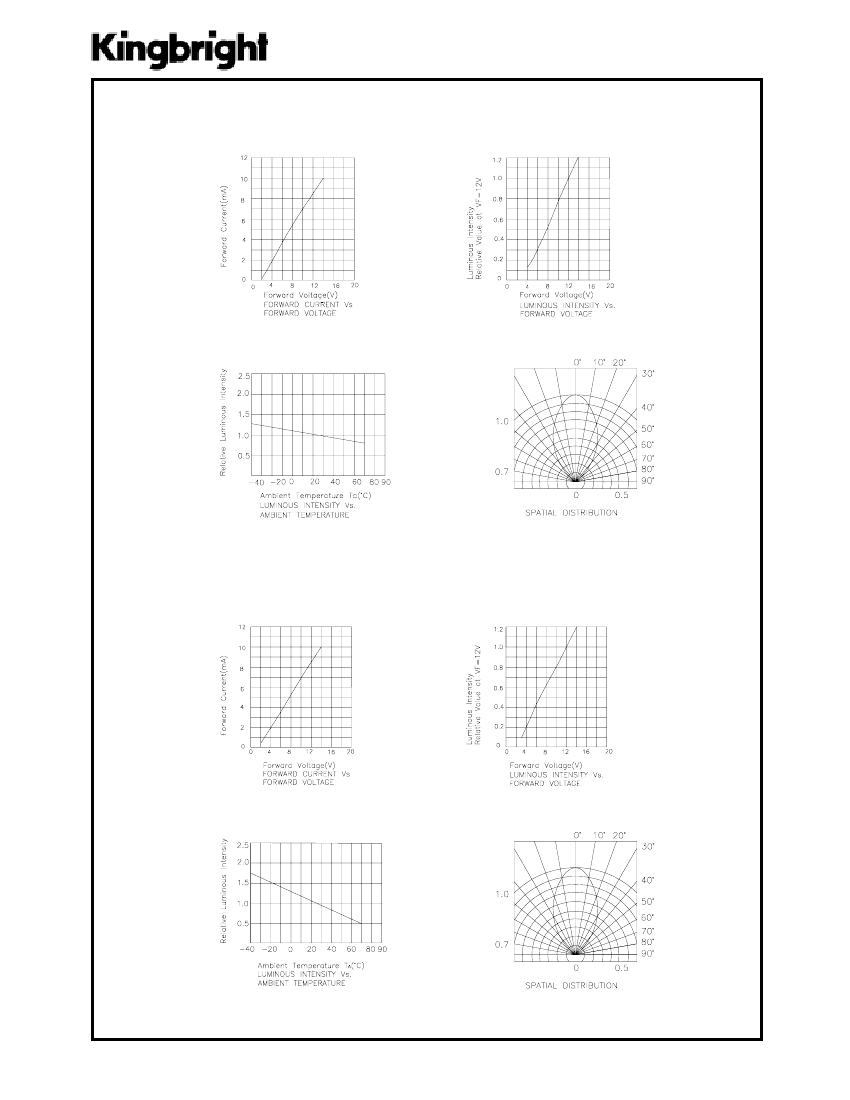

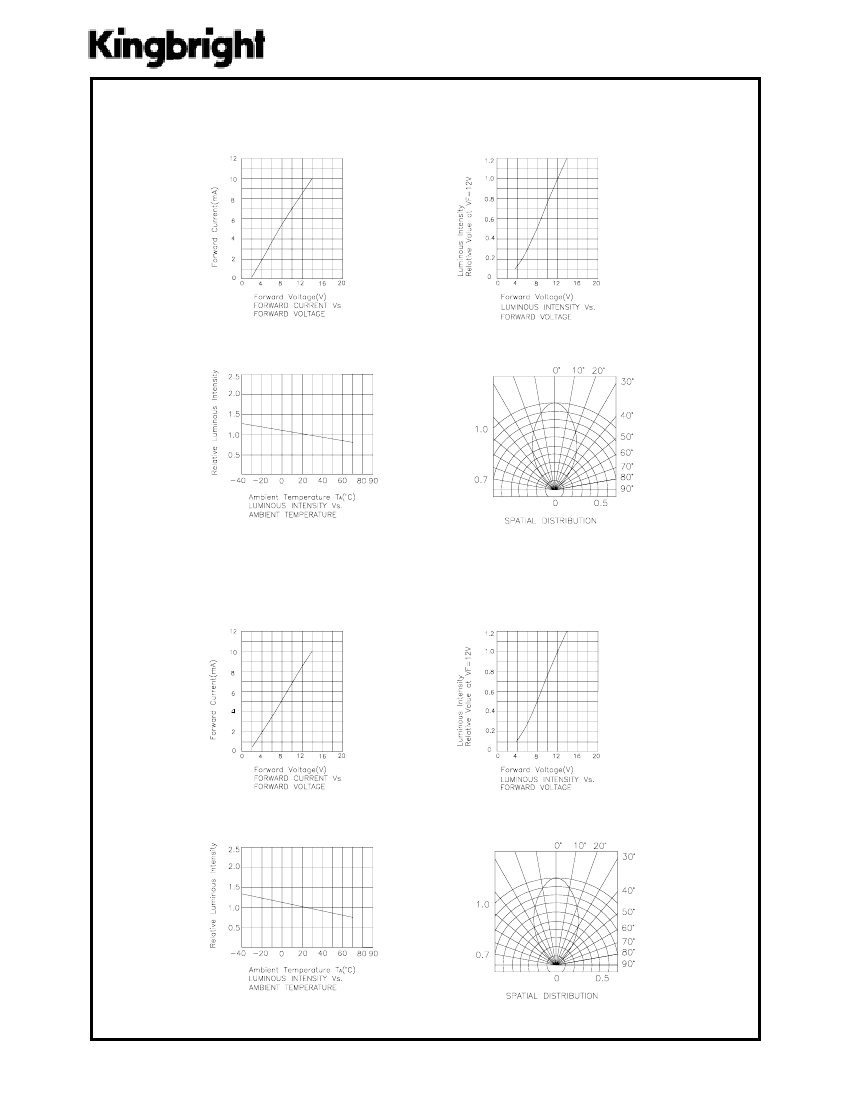

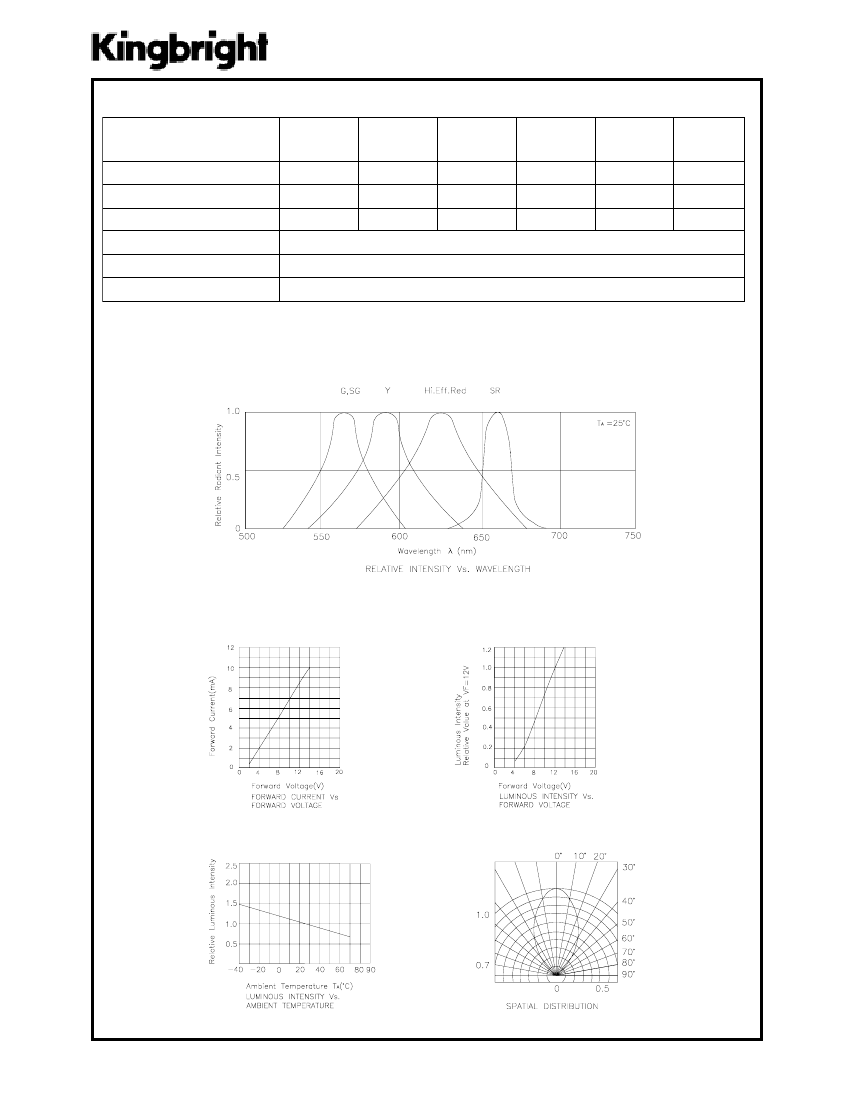

L-53YD-12V Related Products

	L-53YD-12V	L-53ID-12V	L-53GD-12V	L-53SRD-12V
Description	Single Color LED, Yellow, Diffused, T-1 3/4, 5mm,	Single Color LED, High Efficiency Red, Diffused Red, T-1 3/4, 5mm,	Single Color LED, Green, Diffused, T-1 3/4, 5mm,	Single Color LED, Super Bright Red, Diffused Red, T-1 3/4, 5mm,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Kingbright	Kingbright	Kingbright	Kingbright
Reach Compliance Code	compli	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
color	YELLOW	HIGH EFFICIENCY RED	GREEN	SUPER BRIGHT RED
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR
Maximum forward current	0.0115 A	0.0115 A	0.025 A	0.0115 A
Lens type	DIFFUSED	DIFFUSED RED	DIFFUSED	DIFFUSED RED
Nominal luminous intensity	20.0 mcd	30.0 mcd	20.0 mcd	180.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	70 °C	70 °C	85 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.6 mm	8.6 mm	8.6 mm	8.6 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	590 nm	627 nm	565 nm	660 nm
shape	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	60 deg	60 deg	60 deg	60 deg
Base Number Matches	1	1	1	-
color@wavelength	-	Orange	Green	Red
Maximum forward voltage	-	14 V	14 V	14 V
minimum luminous intensity	-	60 cd	60 cd	60 cd
Maximum reverse voltage	-	5 V	5 V	5 V
