BA6798S Overview

4-channel BTL driver for CD players

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	DIP
package instruction	HSDIP,
Contacts	24
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDIP-T24
length	23.8 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Package body material	PLASTIC/EPOXY
encapsulated code	HSDIP
Package shape	RECTANGULAR
Package form	IN-LINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.6 mm
Maximum slew rate	13.5 mA
Maximum supply voltage (Vsup)	14 V
Minimum supply voltage (Vsup)	5.5 V
surface mount	NO
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	13.97 mm

Optical disc ICs

4-channel BTL driver for CD players

BA6798S

The BA6798S is a 4-channel H-bridge BTL driver for CD players and actuators. The 5V regulator and internal standard

operational amplifier make this IC suited to a broad range of applications.

FApplications

CD players and CD-ROM drives

FFeatures

1) 4-channel BTL driver.

2) SDIP M 24-pin package for high package power.

3) Internal thermal shutdown circuit.

4) Driver gain is adjustable with a single attached resis-

tor.

5) Internal 5V regulator. (requires attached PNP tran-

sistor)

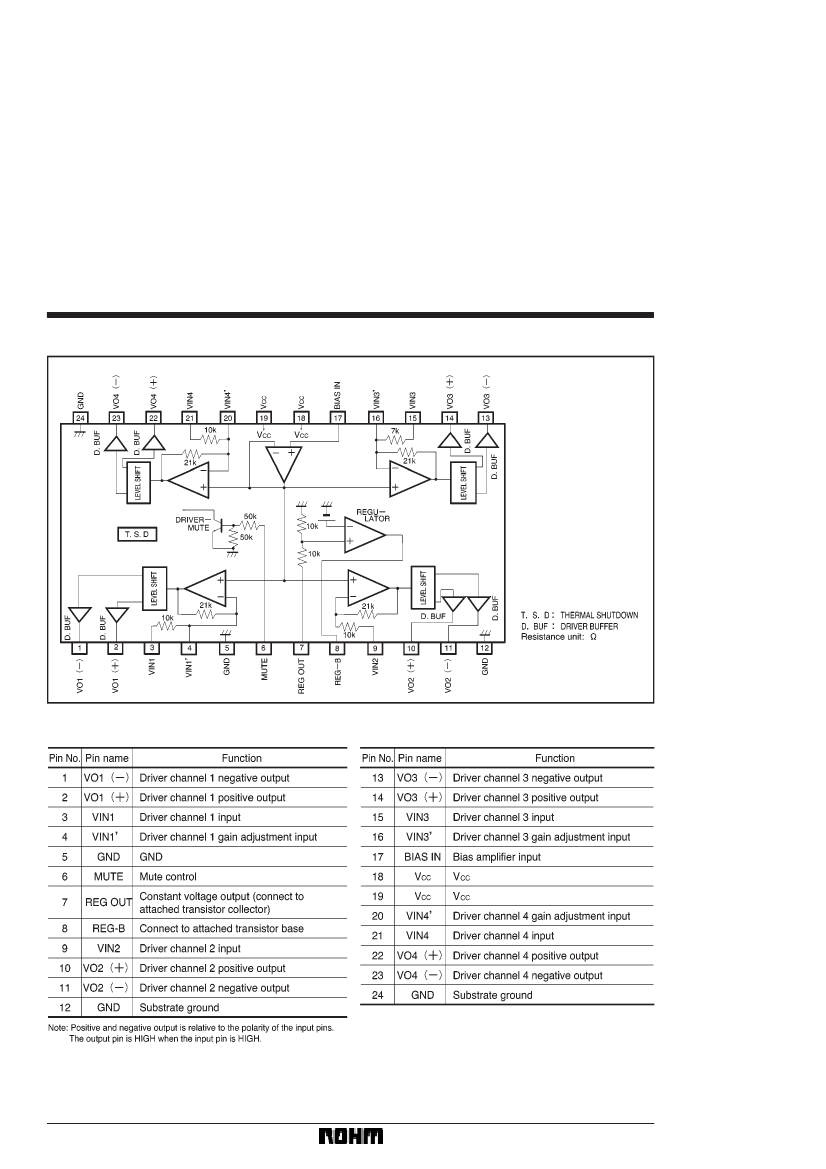

FAbsolute

maximum ratings (Ta = 25_C)

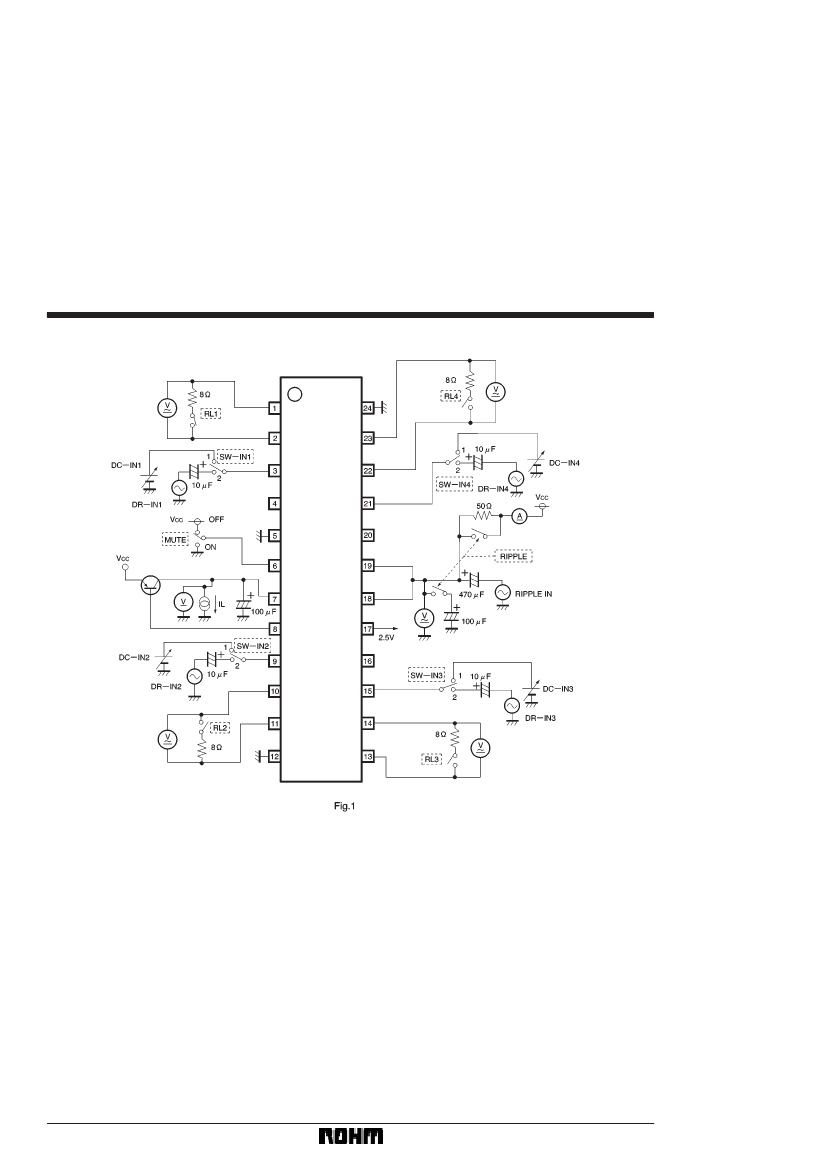

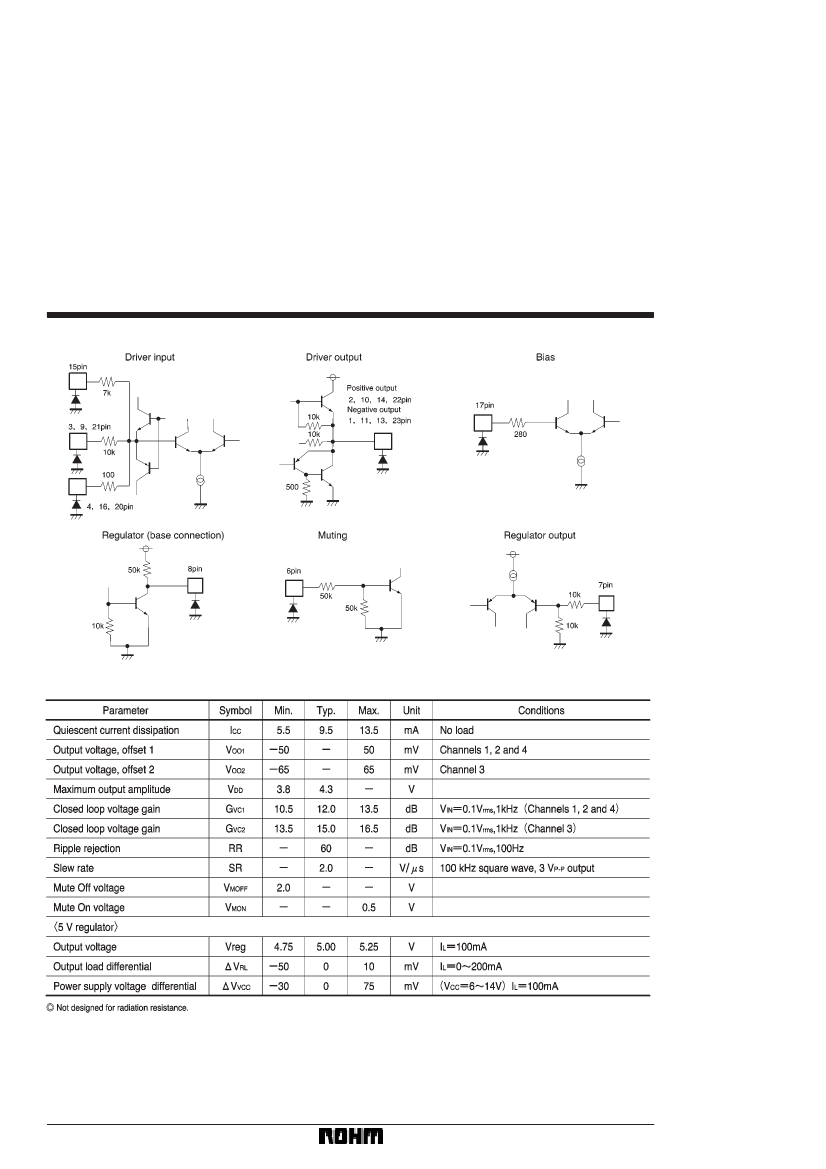

374

	BA6798S	BA6798
Description	4-channel BTL driver for CD players	4-channel BTL driver for CD players
