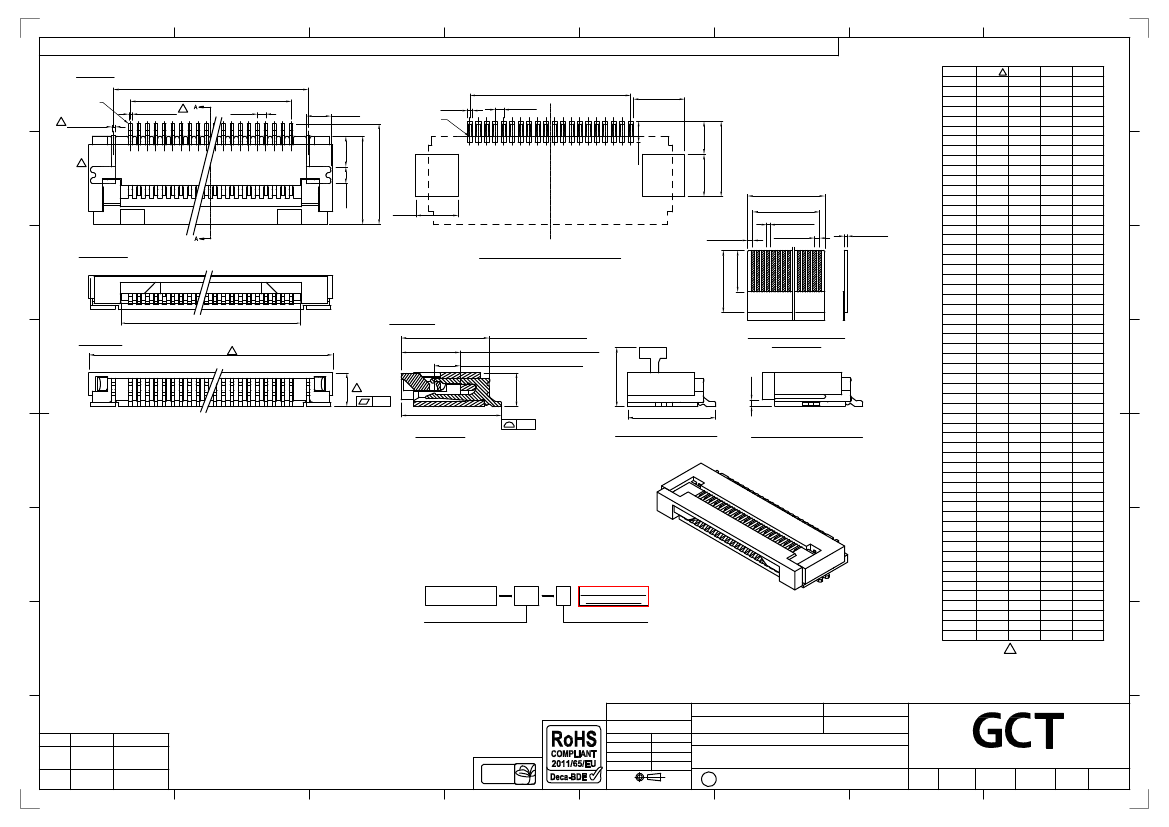

Global Connector Technology Ltd. - FFC2B25 : FPC 0.5mm Pitch Side Entry, Bottom Contact, SMT, Height=2.0mm, ZIF, Flip Lock Type
A
TOP VIEW
Dim. B
NO.1
Dim. C
0.20±0.03
B
0.50
1.45
NO.1
Dim.C±0.1
0.30
0.50
3.04
B
0.20±0.03
5.90
B
5.20
B
1.00
(N+1)*0.5±0.03
2.50
0.5±0.08
3.00±0.30
(N-1)*0.5±0.03
0.30±0.03
0.5±0.03
0.3±0.03
FRONT VIEW
RECOMMENDED PCB LAYOUT
6.00±0.50
C
AS VIEWED FROM COMPONENT SIDE
Dim. D
SIDE VIEWS
5.20 when actuator is closed
3.50 insertion depth of FPC/FFC
1.54 length to contact point
3.50
2.00
0.4
BACK VIEW
Dim. A
B
RECOMMENDED FFC/FPC
DIMENSIONS
THICKNESS:0.30±0.03
D
B
0.03
5.90
0.10
5.20
SECTION A-A
WHEN ACTUATOR IS OPEN
WHEN ACTUATOR IS CLOSED
Specification
规格
:
E
Material
物料规格
:
Housing Material: High-Temp Plastic LCP, UL 94V-0, White
高温塑胶
Actuator: LCP, UL 94V-0, Black
Contact: Phosphor Bronze
磷青铜
Finish (a) Contact Plating: see ordering grid
(b) Underplating: Nickel-plated all over
Fitting Nail: Brass, tin plated
黄铜，镀锡
F
Mechanical
Durability: 20 Cycles
Electrical
电气规格
:
Voltage Rating (Max.): 50V AC/DC
最大额定电压
50V AC/DC
Current Rating (Max.): 0.4A AC/DC
最大额定电流
0.4A AC/DC
Dielectric Strength: 250V AC for 1 minute
between adjacent terminal, no breakdown
电介质强度：
250V AC
于相邻端子，1分钟，无损害
Insulation Resistance: 50 MΩ Min. 250V DC
for 1 minute between adjacent terminal
绝缘阻抗:
50MΩ, 250V DC
于相邻端子1分钟
Contact Resistance: 40 mΩ Max.
连接阻抗：
40
毫欧
Operating Temperature: -25°C to +85°C
工½温度：:
-25
°
to +85
°
Solder Profile: Peak Temp 260°C (+0/-5°C) Maximum (5 seconds)
By
DETAIL
REV
DATE
Ordering Grid
FFC2B25
No. of Contacts
04 - 60
(see dimension table)
XX
X
REQUEST SAMPLES
AND QUOTATION
Contact Plating
T = Tin Plating over all
(Standard)
(reel qty=2000pcs)
G
Pin No. Dim.A
B
6.40
4
5
6.90
6
7.40
7
7.90
8
8.40
9
8.90
10
9.40
11
9.90
12
10.40
13
10.90
11.40
14
15
11.90
16
12.40
12.90
17
18
13.40
19
13.90
20
14.40
21
14.90
15.40
22
23
15.90
16.40
*
24
16.90
*
25
17.40
*
26
17.90
27
18.40
*
28
18.90
*
29
19.40
*
30
31
19.90
20.40
*
32
20.90
*
33
21.40
*
34
21.90
*
35
22.40
*
36
22.90
*
37
23.40
*
38
23.90
*
39
24.40
*
40
24.90
41
25.40
*
42
43
25.90
26.40
*
44
26.90
*
45
27.40
*
46
27.90
47
28.40
*
48
28.90
*
49
29.40
*
50
29.90
*
51
52
30.40
53
30.90
31.40
*
54
31.90
*
55
56
32.40
57
32.90
58
33.40
59
33.90
34.40
*
60
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
Dim.B
3.50
4.00
4.50
5.00
5.50
6.00
6.50
7.00
7.50
8.00
8.50
9.00
9.50
10.00
10.50
11.00
11.50
12.00
12.50
13.00
13.50
14.00
14.50
15.00
15.50
16.00
16.50
17.00
17.50
18.00
18.50
19.00
19.50
20.00
20.50
21.00
21.50
22.00
22.50
23.00
23.50
24.00
24.50
25.00
25.50
26.00
26.50
27.00
27.50
28.00
28.50
29.00
29.50
30.00
30.50
31.00
31.50
Dim.C
1.50
2.00
2.50
3.00
3.50
4.00
4.50
5.00
5.50
6.00
6.50
7.00
7.50
8.00
8.50
9.00
9.50
10.00
10.50
11.00
11.50
12.00
12.50
13.00
13.50
14.00
14.50
15.00
15.50
16.00
16.50
17.00
17.50
18.00
18.50
19.00
19.50
20.00
20.50
21.00
21.50
22.00
22.50
23.00
23.50
24.00
24.50
25.00
25.50
26.00
26.50
27.00
27.50
28.00
28.50
29.00
29.50
Dim.D
2.60
3.10
3.60
4.10
4.60
5.10
5.60
6.10
6.60
7.10
7.60
8.10
8.60
9.10
9.60
10.10
10.60
11.10
11.60
12.10
12.60
13.10
13.60
14.10
14.60
15.10
15.60
16.10
16.60
17.10
17.60
18.10
18.60
19.10
19.60
20.10
20.60
21.10
21.60
22.10
22.60
23.10
23.60
24.10
24.60
25.10
25.60
26.10
26.60
27.10
27.60
28.10
28.60
29.10
29.60
30.10
30.60
A
1.80
1.25
1.95
2.50
4.45
B
C
D
2.00
E
F
G = Gold Flash over all
(reel qty=2000pcs, MOQ 3 reels)
*
=
Tooled Parts
B
G
Please contact GCT for non-tooled parts
Non-tooled MOQ 10k pcs
Tolerances
(Except as noted)
Part Number:-
Date:-
Dimensions in mm
FFC2B25
19 MAY 10
H
PKN
DRAWING
RELEASE
A
19/05/10
AJO
PCN
FFC2B25-001
B
29/08/13
Halogen
Free
X.X ± 0.30
X.X ± 2°
Description:-
X.XX ± 0.15
X.XX ± 1°
FPC 0.5mm
X.XXX ± 0.10 X.XXX ± 0.5°
H
PITCH SIDE ENTRY, BOTTOM CONTACT,
SMT, HEIGHT=2.0mm, ZIF, FLIP LOCK TYPE
www.gct.co
Scale
NTS
1
2
3
4
Third Angle Projection
C
THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE
COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT
Revision
A
Material
See Note
Drawn by
PKN
E & OE
Sheet No.
1/2
5
6
7
8
1
2
3
4
5
6
7
8

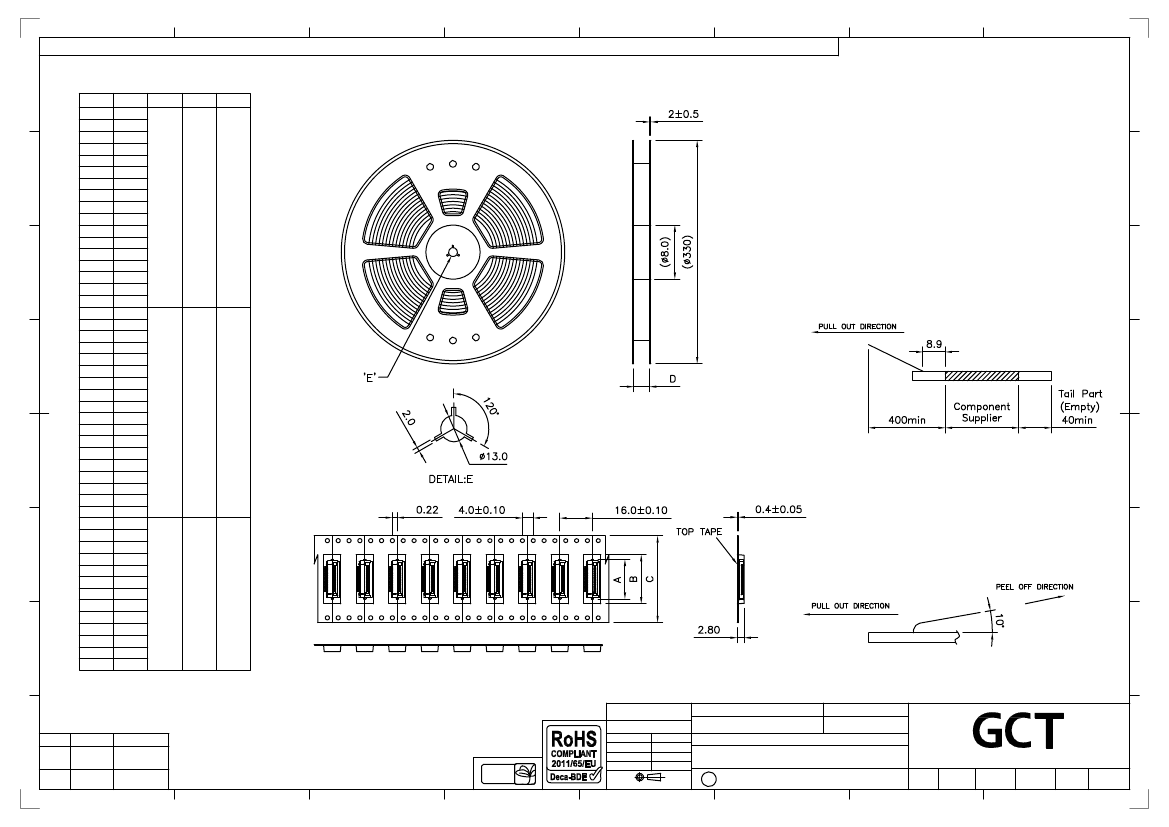

Global Connector Technology Ltd. - FFC2B25 : FPC 0.5mm Pitch Side Entry, Bottom Contact, SMT, Height=2.0mm, ZIF, Flip Lock Type
