Description
Tantalum Capacitor, Polarized, Tantalum, 10V, 20% +Tol, 20% -Tol, 220uF, 2917
CategoryPassive components    capacitor
File Size74KB，4 Pages
ManufacturerTecate Group
Environmental Compliance
Download Datasheet Parametric Compare View All

522Z-010/221MTRE0100F Overview

Tantalum Capacitor, Polarized, Tantalum, 10V, 20% +Tol, 20% -Tol, 220uF, 2917

522Z-010/221MTRE0100F Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTecate Group
package instruction, 2917
Reach Compliance Codecompli
ECCN codeEAR99
capacitance220 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
ESR100 mΩ
high4.1 mm
JESD-609 codee3
length7.3 mm
Manufacturer's serial number522Z(10V,MTOL)
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingTR, 7 Inch
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)10 V
series522Z(10V, M TOL)
size code2917
Terminal surfaceTin (Sn)
width4.3 mm

522Z-010/221MTRE0100F Preview

SURFACE MOUNT TANTALUM LOW ESR
FEATURES
• The six case sizes of the 522Z conform to the sizes
most required by the major OEMs throughout Europe
and America. These sizes conform to the Electronics
Industry Associations of U.S. and Japan recommended
standards for Tantalum Chip Capacitors.
• Available with capacitance tolerances of ±10% and
±20%.
• Operational temperature -55°C ~ +85°C at rated voltage
and up to +125°C with voltage derating.
• 522Z is now available in standard and extended ranges.
• Note on sizes:
A, B, C, D – EIA standard EIA-535BAAC
E – Extended range (high profile D case).
• Test frequency is 120Hz.
Tecate Group
TYPE 522Z
PART NUMBERING
Part Number Example: 522Z-016/101KTRD0125F
522Z
Type
-
016
Rated DC
Voltage
/
101
Capacitance
Code (µF)*
K
Tolerance
Code
TR
Package
Code**
D
Case Code
0125
Max: ESR
F
RoHs
Compliant
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
SPECIFICATIONS
Operating Temperature Range
≤+85°C
Rated Voltage (WVDC)
≤+85°C
Surge Voltage (VDC)
≤+125°C
Category Voltage (VDC)
≤+125°C
Capacitance Range (120Hz)
Capacitance Tolerance
Maximum Dissipation Factor %
(120Hz)
Environmental Classification
Technical Data
See Type 522 for technical data.
Performance Characteristics
-55°C ~ +85°C (125°C with voltage derating).
6.3
10
16
20
25
35
8
13
20
26
32
46
5
8
12
16
20
28
4
7
10
13
17
23
0.1µF ~ 680µF.
±10% & ±20%.
4 (CR
≤
1µF).
6 (CR > 1µF).
8 (E case with CR 100
≥
µF).
55/125/56 (IEC 68-2).
All technical data relates to an ambient temperature of 20°C.
25
32
20
17
35
46
28
23
50
65
40
33
CASE DIMENSIONS INCHES (mm)
Code
A
B
C
D
E
L ± 0.008
(±0.2)
0.126
0.138
0.236
0.287
0.287
(3.2)
(3.5)
(6.0)
(7.3)
(7.3)
W + 0.008 (+0.2),
-0.004 (-0.1)
0.063
0.11
0.126
0.169
0.169
(1.6)
(2.8)
(3.2)
(4.3)
(4.3)
H + 0.008 (+0.2,)
-0.004 (-0.1)
0.063
0.075
0.102
0.114
0.162
(1.6)
(1.9)
(2.6)
(2.9)
(4.1)
W1 ± 0.008
(+0.2)
0.047 (1.2)
0.087 (2.2)
0.087 (2.2)
0.094 (2.4)
0.094 (2.4)
A + 0.012 (+0.3),
-0.008 (-0.2)
0.031
0.031
0.051
0.051
0.051
(0.8)
(0.8)
(1.3)
(1.3)
(1.3)
P Minimum
0.043
0.055
0.114
0.173
0.173
(1.1)
(1.4)
(2.9)
(4.4)
(4.4)
W1 dimension applies to the termination width for A dimensional area only.
© Tecate Industries Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Industries
2007/02/09 Rev.03
SURFACE MOUNT TANTALUM LOW ESR
STANDARD RANGE (EIA AND EIA-J SIZES; LETTER DENOTES CODE)
Capacitance µF
1.5
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
6.3
10
A
A
A
A
B
C
C
C/D/E
D
D/E
D/E
E
B
C
D
E
E
B
C
D
E
D
WVDC @ 85°C
16
20
A
25
Tecate Group
TYPE 522Z
35
C
D/E
C/D
D/E
D
A
B
C
D
D
E
E
B
C
C
C/D
D
D/E
D
50V values available upon request.
OPERATING VOLTAGE/VOLTAGE DERATING
• If a capacitor with a higher voltage rating than
the maximum line voltage is used, then the
operating reliability will be improved. This is
known as voltage derating. The graph at right
shows the relationship between voltage
derating (the ratio between applied and rated
voltage) and failure rate. The graph gives the
correction factor F(V) for any operating voltage.
• Where less than 0.1Ω per volt series resistance
is employed, a 70% derating factor is
recommended. Consult factory for further
information under these conditions.

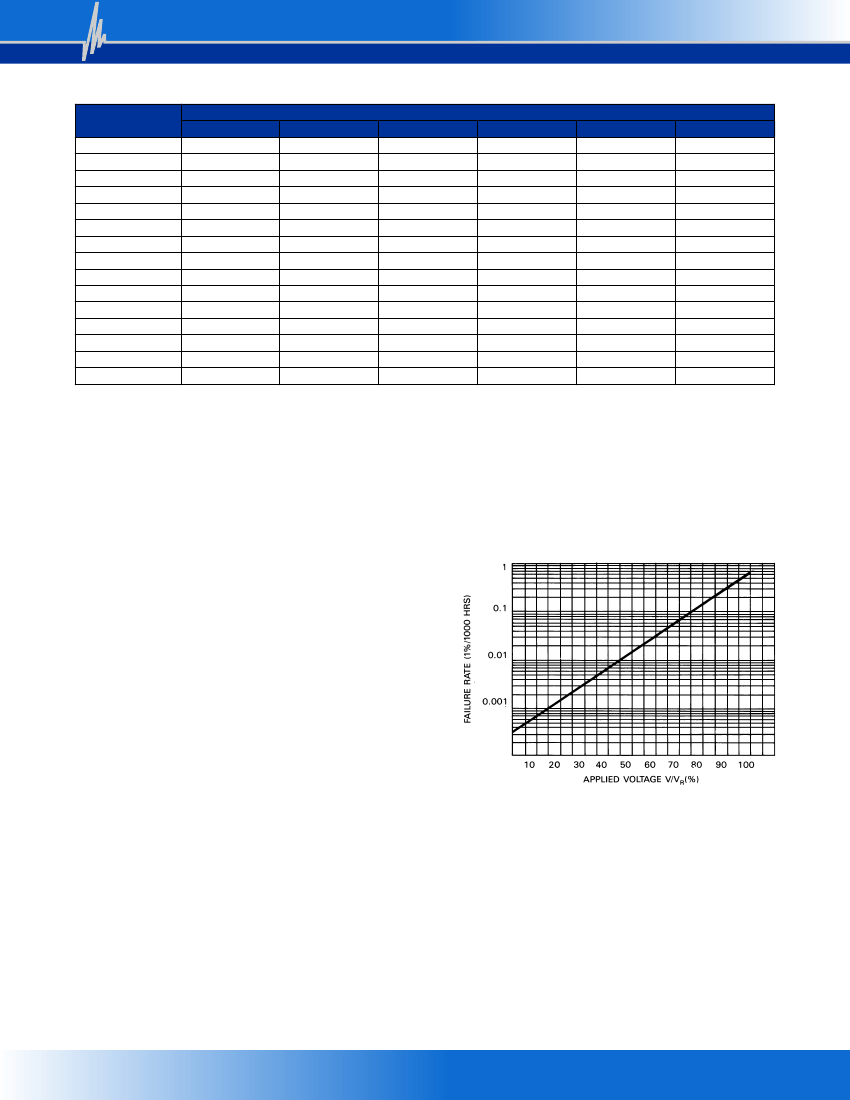

Effect of applied voltage on basic failure rate for typical
component (60% confidence level).
© Tecate Industries Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
