A
2,5
A
SW14
Schnitt A-A
M10x1
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
Information:
Tolerances
All Dimensions
in mm
Scale
2:1
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
14.07.2010
Index
Date
Designation
Subject to modification without
prior notice.
Drawing will not be updated.

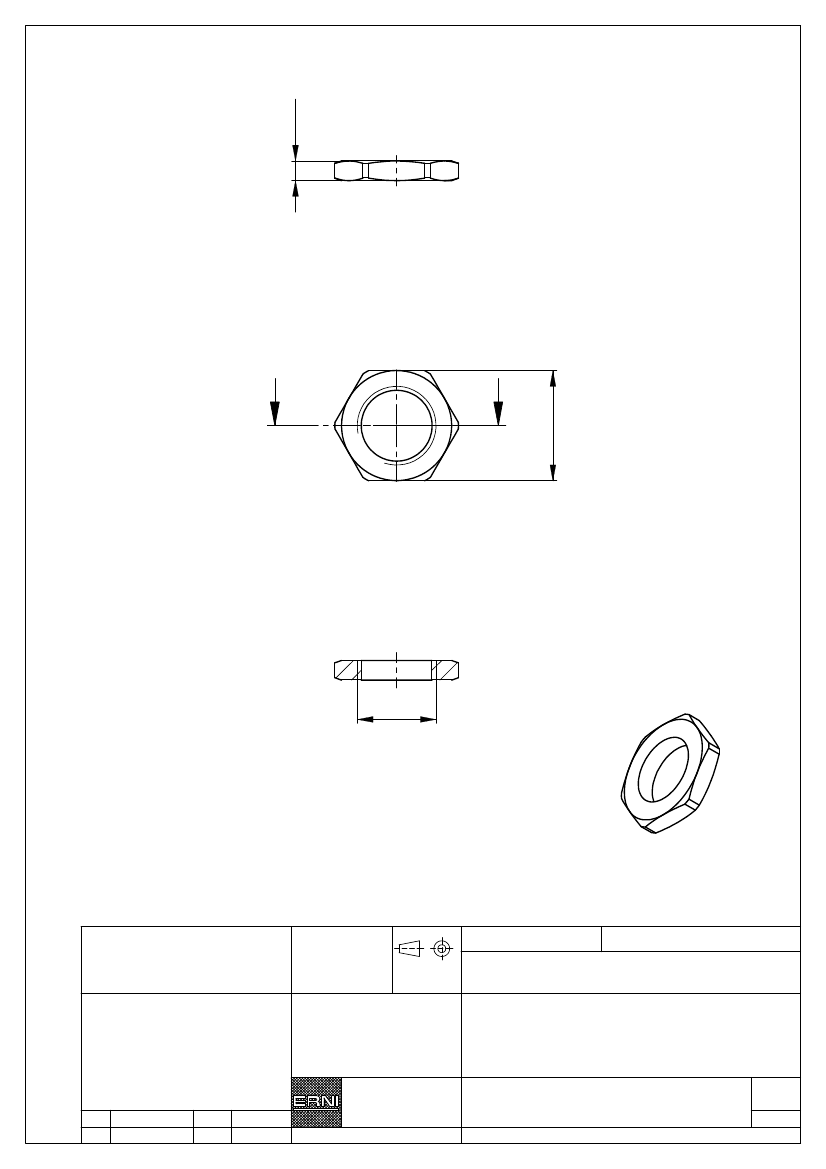

Mutter M10x1
für Plattendicke 1mm
www.ERNI.com
Class
394905
MRDEZT
I
A4
