ADP3682 Overview

GPS Ceramic Diplexer

Preview

Download Datasheet

View All

DLI

–

The Global Leader In High Frequency Solutions

dilabs.com

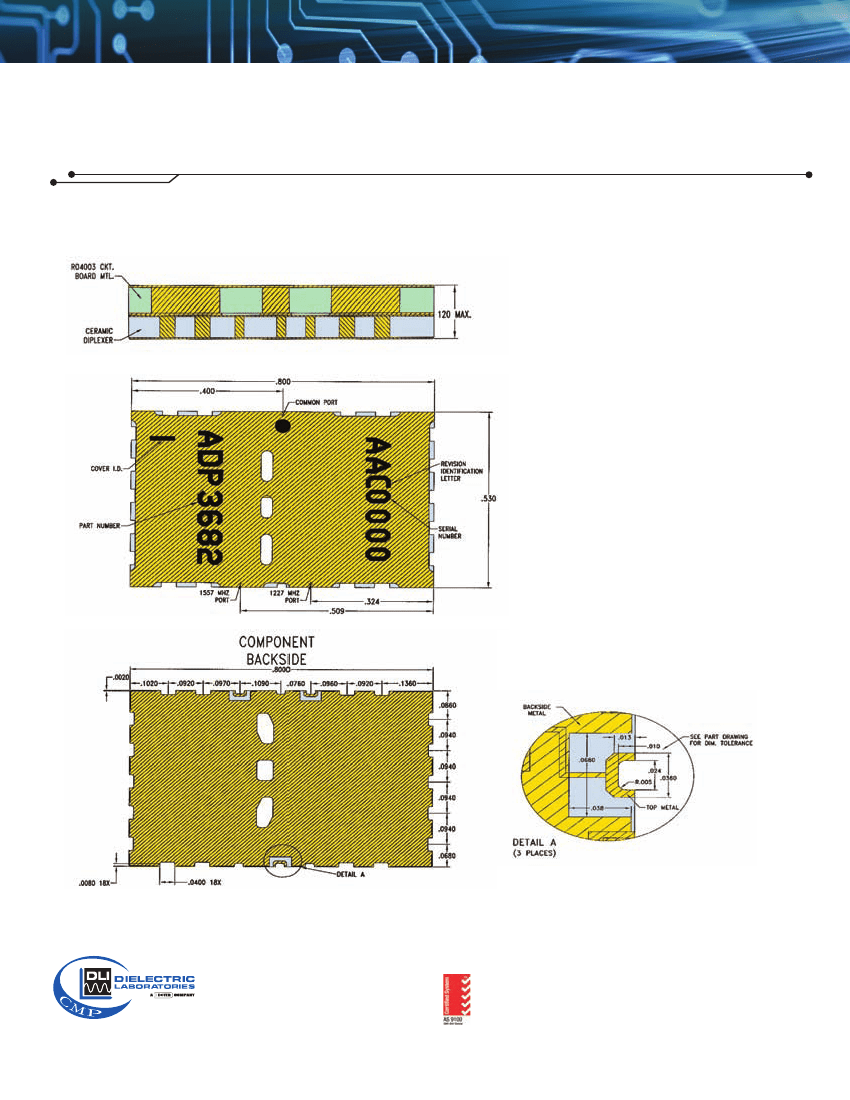

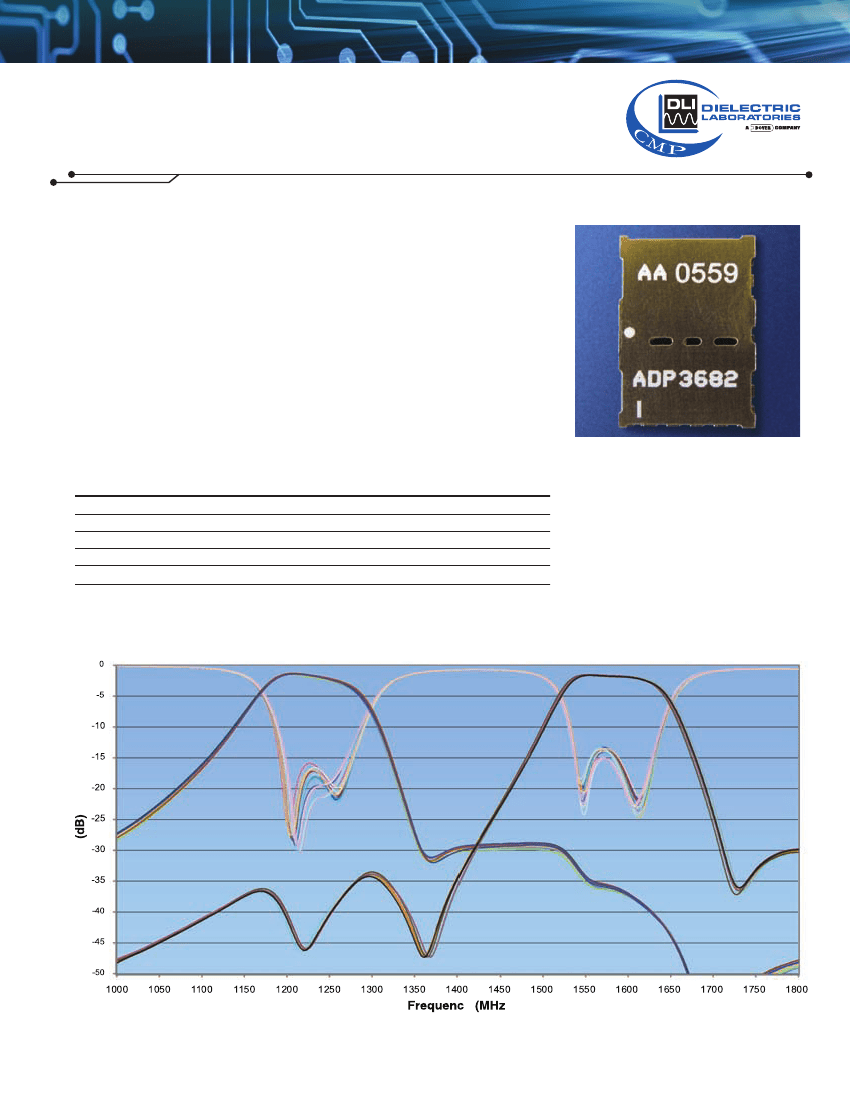

GPS Ceramic Diplexer

Features

Low loss in passband region

Small size

Includes integral

PWB

cover

Temperature stable

Description

Surface mount, thin ﬁlm ﬁlter on high dielectric constant ceramic.

Filter Material: DLI's proprietary CG ceramic [K=67].

Cover Material: Rogers 4003 circuit board material.

Electrical Speciﬁcations

Center Frequencies

1dB Passband

Insertion Loss

Channel to Channel Isolation

Passband VSWR

1227 & 1575 MHz

1217-1237 & 1565-1585 MHz

2.5dB Typical at Fc

30dB Typical

1.67:1

Frequency Response

Typical Data - 9 Samples

)

3875-10

050710
