243-11321-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 243-11321-15

243-11321-15: DescriptionBoard Connector, 77+77 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size225KB，3 Pages; Manufacturerept Connectors; Websitehttps://www.ept.de; Environmental Compliance

Download Datasheet Parametric Compare View All

243-11321-15 Overview

Board Connector, 77+77 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle,

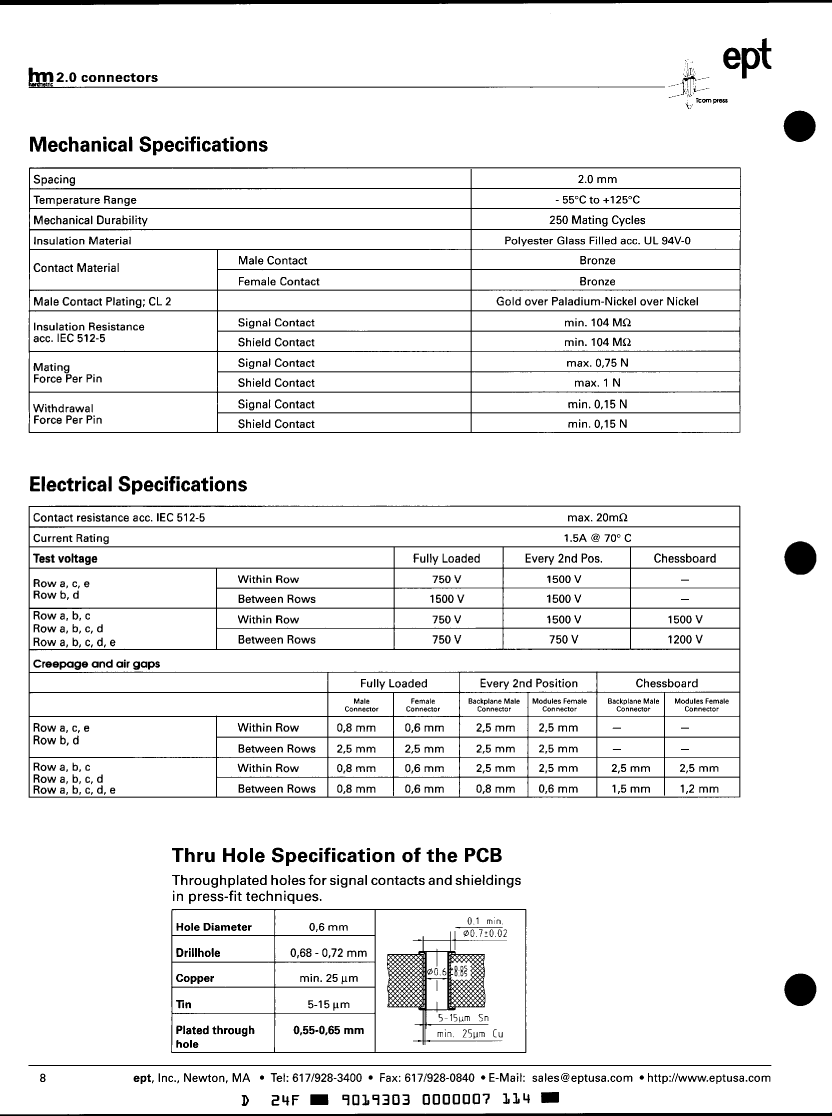

243-11321-15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ept Connectors
Reach Compliance Code	compli
ECCN code	EAR99
Other features	BACKPLANE CONN, GND SHIELD CNT
Board mount options	HOLE .073-.085
body width	0.606 inch
subject depth	0.53 inch
body length	1.965 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	750VAC V
Durability	250 Cycles
maximum insertion force	.7228 N
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	7
Number of rows loaded	7
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	CENTER
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	77+77
Evacuation force-minimum value	.139 N

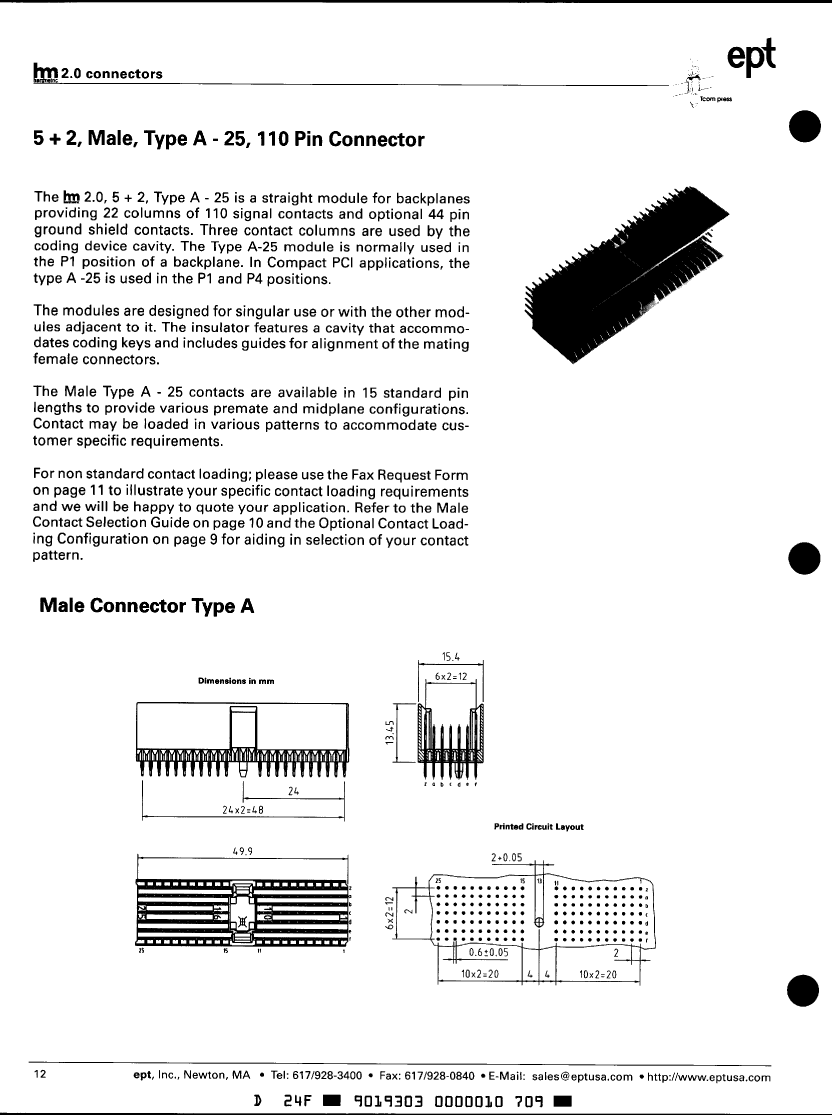

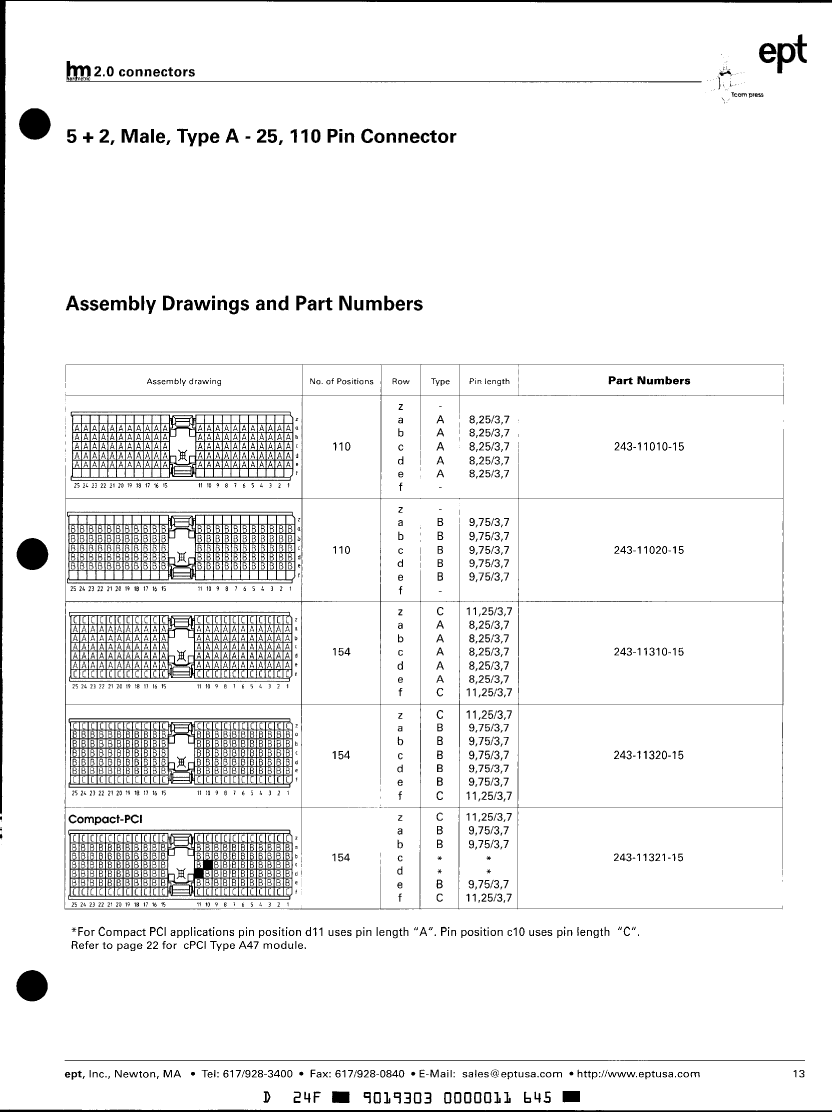

Preview

Download Datasheet

View All

243-11321-15 Related Products

	243-11321-15	243-11020-15	243-11320-15
Description	Board Connector, 77+77 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle,	Board Connector, 110 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Receptacle,	Board Connector, 77+77 Contact(s), 7 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle,
Maker	ept Connectors	ept Connectors	ept Connectors
Reach Compliance Code	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99
Other features	BACKPLANE CONN, GND SHIELD CNT	BACKPLANE CONNECTOR	BACKPLANE CONN, GND SHIELD CNT
Board mount options	HOLE .073-.085	HOLE .073-.085	HOLE .073-.085
body width	0.606 inch	0.606 inch	0.606 inch
subject depth	0.53 inch	0.53 inch	0.53 inch
body length	1.965 inch	1.965 inch	1.965 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	AU-PD-NI ON NI	AU-PD-NI ON NI
Contact point gender	MALE	MALE	MALE
Contact material	NOT SPECIFIED	BRONZE	BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V
Durability	250 Cycles	250 Cycles	250 Cycles
maximum insertion force	.7228 N	.7228 N	.7228 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	7	5	7
Number of rows loaded	7	5	7
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch
polarization key	CENTER	CENTER	CENTER
Rated current (signal)	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.146 inch	0.146 inch	0.146 inch
Terminal pitch	2.0066 mm	2 mm	2.0066 mm
Termination type	SOLDER	PRESS FIT	SOLDER
Total number of contacts	77+77	110	77+77
Evacuation force-minimum value	.139 N	.139 N	.139 N
