BA6840BFP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> The signal circuit> BA6840BFP

BA6840BFP: DescriptionBRUSHLESS DC MOTOR CONTROLLER, 1.3 A, PDSO30; CategoryOther integrated circuit (IC) The signal circuit; File Size118KB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA6840BFP Overview

BRUSHLESS DC MOTOR CONTROLLER, 1.3 A, PDSO30

BA6840BFP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	HSOP-28
Contacts	28
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G30
JESD-609 code	e3/e2
length	18.5 mm
Number of functions	1
Number of terminals	30
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Maximum output current	1.3 A
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Encapsulate equivalent code	QFP32,.35SQ,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	5,12 V
Certification status	Not Qualified
Maximum seat height	2.41 mm
Maximum supply current (Isup)	6 mA
Maximum supply voltage (Vsup)	15 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	12 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	7.5 mm

Preview

Download Datasheet

View All

Motor driver ICs

3-phase motor driver

BA6840BFS / BA6840BFP-Y / BA6840BFP /

BA6842BFS

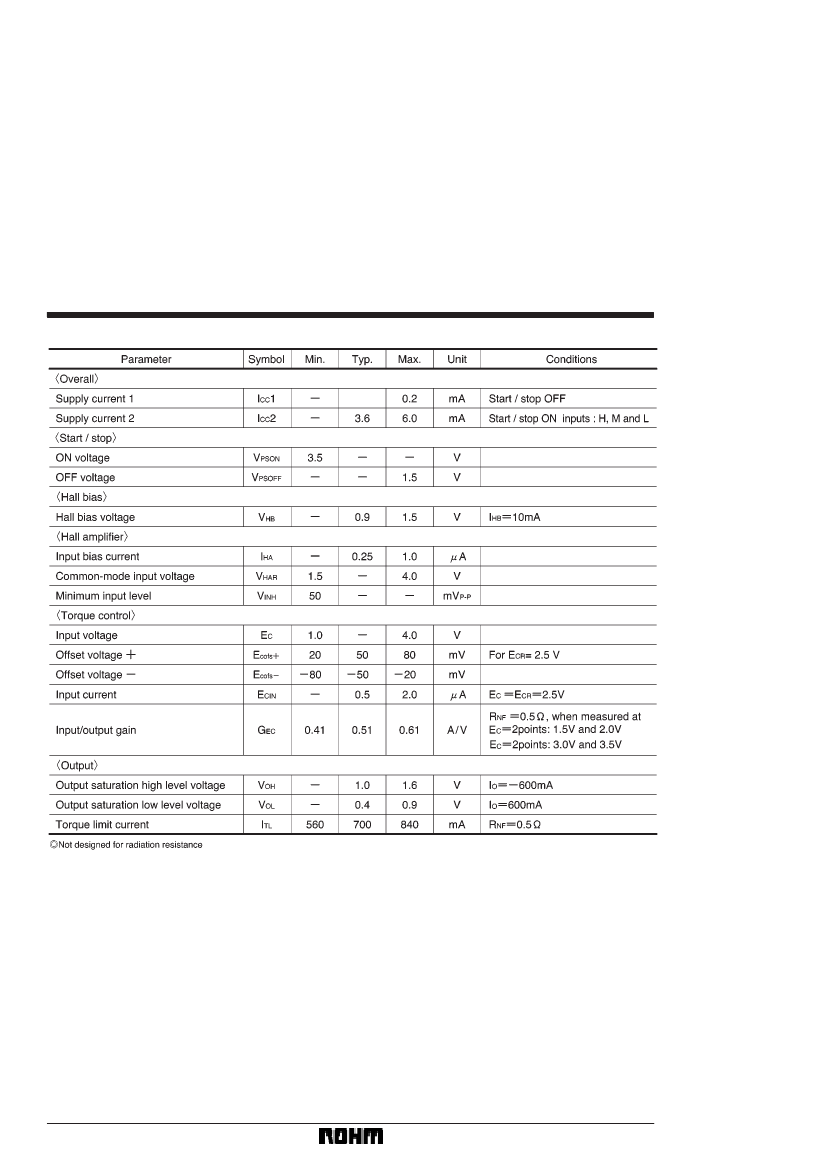

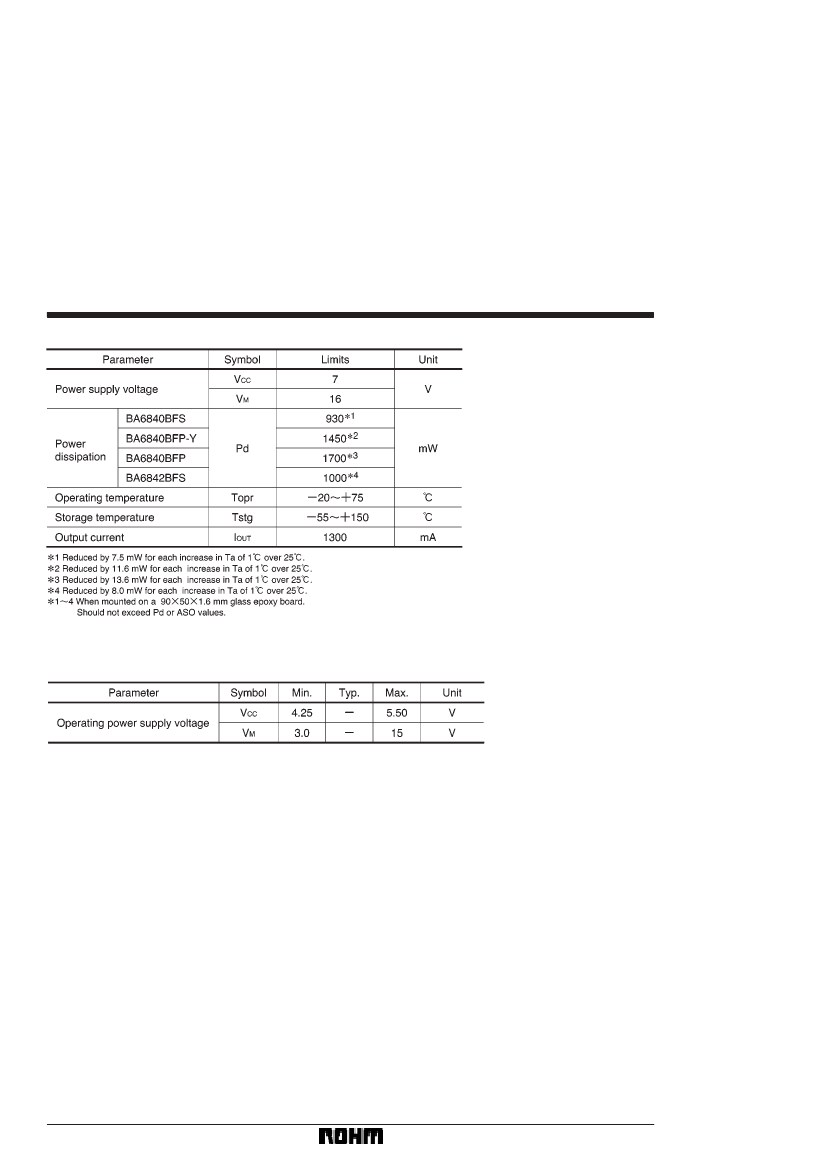

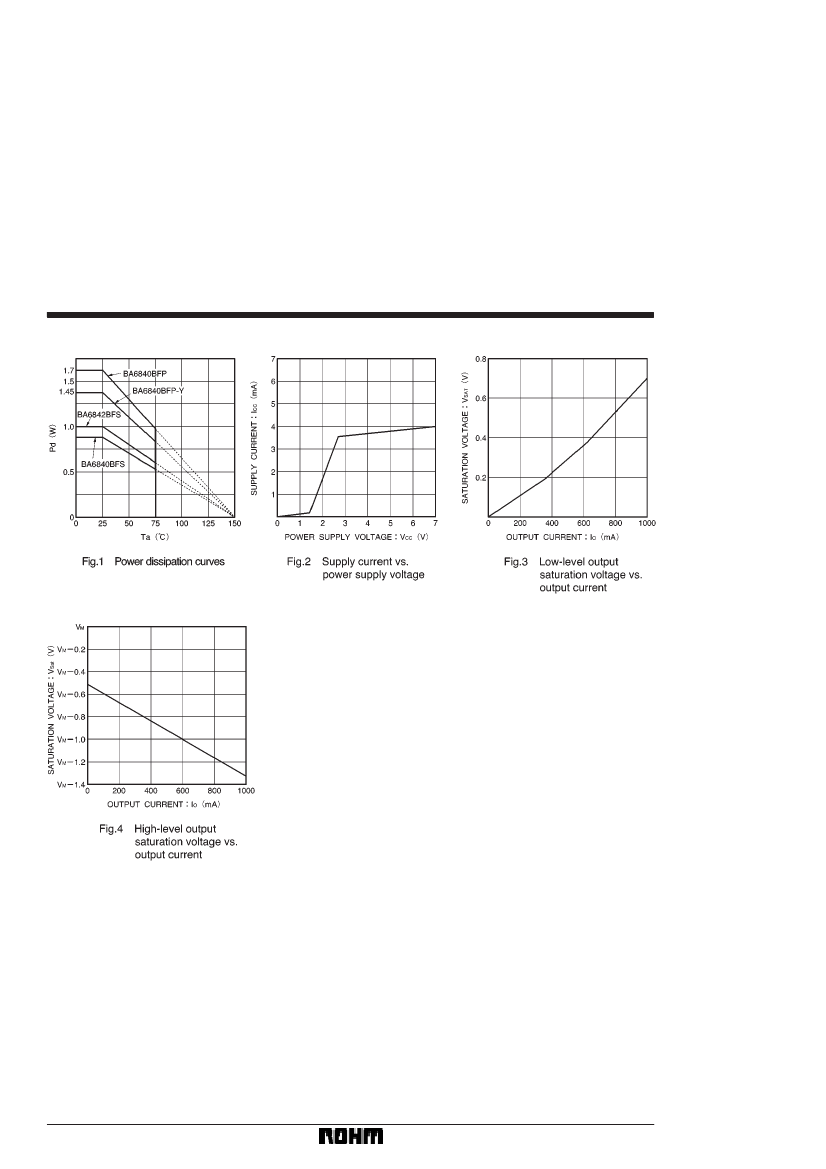

The BA6840BFS, BA6840BFP-Y, BA6840BFP, and BA6842BFS are one-chip ICs designed for driving CD-ROM motors.

They are high performance-ICs with a 3-phase, full-wave, pseudo-linear drive system.

FApplications

CD-ROM / RW, DVD-ROM / PLAYER

FFeatures

1) 3-phase, full-wave, pseudo-linear drive system.

2) Start / stop pin; power saving during stop mode.

3) Internal current limit circuit.

FBlock

diagram

4) Internal thermal shutdown circuit.

5) Internal hall bias circuit.

523

BA6840BFP Related Products

	BA6840BFP	BA6840	BA6840BFP-Y	BA6842BFS	BA6840BFS
Description	BRUSHLESS DC MOTOR CONTROLLER, 1.3 A, PDSO30	BRUSHLESS DC MOTOR CONTROLLER, 1.3 A, PDSO30	BRUSHLESS DC MOTOR CONTROLLER, 1.3 A, PDSO30	BRUSHLESS DC MOTOR CONTROLLER, 1.3 A, PDSO30	BRUSHLESS DC MOTOR CONTROLLER, 1.3 A, PDSO30
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	conform to	conform to	conform to
Maker	ROHM Semiconductor	-	ROHM Semiconductor	-	ROHM Semiconductor
Parts packaging code	SOIC	-	SOIC	SSOP	SSOP
package instruction	HSOP-28	-	HSSOP, QFP32,.35SQ,32	SSOP-32	SSOP-20
Contacts	28	-	25	32	20
Reach Compliance Code	compli	-	compli	compli	compli
ECCN code	EAR99	-	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER	-	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G30	-	R-PDSO-G27	R-PDSO-G32	R-PDSO-G20
JESD-609 code	e3/e2	-	e3/e2	e3/e2	e3/e2
length	18.5 mm	-	13.6 mm	13.6 mm	8.7 mm
Number of functions	1	-	1	1	1
Number of terminals	30	-	27	32	20
Maximum operating temperature	75 °C	-	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-	-20 °C	-20 °C	-20 °C
Maximum output current	1.3 A	-	1.3 A	1.3 A	1.3 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	HSSOP	-	HSSOP	SSOP	SSOP
Encapsulate equivalent code	QFP32,.35SQ,32	-	QFP32,.35SQ,32	QFP32,.35SQ,32	QFP32,.35SQ,32
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	-	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	-	260	260	260
power supply	5,12 V	-	5,12 V	5,12 V	5,12 V
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.41 mm	-	2.11 mm	2 mm	1.9 mm
Maximum supply current (Isup)	6 mA	-	6 mA	6 mA	6 mA
Maximum supply voltage (Vsup)	15 V	-	15 V	15 V	15 V
Minimum supply voltage (Vsup)	3 V	-	3 V	3 V	3 V
Nominal supply voltage (Vsup)	12 V	-	12 V	12 V	12 V
surface mount	YES	-	YES	YES	YES
technology	BIPOLAR	-	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	-	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER	-	TIN/TIN COPPER	TIN/TIN COPPER	TIN/TIN COPPER
Terminal form	GULL WING	-	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	-	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	-	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	-	10	10	10
width	7.5 mm	-	5.4 mm	5.4 mm	5.4 mm
