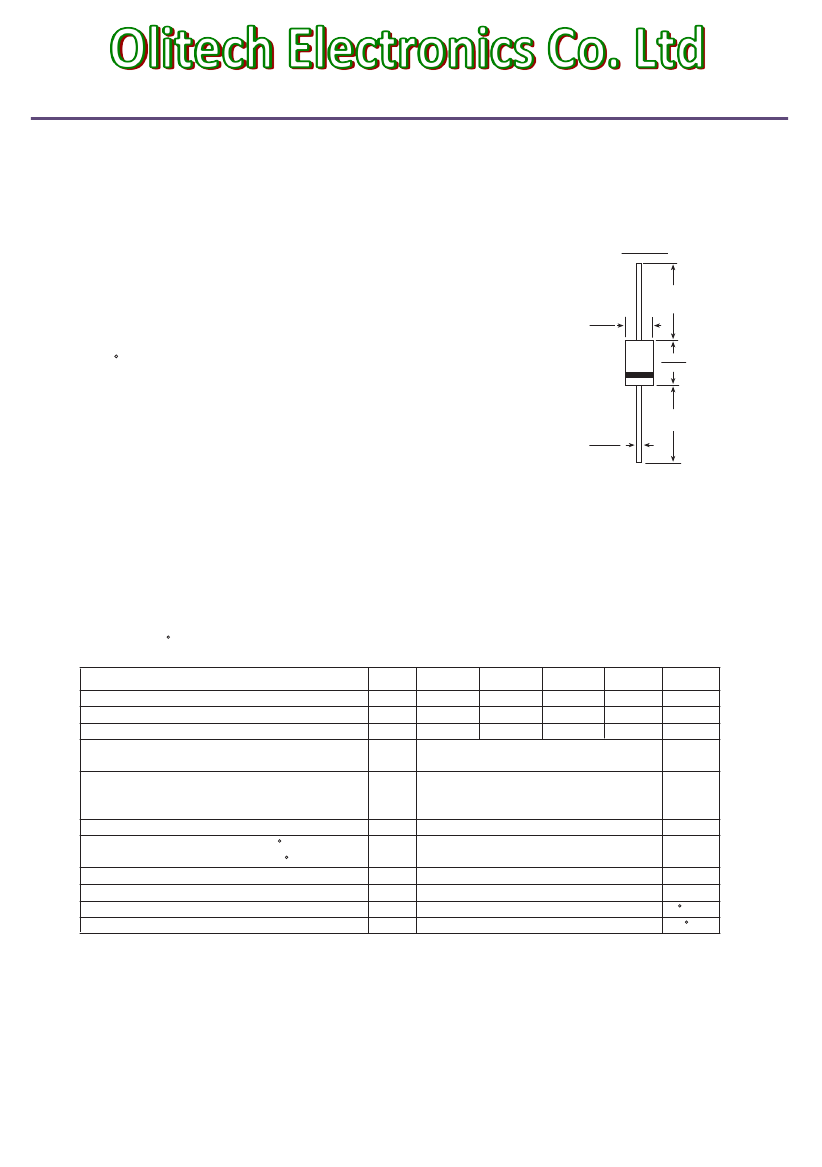

High Voltage 1.0A Sintered Glass Passivated Rectifie
GP02-12A THRU GP02-20A
FEATURES
•
•
•
•
•
•
•
VOLTAGE RANGE
CURRENT
1200 to 2000 Volts
Ampere
1.0
DO-41
GPRC ( Glass Passivated Rectifier Chip ) inside
Glass passivated cavity - free junction
Capable of meeting environmental standards of MIL-S-19500
1.0 (25.4)
MIN.
0.107 (2.7)
0.080 (2.0)
DIA.
1.0A operation at TA=75°C and 55°C with no thermal runaway
Plastic package has Underwriters Laboratory Flammability Classification 94V-0
High temperature soldering guaranteed:
260 C/10 seconds,0.375
”
(9.5mm) lead length, 5 lbs. (2.3kg) tension
RoHS Compliance
0.205 (5.2)
0.160(4.1)
MECHANICAL DATA
•
•
•
•
1.0 (25.4)
MIN.
0.034 (0.86)
0.028 (0.70)
DIA.
Case : JEDEC DO-41 molded plastic over glass body
Terminals : Plated axial leads, solderable per MIL-STD-750, Method 2026
Polarity : Color band denotes cathode end
Weight :0.012 ounce, 0.33 grams(DO-41)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
•
•
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
SYMBOLS
GP02-12A
GP02-15A
GP02-18A
GP02-20A
UNITS
VOLTS
VOLTS
VOLTS
A
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375”(9.5mm) lead length (see fig.1)
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method)
Maximum instantaneous forward voltage at 1.0 A
Maximum DC reverse current
T
A
=25 C
at rated DC blocking voltage
T
A
=100 C
Maximum reverse recovery time
(NOTE 1)
Typical junction capacitance (NOTE 2)
Typical thermal resistance (NOTE 3)
Operating junction and storage temperature range
V
RRM
V
RMS
V
DC
I
(AV)
1200
840
1200
1500
1050
1500
1.0
1800
1260
1800
2000
1400
2000
I
FSM
V
F
I
R
t
rr
C
J
R
θ
JA
T
J
,
T
STG
30.0
2.0
5.0
50.0
2.0
3.0
130.0
-65 to +175
Amps
Volts
µ
A
uS
pF
C/W
C
Note:1.Reverse
recovery condition I
F
=0.5A,I
R
=1.0A,Irr=0.25A
2.Measured at 1MHz and applied reverse voltage of 4.0V.
3.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted
OLITECH ELECTRONICS CO. LTD.
Page:P2-P1
Email: info@olitech-elec.com
Website: www.olitech-elec.com
High Voltage 1.0A Sintered Glass Passivated Rectifie
GP02-12A THRU GP02-20A

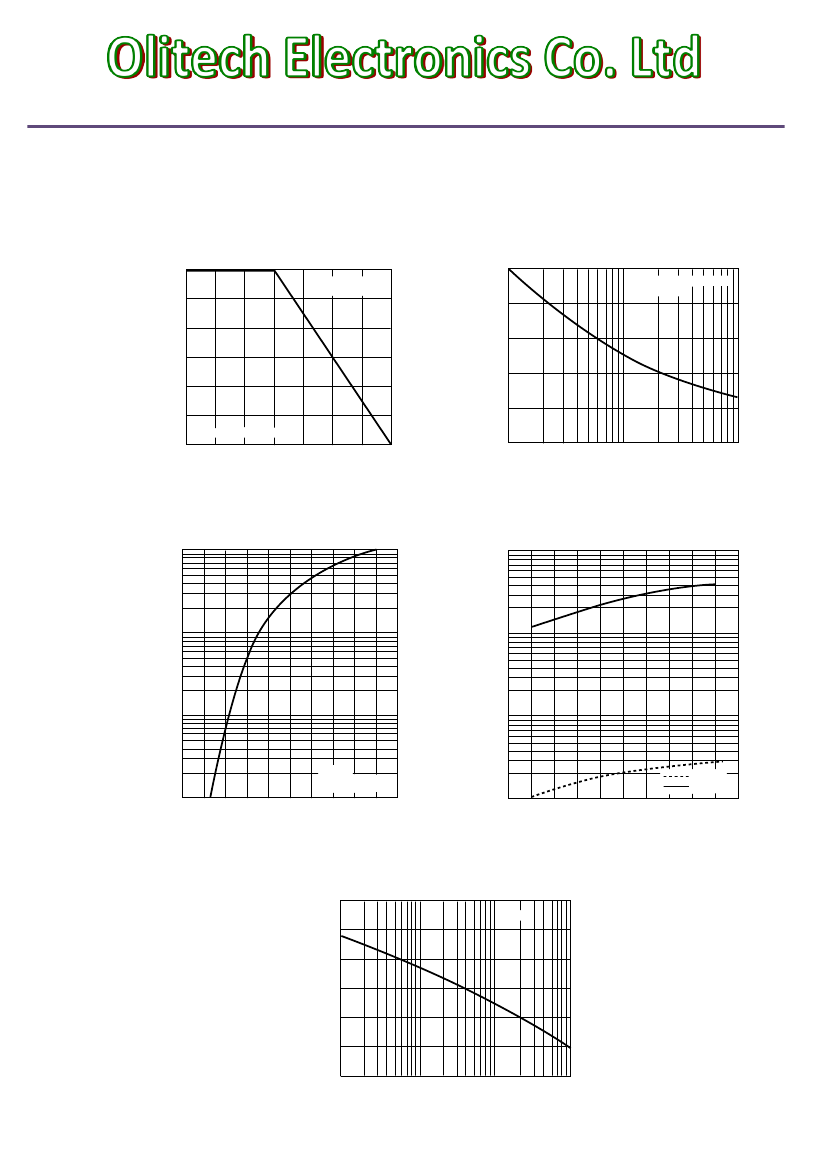

TYPICAL CHARACTERISTIC CURVES
FIG.1 - FORWARD CURRENT DERATING CURVE
1.0
PEAK FORWARD SURGE CURRENT,
AMPERES
AVERAGE FORWARD RECTIFIED
CURRENT, AMPERES
RESISTIVE OR
INDUCTIVE LOAD
VOLTAGE RANGE
CURRENT
1200 to 2000 Volts
1.0
Ampere
FIG.2 - MAXIMUM NON-REPETITIVE
PEAK FORWARD SURGE CURRENT
30
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
25
20
0.5
15
10
0.375" (9.5mm) LEAD LENGTH
0
0
25
50
75
100
125
o
5.0
150
175
1
10
NUMBER OF CYCLES AT 60Hz
100
AMBIENT TEMPERATURE, C
FIG. 3 - TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
10.0
INSTANTANEOUS FORWARD CURRENT, AMPERES
10
FIG.4 - TYPICAL REVERSE CHARACTERISTICS
1.00
INSTANTANEOUS REVERSE LEAKAGE
CURRENT, MICROAMPERES
TJ = 25 C
PULSE WIDTH=300uS
1% DUTY CYCLE
o
1.0
0.10
0.10
TJ = 25 C
TJ = 125 C
o
o
0.01
0
1.0
2.0
3.0
4.0
5.0
0.01
0
20
40
60
80
100
110
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
PERCENT OF RATED PEAK REVERSE VOLTAGE,%
FIG.5 - TYPICAL JUNCTION CAPACITANCE
6.0
TJ = 25 C
o
JUNCTION CAPACITANCE, pF
5.0
4.0
3.0
2.0
1.0
0
.1
.2
.4
1.0
2
4
10
20
40
100
REVERSE VOLTAGE, VOLTS
