BA6852FP datasheet, PDF - EEWORLD Datasheet

BA6852FP: DescriptionDISK DRIVE MOTOR CONTROLLER, 1.3 A, PDSO28; CategoryOther integrated circuit (IC) The signal circuit; File Size237KB，18 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA6852FP Overview

DISK DRIVE MOTOR CONTROLLER, 1.3 A, PDSO28

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	HSSOP, SOP28/42,.4,32
Contacts	28
Reach Compliance Code	unknow
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	DISK DRIVE MOTOR CONTROLLER
JESD-30 code	R-PDSO-G28
length	18.5 mm
Number of functions	1
Number of terminals	28
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Maximum output current	1.3 A
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Encapsulate equivalent code	SOP28/42,.4,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,12 V
Certification status	Not Qualified
Maximum seat height	2.41 mm
Maximum supply current (Isup)	8 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm
Base Number Matches	1

Motor driver ICs

Spindle and loading motor driver for PD

BA6852FP

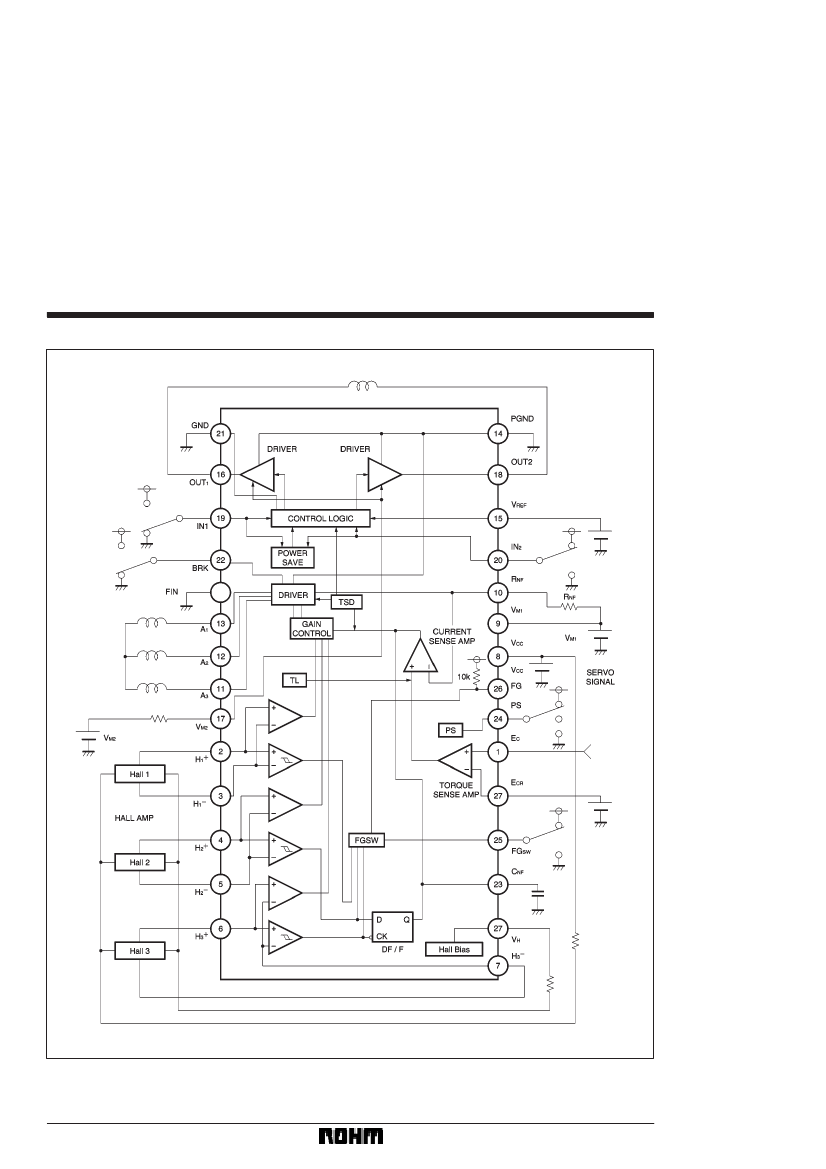

The BA6852FP is a motor driver IC developed for use in PD, CD-ROM and DVD applications. In addition to having a

conventional spindle motor driver, it includes a reversible motor driver for use with loading motors to allow easy system

construction.

FApplications

PD, CD-ROM and DVD.

FFeatures

1) Power save circuit (three-level switch) allows FG out-

put in power save mode.

2) FGSW allows selection between either three-phase

composite output or single-phase output for the FG

output.

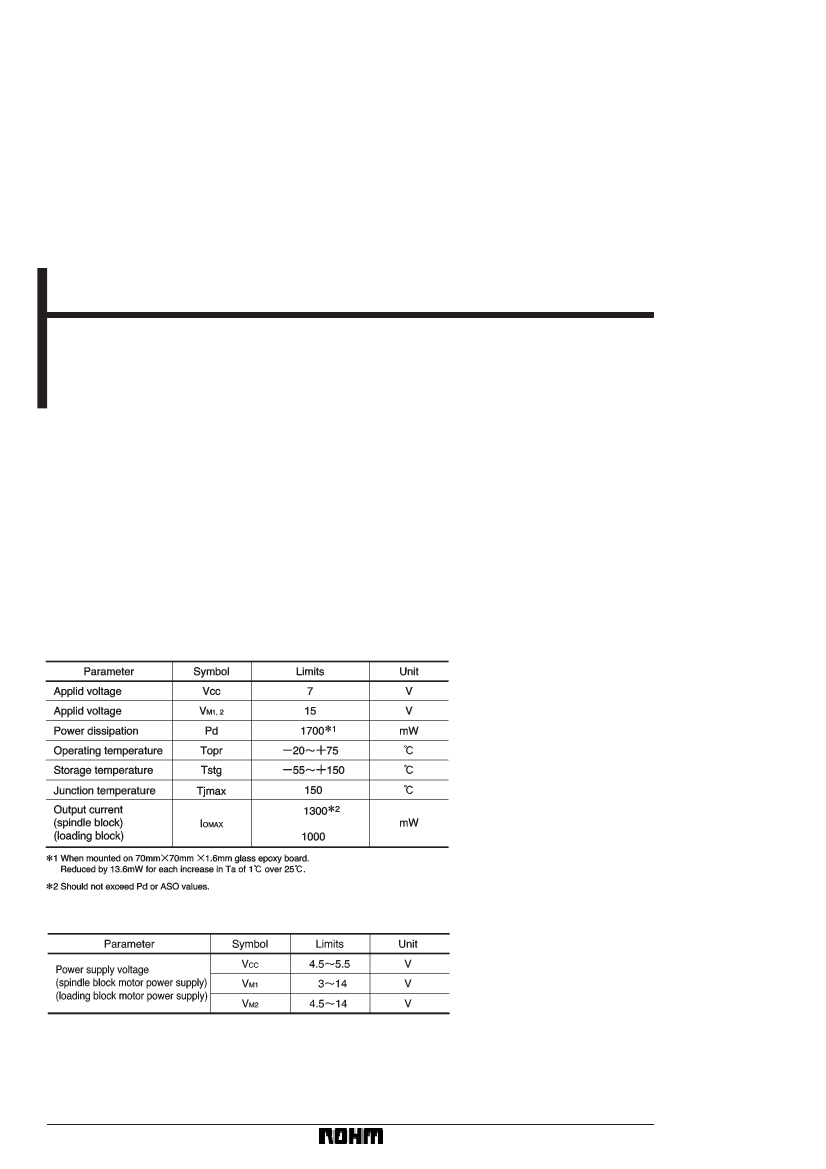

FAbsolute

maximum ratings (Ta = 25_C)

3) The output voltage for the loading motor driver can be

set using the Vref pin.

FRecommended

operating conditions (Ta = 25_C)

792

	BA6852FP	BA6852
Description	DISK DRIVE MOTOR CONTROLLER, 1.3 A, PDSO28	DISK DRIVE MOTOR CONTROLLER, 1.3 A, PDSO28
