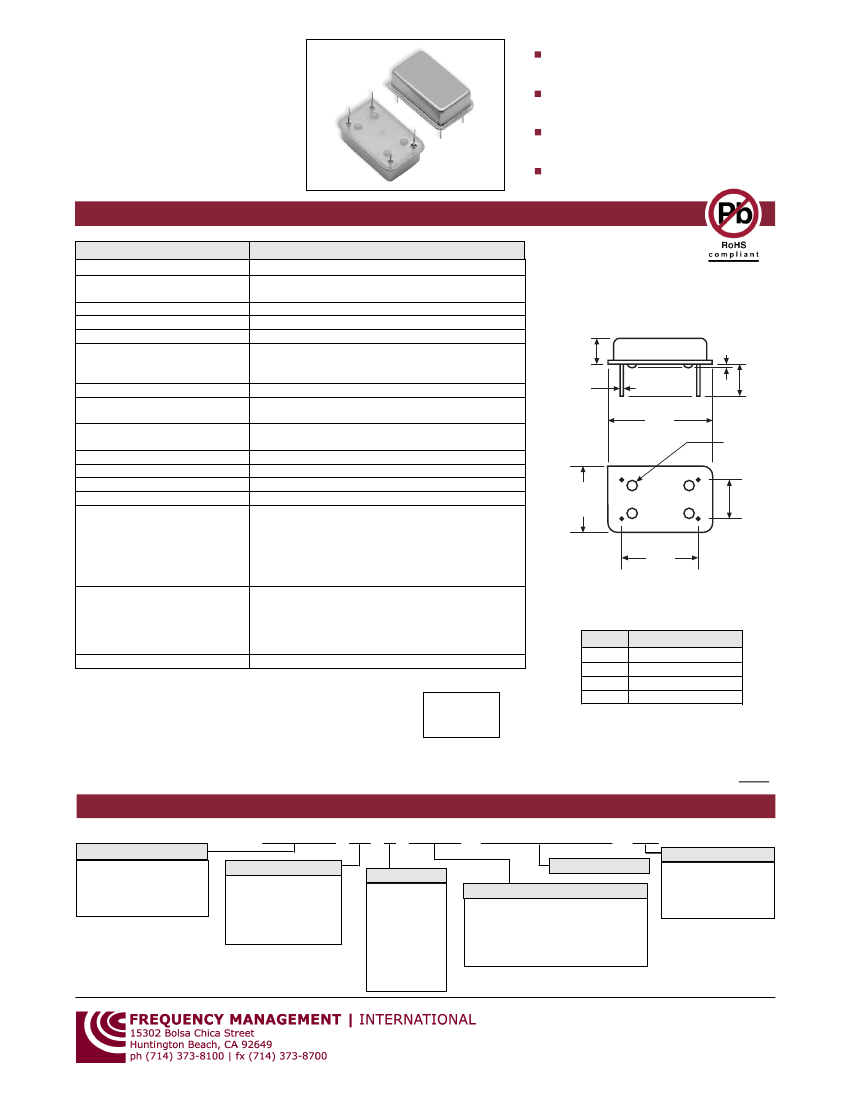

FMOC71
SERIES
5.0 Vdc Clock Oscillators
High Frequency via Multiplier
3.3 Vdc Supply Voltage
Option
HCMOS/TTL Compatible
Lower Cost
14 PIN DIP
SPECIFICATIONS
08 - Issue 2 - 041508
Parameter
Frequency Range
Overall Frequency Tolerance
Operating Temperature Range
Storage Temperature
Supply Voltage (Vdd)
Supply Current (Icc)
Specification
60.0 - 160.0 MHz (100 MHz max @ +3.3 Vdd)
±20 ppm to ±100 ppm
(Inclusive of Operating Temp., Supply Voltage, & Load)
0 to +70°C Std. (See Temp. Range Options)
-55 to +125°C
+5.0 Vdc (±0.5 Vdc) or +3.3 Vdc (±0.3 Vdc)
30 mA max. @ 6 0.0 to 99.9 MHz
50 mA max. @ 100.0 to 149.9 MHz
60 mA max. @ 150.0 to 160.0 MHz
40/60% Std., 45/55% Avail. (See Spec. Option S)
0.4 Vdc max. (TTL)
0.5 Vdc max. (HCMOS) (0.3 Vdc max @ +3.3 Vdd)
2.4 Vdc min. (TTL)
4.5 Vdc min. (HCMOS) (3.0 Vdc min @ +3.3 Vdd)
10 ns max. < 5 ns typical
10 ms max. < 5 ms typical
10 TTL / 15 pF HCMOS
< 25 pico seconds, one sigma
10 Hz
-75dBc/Hz
100 Hz
-105dBc/Hz
1kHz
-100dBc/Hz
10kHz
-90dBc/Hz
100kHz
-95dBc/Hz
1MHz
-120dBc/Hz
No Connect (Std.)
Tri-State (option T)
VIH: 2.2 V or Open Enables Output
VIL: 0.8 V Disables Output
Output Disable/Enable Time: 100 nS max.
±5ppm max first year
FULL SIZE 14 PIN DIP
0.240
(6.1)
MAX.
0.018
(0.46)
0.800
(20.3)
MAX.
1
0.510
(12.95)
MAX.
14
0.600
(15.24)
8
7
0.031
(0.76)
MAX
0.250
(6.35)
MAX.
Symmetry (Duty Cycle)
Output “0” Level (VOL)
Output “1” Level (VOH)
Rise and Fall Time
Start Time
Output Load
Jitter (typical)
Phase Noise (typical)
Insulated
Stand-Offs
0.300
(7.62)
Pin 1 Options
(See Spec. Option T below)
PIN FUNCTION TABLE
Pin
1
7
8
14
Function
NC or Tri-State
Case Ground
Output
Supply Voltage (Vdd)
Aging @ 25°C
All specifications subject to change without notice.
STANDARD MARKING
XXX.XXXM
XXXXXXX
• FMI YYWW
XXX.XXXM FREQUENCY in MHz
XXXXXXX Part Number
Pin 1 Symbol, FMI, Date Code
Standard Specifications for product indicated in
color
Dimensions:
Inches
(mm)
PART DESCRIPTION SYSTEM
FMOC71 00 A 3/S/T - XXX.XXXXXXM - CM
Product Family
HCMOS/TTL Compatible
5.0 Vdc Clock Osc.
via Multiplier
Full-Size 14 Pin DIP
Overall Frequency Tol.
20
± 20 ppm
25
± 25 ppm
50
± 50 ppm
00
± 100 ppm
nn
± Custom Value
Frequency (MHz)
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
D -10 to 50 °C
E -10 to 60 °C
F -30 to 60 °C
J 0 to 50 °C
X Custom
Specification Options
3 - +3.3 Vdc Supply Voltage (Vdd)
S - Tight Symmetry
(45/55%) Duty Cycle
T - Tri-State
BLANK - None Required (Std.)
Options
GW - Gull Wing
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
1-800-800-XTAL
[9825]
www.fmi-inc.com
