BA6846FV datasheet, PDF - EEWORLD Datasheet

BA6846FV: DescriptionSTEPPER MOTOR CONTROLLER, 0.5 A, PDSO14; CategoryOther integrated circuit (IC) The signal circuit; File Size83KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA6846FV Overview

STEPPER MOTOR CONTROLLER, 0.5 A, PDSO14

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SSOP
package instruction	SSOP-14
Contacts	14
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	STEPPER MOTOR CONTROLLER
JESD-30 code	R-PDSO-G14
JESD-609 code	e3/e2
length	5 mm
Number of functions	2
Number of terminals	14
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Maximum output current	0.5 A
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSSOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
Maximum seat height	1.25 mm
Maximum supply current (Isup)	13.5 mA
Maximum supply voltage (Vsup)	9 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	4.4 mm

Motor driver ICs

Stepping motor driver

BA6846FS / BA6846FV

The BA6846FS and BA6846FV are stepping motor drivers with a maximum output current of 0.5A. The logic input allows

three output modes : forward, reverse, and power save. The ICs have low output saturation voltage and are capable

of driving motors at low supply voltage.

FApplications

Stepping motors for floppy disk drives

FFeatures

1) Low output saturation voltage.

2) Power save circuit.

3) Thermal shutdown circuit.

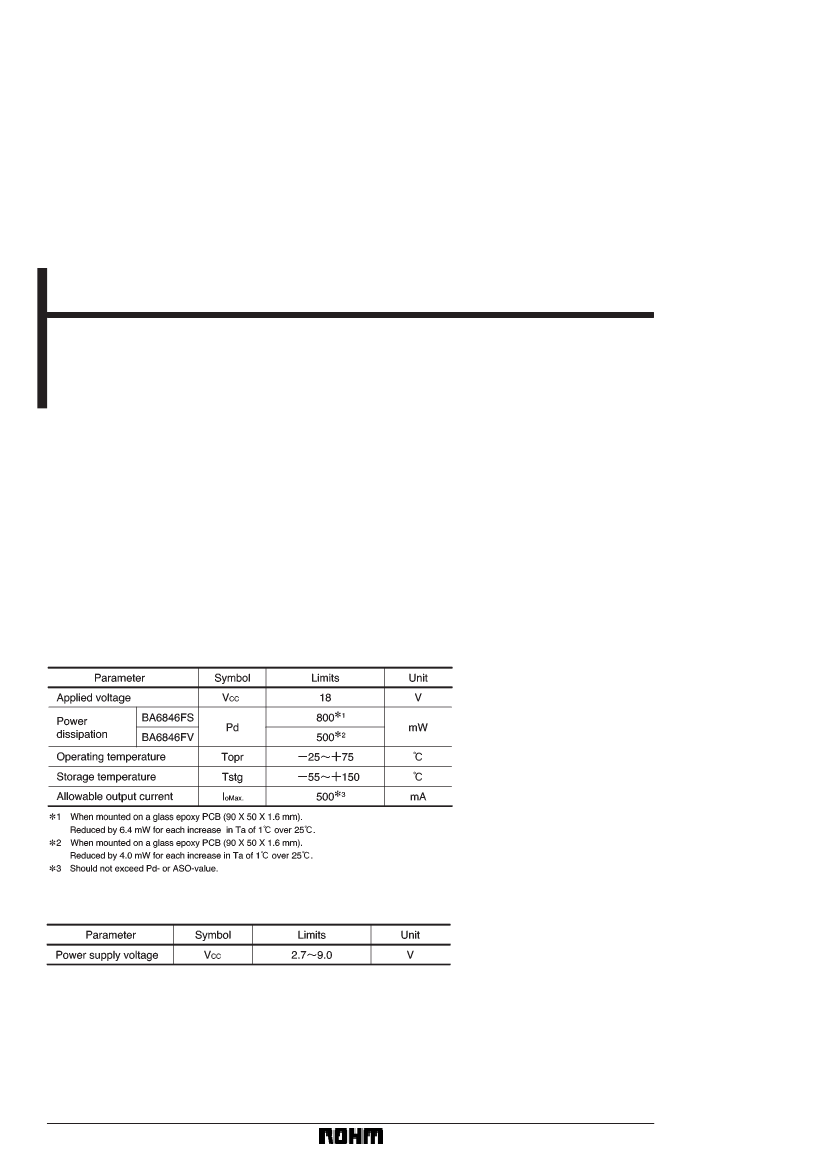

FAbsolute

maximum ratings (Ta = 25_C)

FRecommended

operating conditions (Ta = 25_C)

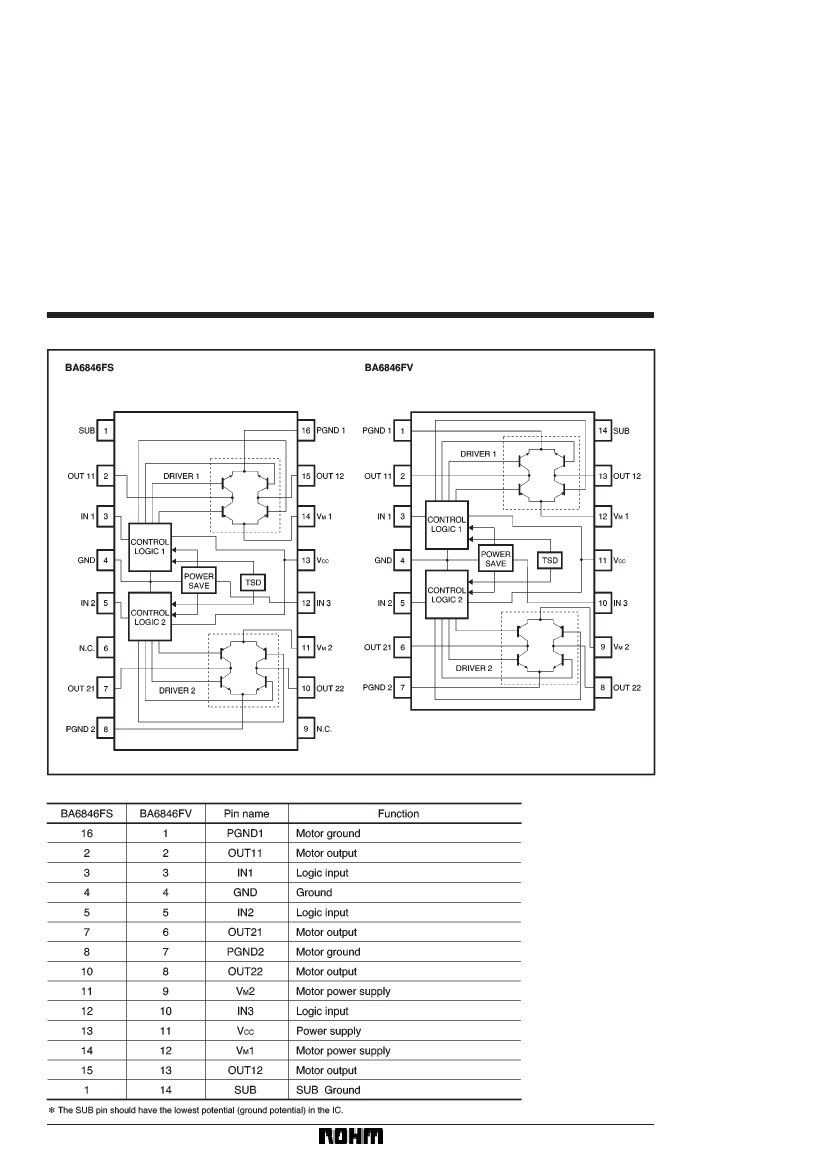

741

	BA6846FV	BA6846FS
Description	STEPPER MOTOR CONTROLLER, 0.5 A, PDSO14	STEPPER MOTOR CONTROLLER, 0.5 A, PDSO14
Is it Rohs certified?	conform to	conform to
Parts packaging code	SSOP	SOIC
package instruction	SSOP-14	LSSOP, SOP16,.25,32
Contacts	14	16
Reach Compliance Code	compli	unknow
ECCN code	EAR99	EAR99
Analog Integrated Circuits - Other Types	STEPPER MOTOR CONTROLLER	STEPPER MOTOR CONTROLLER
JESD-30 code	R-PDSO-G14	R-PDSO-G16
length	5 mm	6.6 mm
Number of functions	2	2
Number of terminals	14	16
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-25 °C	-25 °C
Maximum output current	0.5 A	0.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSSOP	LSSOP
Encapsulate equivalent code	TSSOP16,.25	SOP16,.25,32
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.25 mm	1.6 mm
Maximum supply current (Isup)	13.5 mA	13.5 mA
Maximum supply voltage (Vsup)	9 V	9 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.8 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	10	NOT SPECIFIED
width	4.4 mm	4.4 mm
