BA6859AFP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> The signal circuit> BA6859AFP

BA6859AFP: DescriptionDISK DRIVE MOTOR CONTROLLER, 1.3 A, PDSO28; CategoryOther integrated circuit (IC) The signal circuit; File Size194KB，15 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA6859AFP Overview

DISK DRIVE MOTOR CONTROLLER, 1.3 A, PDSO28

BA6859AFP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	HSOP-28
Contacts	28
Reach Compliance Code	compli
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DISK DRIVE MOTOR CONTROLLER
JESD-30 code	R-PDSO-G28
JESD-609 code	e3/e2
length	18.5 mm
Number of functions	1
Number of terminals	28
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Maximum output current	1.3 A
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Encapsulate equivalent code	SOP28/42,.4,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	5,3/14 V
Certification status	Not Qualified
Maximum seat height	2.41 mm
Maximum supply current (Isup)	8.5 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	7.5 mm

Preview

Download Datasheet

View All

Motor driver ICs

Three-phase motor driver for

CD-ROMs

BA6858AFP / BA6858AFM / BA6859AFP /

BA6859AFP-Y / BA6859AFM / BA6859AFS

The BA6858A and BA6859A series are ICs developed for CD-ROM spindle motor drives. In addition to the functions

of the BA6849 series, (short brake, reverse-rotation prevention circuit, rotation direction dector, and FG output), the

BA6858A and BA6859A series have a built-in brake mode switching pin. With torque command input, these series are

compatible with the DSP3.3V. In addition, the BA6858A series has an FG composite output.

FApplications

CD-ROM, CD-R, CD-RW, DVD-ROM, and DVD-RAM

FFeatures

1) Three-phase, pseudo-linear drive system.

2) Built-in power save and thermal shutdown functions.

3) Built-in current limiter and Hall bias circuits.

4) Built-in FG output.

5) Built-in rotation direction detector.

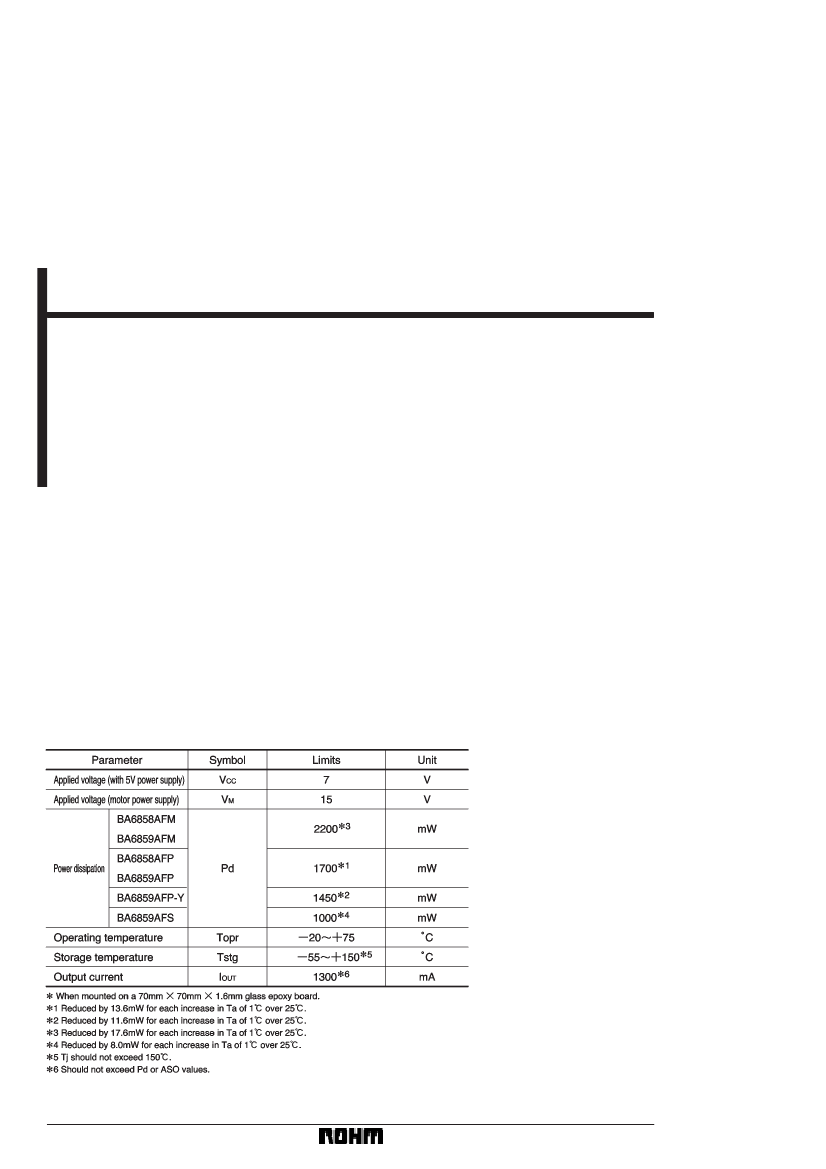

FAbsolute

maximum ratings (Ta = 25_C)

Built-in reverse rotation prevention circuit.

Built-in short brake pin.

Built-in brake mode switching pin.

DSP3.3V compatible.
