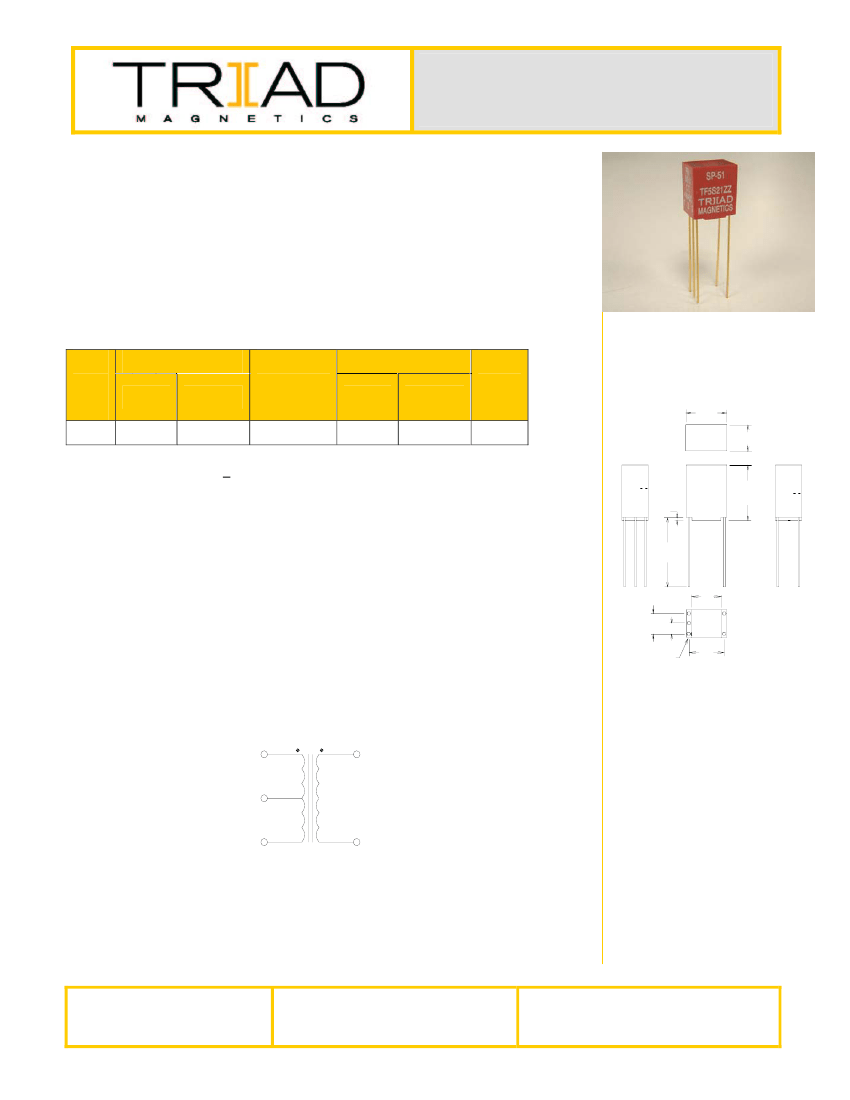

Audio Transformer MIL-T-27E
High Reliability
:
“Red Spec” Series
SP- 51
Description:
Triad’s high reliability audio transformers provide the durability and precision required
in today’s demanding designs. These transformers are available for a wide variety of
applications.
Electrical Specifications (@25C)
Power
level
(mW)
50
Matching Impedance
Primary
900 CT
Secondary
600
Max. Ma DC
Unbalance
in Primary
4.0
DC Resistance (Ω)
Primary
104.0
Secondary
96.0
Overall
Turns
Ratio
1.22:1.0
PRI
C
900
.410
MAX.
.310
MAX.
Frequency Response:
+ 2.0 DB, at 300 Hz to 100K Hz
SP-51
SEC
.465
MAX.
Pri-Sec Hipot test (Pri-Sec):
1,000 VRMS for 1 sec.
C.T.
4 MADC
1 23
TF5S21ZZ
.020
600
TRIAD
MAGNETICS
50 MW
C
5
4
Working voltage:
150VDC
.750
MIN.
.200
Construction:
Plug-in terminals are precision spaced to provide fixed mounting centers.
Epoxy molded case includes a .020” recess for ease of solder inspection.
Leads are made of high strength Nickel alloy, gold plated and are
.020” in diameter.
.200
.100
TAB, AT PIN #1
.300
1
PRI Z
900 OHMS
CT
2
4
SEC Z
600 OHMS
3
5
50 MW
RoHS Compliance:
As of manufacturing date February 2005, all standard products
meet the requirements of 2011/65/EU, known as the RoHS initiative.
*
Upon printing, this document is considered “uncontrolled”. Specifications are subjected to
change without notice. Please contact Triad Magnetics’ website for the most current version.
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: December 4, 2013
