BA6853FS datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> The signal circuit> BA6853FS

Preview

BA6853FS: Description3-phase motor driver for CD-ROMs; CategoryOther integrated circuit (IC) The signal circuit; File Size143KB，11 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA6853FS Overview

3-phase motor driver for CD-ROMs

BA6853FS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SSOP
package instruction	SSOP, SOP24,.3,32
Contacts	24
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DISK DRIVE MOTOR CONTROLLER
JESD-30 code	R-PDSO-G24
length	10 mm
Number of functions	1
Number of terminals	24
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Maximum output current	1.3 A
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SOP24,.3,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,12 V
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply current (Isup)	7.6 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.25 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.4 mm

Preview

Download Datasheet

View All

Motor driver ICs

3-phase motor driver for

CD-ROMs

BA6848FP / BA6853FS

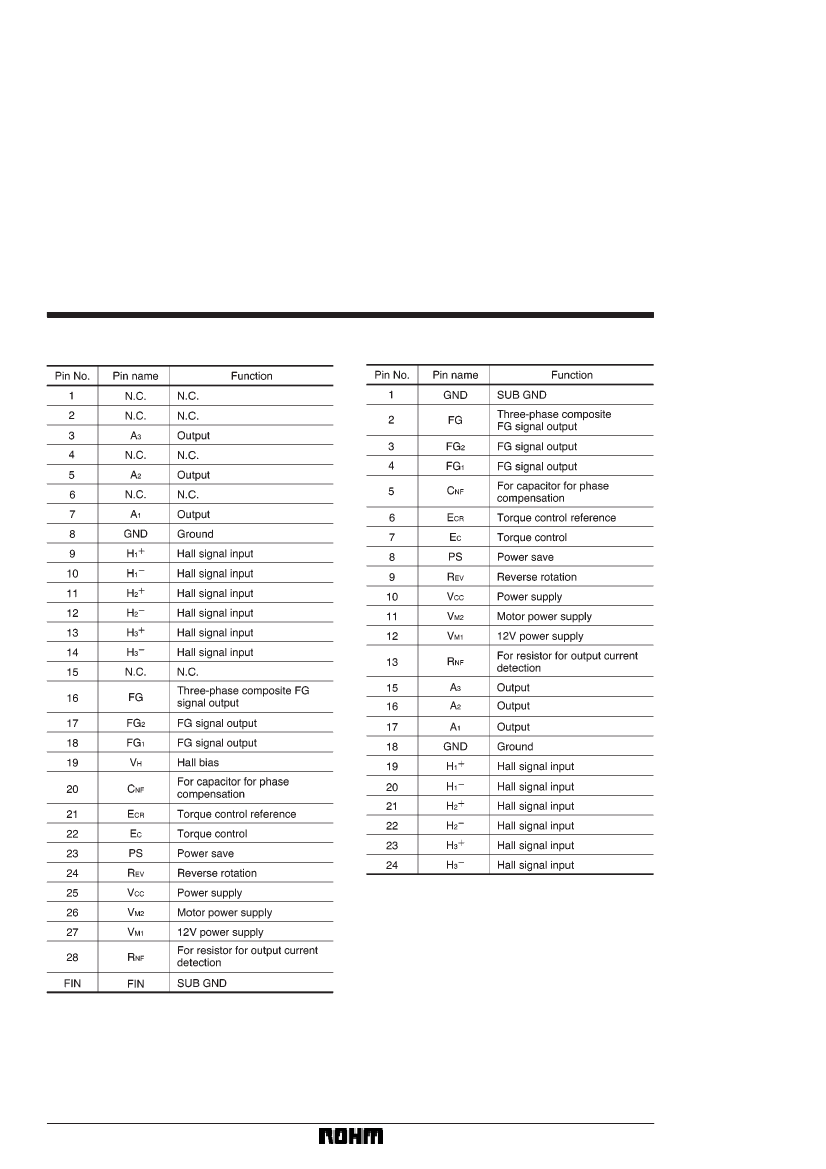

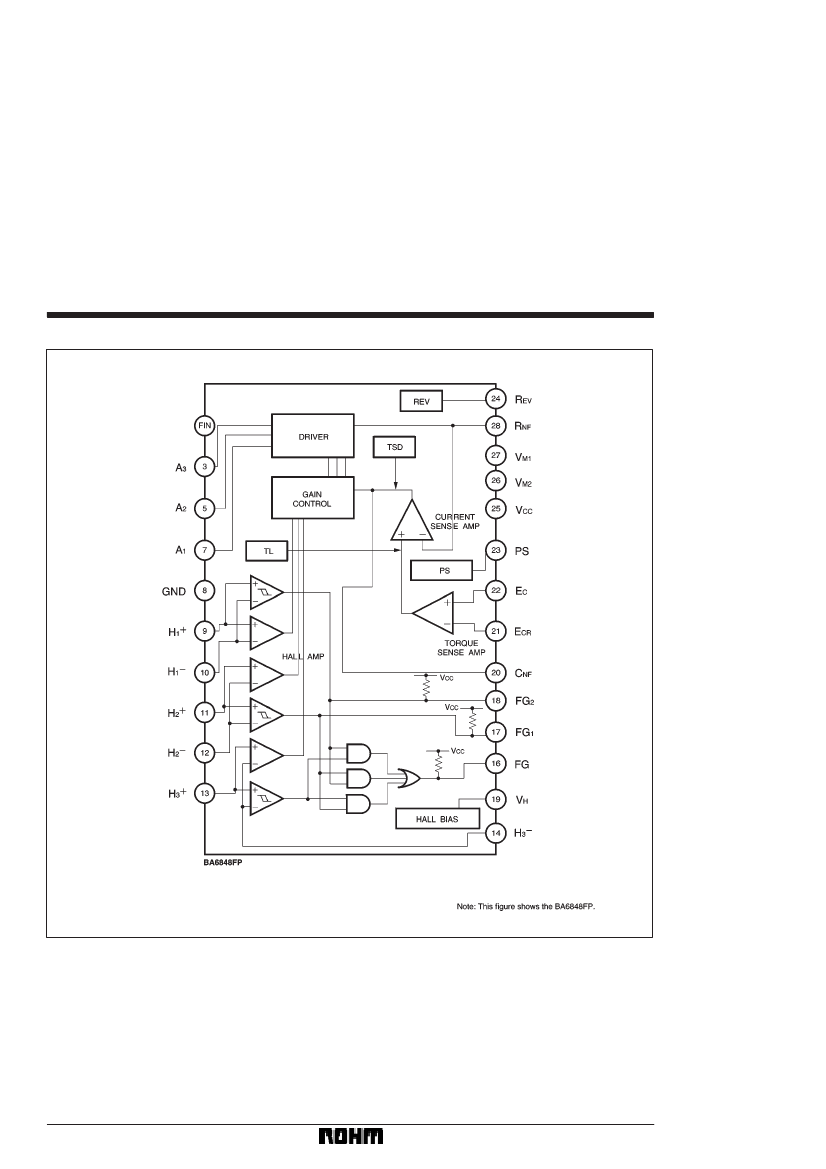

The BA6848FP and BA6853FS are single-chip ICs developed for CD-ROM spindle motor drives. These ICs are 3-

phase, full-wave, pseudo-linear drives with FG output, FG composite output, and reverse-rotation pins built-in for high

functionality and high performance.

FApplications

CD-ROM, CD-R, CD-RW, DVD-ROM, DVD-RAM

FFeatures

1) Three-phase, full wave, pseudo-linear drive system.

2) Built-in PS pin for power save mode when ON.

3) Built-in thermal shutdown and current limiter circuits.

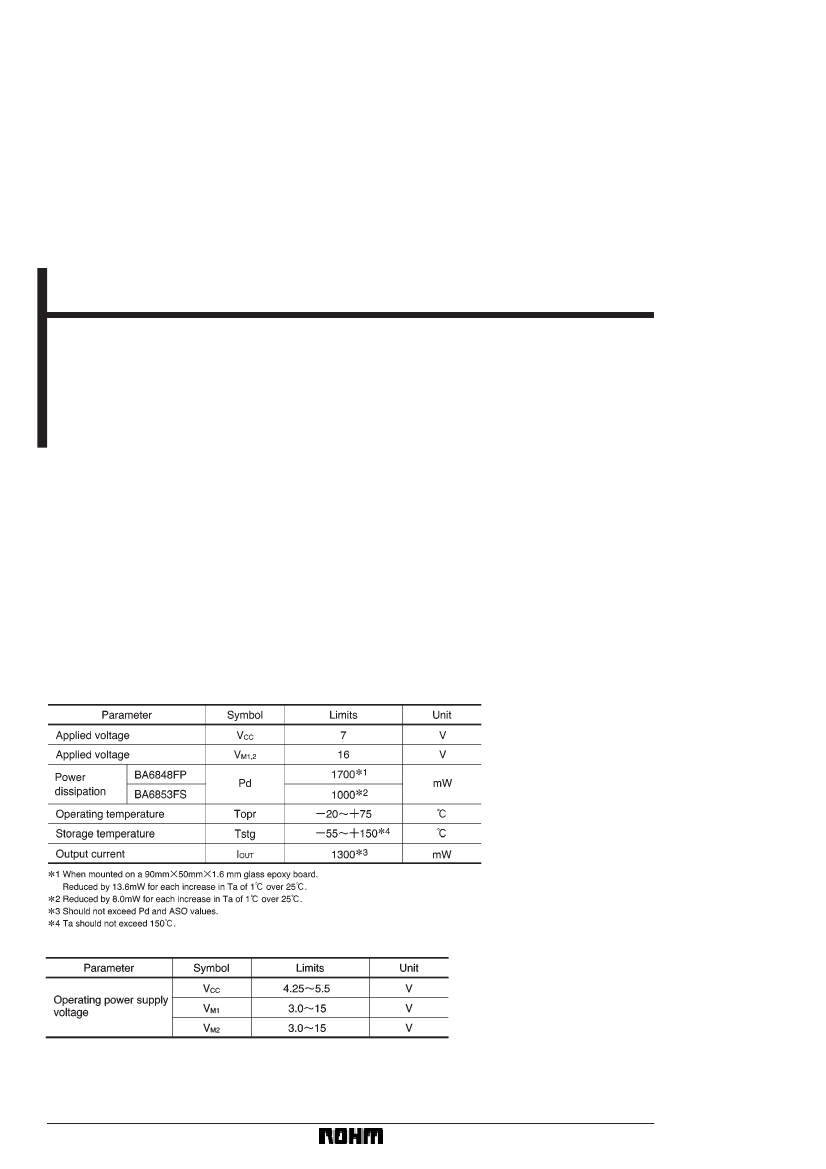

FAbsolute

maximum ratings (Ta = 25_C)

4) Built-in Hall bias circuit (for the BA6848FP).

5) Built-in FG output and FG composite output.

6) Built-in reverse-rotation pin.

FRecommended

operating conditions (Ta = 25_C)

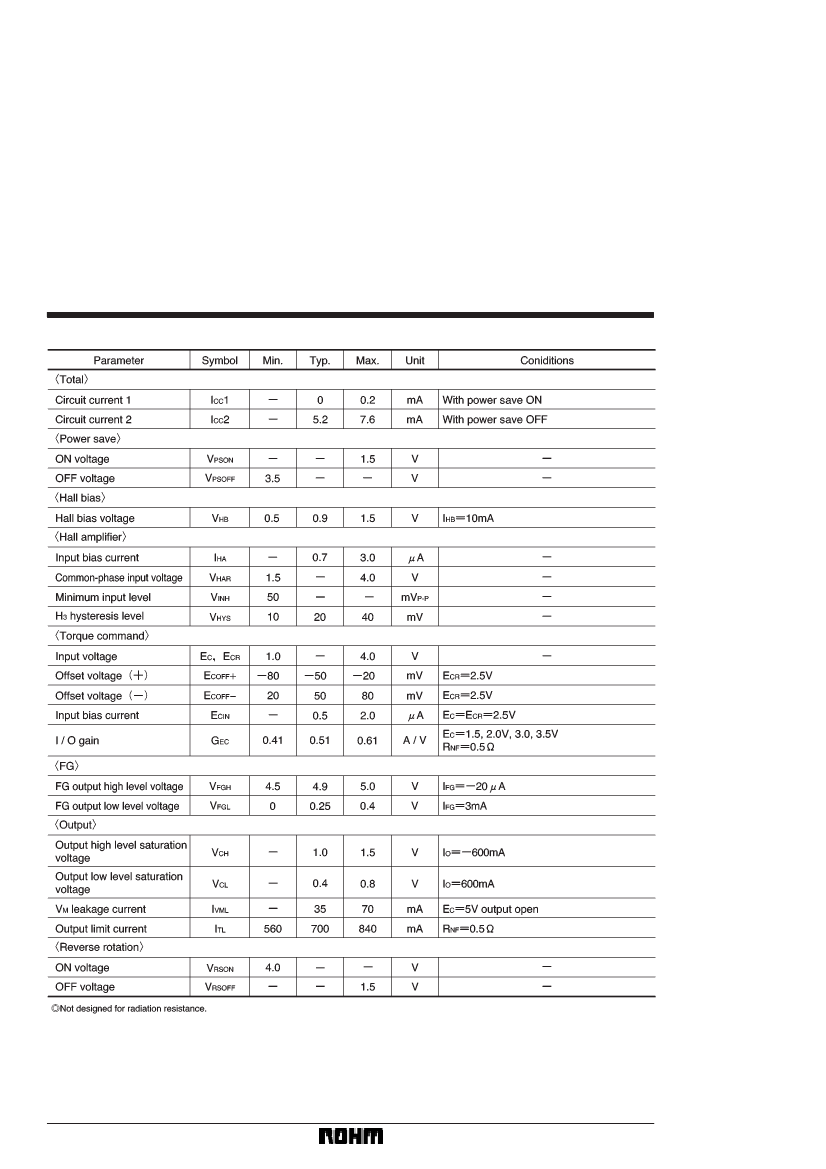

781

BA6853FS Related Products

	BA6853FS	BA6848	BA6848FP
Description	3-phase motor driver for CD-ROMs	3-phase motor driver for CD-ROMs	3-phase motor driver for CD-ROMs
Is it Rohs certified?	conform to	-	conform to
Maker	ROHM Semiconductor	-	ROHM Semiconductor
Parts packaging code	SSOP	-	SOIC
package instruction	SSOP, SOP24,.3,32	-	HSSOP, SOP28/42,.4,32
Contacts	24	-	28
Reach Compliance Code	unknow	-	unknow
ECCN code	EAR99	-	EAR99
Analog Integrated Circuits - Other Types	DISK DRIVE MOTOR CONTROLLER	-	DISK DRIVE MOTOR CONTROLLER
JESD-30 code	R-PDSO-G24	-	R-PDSO-G28
length	10 mm	-	18.5 mm
Number of functions	1	-	1
Number of terminals	24	-	28
Maximum operating temperature	75 °C	-	75 °C
Minimum operating temperature	-20 °C	-	-20 °C
Maximum output current	1.3 A	-	1.3 A
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	SSOP	-	HSSOP
Encapsulate equivalent code	SOP24,.3,32	-	SOP28/42,.4,32
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	-	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
power supply	5,12 V	-	5,12 V
Certification status	Not Qualified	-	Not Qualified
Maximum seat height	1.9 mm	-	2.41 mm
Maximum supply current (Isup)	7.6 mA	-	7.6 mA
Maximum supply voltage (Vsup)	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.25 V	-	4.25 V
Nominal supply voltage (Vsup)	5 V	-	5 V
surface mount	YES	-	YES
technology	BIPOLAR	-	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	-	COMMERCIAL EXTENDED
Terminal form	GULL WING	-	GULL WING
Terminal pitch	0.8 mm	-	0.8 mm
Terminal location	DUAL	-	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
width	5.4 mm	-	7.5 mm
