CCL-SM4-4.000MHZ-G-2-5-F-R

Description
Parallel - Fundamental Quartz Crystal, 4MHz Nom, ROHS COMPLIANT,SMD, 4 PIN
CategoryPassive components    Crystal/resonator
File Size174KB,1 Pages
ManufacturerCal Crystal Lab Inc / Comclok Inc
Websitehttps://www.transko.com
Environmental Compliance
Download Datasheet Parametric View All

CCL-SM4-4.000MHZ-G-2-5-F-R Overview

Parallel - Fundamental Quartz Crystal, 4MHz Nom, ROHS COMPLIANT,SMD, 4 PIN

CCL-SM4-4.000MHZ-G-2-5-F-R Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerCal Crystal Lab Inc / Comclok Inc
package instructionROHS COMPLIANT,SMD, 4 PIN
Reach Compliance Codecompli
Ageing5 PPM/YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level50 µW
frequency stability0.005%
frequency tolerance10 ppm
load capacitance18 pF
Installation featuresSURFACE MOUNT
Nominal operating frequency4 MHz
Maximum operating temperature60 °C
Minimum operating temperature-10 °C
physical sizeL13.1XB4.4XH5.0 (mm)/L0.516XB0.173XH0.197 (inch)
Series resistance150 Ω
surface mountYES

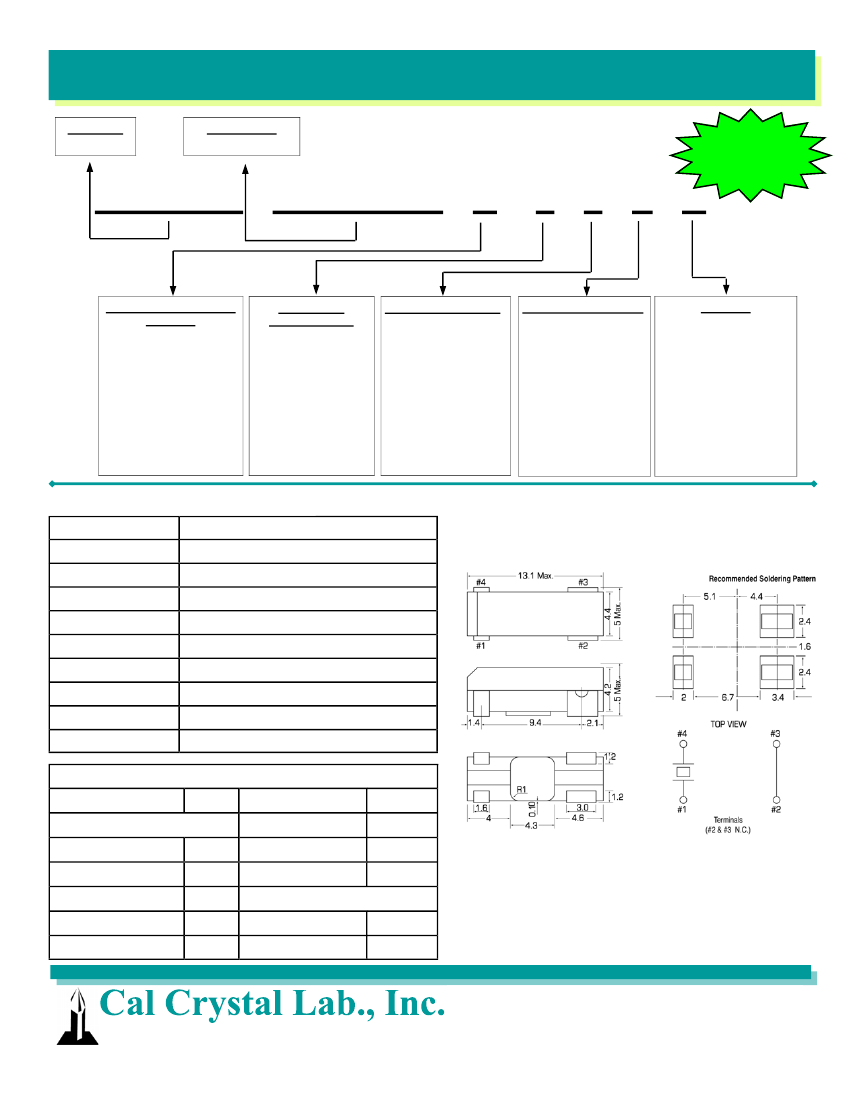

SM4 SMD
PACKAGE
SM4
FREQUENCY
Customer Specified
CCL-SM4 Series
Part Number Guide
RoHs
Compliant
CCL-SM4 - 10.000MHz - B - 2 - 5 - F - R
TOLERANCE/STABILITY
vs. TEMP
A ..... 100ppm / 100ppm
B ..... 50ppm / 100ppm
C..... 50ppm / 50ppm
D..... 25ppm / 100ppm
E ..... 25ppm / 50ppm
F ..... 25ppm / 25ppm
G .... 10ppm / 50ppm
H..... 10ppm / 25ppm
I ...... 10ppm / 10ppm
J … Customer Specified
OPERATING
TEMPERATURE
1.... 0
O
C to +70
O
C
2....-10
O
C to +60
O
C
3....-20
O
C to +70
O
C
4....-40
O
C to +85
O
C
5....Customer Specified
LOAD CAPACITANCE
S ...Series
1 ....50 pF
2 ....32 pF
3 ....30 pF
4 ....20 pF
5 ....18 pF
6 ....15 pF
7 ....10 pF
8 ....7.5 pF
X ...Customer Specified
MODE OF OPERATION
F ........ Fundamental
3 ........ 3
RD
Overtone
OPTIONS
R .... RoHS Compliant
T ... Tape & Reel
Electrical Specifications
Frequency Range
Frequency Tolerance
Frequency Stability
Operating Range
Load Capacitance
Shunt Capacitance
Drive Level
Insulation Resistance
Aging
Reflow
3.5 MHz ~ 80.000 MHz
±50ppm Standard
±100ppm 0ºC ~ 70ºC Standard
-10ºC ~ 60ºC Standard
Series Resonance or Parallel
7pF Max.
50uW to 100uW
500 megohms Min.
±5ppm Max. / Year
10 Seconds Max. @ +235ºC
Maximum Equivalent Series Resistance (Ω)
Freq. Range (MHz)
ESR (Ω)
Freq. Range (MHz)
13.000 ~ 19.999
200
150
100
80
60
20.000 ~ 29.999
30.000 ~ 35.0
3rd Overtone
35.0 ~ 80.0
100
ESR (Ω)
40
30
30
Mechanical Specifications
Fundamental Mode
3.5 ~ 3.999
4.000 ~ 5.999
6.000 ~ 7.299
7.250 ~ 8.999
9.000 ~ 12.999
Unit : mm
15302 Bolsa Chica Street, Huntington Beach, CA 92649
Ph: 714-991-1580 / 800-333-9825 Fax: 714-491-9825
www.calcrystal.com
e-mail: sales@calcrystal.com
Ver. 2.2 0806
