BA6892FP datasheet, PDF - EEWORLD Datasheet

BA6892FP: Description4-channel H-bridge type BTL driver for CD players; CategoryOther integrated circuit (IC) Consumption circuit; File Size129KB，10 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA6892FP Overview

4-channel H-bridge type BTL driver for CD players

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SOIC
package instruction	HSOP-28/30
Contacts	28
Reach Compliance Code	compli
Other features	ALSO REQUIRES 3V TO 14V POWER SUPPLY
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G30
JESD-609 code	e3/e2
length	18.5 mm
Number of functions	1
Number of terminals	30
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	2.41 mm
Maximum slew rate	6 mA
Maximum supply voltage (Vsup)	14 V
Minimum supply voltage (Vsup)	1.5 V
surface mount	YES
Temperature level	OTHER
Terminal surface	TIN/TIN COPPER
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	7.5 mm

Optical disc ICs

4-channel H-bridge type BTL driver for

CD players

BA6892FP

The BA6892FP is a 4-channel H-bridge BTL driver for CD players. Independent power supplies for each predriver and

power driver assure efficient operation at low voltages. Each channel is independently mutable.

FApplications

CD players, CD-ROM drives and other optical disc devices

FFeatures

1) 4-channel BTL driver in a HSOP 28-pin package,

ideal for application miniaturization.

2) Wide dynamic range.

3) Driver gain is adjustable with an attached resistor.

4) Independent power supply for each preamplifier and

power amplifier, for drives that operate efficiently on

low voltages.

5) Power amplifier current drops to an extremely low

level when the preamplifier power supply is lowered,

allowing for a standby mode.

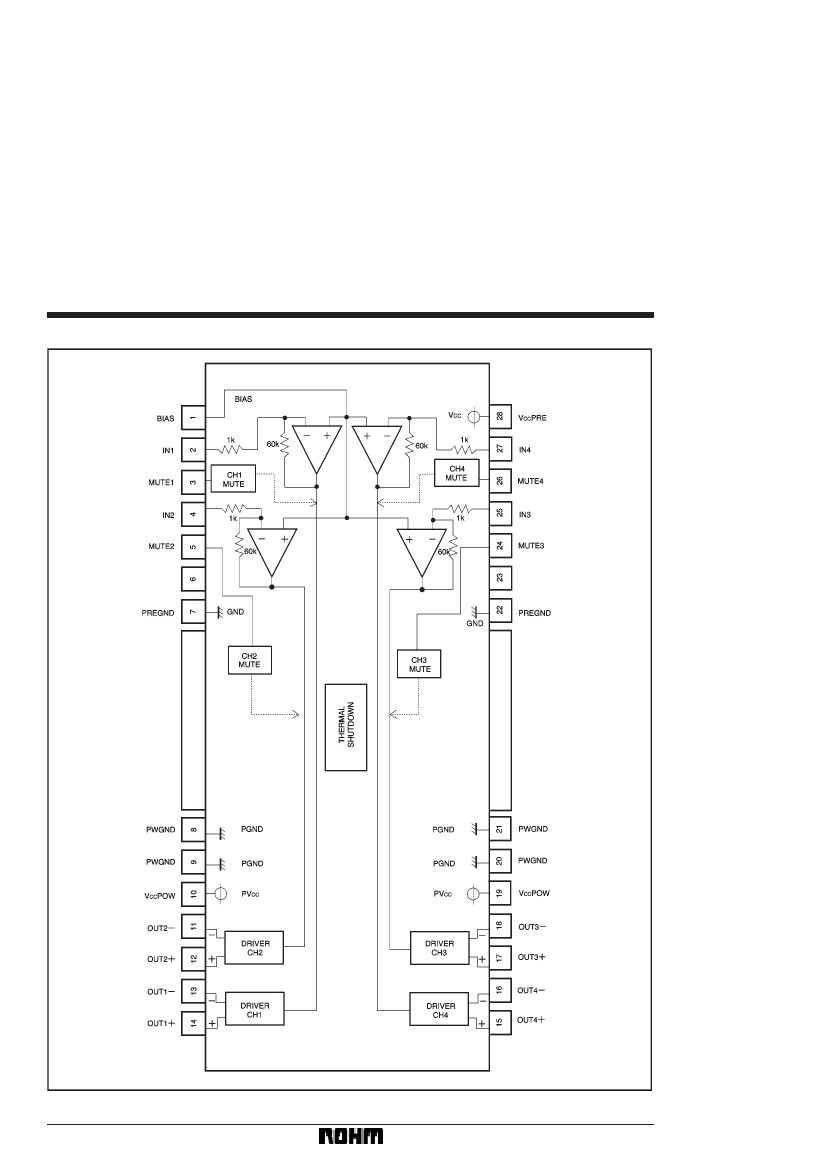

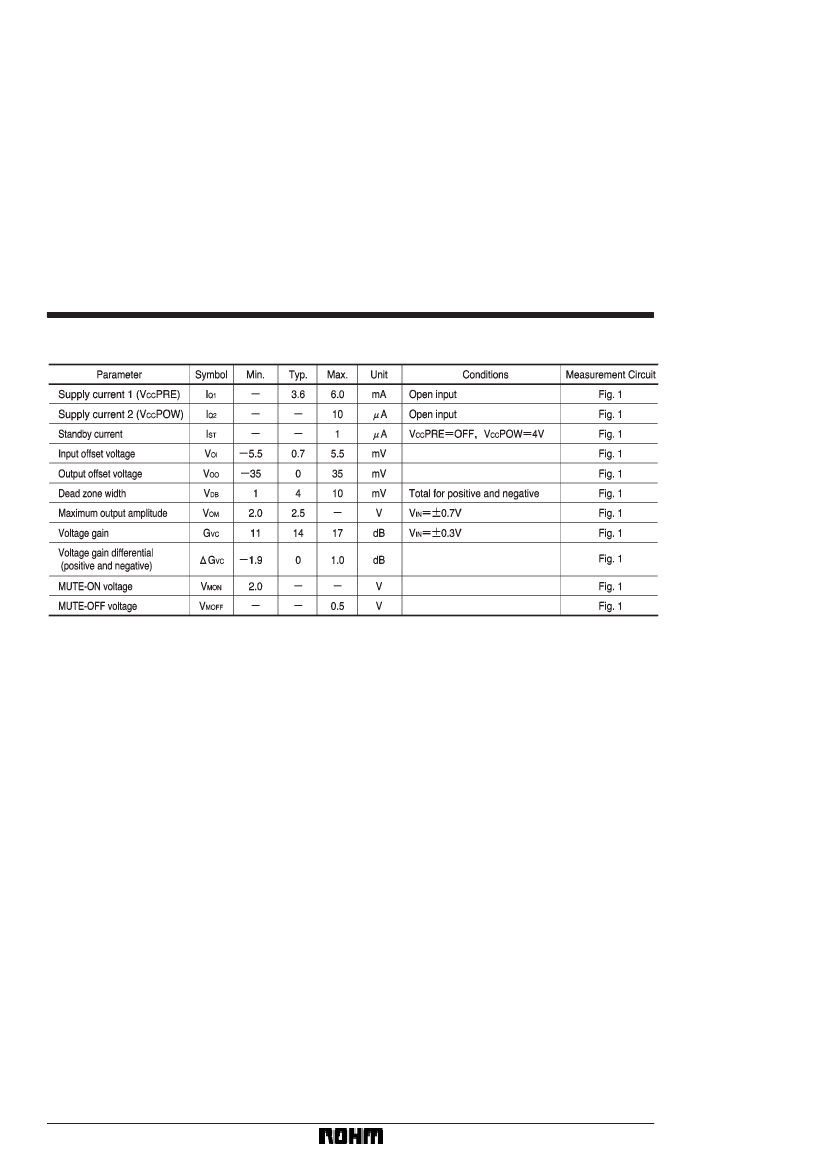

FAbsolute

maximum ratings (Ta = 25_C)

FRecommended

operating conditions (Ta = 25_C)

445

	BA6892FP	BA6892
Description	4-channel H-bridge type BTL driver for CD players	4-channel H-bridge type BTL driver for CD players
