ZAC1203
SMD Z AXIS AIR COIL Low Pro le
Single Axis Transponder Inductors
14.3x12x2.5 mm (2.38 mH – 6.38 mH)
Features
This SMD coil offers a very low pro le
solution for applications in which it’s
needed a transponder vertical coil with
high sensitivity in z direction and a small
surface area. It’s so a lower pro le solution
for those applications in which the height
of the component is critical. The design
has the best electrical performance in these
dimensions

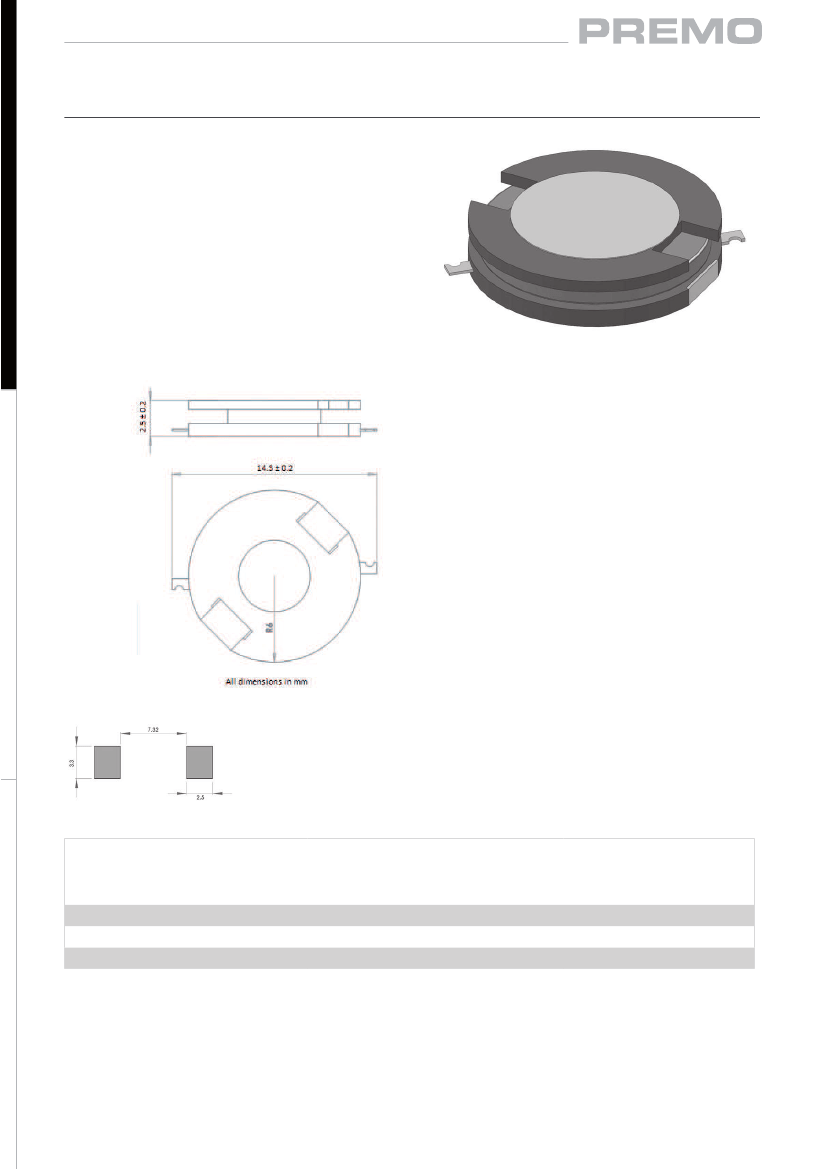

Dimensions and recommended pad
layout
Applications
- Passive Keyless Entry and
Keyless Go Systems
- RTPMS with wake up functions
- Industrial logistics and control
- Access control
- Tracking devices
Characteristics
- Very good electrical and
mechanical performance
- High stability in temperature
(-40ºC to +125ºC)
- High sensitivity values achieved with
very good thermal performance
- This component is also functional to
20 and 124 kHz.
All dimensions in mm
Electrical speci cations
P/N
ZAC1203-0238J
ZAC1203-0491J
ZAC1203-0638J
L (mH)
2.38 ± 5%
4.91 ± 5%
6.38 ± 5%
Q
>18
>18
>18
SRF
(kHz)
>1.8
>1.2
>1
RDC (Ω)
max.
93
192,5
2,31
Sensitivity
(mVpp/App/m)
>30
>45
>50
32
