V-161-3C6 Overview

Miniature Basic Switch that Offers High Reliability and Security

Preview

Download Datasheet

View All

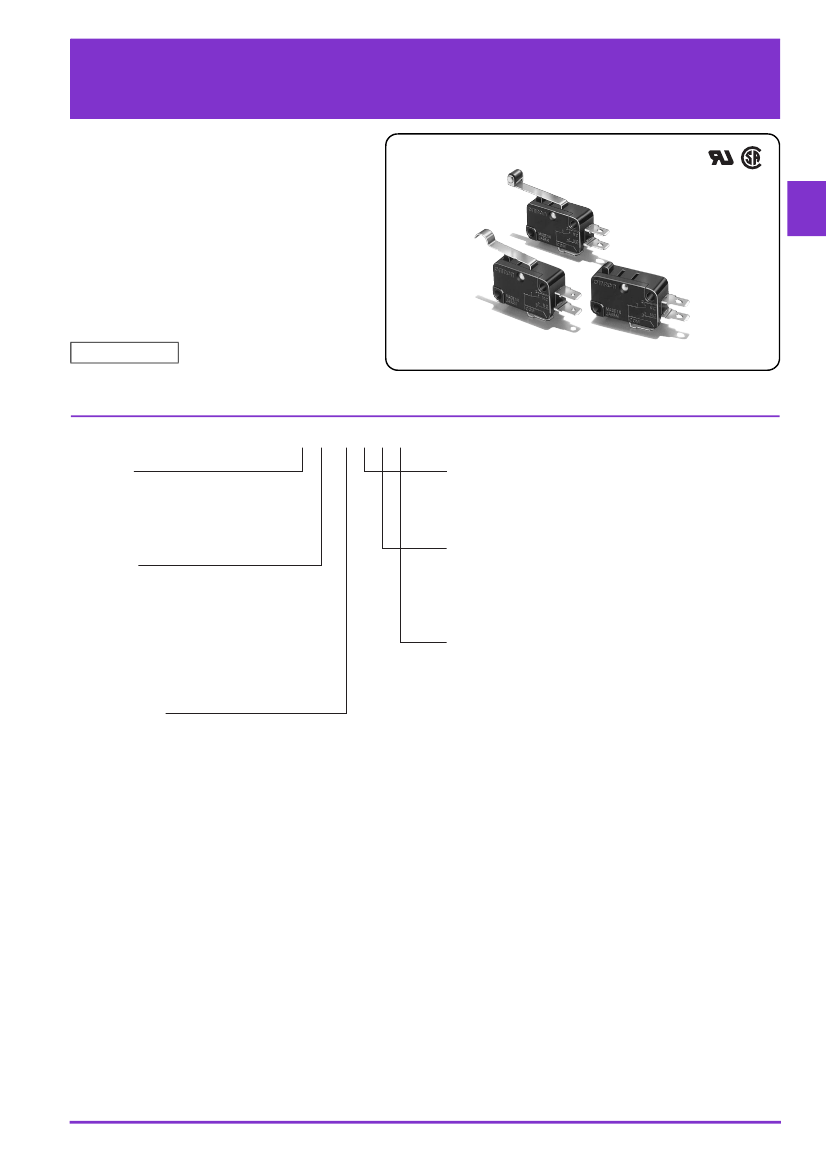

Miniature Basic Switch

Miniature Basic Switch that

Offers High Reliability and

Security

●

Wide variation of best-selling microswitches with

switching currents of 10 to 21 A.

●

Can be used for interrupting current when doors

are opened or closed.

●

Available in two types of cases: thermoplastic resin

and thermosetting resin.

RoHS Compliant

Model Number Legend

1 2

3 4 5 6

V-

@ @

@ @ @ @

1. Ratings

21: 21 A at 250 VAC

16: 16 A at 250 VAC

15: 15 A at 250 VAC

10: 10 A at 250 VAC

2. Actuator

None : Pin plunger

1 : Short hinge lever

2 : Hinge lever

3 : Long hinge lever

4 : Simulated roller lever

5 : Short hinge roller lever

6 : Hinge roller lever

3. Contact Form

1: SPDT

2: SPST-NC

3: SPST-NO

4. Terminals

A : Solder terminals

C2 : Quick-connect terminals (#187)

C : Quick-connect terminals (#250)

5. Maximum Operating Force

6: 3.92 N {400 gf}

5: 1.96 N {200 gf}

4: 0.98 N {100 gf}

Note: These values are for the pin plunger models.

6. Heat Resistance

None : Standard (80°C)

-T : Heat-resistive (150°C)
