Dual Output Digital Multi-Phase Controller
IR3565A
FEATURES
Dual output 4+2 phase PWM Controller
Easiest layout and fewest pins in the industry
Fully supports AMD® SVI1 & SVI2 with dual
OCP
and Intel® VR12
Overclocking & Gaming Mode
Switching frequency from 200kHz to 2MHz
per phase
IR Efficiency Shaping Features including
Dynamic Phase Control and Automatic Power
State Switching
Programmable 1-phase operation for Light
Loads and Active Diode Emulation for Very
Light Loads
IR Adaptive Transient Algorithm (ATA) on
both loops minimizes output bulk capacitors
and system cost
Auto-Phase Detection with auto-
compensation
Per-Loop Fault Protection: OVP, UVP, OCP,
OTP, CFP
I2C/SMBus/PMBus system interface for
telemetry
of Temperature, Voltage, Current & Power for
both loops
Multiple Time Programming (MTP) with
integrated charge pump for easy custom
configuration
Compatible with IR ATL and 3.3V tri-state
Drivers
+3.3V supply voltage; -40°C to 85°C ambient
operation
Pb-Free, RoHS, 6x6mm, 48-pin, 0.4mm pitch
QFN
DESCRIPTION
The IR3565A is a dual-loop digital multi-phase buck
controller designed for CPU voltage regulation and is fully
©
compliant with AMD® SVI1 & SVI2 and Intel VR12
specifications.
The IR3565A includes IR’s Efficiency Shaping
Technology to deliver exceptional efficiency at minimum
cost across the entire load range. IR Variable Gate Drive
optimizes the MOSFET gate drive voltage based on real-
time load current. IR’s Dynamic Phase Control
adds/drops active phases based upon load current and
can be configured to enter 1-phase operation and diode
emulation mode automatically or by command.
IR’s unique Adaptive Transient Algorithm (ATA), based
on proprietary non-linear digital PWM algorithms,
minimizes output bulk capacitors and Multiple Time
Programmable (MTP) storage saves pins and enables a
small package size. Device configuration and fault
parameters are easily defined using the IR Digital Power
Design Center (DPDC) GUI and stored in on-chip MTP.
The IR3565A provides extensive OVP, UVP, OCP and
OTP fault protection and includes thermistor based
temperature sensing with VRHOT signal.
The IR3565A includes numerous features like register
diagnostics for fast design cycles and platform
differentiation, simplifying VRD design and enabling
fastest time-to-market (TTM) with “set-and-forget”
methodology.
APPLICATIONS
AMD® SVI1 & SVI2, Intel® VR12 based systems
Desktop & Notebook CPU VRs
High Performance Graphics Processors
ORDERING INFORMATION
Base Part
Number
IR3565A
IR3565A
IR3565A
Package Type
Form
QFN 6 mm x 6 mm
QFN 6 mm x 6 mm
QFN 6 mm x 6 mm
Tape and Reel
Tape and Reel
Tray
Standard Pack
Quantity
3000
3000
4900
Orderable
Part Number

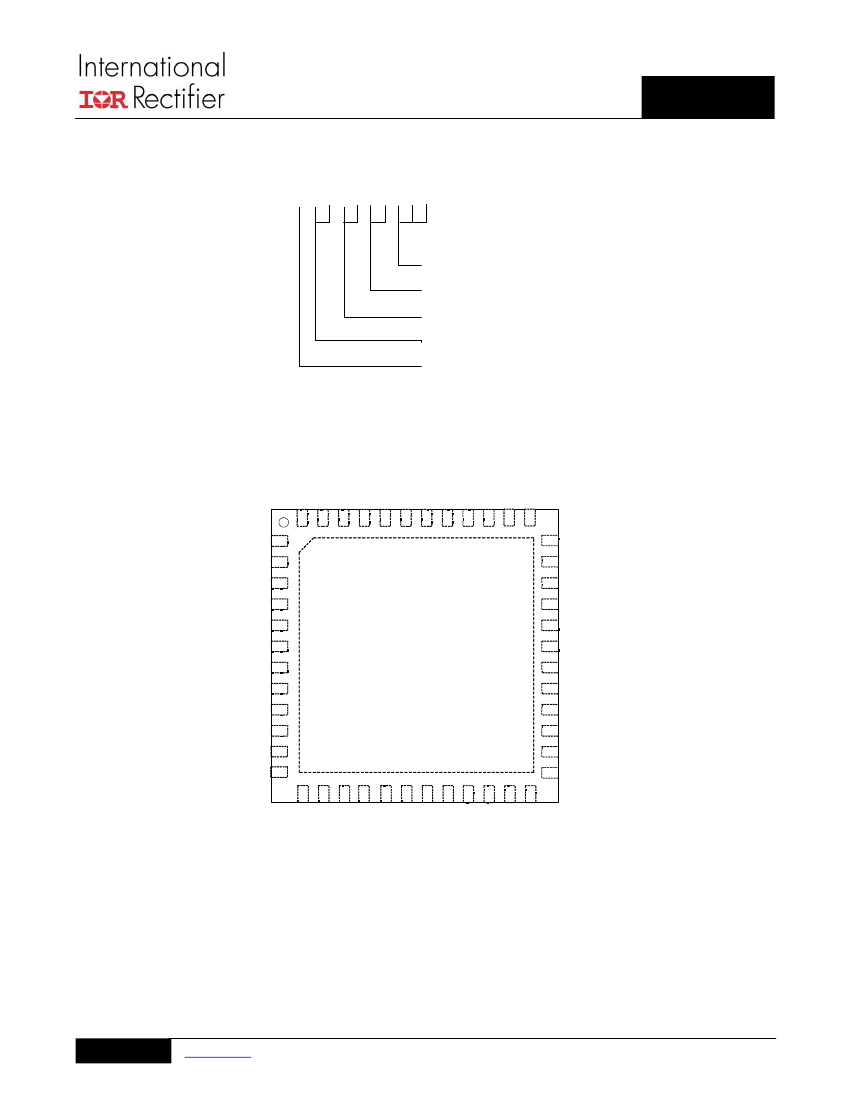

IR3565AMxxyyTRP
IR3565AMTRPBF
IR3565AMTYPBF
1
Notes 1:
Customer Specific Configuration File, where xx = Customer ID and yy = Configuration File (Codes assigned by IR Marketing).
1
www.irf.com
| © 2013 International Rectifier | Product Brief |
October 1, 2013 | V3.04
