172.8 MHz SAW Filter
Applications
General purpose wireless
Wireless infrastructure
3G, 4G, Multistandard
Product Features
Usable bandwidth 21 MHz
Low loss
High attenuation
Low EVM
Balanced operation
Ceramic Surface Mount Package (SMP)
Small Size: 7.01 x 5.51 x 1.63 mm
Hermetic
RoHS
compliant,
Pb-free

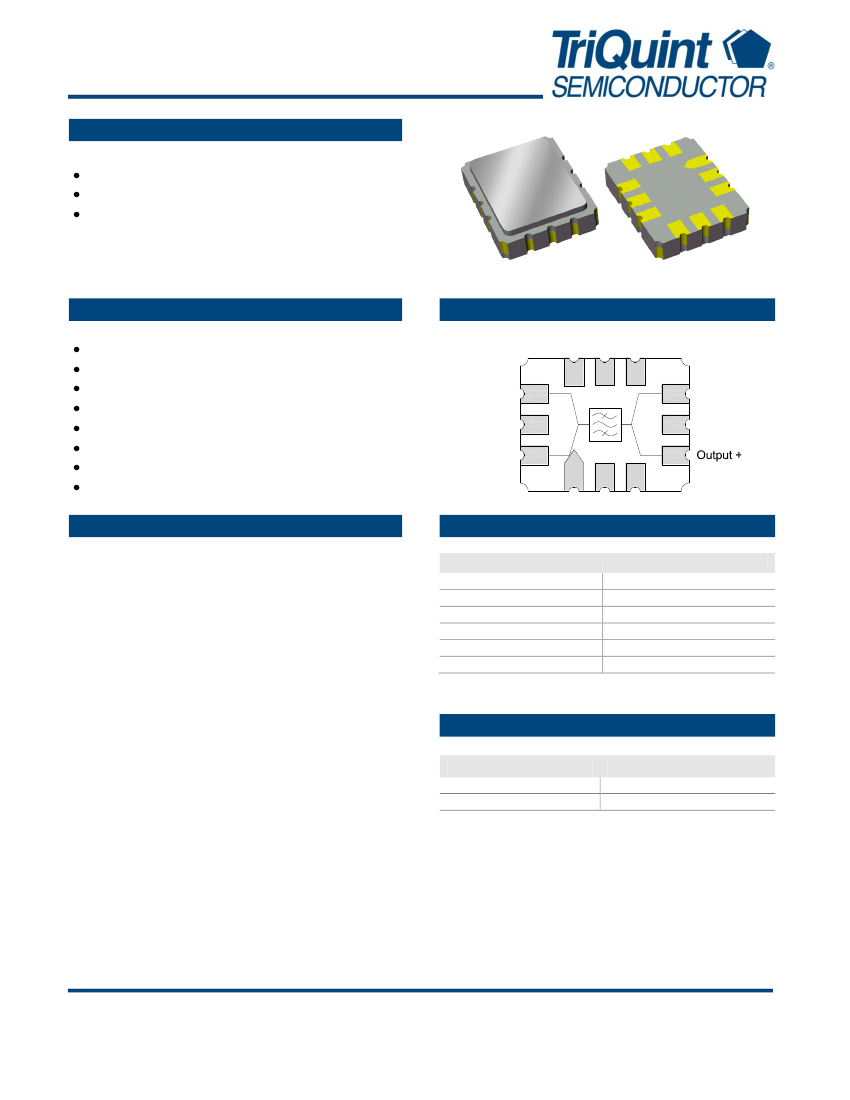

Functional Block Diagram
Top view
Gnd Gnd Gnd
9
Input +
Gnd
Input -
10
11
12
1
2
3
8
7
6
5
4
Output -
Gnd
Gnd Gnd Gnd
General Description
Uplink IF filter specifically designed for the demanding
requirements of 4G wireless infrastructure systems.
Designed for versatile drive configurations, this filter is
optimized for a balanced input and output, leading to
elimination of baluns.
Low insertion loss, excellent attenuation and flat in-band
performance leading to low EVM contribution, makes this
filter an effective choice for our customers LTE and Multi-
standard platforms.
Pin Configuration
Pin # Bal/Bal
10
12
4
6
1,2,3,5
7,8,9,11
Description
Input +
Input -
Output +
Output -
Ground
Ground
Ordering Information
Part No.
856893
856893-EVB
Description
packaged part
evaluation board
Standard T/R size = 3000 units/reel.
Data Sheet: Rev B 2/28/11
© 2011 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856893
172.8 MHz SAW Filter
Specifications
Electrical Specifications
(1)
Specified Temperature Range:
(2)
-40 to +85 ºC
Parameter
(3)
Center Frequency
Insertion Loss
1 dB Bandwidth
(5)
10 dB Bandwidth
(5)
Lower 1 dB Band Edge
(5)
Upper 1 dB Band Edge
(5)
Lower 10 dB Band Edge
(5)
Amplitude Ripple
(6)
Group Delay
Group Delay Variation
Input Return Loss
Output Return Loss
Relative Attenuation
(5)
Conditions
at 172.8 MHz
Min
-
-
21
-
-
183.3
153.5
-
-
-
8
8
50
10
50
50
37
50
-
-
Typical
(4)
172.8
8.2
23.15
27.83
160.81
183.96
-
0.33
580
38
14
11
53
43
53
69
40
73
200
150
Max
-
10
-
-
162.3
-
-
1.0
-
100
-
-
-
-
-
-
-
-
-
-
Units
MHz
dB
MHz
MHz
MHz
MHz
MHz
dB p-p
ns
ns p-p
dB
dB
dB
dB
dB
dB
dB
dB
162.3 – 183.3 MHz
At 172.8 MHz
162.3 – 183.3 MHz
162.3 – 183.3 MHz
162.3 – 183.3 MHz
10.0 – 145.0 MHz
145.0 – 153.5 MHz
200.0 – 290.0 MHz
290.0 – 315.0 MHz
315.0 – 390.0 MHz
390.0 – 1000 MHz
Source Impedance (balanced)
(7)
Load Impedance (balanced)
(7)
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to insertion loss at center frequency
6. Amplitude Ripple is defined as the worst case difference between a peak and an adjacent valley within defined frequency points
7. This is the optimum impedance in order to achieve the performance shown
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Input Power
(at +55 C for 100 hours max)
Rating
-40 to +85
o
C
-40 to +85
o
C
+10 dBm
Operation of this device outside the parameter ranges given above may cause permanent damage.
Data Sheet: Rev B 2/28/11
© 2011 TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856893
172.8 MHz SAW Filter

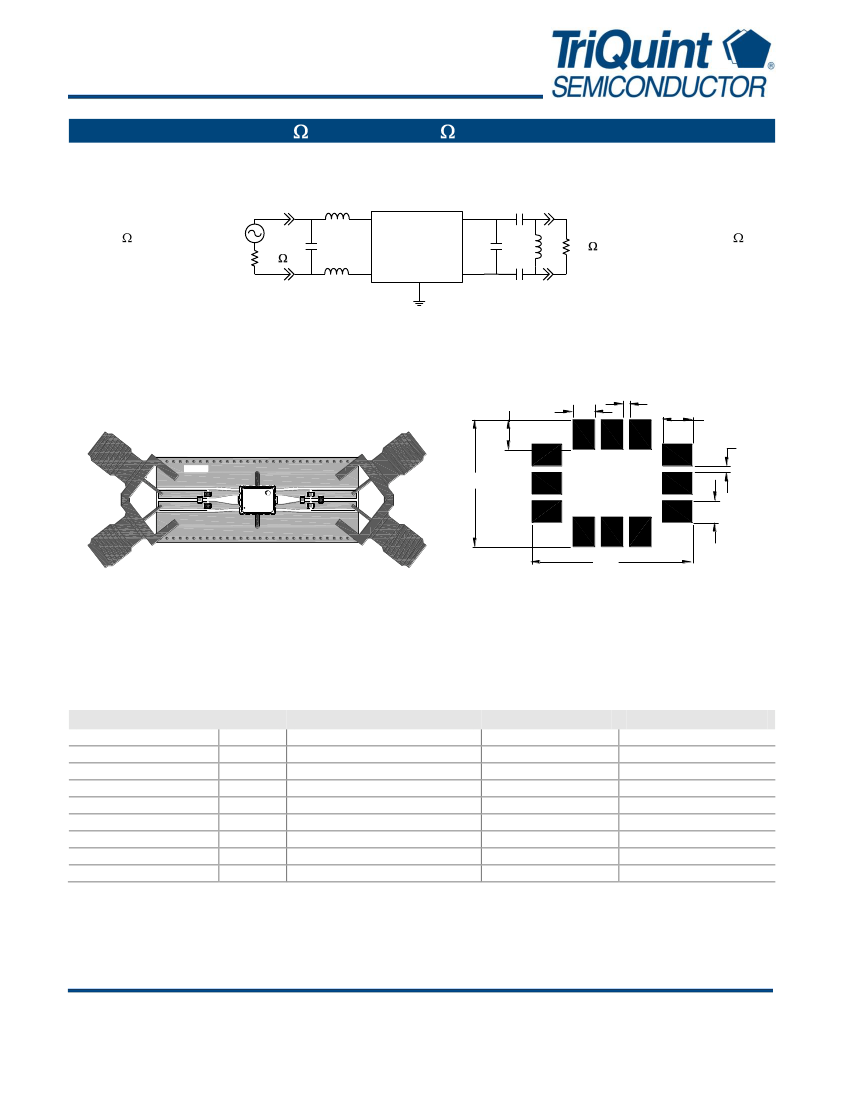

Reference Design – 200
Schematic
47nH
12
4
18pF
10
1,2,3,5
7,8,9,11
6
120pF
30nH
150
120pF
Bal Input, 150
Bal Output
200
Balanced
Input
15pF
200
47nH
150
Balanced
Output
Notes:
1.
Actual matching values may vary due to PCB layout and parasitic
PC Board
Mounting Configuration
1.34
.99
.28
1.34
.28
960686
L1
C1
L2
TriQuint
856893
JJJYHH
C3
C2
C4
L3
5.71
.99
7.21
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
L1
L2
L3
C1
C2
C3
C4
SMA
PCB
Value
47nH
47nH
30 nH
15pF
18pF
120pF
120pF
N/A
N/A
Description
Coil Wire-wound, 0603, 5%
Coil Wire-wound, 0603, 5%
Coil Wire-wound, 0603, 5%
Chip Ceramic, 0603, 5%
Chip Ceramic, 0603, 5%
Chip Ceramic, 0603, 5%
Chip Ceramic, 0603, 5%
SMA connector
3-layer
Manufacturer
Coilcraft
Coilcraft
Coilcraft
Panasonic
Panasonic
Panasonic
Panasonic
Johnson Components
multiple
Part Number
0603CS-47NXJBC
0603CS-47NXJBC
0603CS-30NXJBC
ECU-V1H150KCV
ECU-V1H180KCV
ECU-V1H121KCV
ECU-V1H121KCV
142-0701-801
960686
Data Sheet: Rev B 2/28/11
© 2011 TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856893
172.8 MHz SAW Filter

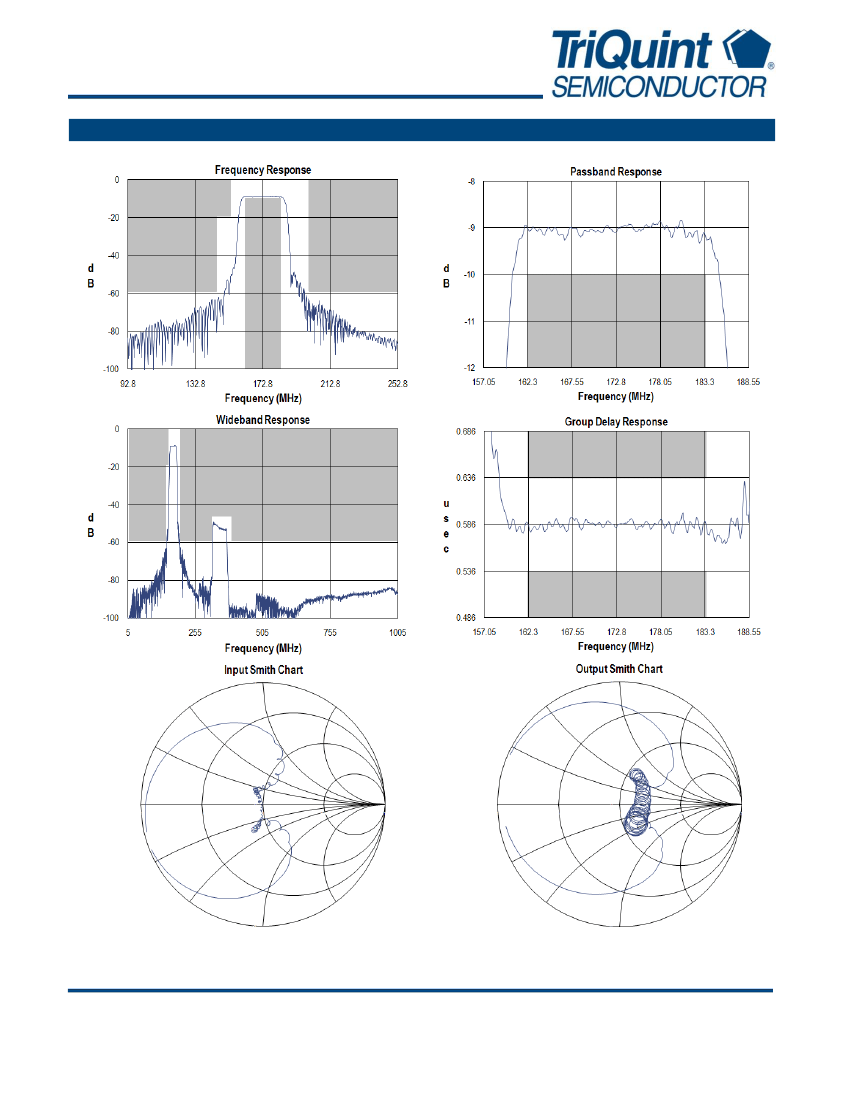

Typical Performance
(at room temperature)
Data Sheet: Rev B 2/28/11
© 2011 TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856893
172.8 MHz SAW Filter

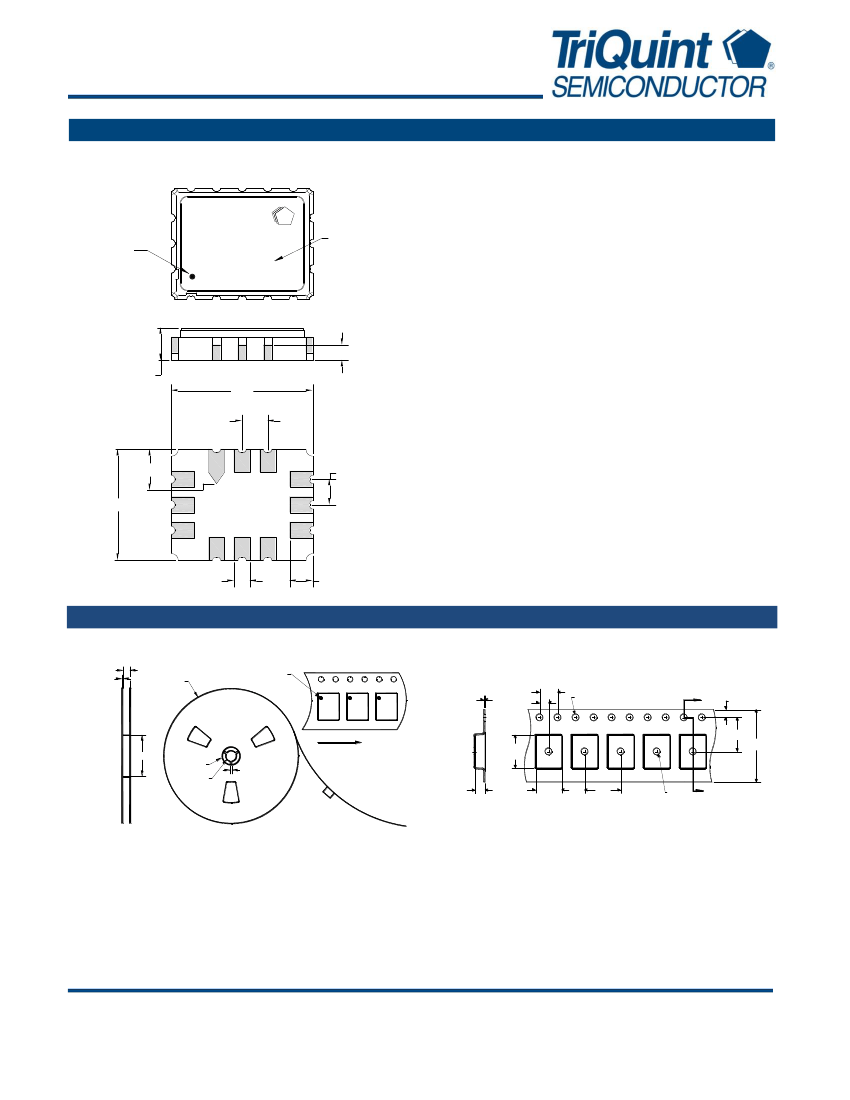

Mechanical Information
Package Information, Dimensions and Marking
TriQuint
856893
JJJYHH
Package Style: SMP-28B
Dimensions: 7.01 x 5.51 x 1.63 mm
Date code
ID dot
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and width
±0.10mm
The date code consists of: day of the current year (Julian,
3 digits), Y = last digit of the year (1 digit), and HH = hour
(2 digits)
0.76
1.63 NOM.
1.78 MAX.
7.01
1.27
1.70
1.27
5.51
0.79
1.14
Tape and Reel Information
Standard T/R size = 3000 units/reel. All dimensions are in millimeters
16.8
2.7
Ø330
Pad 1 ID dot
0.3
4.0
2.0
Ø1.5
A
1.75
7.5
Ø102
Direction of travel
Ø20.2
Ø13.0
2.0
7.3
16.0
2.2
Section A-A
5.8
8.0
Ø1.5
A
Data Sheet: Rev B 2/28/11
© 2011 TriQuint Semiconductor, Inc.
- 5 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
