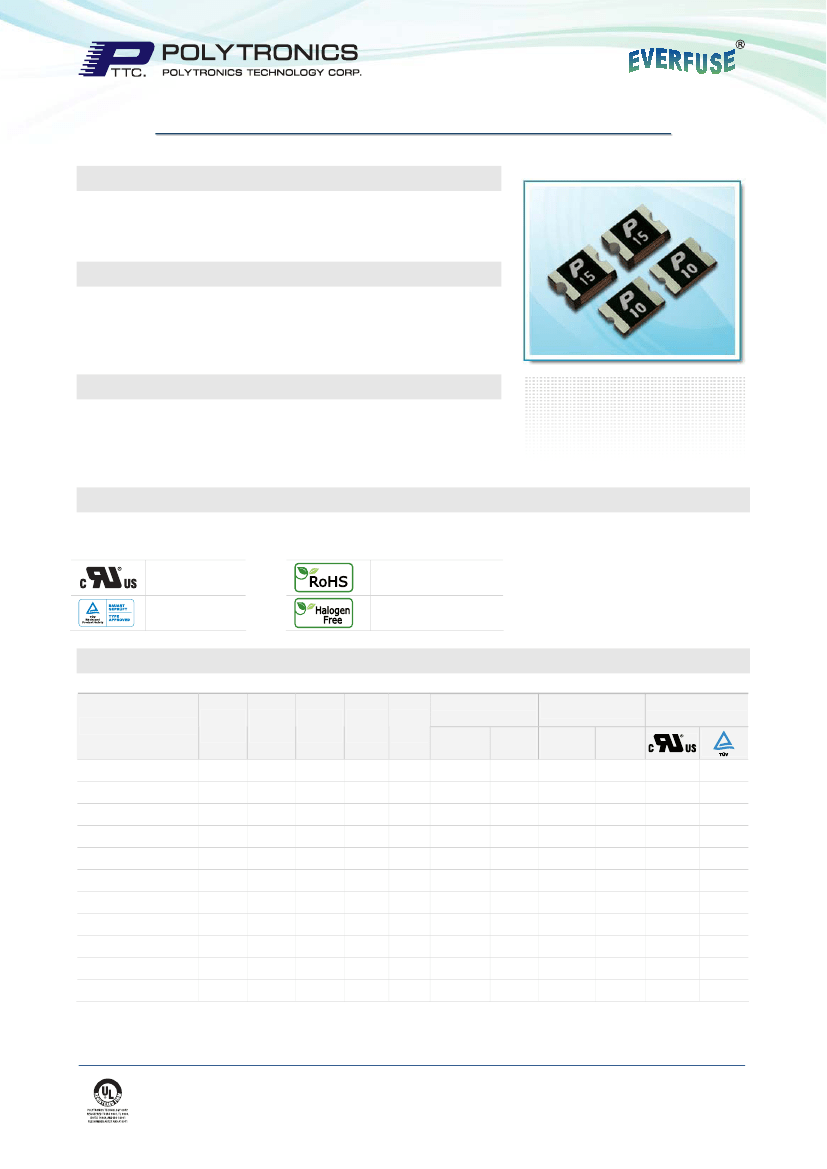

SMD1210 HF Series Surface Mount PTC Devices
Description
The 1210 series provides surface mount resettable overcurrent protection with
holding current from 0.05A to 2.6A. This series is suitable for wide range of applications
in modern electronics where space is limited.
Features
y
RoHS compliant and lead-free
y
Halogen-free
y
Compact design saves board space
y
Low profile
y
Fast response to fault current
y
Compatible with high temperature solders
Applications
y
Battery PCM
y
USB hubs, ports and peripherals
y
Set-top-box and HDMI
y
Game console port protection
y
Optical disk drives
y
General electronics
Agency Approval and Environmental Compliance
Agency
File Number
E201431
R50099121
Regulation
Standard
2002/95/EC
IEC 61249-2-21:2003
Electrical Characteristics
Maximum
Time To Trip
Current Time
(A)
(Sec.)
0.25
0.50
8.00
8.00
8.00
8.00
8.00
8.00
8.00
8.00
8.00
1.50
1.50
0.02
0.20
0.05
0.10
0.10
0.10
0.30
0.60
1.00
Part Number
I
hold
(A)
0.05
0.10
0.20
0.35
0.50
0.75
0.75
1.10
1.50
1.75
2.00
I
trip
(A)
0.15
0.30
0.40
0.70
1.00
1.50
1.50
2.20
3.00
3.50
4.00
V
max
(Vdc)
30
30
30
6
13.2
6
24
8
6
6
6
I
max
(A)
10
10
10
100
100
100
100
100
100
100
100
P
d typ
(W)
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.60
0.80
0.80
0.80
Resistance
R
min
( )
3.600
1.600
0.800
0.320
0.250
0.130
0.130
0.060
0.040
0.020
0.015
Agency
Approval
R
1max
( )
50.00
15.00
5.000
1.300
0.900
0.400
0.400
0.210
0.110
0.080
0.070
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
SMD1210P005TF
SMD1210P010TF
SMD1210P020TF
SMD1210P035TF
SMD1210P050TF
SMD1210P075TF
SMD1210P075TF/24
SMD1210P110TFT
SMD1210P150TFT
SMD1210P175TF
SMD1210P200TF
24-1
No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan.
TEL: +886-3-5643931 FAX: +886-3-5644624
http://www.pttc.com.tw
Page: 2 of 10
2011/10/28 Revision: H
SMD1210 HF Series Surface Mount PTC Devices
Note on Electrical Characteristics
Vocabulary
I
hold
I
trip
V
max
I
max
P
d typ
R
min
= Hold current: maximum current device will pass without tripping in 23ºC still air.
= Trip current: minimum current at which the device will trip in 23 ºC still air.
= Maximum voltage device can withstand without damage at rated current (I
max
)
= Maximum fault current device can withstand without damage at rated voltage (V
max
)
= Typical power dissipated from device when in the tripped state at 23 ºC still air.
= Minimum resistance of device in initial (un-soldered) state.
R
1max
= Maximum resistance of device at 23 ºC measured one hour after tripping or reflow soldering of 260 ºC for 20 sec.
Value specified is determined by using the PWB with 0.030”*1.5oz copper traces.
Caution: Operation beyond the specified rating may result in damage and possible arcing and flame.
Specifications are subject to change without notice.
Polymeric PTC Selecting Guide
Determine the following operating parameters for the circuits:
y
Normal operating current (I
hold
)
y
Maximum circuit voltage (V
max
)
y
Maximum interrupt current (I
max
)
y
Normal operating temperature surrounding device (minºC/maxºC)
Select the device form factor and dimension suitable for the application:
y
Surface Mount Device (SMD)
y
Radial Leaded Device (RLD)
y
Axial Leaded Device (ALD)
y
DISC Device
y
Other Customized Form Factors
Compare the maximum rating for V
max
and I
max
of the PPTC device with the circuit in application and make
sure the circuit’s requirement does not exceed the device rating.
Check that PPTC device’s trip time (time-to-trip) will protect the circuit.
Verify that the circuit operating temperature is within the PPTC device’s normal operating temperature range.
Verify the performance and suitability of the chosen PPTC device in the application.
24-1
No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan.
TEL: +886-3-5643931 FAX: +886-3-5644624
http://www.pttc.com.tw
Page: 3 of 10
2011/10/28 Revision: H
SMD1210 HF Series Surface Mount PTC Devices

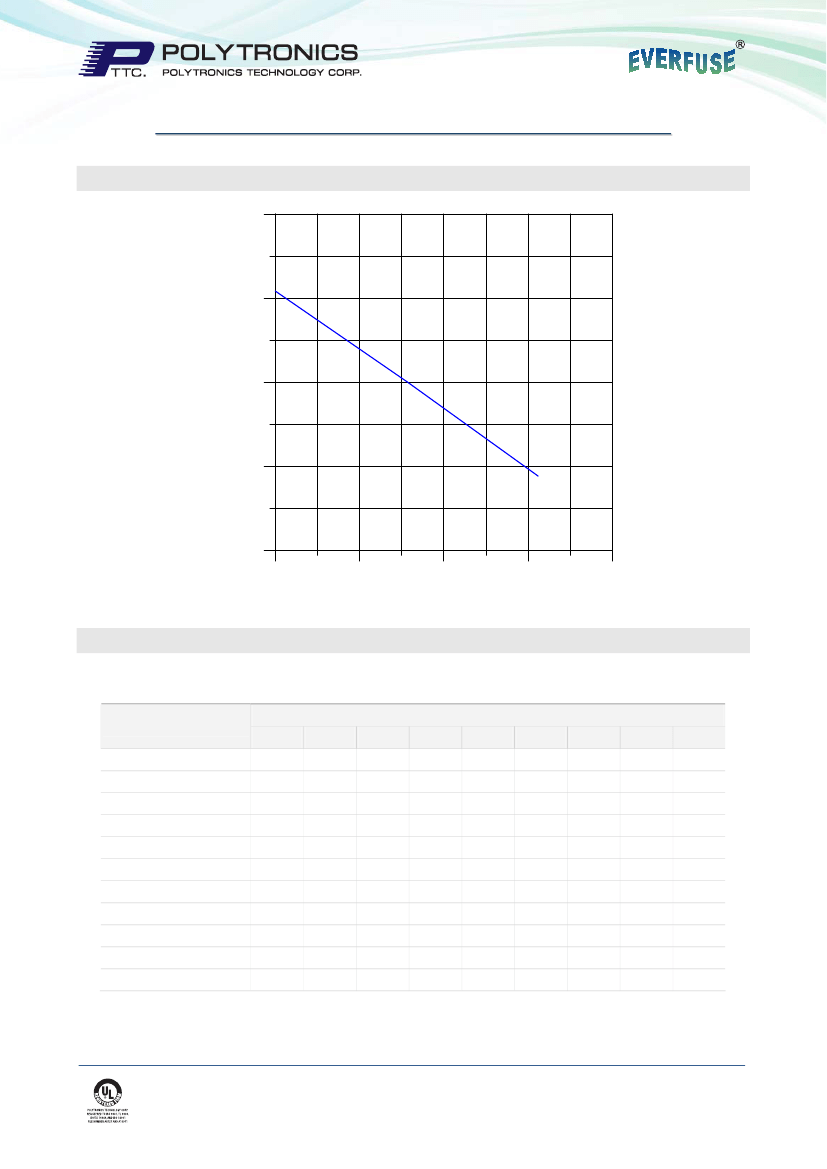

Thermal Derating Curve
200.00
Percentage of Rated Current
150.00
100.00
50.00
0.00
-40.00
0.00
40.00
80.00
120.00
Device's Ambient Temperature (
)
Thermal Derating Chart
Recommended Hold Current (A) at Ambient Temperature (ºC)
Ambient Operation Temperature
-40 ºC
SMD1210P005TF
SMD1210P010TF
SMD1210P020TF
SMD1210P035TF
SMD1210P050TF
SMD1210P075TF
SMD1210P075TF/24
SMD1210P110TFT
SMD1210P150TFT
SMD1210P175TF
SMD1210P200TF
0.08
0.16
0.29
0.47
0.76
1.00
1.00
1.60
2.30
2.45
2.60
Part Number
-20 ºC
0.07
0.14
0.26
0.45
0.67
0.97
0.97
1.42
2.02
2.22
2.44
0 ºC
0.06
0.12
0.22
0.40
0.58
0.86
0.86
1.26
1.76
2.01
2.35
23 ºC
0.05
0.10
0.20
0.35
0.50
0.75
0.75
1.10
1.50
1.75
2.00
40 ºC
0.04
0.08
0.16
0.33
0.43
0.64
0.64
0.94
1.24
1.45
1.78
50 ºC
0.04
0.07
0.14
0.28
0.40
0.59
0.59
0.86
1.11
1.26
1.67
60 ºC
0.03
0.06
0.13
0.24
0.36
0.54
0.54
0.80
1.00
1.10
1.50
70 ºC
0.03
0.05
0.11
0.21
0.32
0.48
0.48
0.70
0.85
0.98
1.45
85 ºC
0.02
0.05
0.08
0.18
0.28
0.40
0.40
0.58
0.65
0.80
1.10
24-1
No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan.
TEL: +886-3-5643931 FAX: +886-3-5644624
http://www.pttc.com.tw
Page: 4 of 10
2011/10/28 Revision: H
SMD1210 HF Series Surface Mount PTC Devices

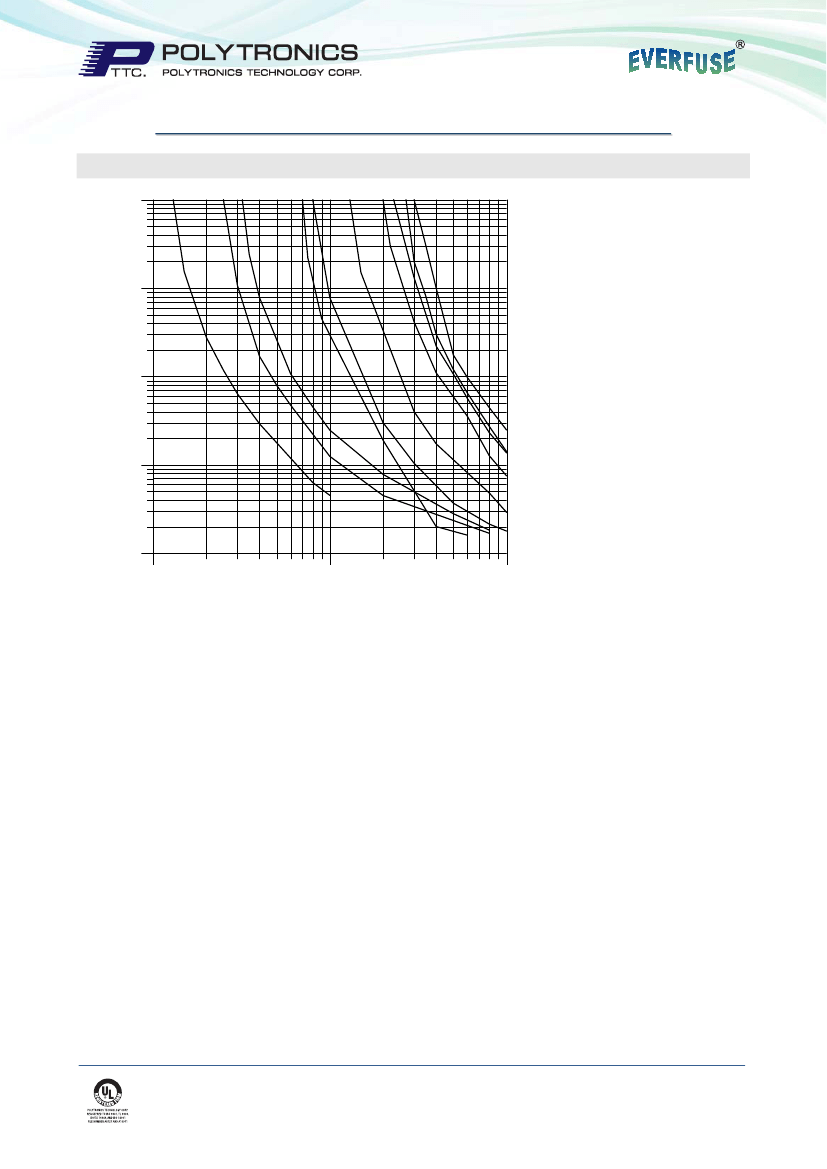

Average Time-Current Curve
100.00
A
B
C
DE
F
GH IJ
A
B
C
SMD1210P005TF
SMD1210P010TF
SMD1210P020TF
SMD1210P035TF
SMD1210P050TF
SMD1210P075TF
SMD1210P075TF/24
10.00
D
E
Time to Trip (Sec.)
F
1.00
G
H
I
SMD1210P110TFT
SMD1210P150TFT
SMD1210P175TF
SMD1210P200TF
0.10
J
0.01
0.10
1.00
10.00
Fault Current (Amp.)
