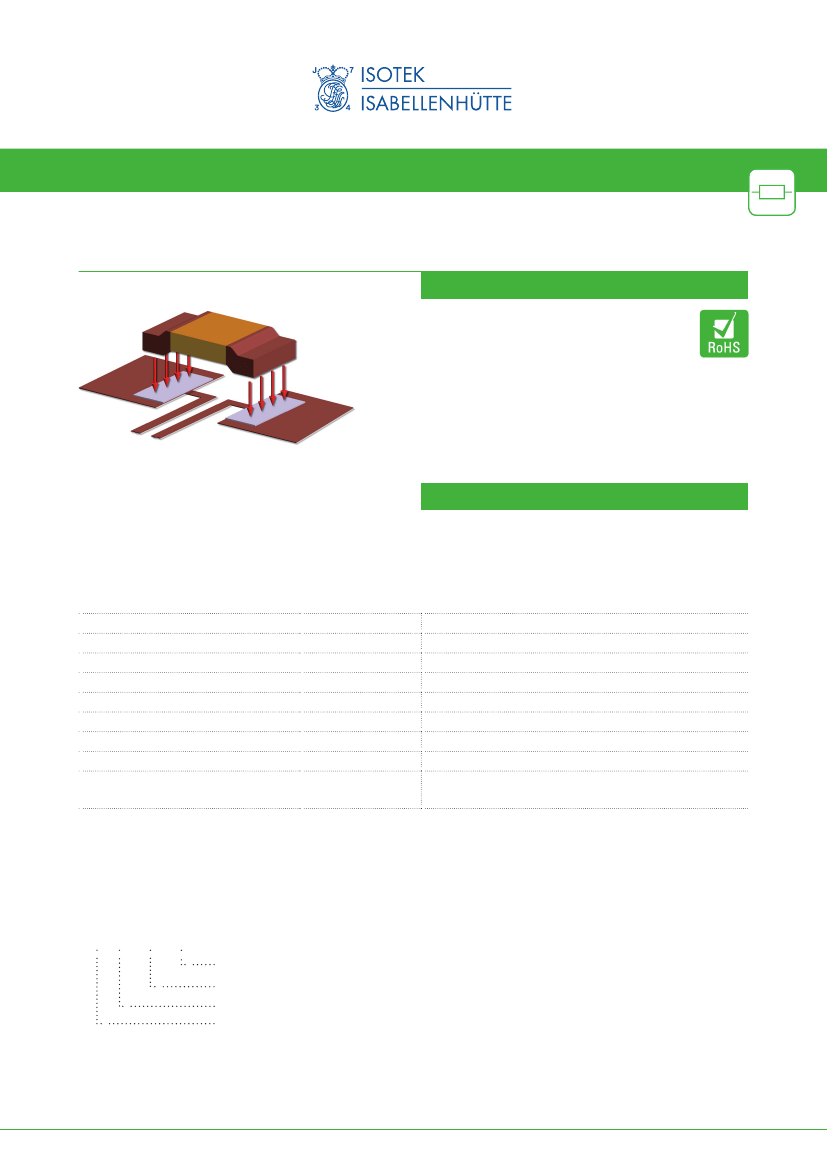

– Ideal suited for mounting on DBc / IMS substrate
– Max. solder temperature up to 350 °c / 30 sec
– AEc-Q200 qualified
– roHS 2011/65/EU compliant
1
Applications
– current sensor for power hybrid applications
– High current applications for the automotive market
– Frequency converters
– Power modules
mOhm
%
ppm/K
°C
W
W
K/W
nH
0.2 to 5
1/5
from 50
-55 to +170
up to 5
up to 12
from 3
<3
<0.5 % (t
K
=100 °c)
<1.0 % (t
K
=130 °c)
Technical data
1
resistance values
tolerance
temperature
coefficient (20-60 °C)
Applicable temperature range
Power rating
P
100 °C
Power rating
P
70 °C
Internal heat resistance (r
thi
)
Inductance
Stability (at rated power) deviation after 2000h,
t
K
= terminal temperature
1
For detailed information see table on page 3
Ordering code
BVS - M - r0005 - 1.0
tolerance
resistance value [ohm] / „r“ represents decimal point
Material (MAnGAnIn
®
)
type
Isotek corporation - An Isabellenhütte company // sales@isotekcorp.com //
Issue 19-September-2014
// current valid issue: see www.isotekcorp.com
1 /4
ISA-WELD
®
// PrEcISIon rESIStorS
BVS
//
3920
Recommended solder profile
Reflow-, IR-soldering
temperature
time
°C
sec
260
peak
255
40
217
90
Tape and reel information
Specification
tape width
reel size
Parts per reel
Packaging weight
mm
inch
pcs
g
DIn En 60286-3
16
13
3000
474
Specification
Parameters
temperature cycling
Low temperature Storage and operation
resistance to Soldering Heat
Moisture resistance
Mechanical Shock
Vibration, High Frequency
operational Life
High temperature Exposure
Bias Humidity
* for MAnGAnIn
®
and ZErAnIn
®
30
Test conditions
2000 cycles (-55 °c to +150 °c)
-65 °c for 24 h
260 °c for 10 sec / 8h steam aging
MIL-StD-202 method 106
100 g, 6 ms half sine
20 g, 10-2000 Hz
2000 h, t
K
max at nominal load
2000 h / 170 °c
+85 °c, 85 r.F., 1000 h
Specified values
±0.5 %
±0.1 %
n.a.
±0.1 %
±0.2 %
±0.2 %
±1.0 %, t
K
= 130 °c
±1.0 % (in covered condition)*
±0.5 %

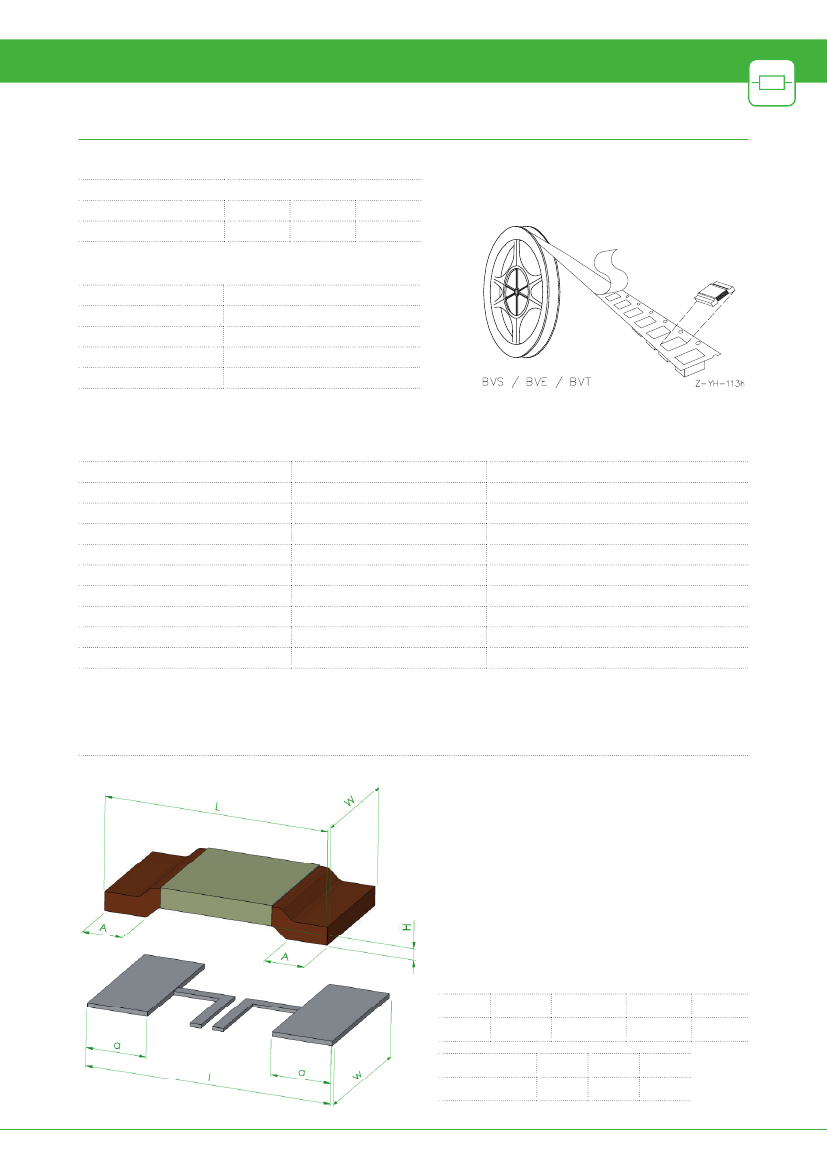

Mechanical dimensions and pcb-layout proposal (Reflow-soldering) [mm]
Type
BVS
L
10.0
+0.3
W
5.2
+0.3/-0.2
w
6.2
H
0.5
±0.1
a
2.7
A
2.0
-0.5
Solder pad type l
BVS
11.0
Isotek corporation - An Isabellenhütte company // sales@isotekcorp.com //
Issue 19-September-2014
// current valid issue: see www.isotekcorp.com
2 /4
ISA-WELD
®
// PrEcISIon rESIStorS
BVS
//
3920

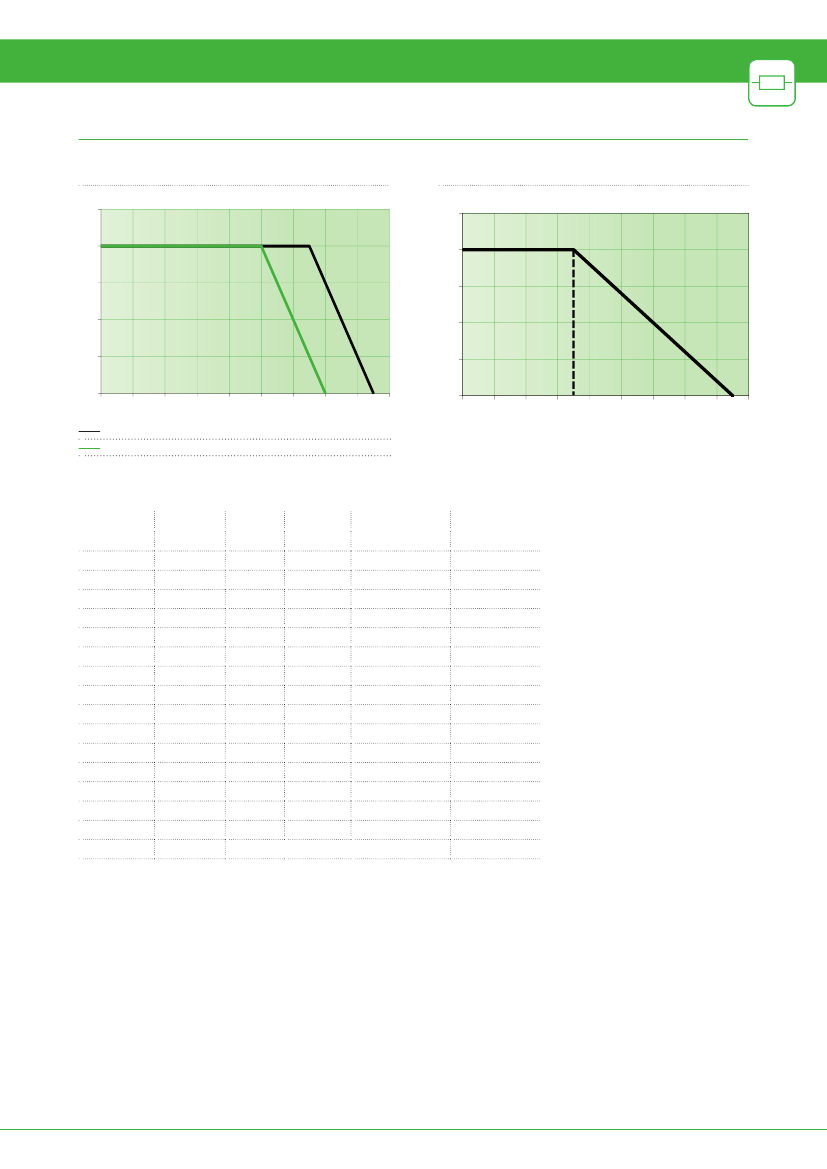

Power derating curve at 100 °C
Example: BVS-M-R0005
1,25
1
0,75
0,5
0,25
0
0
20
40
60
80
100
120
140
160
180
Power derating curve at 70 °C
Example: BVS-M-R001
P /
P
70 °c
1,25
P /
P
100 °c
1
0,75
0,5
0,25
0
0
20
40
60
70
Stability < 1.0 %
Improved stability < 0.5 %
terminal temperature t
K
[°c]
80
100
120
140
160
180
terminal temperature t
K
[°c]
Type
BVS-Z-r0002
BVS-M-r0003
BVS-M-r0005
BVS-M-r0007
BVS-M-r001
BVS-A-r001
BVS-A-r0015
BVS-A-r002
BVS-A-r0028
BVS-A-r003
BVS-A-r004
BVS-I-r002
BVS-I-r003
BVS-I-r004
BVS-I-r005
BVS-K-r000
Value [mΩ]
0.2
0.3
0.5
0.7
1.0
1.0
1.5
2.0
2.8
3.0
4.0
2.0
3.0
4.0
5.0
< 0.2 mohm
R
thi
[K/W]
3.0
4.5
8.0
11.0
15.0
9.0
12.0
16.0
21.0
22.0
30.0
16.0
24.0
32.0
50.0
TC [ppm/K]
200
150
70
60
<50
<50
<50
<50
<50
<50
<50
<50
<50
<50
<50
P
100 °C
[W]
5.0
5.0
5.0
5.0
4.0
5.0
4.5
4.0
3.0
3.0
2.5
4.0
3.0
2.5
2.0
P
70 °C
[W]
12.0
10.0
9.0
8.0
7.0
8.0
7.0
6.0
5.0
5.0
4.0
6.0
5.0
4.0
3.0
I
max
= 160 A
Abbrevation type A=Aluchrom, I=ISAoHM
®
, K=SF-copper tinned, M=MAnGAnIn
®
, Z=ZErAnIn
®
30
Isotek corporation - An Isabellenhütte company // sales@isotekcorp.com //
Issue 19-September-2014
// current valid issue: see www.isotekcorp.com
3 /4
ISA-WELD
®
// PrEcISIon rESIStorS
BVS
//
3920

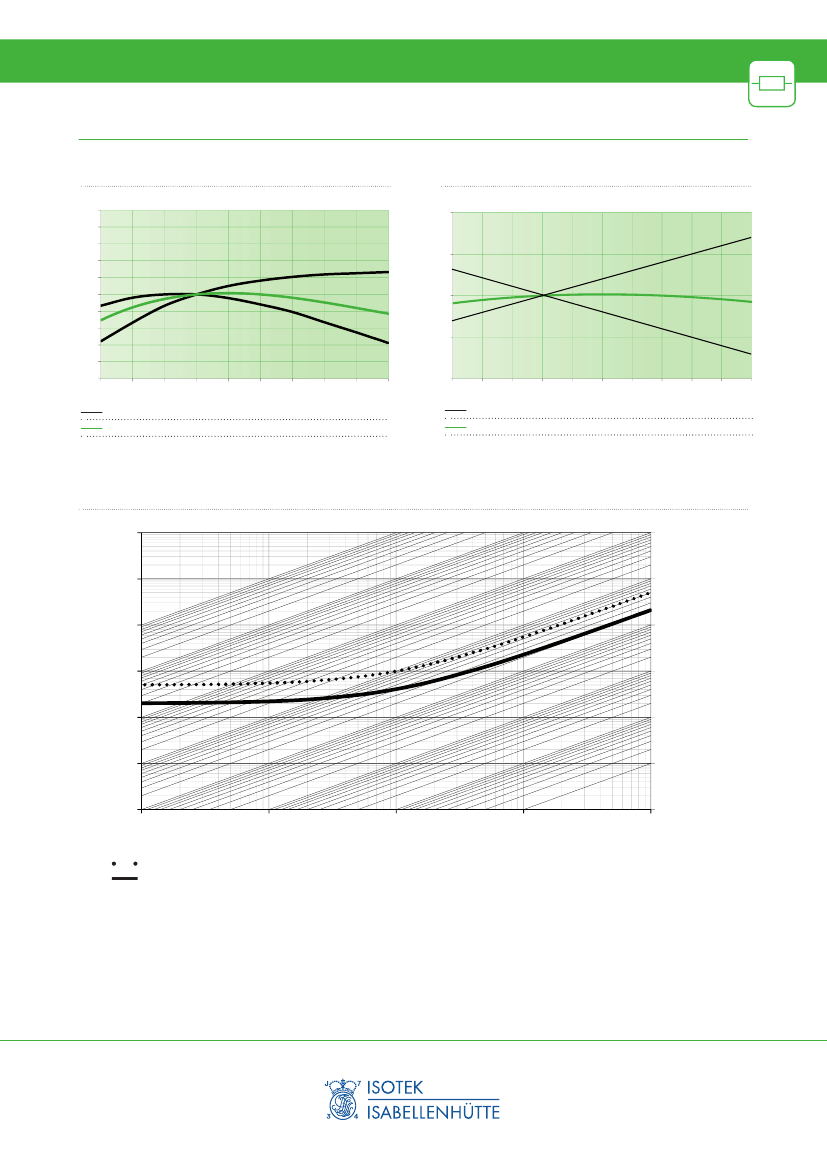

Temperature dependence of the electrical resistance
of MAngAnin
®
resistors
dr/r20 [%]
1
0,8
0,6
0,4
0,2
0
-0,2
-0,4
-0,6
-0,8
-1
-40
-20
0
20
40
60
80
100
120
140
temperature [°c]
-1,0
-40
-20
0
20
40
60
80
100
120
140
160
-0,5
0,0
0,5
1,0
Temperature dependence of the electrical resistance
of iSAOHM
®
resistors
Limiting curve
typical temperature dependence of a BVS resistor
Limiting curve
typical temperature dependence of a BVS resistor
temperature [°c]
Maximum pulse energy respectively pulse power for permanent operation
10000
1000
10000
1000
100
Pulse energy [J]
100
10
1
0,1
0,01
0,001
0,0001
0,01
0,1
1
Pulse width [sec]
Power [W]
10
1
0,1
0,01
10
100
this curve is valid for the resistance value r0002 only.
this curve is valid for the resistance value r005 only. For other values the area inbetween the max. and min curve is valid.
Disclaimer //
All products, product specifications and data are subject to change without notice. the product specifications do not expand or otherwise modify
Isabellenhütte’s terms and conditions of sale, including but not limited to, the warranty expressed therein. Isabellenhütte makes no warranty, representation or
guarantee other than as set forth in its terms and conditions of sale. Information provided in datasheets and/or specifications may vary from actual results in dif-
ferent applications. Any statements made by Isabellenhütte regarding the suitability of products for certain types of applications are based on its knowledge of
typical requirements that are often placed on its products. It is the customer’s responsibility to validate that a particular product with the properties described in
the product specification is suitable for use in the application intended. no license, express or implied, or otherwise, to any intellectual property rights is granted
by this document. Any and all liability arising out of the application or use of any product shall be as set forth in Isabellenhütte’s terms and conditions of sale.
Isotek corporation - An Isabellenhütte company // sales@isotekcorp.com //
