GQM188: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 50 V, C0G, 0.0001 uF, SURFACE MOUNT, 0603; CategoryPassive components; File Size1MB，30 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric Compare View All

GQM188 Overview

CAPACITOR, CERAMIC, MULTILAYER, 50 V, C0G, 0.0001 uF, SURFACE MOUNT, 0603

GQM188 Parametric

Parameter Name	Attribute value
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
negative deviation	5 %
positive deviation	5 %
Rated DC voltage urdc	50 V
Processing package description	Chip, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	tin
Installation features	surface mount
Manufacturer Series	GQM18
size code	0603
capacitance	1.00E-4 uF
packaging shape	Rectangular PACKAGE
Capacitor type	ceramics
Terminal shape	WRAPAROUND
Temperature Coefficient	30ppm/Cel
Temperature characteristic code	C0G
multi-layer	Yes

Preview

Download Datasheet

View All

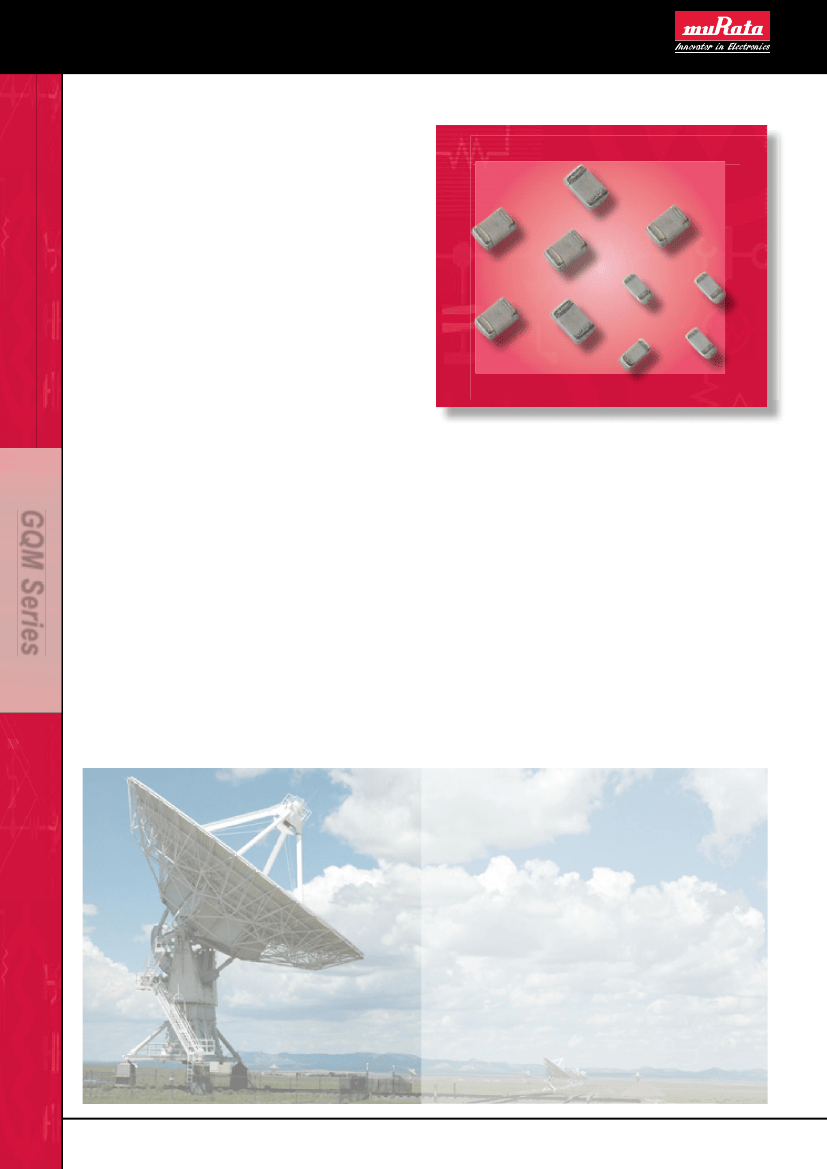

Application Specific Capacitors

High Frequency Ceramic Capacitors – GQM Series

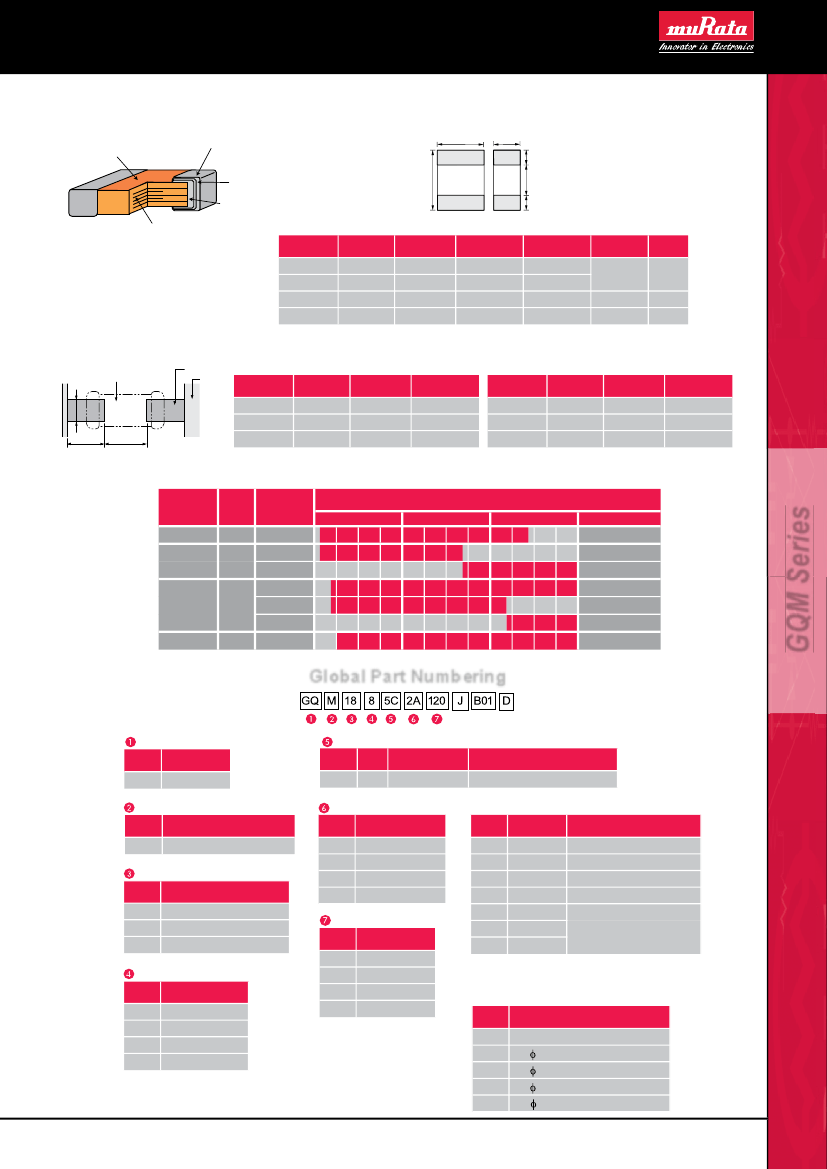

GQM Product Summary

GQM Series:

Featuring improved

low power consumption for mobile

telecommunications, the GQM Series is

typically used in frequencies from 500MHz

to 10GHz. The copper electrodes allow for

ultra low ESR, high Q in the GHz frequencies

and high RF current handling capability. This

series is the best choice for high performance,

high power RF designs requiring voltages up

to 500VDC. Offered in EIA sizes 0603, 0805

and the new 1111 size with a capacitance

range of 0.1 to 100pF, there are a variety of

tight tolerance versions available.

Features:



Size:

0603, 0805 and 1111

Voltage:

50, 100, 250 and 500VDC

Cap Range:

0.1 to 100pF

Internal Electrode:

Termination:

Cu + Ni/Sn plating

ESR:

Ultra Low

Power:

High Power (>15W)

Frequency Range:

500MHz –10GHz. High Q and Low ESR at VHF, UHF, and

Microwave Frequencies

Tolerance:

Tight Tolerance Available ([W]=+/-0.05pF for <=5pF, [B]=+/-0.1pF for

5 - 9.1pF, [C]=+/-0.25pF for 5 - 9.1pF, [F]=+/-1% for 10 - 20pF)

Temp. Characteristics:

C0G (-55ºC to 125ºC with 0 ±30ppm/ ºC)

GQM Series

Applications:

Base stations

for cellular, broadcast satellites,

cable TV and telecommunication

networks, GPS, Bluetooth

and

TV set-top boxes

20 – Innovator in Electronics

 

w w w w

w w .

m m u

u r

r a

a t

a a

t .

c o m

o m

 

C-29-C
