B82725J2602N020 datasheet, PDF

Datasheet> All Categories > Passive components> inductor> B82725J2602N020

B82725J2602N020: Description1 ELEMENT, 3900 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR; CategoryPassive components inductor; File Size677KB，6 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B82725J2602N020 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B82725J2602N020	-	-	View	Buy Now

B82725J2602N020 Overview

1 ELEMENT, 3900 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR

B82725J2602N020 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
Reach Compliance Code	compli
ECCN code	EAR99
structure	Rectangul
core material	Ferrite
DC Resistance	0.03 Ω
Nominal inductance(L)	3900 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Lead diameter	1 mm
Lead length	3 mm
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	40 mm
Package length	40.4 mm
Package form	PCB Mou
Package width	21.5 mm
method of packing	Tray
Maximum rated current	6 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin (Sn)
Terminal location	DUAL IN-LINE
Terminal shape	WIRE
Test frequency	0.01 MHz
Tolerance	30%

Preview

Download Datasheet

View All

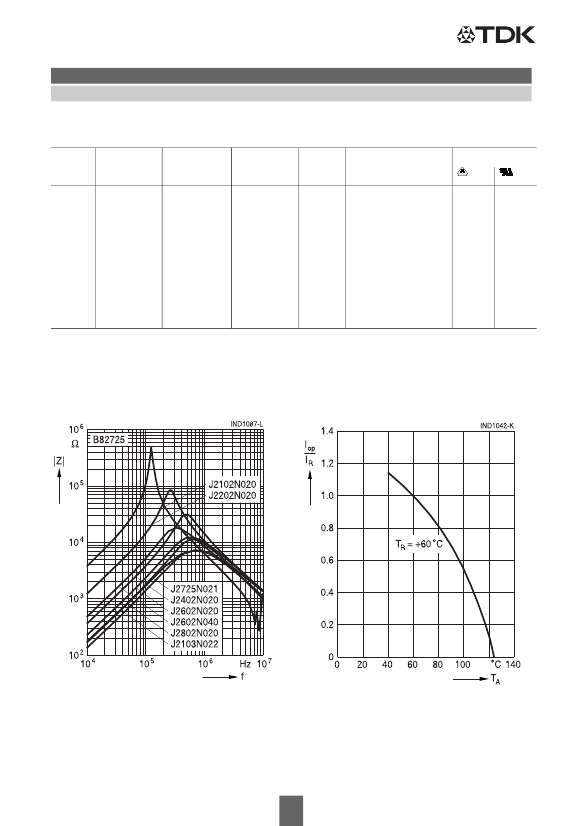

Power line chokes

Current-compensated ring core double chokes

250 V AC, 1 … 10 A, 1.8 … 68 mH, +60 °C

Series/Type:

Date:

B82725J

July 2012

a~í~=pÜÉÉí

information contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

Cautions and warnings

Current-compensated ring core double chokes

■

Please note the recommendations in our Inductors data book (latest edition) and in the data

sheets.

– Particular attention should be paid to the derating curves given there. Derating must be applied

in case the ambient temperature in the application exceeds the rated temperature of the

component.

– Ensure the operation temperature (which is the sum of the ambient temperature and the

temperature rise caused by losses / self-heating) of the component in the application does not

exceed the maximum value specified in the climatic category.

– The soldering conditions should also be observed. Temperatures quoted in relation to wave

soldering refer to the pin, not the housing.

■

If the components are to be washed varnished it is necessary to check whether the washing

varnish agent that is used has a negative effect on the wire insulation, any plastics that are used,

or on glued joints. In particular, it is possible for washing varnish agent residues to have a

negative effect in the long-term on wire insulation.

Washing processes may damage the product due to the possible static or cyclic mechanical

loads (e.g. ultrasonic cleaning). They may cause cracks to develop on the product and its parts,

which might lead to reduced reliability or lifetime.

■

The following points must be observed if the components are potted in customer applications:

– Many potting materials shrink as they harden. They therefore exert a pressure on the plastic

housing or core. This pressure can have a deleterious effect on electrical properties, and in

extreme cases can damage the core or plastic housing mechanically.

– It is necessary to check whether the potting material used attacks or destroys the wire

insulation, plastics or glue.

– The effect of the potting material can change the high-frequency behaviour of the components.

■

Ferrites are sensitive to direct impact. This can cause the core material to flake, or lead to

breakage of the core.

■

Even for customer-specific products, conclusive validation of the component in the circuit can

only be carried out by the customer.

Please read

Cautions and warnings

and

Important notes

at the end of this document.

07/12

B82725J2602N020 Related Products

	B82725J2602N020	B82725J2402N020	B82725J2202N020	B82725J2103N022	B82725J2103N021	B82725J2102N020	B82725J2802N020	B82725J2602N040
Description	1 ELEMENT, 3900 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR	1 ELEMENT, 6800 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR	1 ELEMENT, 3900 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR	1 ELEMENT, 3900 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR	1 ELEMENT, 3900 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR	1 ELEMENT, 3900 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR	1 ELEMENT, 2700 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR	1 ELEMENT, 3900 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR
core material	Ferrite	Ferrite	Ferrite	Ferrite	FERRITE	Ferrite	Ferrite	FERRITE
DC Resistance	0.03 Ω	0.075 Ω	0.27 Ω	0.013 Ω	0.0300 ohm	1.05 Ω	0.02 Ω	0.0300 ohm
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	2	2	2	2	1	2	2	1
Number of terminals	4	4	4	4	4	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 Cel	125 °C	125 °C	125 Cel
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 Cel	-40 °C	-40 °C	-40 Cel
Maximum rated current	6 A	4 A	2 A	10 A	6 A	1 A	8 A	6 A
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Test frequency	0.01 MHz	0.01 MHz	0.01 MHz	0.01 MHz	0.0100 MHz	0.01 MHz	0.01 MHz	0.0100 MHz
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	conform to	conform to	-
Maker	TDK Corporation	TDK Corporation	TDK Corporation	-	-	TDK Corporation	TDK Corporation	-
Reach Compliance Code	compli	compli	compli	compli	-	compli	compli	-
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	-
structure	Rectangul	Rectangul	Rectangul	Rectangul	-	Rectangul	Rectangul	-
Nominal inductance(L)	3900 µH	6800 µH	18000 µH	1800 µH	-	68000 µH	2700 µH	-
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	-	POWER INDUCTOR	POWER INDUCTOR	-
JESD-609 code	e3	e3	e3	e3	-	e3	e3	-
Lead diameter	1 mm	1 mm	1 mm	1 mm	-	1 mm	1 mm	-
Lead length	3 mm	3 mm	3 mm	3 mm	-	3 mm	3 mm	-
Package height	40 mm	40 mm	40 mm	40 mm	-	40 mm	40 mm	-
Package length	40.4 mm	40.4 mm	40.4 mm	40.4 mm	-	40.4 mm	40.4 mm	-
Package form	PCB Mou	PCB Mou	PCB Mou	PCB Mou	-	PCB Mou	PCB Mou	-
Package width	21.5 mm	21.5 mm	21.5 mm	21.5 mm	-	21.5 mm	21.5 mm	-
method of packing	Tray	Tray	Tray	Tray	-	Tray	Tray	-
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-
shield	NO	NO	NO	NO	-	NO	NO	-
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	-	Tin (Sn)	Tin (Sn)	-
Terminal location	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	-	DUAL IN-LINE	DUAL IN-LINE	-
Tolerance	30%	30%	30%	30%	-	30%	30%	-
