CHR402057R6+-1%-TCR100 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> CHR402057R6+-1%-TCR100

CHR402057R6+-1%-TCR100: DescriptionFixed Resistor, Metal Glaze/thick Film, 1.5W, 57.6ohm, 500V, 1% +/-Tol, 100ppm/Cel, 4020,; CategoryPassive components The resistor; File Size86KB，2 Pages; ManufacturerSRT Resistor Technology Gmbh; Environmental Compliance

Download Datasheet Parametric View All

CHR402057R6+-1%-TCR100 Overview

Fixed Resistor, Metal Glaze/thick Film, 1.5W, 57.6ohm, 500V, 1% +/-Tol, 100ppm/Cel, 4020,

CHR402057R6+-1%-TCR100 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SRT Resistor Technology Gmbh
Reach Compliance Code	compli
ECCN code	EAR99
structure	Chi
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.6 mm
Package length	10.2 mm
Package form	SMT
Package width	5.1 mm
method of packing	Bulk
Rated power dissipation(P)	1.5 W
resistance	57.6 Ω
Resistor type	FIXED RESISTOR
series	CHR
size code	4020
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Tolerance	1%
Operating Voltage	500 V

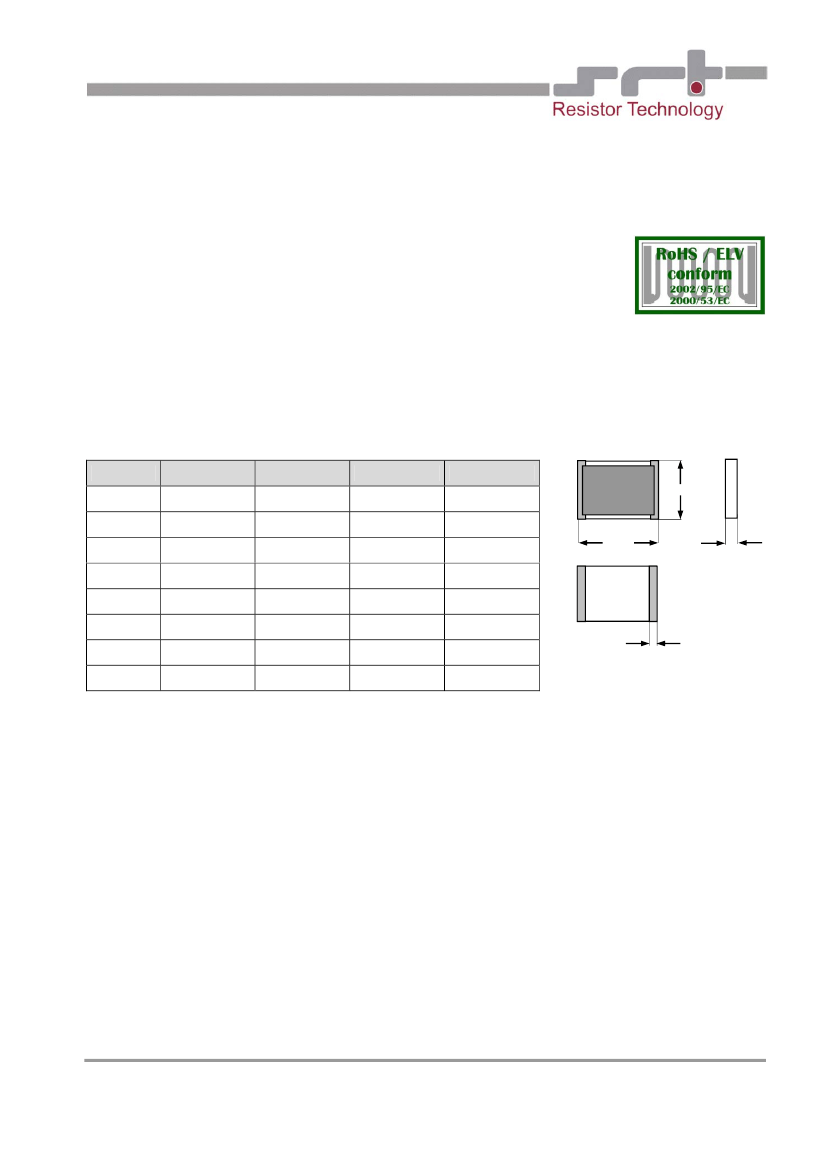

CHR402057R6+-1%-TCR100 Preview

Datasheet

CHR-Series

Chip Resistors , non-magnetic

Sizes: 0402, 0504, 0603, 0805, 1206, 2010, 2512, 4020

Features:



Chip Resistors in thick film technology

Non-magnetic

PtAg terminations for conductive gluing and soldering

RF-versions untrimmed

Suitable for high vacuum applications – no organics

High temperature application possible (up to 300°C as CHR-HT)

Dimensions:

Size

0402

0504

0603

0805

1206

2010

2512

4020

1.04



0.05

1.25

+0.15/-0.05

1.5

+0.15/-0.05

2.0

+0.15/-0.05

3.2

+0.15/-0.05

5.10

+0.15/-0.05

6.30

+0.15/-0.05

0.5



0.05

1.0

+0.15/-0.05

0.8

+0.15/-0.05

1.25

+0.15/-0.05

1.5

+0.2/-0.05

2.50

+0.2/-0.05

3.50

+0.2/-0.05

0.3



0.05

0.3

+0.15/-0.05

0.4

+0.15/-0.05

0.4

+0.15/-0.05

0.4

+0.15/-0.05

0.60

+0.20/-0.1

0.60

+0.15/-0.05

0.1

+0.1/-0.05

0.2

+0.2/-0.1

0.2

+0.2/-0.1

0.3

+0.2/-0.1

0.3

+0.2/-0.1

1.2



0.2

0.9



0.2

10.20

+0.15/-0.05

5.10

+0.2/-0.05

0.60

+0.15/-0.05

0.9



0.2

L = Length, B = Width, D = Thickness, C = Width of wrap around (in mm)

Packaging:

Bulk in plastic bags – minimum quantity 100 pieces per value

Embossed carrier tape acc. to IEC 60286-3 – minimum 500 pieces per value (CHS0402: 1000 pcs.)

Reel diameter 180 mm or 330 mm

Ordering Data:

Type – value – tolerance – TCR – packaging

Example: CHR 0805 221k



0,5% - TCR 100 - Tape 180 mm

Untrimmed parts are indicated by the extension “NA” in the order code:

Type – value – tolerance – NA – TCR - packaging

Example: CHR 0805 221k



10% NA TCR 100 Tape 180 mm

If no requirements for TCR and taping are given, the standard value (highest value in table) will be

supplied and packaging is bulk.

Specifications subject to change without notice

Issue 07-2012

Fon:

Fax:

E-mail:

Internet:

+49 (0)9103 / 7952-0

+49 (0)9103 / 5128

info@srt-restech.de

www.srt-restech.de

SRT Resistor Technology GmbH

Ostlandstr. 31

D-90556 Cadolzburg

Germany

Datasheet

CHR-Series

Chip Resistors , non-magnetic

Sizes: 0402, 0504, 0603, 0805, 1206, 2010, 2512, 4020

Technical data – depending on size:

Size

Power rating P

(mW)

155

= 0 mW)

Working voltage (V)

trimmed

untrimmed (Tol. > 5%)

0402

0504

100

0603

100

150

0805

125

100

200

1206

250

200

400

2010

500

250

900

2512

1000

300

1200

4020

1500

500

1500

Ranges / Tolerances / TCR

1R – <10R

10R – <100R

100R – 1M

>1M – 10M

10/20%

TC250

5/10%

TC100

1/2/5/10%

TC50/100

5/10/20%

TC50/100

5/10/20%

TC100/250

2/5/10%

TC50/100

1/2/5/10%

TC50/100

1/2/5/10%

TC50/100

5/10/20%

TC100/250

2/5/10%

TC50/100

1/2/5/10%

TC50/100

1/2/5/10%

TC50/100

5/10/20%

TC100/250

1/2/5/10%

TC50/100

0,5/…/10%

TC50/100

1/2/5/10%

TC50/100

5/10/20%

TC100/250

1/2/5/10%

TC50/100

0,5/…/10%

TC50/100

1/2/5/10%

TC50/100

5/10/20%

TC100/250

1/2/5/10%

TC50/100

0,5/…/10%

TC50/100

1/2/5/10%

TC50/100

5/10/20%

TC100/250

1/2/5/10%

TC50/100

0,5/…/10%

TC50/100

1/2/5/10%

TC50/100

5/10/20%

TC100/250

1/2/5/10%

TC50/100

0,5/…/10%

TC50/100

1/2/5/10%

TC50/100

TCR: in ppm/K; +25°C...+125°C; TCR below standard TCR (highest value): +25°C...+85°C

U_, U

eff

; Continuous operating voltage:

≤

(P*R)

Power Mode: 2W as CHR2512-HT (P

=2W, P

300

=0W) and 3W as CHR4020-HT (P

=3W, P

300

=0W) respectively.

Zero-Ohm-Jumper: < 50 mOhm

Other values of tolerance, TCR and VCR on request

Higher power rating requires an adequate heat removal (e.g. increased solder pads or Copper thicknesses). The user has to

guarantee, that solder joints will not run over their load limit. The resistor must not exceed the specified operating temperature range.

Technical data – general:

Operating temperature range

Climatic category acc. to EN 60068-1

Solderability acc. EN 60068-2-58 (lead-free and lead-containing)

Max. soldering temperature acc. EN 60068-2-58

-55°C ... +155°C

55/155/56

250°C 3s

260°C 10s

Extended temperature range up to 300°C possible-

see datasheet: “High temperature chip resistors” CHR-HT

Long term stability

Storage 125°C/1000h

Storage 155°C/1000h

Load P

/70°C/1000 h

Short term overload

Damp heat (56d/40°C/96%)

10R – 10 M

< 0,5%

< 1%

< 0,5%

< 0,25%

< 0,5%

< 10R

< 1%

< 2%

< 1%

< 0,5%

< 1%

Up to 6 months after shipment; longer at storage in Nitrogen

Data not specified according to EN 140401-802 (CECC 40401-802)

Specifications subject to change without notice

Issue 07-2012

Fon:

Fax:

E-mail:

Internet:

+49 (0)9103 / 7952-0

+49 (0)9103 / 5128

info@srt-restech.de

www.srt-restech.de

SRT Resistor Technology GmbH

Ostlandstr. 31

D-90556 Cadolzburg

Germany
