BA7625 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> BA7625

BA7625: DescriptionVideo signal switcher for AV amplifiers; CategoryAnalog mixed-signal IC The signal circuit; File Size74KB，8 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric View All

BA7625 Overview

Video signal switcher for AV amplifiers

BA7625 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	compli
Is Samacsys	N
Analog Integrated Circuits - Other Types	AUDIO/VIDEO SWITCH
JESD-30 code	R-PDIP-T16
JESD-609 code	e3/e2
length	19.4 mm
Number of channels	5
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
power supply	5 V
Certification status	Not Qualified
Maximum seat height	4.55 mm
Maximum supply current (Isup)	20 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	TIN/TIN COPPER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	7.62 mm
Base Number Matches	1

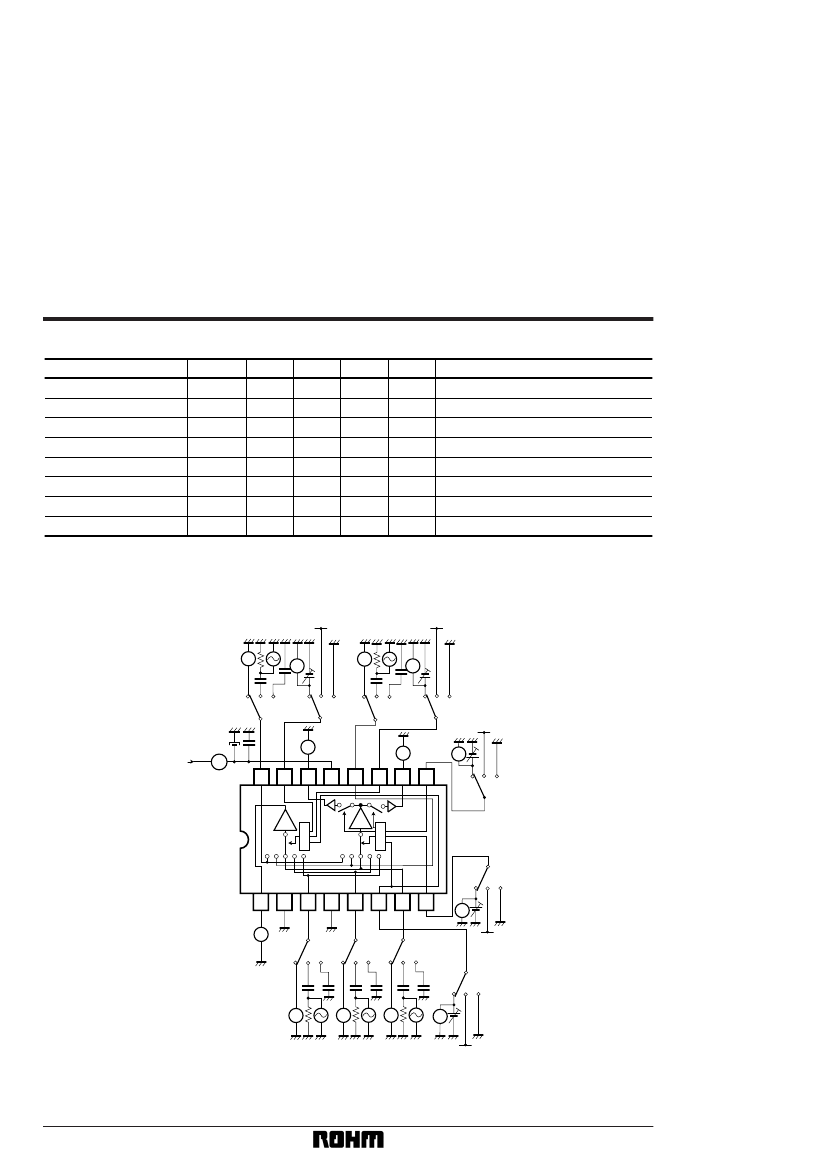

Preview

Download Datasheet

View All

Multimedia ICs

Video signal switcher for AV amplifiers

BA7625

The BA7625 is a video signal switch that contains two five-channel analog multiplexers and wide-band 6dB ampli-

fiers.It designed for use in video cassette recorders. By simply adding transistor buffers to the outputs,it is possible to

construct arecord / playback switch for two record / playback VCRs, and three video playback machines (eg.laser

disk players). Input switching and VCR record switching can be done independently. The BA7625 has sync-tip clamp

inputs which are ideal for switching video signals.

•

Applicationsand video selectors

AV amplifiers

•

Features/ 3-output switches.

1) 5-input

2) Sync-tip clamp inputs.

3) Built-in 6dB amplifiers.

4) 5V supply voltage.

•

Absolute maximum ratings (Ta = 25°C)

Parameter

Power supply voltage

Power dissipation

Operating temperature

Storage temperature

Symbol

Topr

Tstg

Limits

500

∗

– 25 ~ + 70

– 55 ~ + 125

Unit

°C

∗

Reduced by 5mW for each increase in Ta of 1°C over 25°C.
