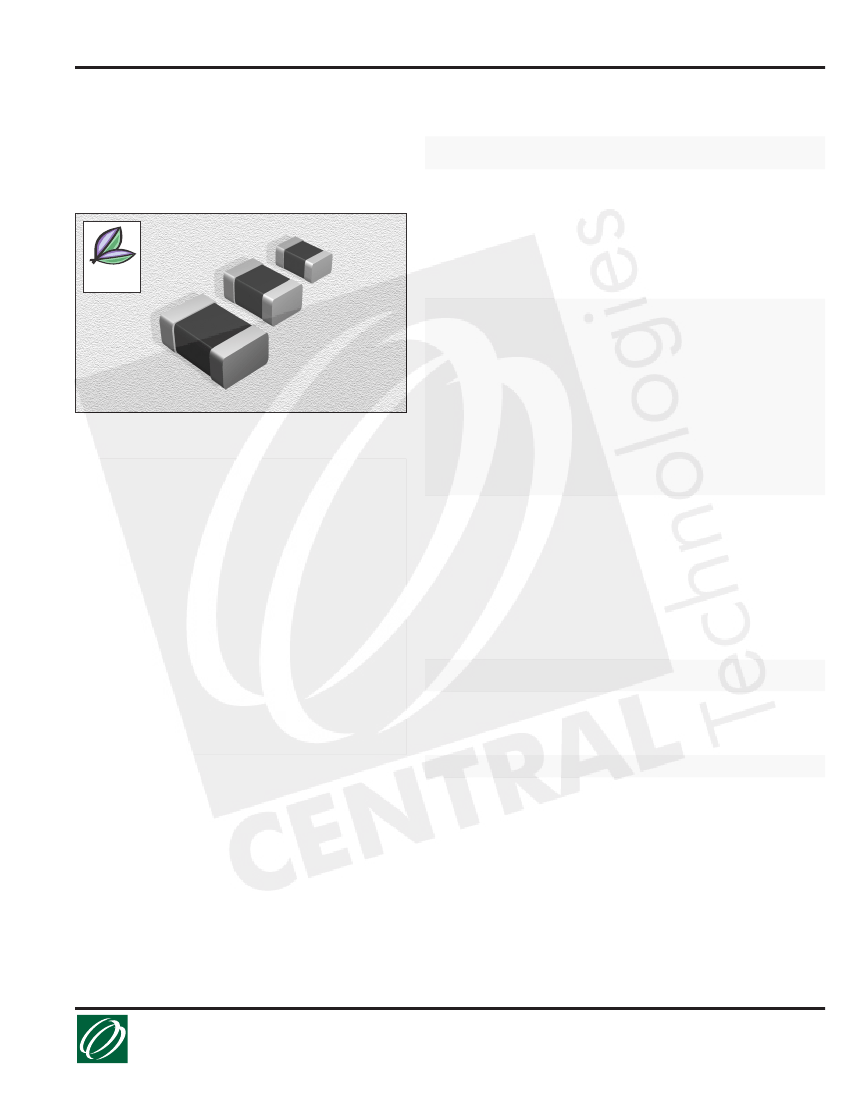

Chip Beads - Multi-layer
ctparts.com
SPECIFICATIONS
CTCBF Series
Medium Current
From 7
Ω
to 2,000
Ω
Part
Number
CTCB0603F-110M
CTCB0603F-190M
CTCB0603F-300M
CTCB0603F-400M
CTCB0603F-600M
CTCB0603F-800M
CTCB0603F-121M
CTCB0603F-221M
CTCB0603F-301M
CTCB0603F-451M
CTCB0603F-601M
CTCB0603F-751M
CTCB0603F-102M
CTCB0805F-070M
CTCB0805F-090M
CTCB0805F-110M
CTCB0805F-170M
CTCB0805F-320M
CTCB0805F-600M
CTCB0805F-700M
CTCB0805F-800M
CTCB0805F-101M
CTCB0805F-121M
CTCB0805F-151M
CTCB0805F-221M
CTCB0805F-301M
CTCB0805F-401M
CTCB0805F-501M
CTCB0805F-601M
CTCB0805F-751M
CTCB0805F-102M
CTCB0805F-152M
CTCB0805F-202M
CTCB1206F-190M
CTCB1206F-260M
CTCB1206F-320M
CTCB1206F-500M
CTCB1206F-600M
CTCB1206F-700M
CTCB1206F-900M
CTCB1206F-121M
CTCB1206F-151M
CTCB1206F-201M
CTCB1206F-401M
CTCB1206F-501M
CTCB1206F-601M
CTCB1206F-102M
CTCB1206F-122M
CTCB1206F-202M
CTCB1210F-320M
CTCB1210F-600M
CTCB1210F-900M
CTCB1806F-500M
CTCB1806F-600M
CTCB1806F-800M
CTCB1806F-101M
CTCB1806F-151M
CTCB1806F-171M
CTCB1812F-700M
CTCB1812F-121M
Parts are available in ±25% tolerance only.
Test
Freq.
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
50
50
30
100
100
100
100
100
100
100
100
100
100
100
DCR
Max.
Ω
(Ω)
.03
.05
.06
.06
.06
.10
.15
.18
.25
0.3
0.3
.45
.45
.06
.06
.06
.06
.06
.10
.10
.10
.10
.15
.15
.18
.18
.18
.25
.25
.30
.30
.40
.55
.03
.03
.03
.06
.06
.06
.10
.10
.10
.15
.15
.15
.20
.25
.25
.35
.10
.10
.10
.10
.10
.10
.18
.18
.18
.18
.18
Impedance
Ω
(Ω)
11
19
30
40
60
80
120
220
300
450
600
750
1000
7
9
11
17
32
60
70
80
100
120
150
220
300
400
500
600
750
1000
1500
2000
19
26
32
50
60
70
90
120
150
200
400
500
600
1000
1200
2000
32
60
90
50
60
80
100
150
170
70
120
IDC
(mA)
1000
1000
800
800
600
600
600
400
400
400
400
300
300
1000
1000
1000
1000
1000
800
800
800
600
600
600
600
600
600
500
500
400
400
300
200
1000
1000
1000
800
800
800
800
800
800
600
600
600
500
400
400
400
1000
1000
1000
1000
1000
1000
800
800
800
800
800
Compliant
RoHS
Not shown at actual size.
CHARACTERISTICS
Description:
Medium Current multi-layer ferrite chip beads
Applications:
Noise suppression in computer peripherals,
telecommunication equipment, data communication equipment and
other consumer electronics
Operating Temperature:
-55°C to +125°C
Impedance Range:
CTCB0603F: 11-1000
Ω
CTCB0805F: 7-2000
Ω
CTCB1206F: 19-2000
Ω
CTCB1210F: 32-90
Ω
CTCB1806F: 50-170
Ω
CTCB1812F: 70-120
Ω
Testing:
Impedance is tested on an HP4287A at 100 MHz
Packaging:
Tape & Reel
Miscellaneous:
RoHS Compliant.
Marking:
Reels marked with part number
Additional Information:
Additional electrical & physical
information available upon request
Samples available. See website for ordering information.
06.20.07
Technologies
Manufacturer of Passive and Discrete Semiconductor Components
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2007 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
CENTRAL
Chip Beads - Multi-layer
ctparts.com
CTCBF Series
Medium Current

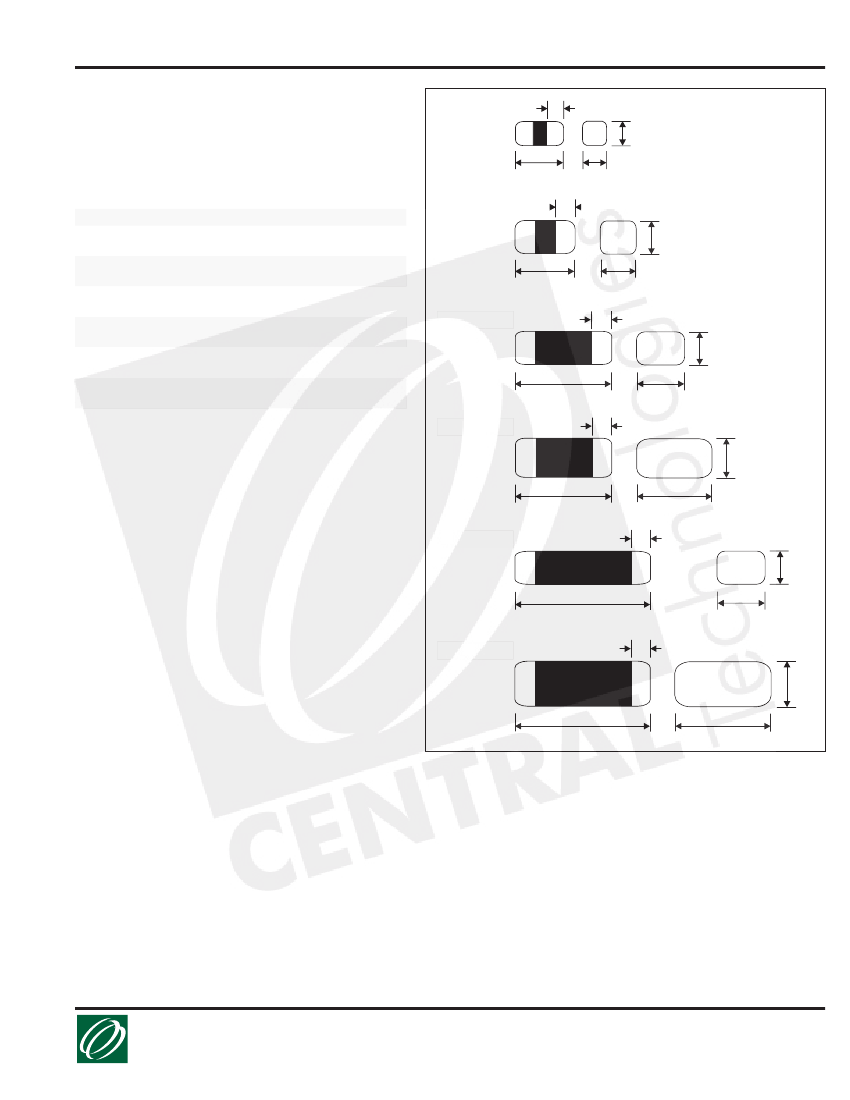

PHYSICAL DIMENSIONS
Size
0603/
1608
0805/
2012
1206/
3216
1210/
3225
1806/
4516
1812/
4532
A
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
0.063±0.008
1.6±0.2
0.08±0.008
2.0±0.2
0.126±0.008
3.2±0.2
0.126±0.008
3.2±0.2
0.177±0.01
4.5±0.25
0.177±0.008
4.5±0.2
CTCB0603F
D
C
A
B
D
C
A
B
D
C
A
CTCB0805F
B
0.03±0.008
0.8±0.2
0.047±0.008
1.2±0.2
0.063±0.008
1.6±0.2
0.098±0.008
2.5±0.2
0.063±0.008
1.6±0.2
0.126±0.008
3.2±0.2
C
0.03±0.008
0.8±0.2
0.035±0.008
0.9±0.2
0.043±0.008
1.1±0.2
0.05±0.008
1.3±0.2
0.063±0.008
1.6±0.2
0.05±0.008
1.5±0.2
D
0.016±0.008
0.4±0.2
0.02±0.012
0.5±0.3
0.02±0.012
0.5±0.3
0.02±0.12
0.3±0.3
0.02±0.012
0.5±0.3
0.02±0.012
0.5±0.3
CTCB1206F
B
D
C
CTCB1210F
A
CTCB1806F
B
D
C
B
D
C
A
CTCB1812F
A
B
06.20.07
Technologies
Manufacturer of Passive and Discrete Semiconductor Components
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2007 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
CENTRAL
