CTCB0805F-400U: DescriptionChip Beads - Multi-layer; CategoryAnalog mixed-signal IC filter; File Size477KB，2 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTCB0805F-400U Overview

Chip Beads - Multi-layer

CTCB0805F-400U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CT [ Central Technologies ]
package instruction	ROHS COMPLIANT, EIA STD PACKAGE SIZE 0805, 2 PIN
Reach Compliance Code	compli
ECCN code	EAR99
shell code	0805
structure	Multilayer Chi
Maximum DC resistance	0.02 Ω
filter type	FERRITE CHIP
maximum frequency	100 MHz
minimum frequency	100 MHz
high	0.9 mm
JESD-609 code	e3
length	2 mm
Material	Ferrite
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Output impedance	40 OHM Ω
method of packing	TAPE AND REEL
physical size	L2.0XB1.2XH0.9 (mm)/L0.079XB0.047XH0.035 (inch)
Rated current	5 A
Terminal surface	Matte Tin (Sn)
width	1.2 mm

Preview

Download Datasheet

View All

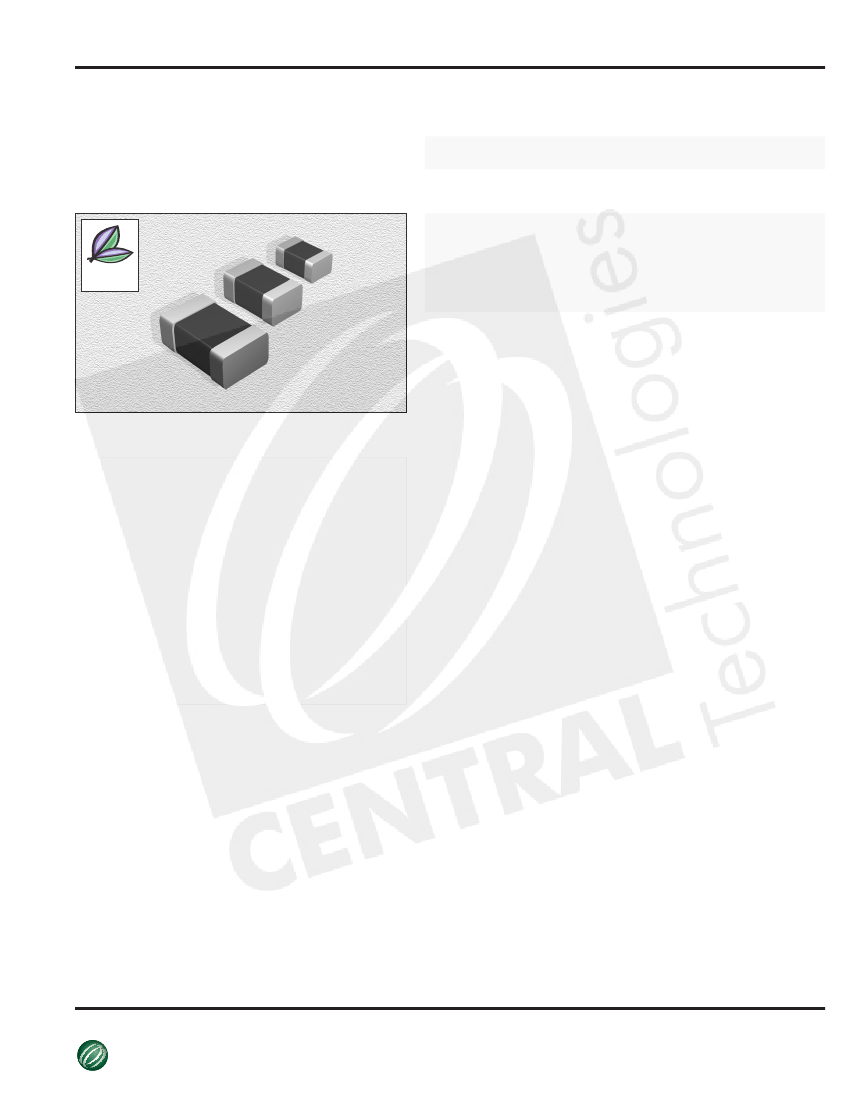

Chip Beads - Multi-layer

ctparts.com

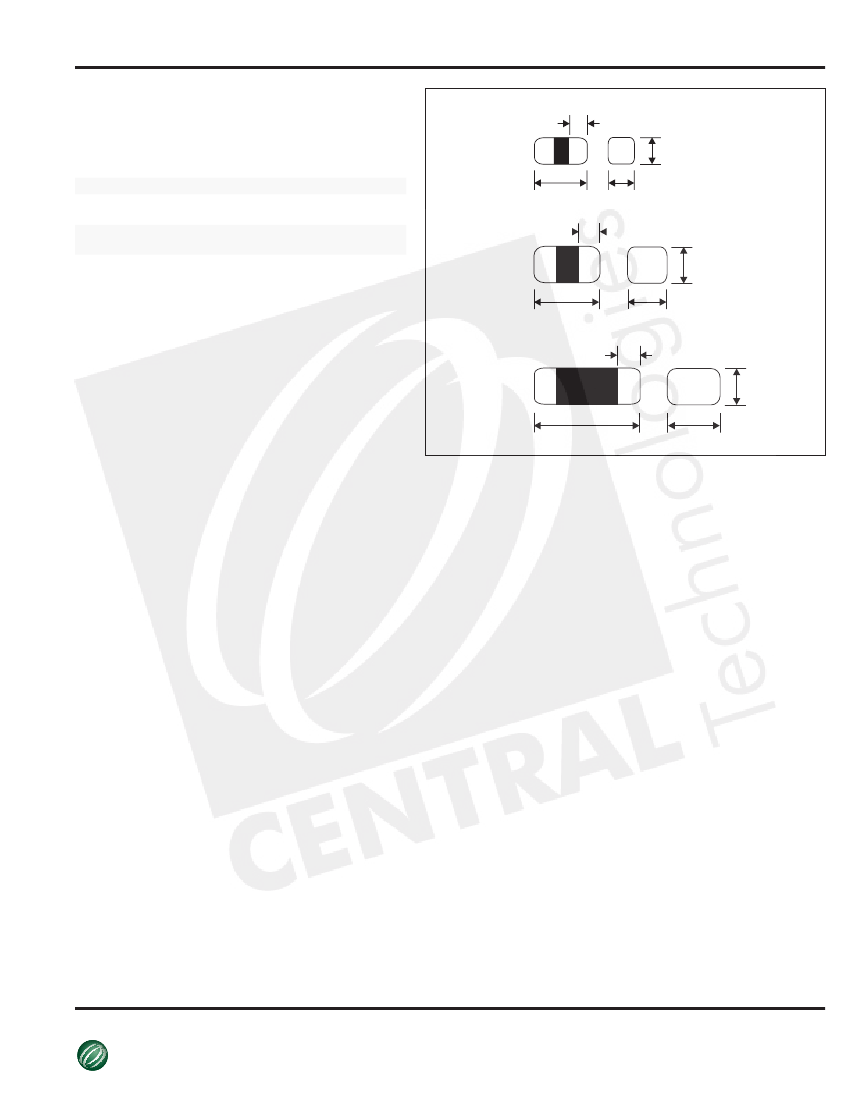

SPECIFICATIONS

CTCBF Series

Ultra High Current

From 11

Ω

to 150

Ω

Part

Number

CTCB0603F-110U

CTCB0603F-170U

CTCB0603F-250U

CTCB0603F-300U

CTCB0805F-110U

CTCB0805F-150U

CTCB0805F-190U

CTCB0805F-260U

CTCB0805F-300U

CTCB0805F-330U

CTCB0805F-400U

CTCB0805F-500U

CTCB0805F-600U

CTCB0805F-800U

CTCB1206F-110U

CTCB1206F-190U

CTCB1206F-260U

CTCB1206F-300U

CTCB1206F-310U

CTCB1206F-400U

CTCB1206F-500U

CTCB1206F-600U

CTCB1206F-800U

CTCB1206F-101U

CTCB1206F-121U

CTCB1206F-151U

Parts are available in ±25% tolerance only.

Test

Freq.

(MHz)

100

DCR

Max.

Ω

(Ω)

.015

.012

.02

.012

.02

.015

.02

.012

.02

Impedance

Ω

(Ω)

11

17

25

30

11

15

19

26

30

33

40

50

60

80

11

19

26

30

31

40

50

60

80

100

120

150

IDC

(mA)

4500

5000

4500

6000

4500

Compliant

RoHS

Not shown at actual size.

CHARACTERISTICS

Description:

Ultra High Current multi-layer ferrite chip beads

Applications:

Noise suppression in computer peripherals,

telecommunication equipment, data communication equipment and

other consumer electronics

Operating Temperature:

-25°C to +85°C

Impedance Range:

CTCB0603F: 11-30

Ω

CTCB0805F: 11-80

Ω

CTCB1206F: 11-150

Ω

Testing:

Impedance is tested on an HP4287A at 100 MHz

Packaging:

Tape & Reel

Miscellaneous:

RoHS Compliant.

Marking:

Reels marked with part number

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

03.30.09

CENTRAL

Manufacturer of Passive Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
