RCR20G302JP datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> The resistor> RCR20G302JP

Preview

RCR20G302JP: DescriptionFixed Resistor, Ceramic Composition, 0.5W, 3000ohm, 350V, 5% +/-Tol,; CategoryPassive components The resistor; File Size2MB，36 Pages; ManufacturerRockwell Automation

Download Datasheet Parametric View All

RCR20G302JP Overview

Fixed Resistor, Ceramic Composition, 0.5W, 3000ohm, 350V, 5% +/-Tol,

RCR20G302JP Parametric

Parameter Name	Attribute value
Maker	Rockwell Automation
Reach Compliance Code	unknow
ECCN code	EAR99
structure	Insulated
Lead diameter	0.79 mm
Lead length	38.1 mm
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package diameter	3.51 mm
Package length	9.53 mm
Package form	Axial
Rated power dissipation(P)	0.5 W
Guideline	MIL-R-39008
resistance	3000 Ω
Resistor type	FIXED RESISTOR
series	RCR20G SERIES
technology	CERAMIC COMPOSITION
Tolerance	5%
Operating Voltage	350 V

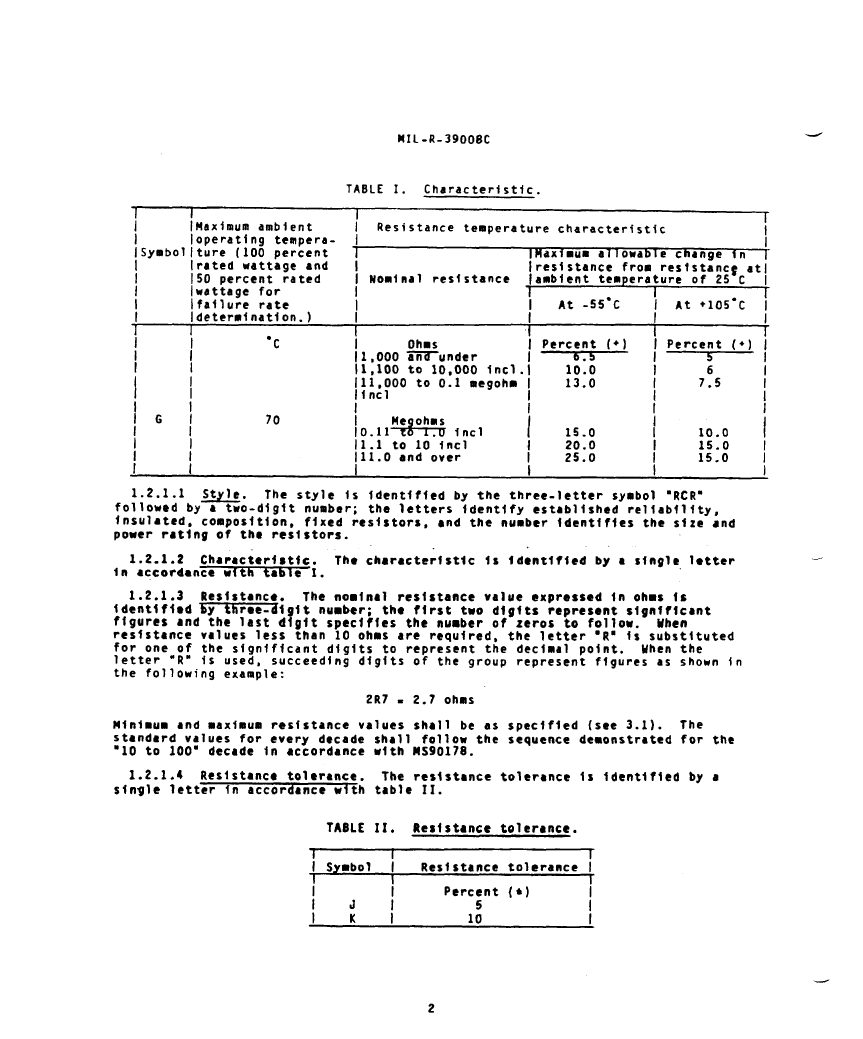

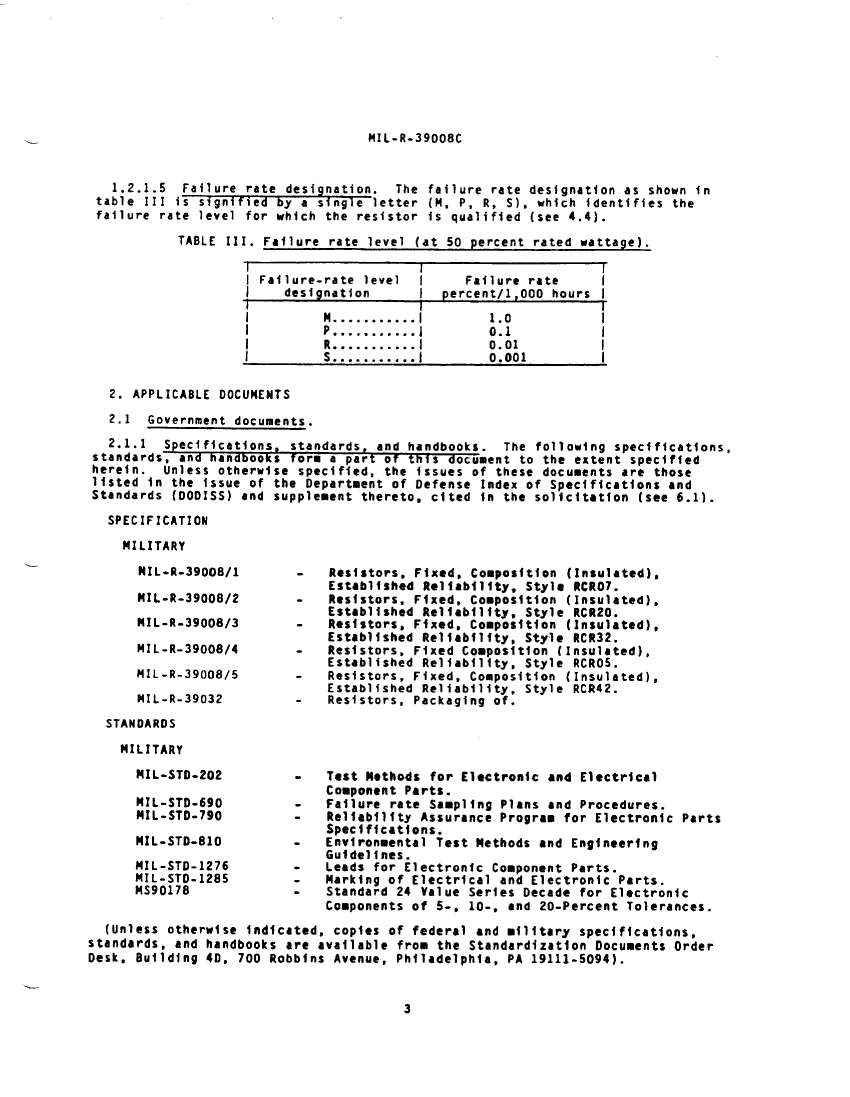

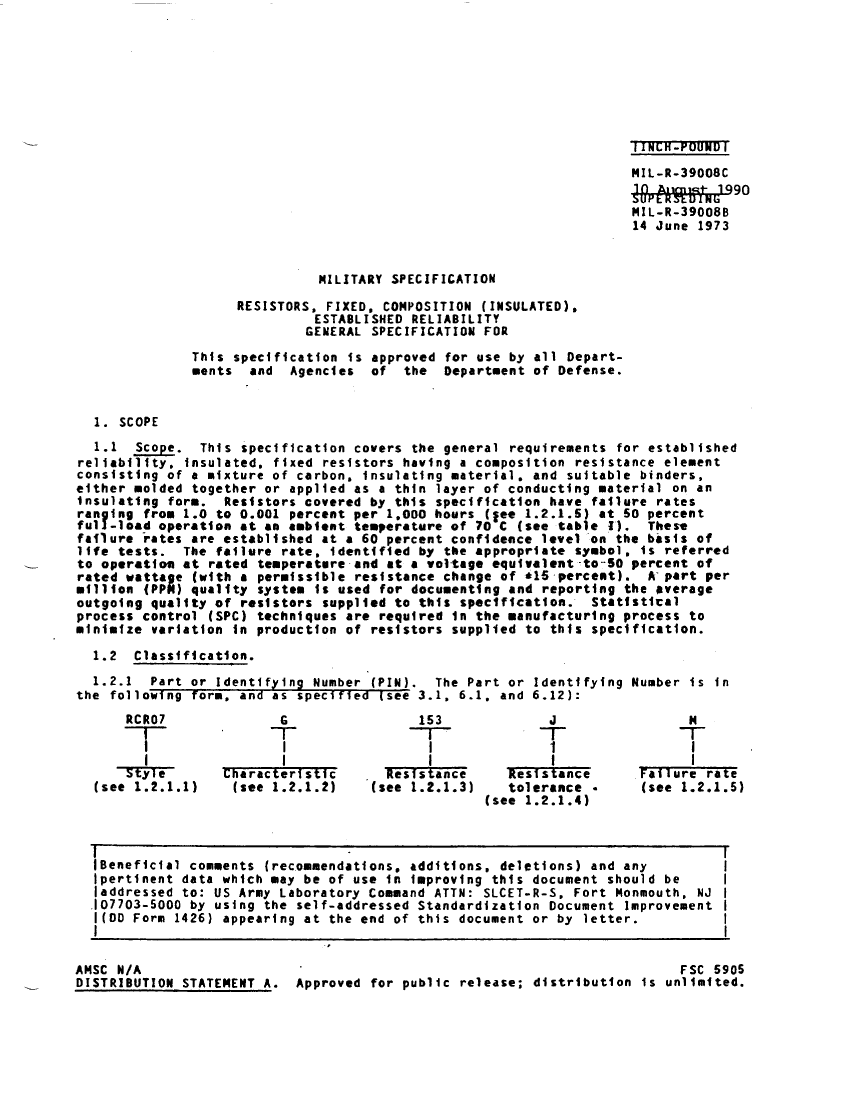

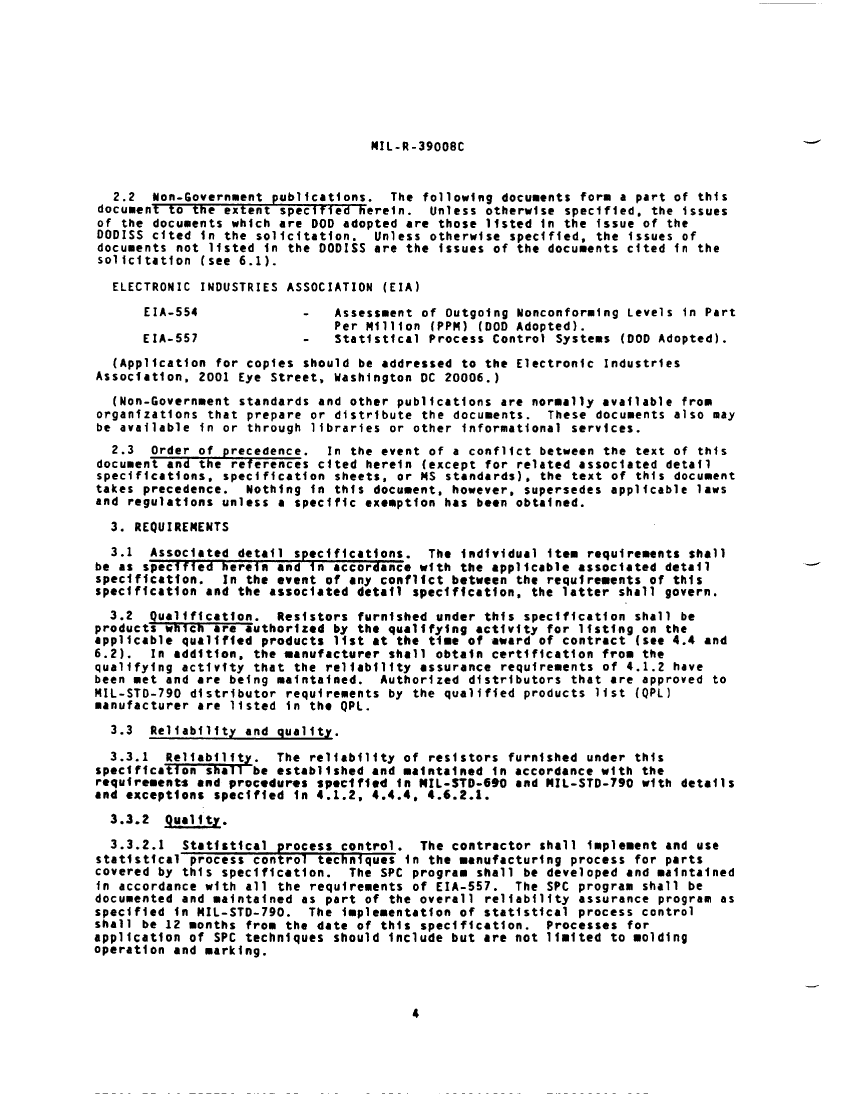

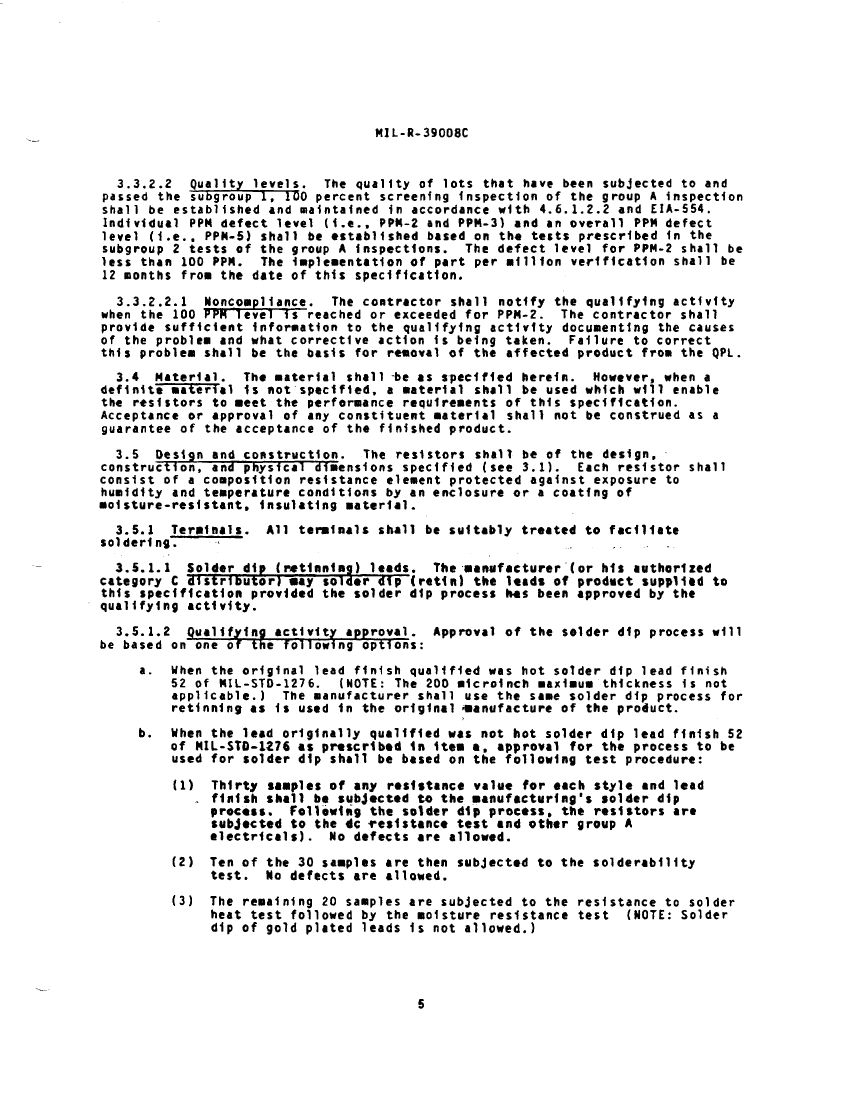

RCR20G302JP Preview
