CTCDRH5D18F-120N datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CTCDRH5D18F-120N

CTCDRH5D18F-120N: Description1 ELEMENT, 12 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size192KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTCDRH5D18F-120N Overview

1 ELEMENT, 12 uH, GENERAL PURPOSE INDUCTOR, SMD

CTCDRH5D18F-120N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
DC Resistance	0.153 Ω
Nominal inductance(L)	12 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	CTCDRH5D18F
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum rated current	1.1 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.01 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

Power Inductors - Shielded

ctparts.com

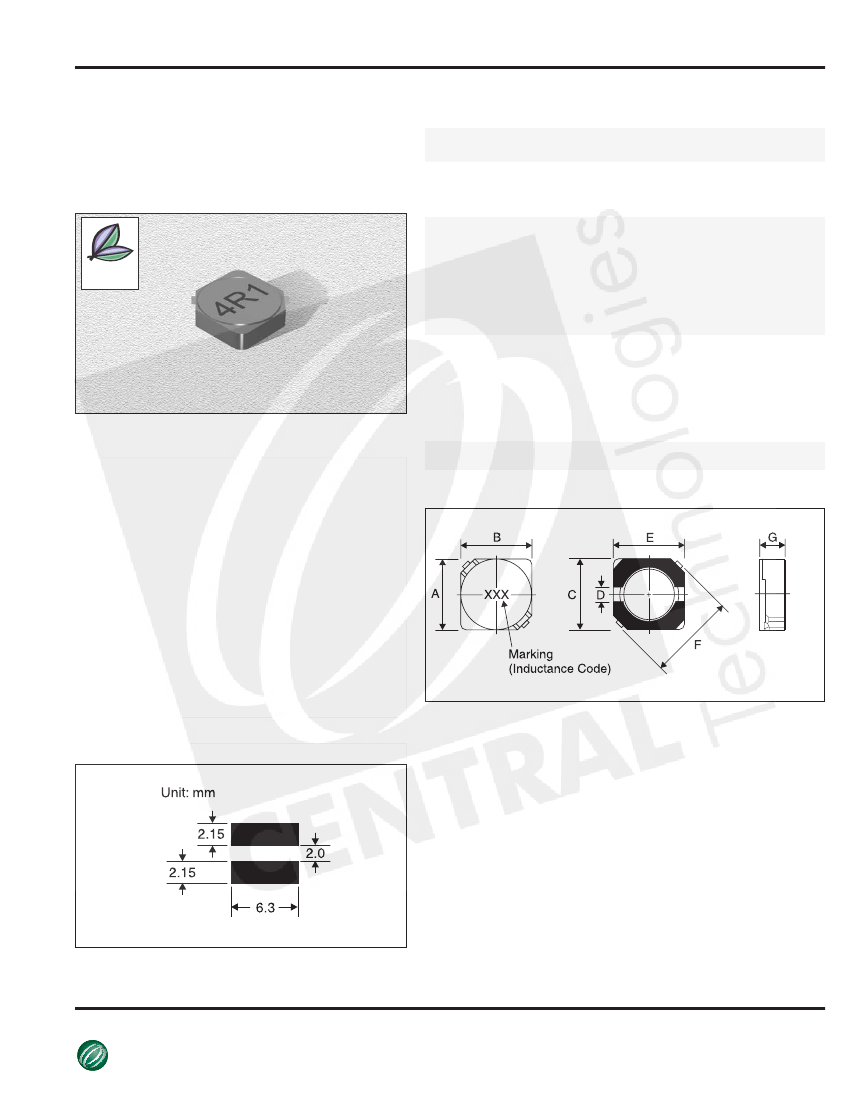

CTCDRH5D18F Series

From 3.3 µH to 330 µH

Part

Number

CTCDRH5D18F-3R3N

CTCDRH5D18F-4R1N

CTCDRH5D18F-5R4N

CTCDRH5D18F-6R2N

CTCDRH5D18F-8R9N

Not shown at actual size.

CTCDRH5D18F-100N

CTCDRH5D18F-120N

CTCDRH5D18F-150N

CTCDRH5D18F-180N

CTCDRH5D18F-220N

CTCDRH5D18F-270N

CTCDRH5D18F-330N

CTCDRH5D18F-390N

CTCDRH5D18F-470N

CTCDRH5D18F-560N

CTCDRH5D18F-680N

CTCDRH5D18F-820N

CTCDRH5D18F-101N

CTCDRH5D18F-121N

CTCDRH5D18F-151N

CTCDRH5D18F-181N

CTCDRH5D18F-221N

CTCDRH5D18F-271N

CTCDRH5D18F-331N

SPECIFICATIONS

Parts are available in ±30% tolerance only.

L Test

Freq.

(kHz)

DCR

Max.

(mΩ)

116

124

153

196

210

290

330

386

520

595

665

840

978

1200

1500

1710

2240

2440

3380

4340

Rated DC

Current

(A)

2.15

1.95

1.60

1.40

1.25

1.20

1.10

0.97

0.85

0.80

0.75

0.65

0.57

0.54

0.50

0.43

0.41

0.36

0.33

0.31

0.28

0.23

0.21

0.18

Inductance

(µH ±30%)

3.3

4.1

5.4

6.2

8.9

100

120

150

180

220

270

330

Compliant

RoHS

PHYSICAL DIMENSIONS

CHARACTERISTICS

Description:

SMD (shielded) power inductor

Applications:

Power supplies for VTR, OA equipment, LCD

televisions, PC notebooks, portable communication equipment,

DC/DC converters, etc.

Operating Temperature:

-40°C to +85°C

Inductance Tolerance:

±30%

Testing:

Tested on a HP4284A at 10 KHz , 0.25Vrms , 0Adc

Packaging:

Tape & Reel

Marking:

Parts are marked with inductance code

Rated DC Current: Indicates the current when the inductance

decreases to 65% of its initial value or D.C. current when the

temperature of coil is increased by 30% the smaller one is defined

as rated current.

Miscellaneous:

RoHS Compliant.

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

Size

inches

5.7±0.3

0.22±0.01

5.7±0.3

0.22±0.01

5.5

0.217

2.0

0.08

5.5

0.217

Max.

8.2

0.32

Max.

2.0

0.08

PAD LAYOUT

08.18.08

CENTRAL

Manufacturer of Inductors, Chokes, Coils, Beads, Transformers & Toroids

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

TECHNOLOGIES
